S5486F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> S5486F

S5486F: DescriptionXOR Gate, TTL, CDIP14; Categorylogic logic; File Size158KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

S5486F Overview

XOR Gate, TTL, CDIP14

S5486F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknow
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	XOR GATE
MaximumI(ol)	0.016 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	43 mA
Prop。Delay @ Nom-Su	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

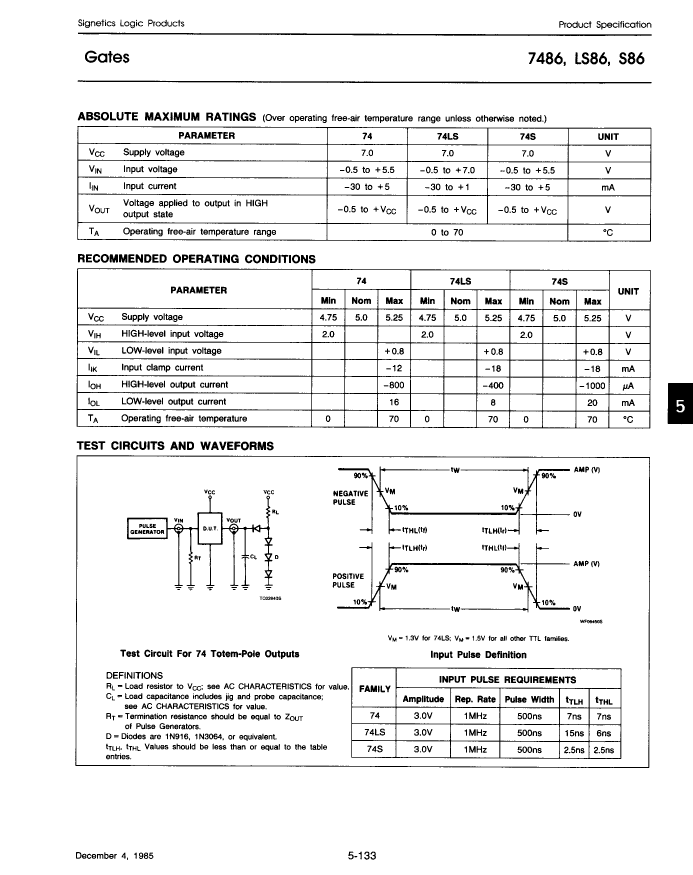

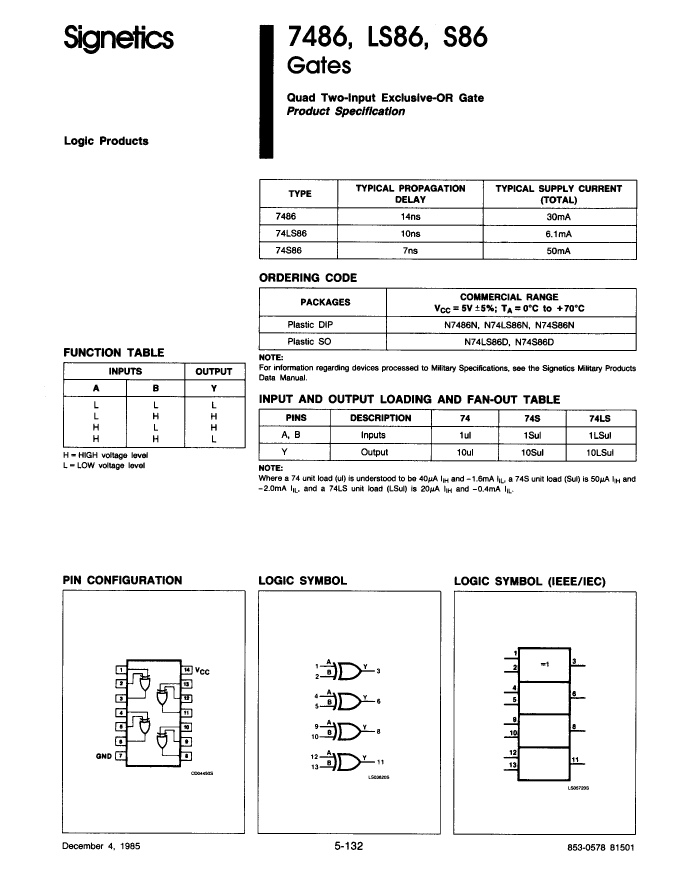

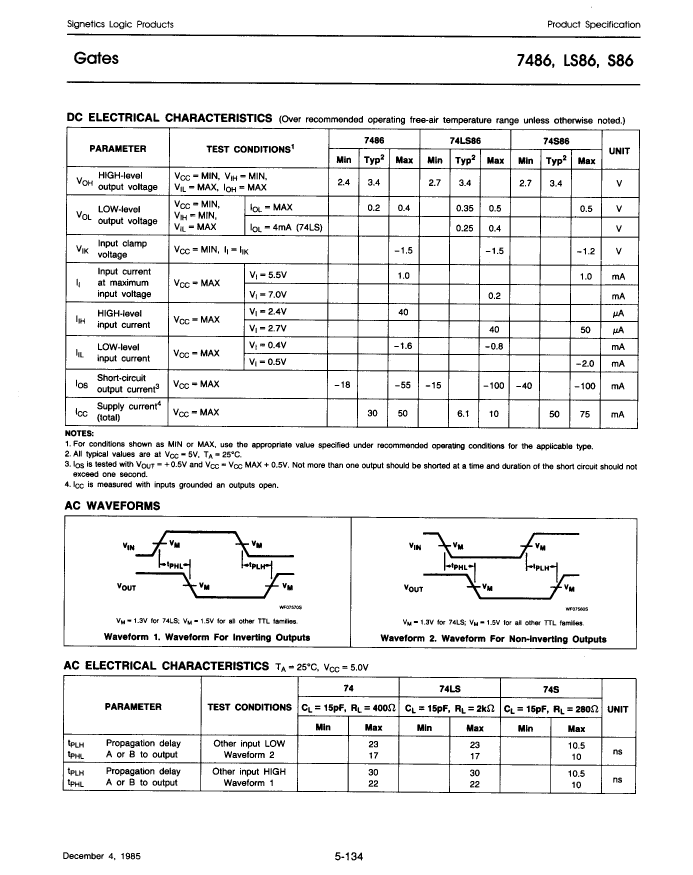

Preview

Download Datasheet

View All

S5486F Related Products

	S5486F	N7486FB	S5486F/883C	N7486A	S5486W
Description	XOR Gate, TTL, CDIP14	XOR Gate, TTL, CDIP14	XOR Gate, TTL, CDIP14	XOR Gate, TTL, PDIP14	XOR Gate, TTL, CDFP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-XDFP-F14
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE
MaximumI(ol)	0.016 A	0.008 A	0.016 A	0.008 A	0.016 A
Number of terminals	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DFP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	43 mA	50 mA	43 mA	50 mA	43 mA
Schmitt trigger	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Prop。Delay @ Nom-Su	30 ns	-	-	30 ns	30 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
