SCN2681AC1F28 datasheet, PDF - EEWORLD Datasheet

SCN2681AC1F28: DescriptionSerial I/O Controller, MOS, CDIP28,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，21 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

SCN2681AC1F28 Overview

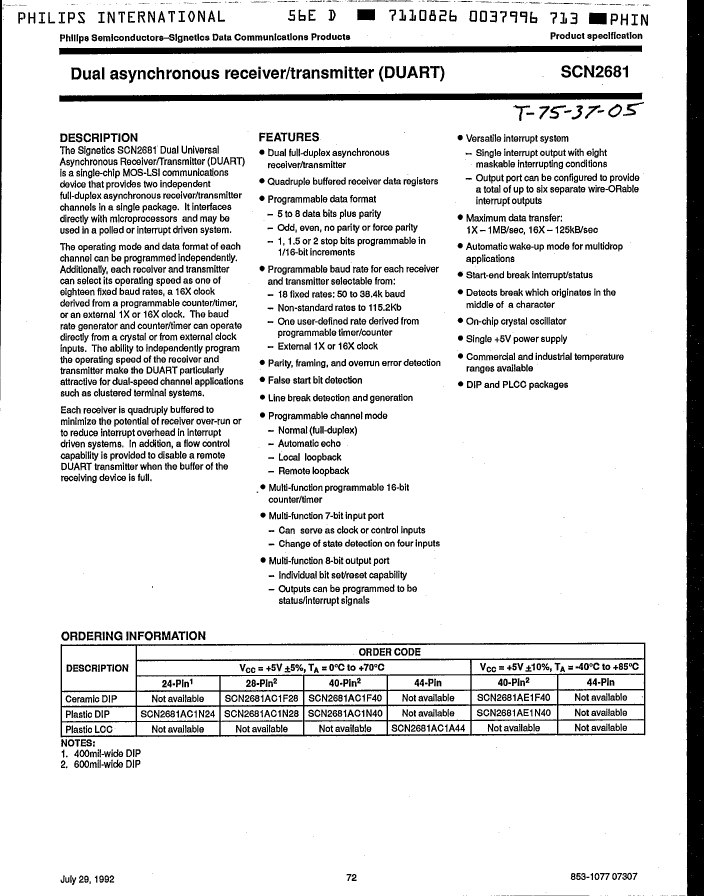

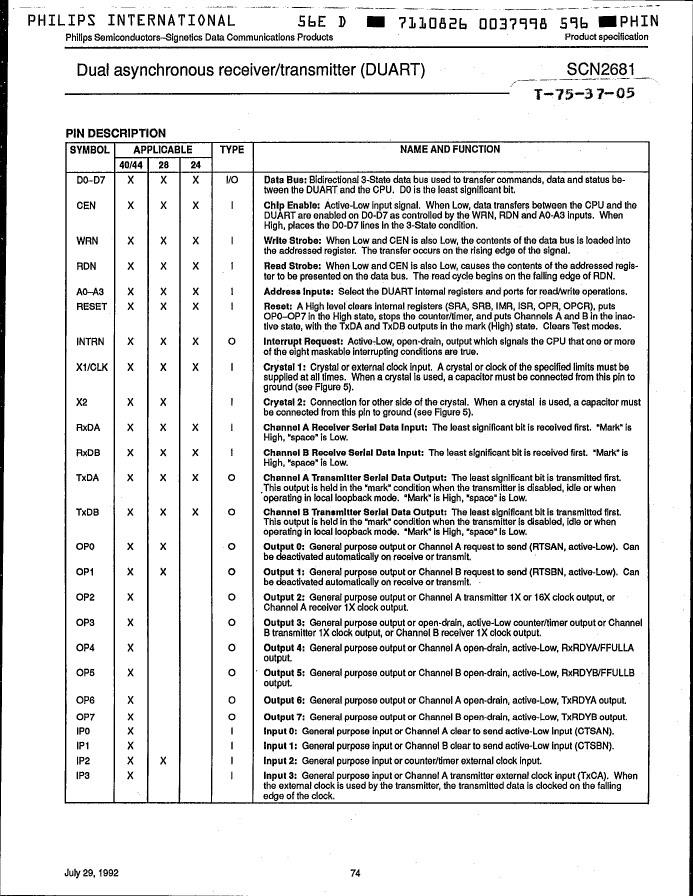

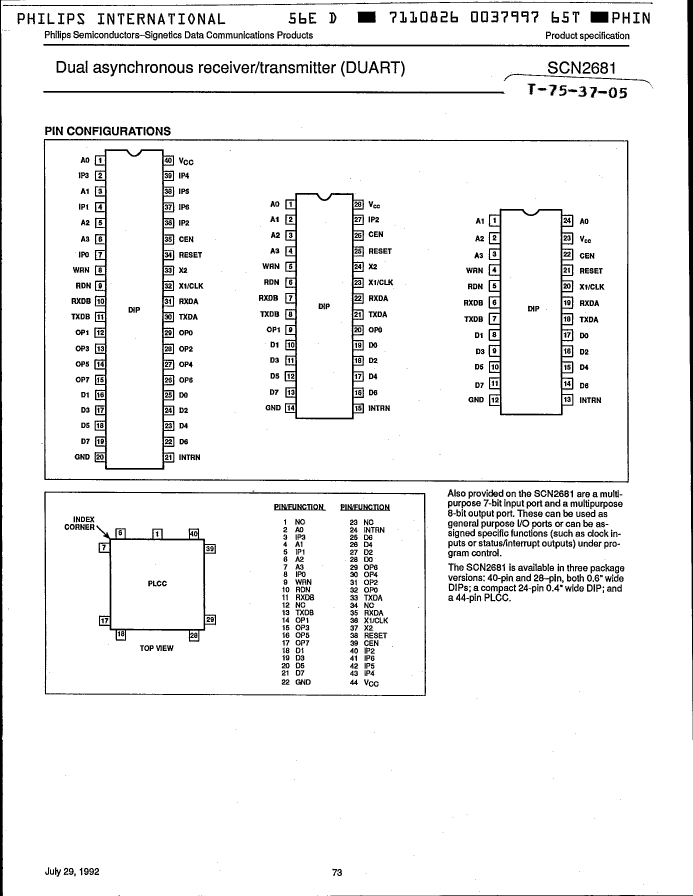

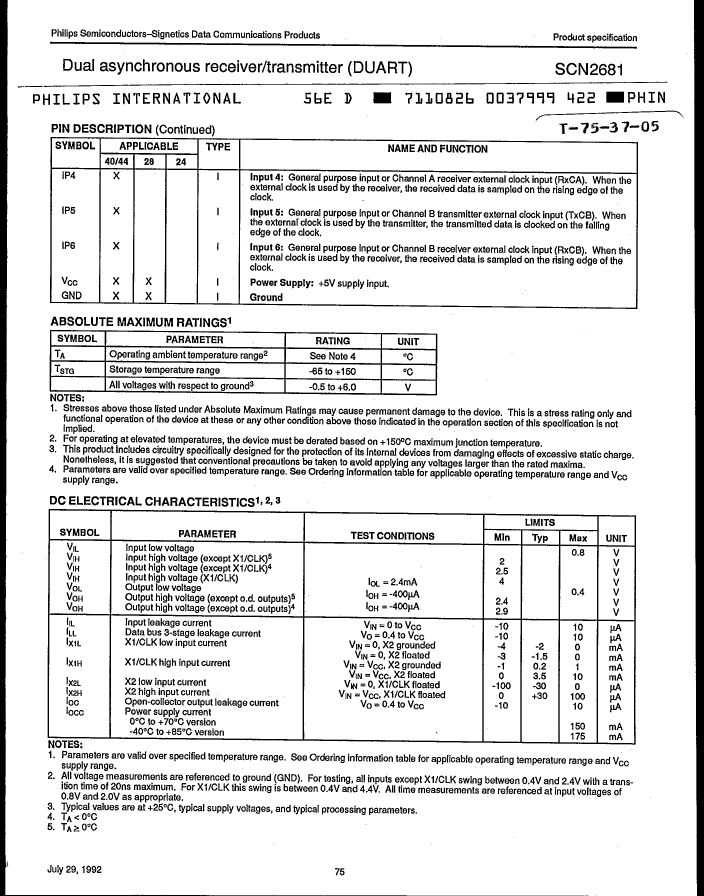

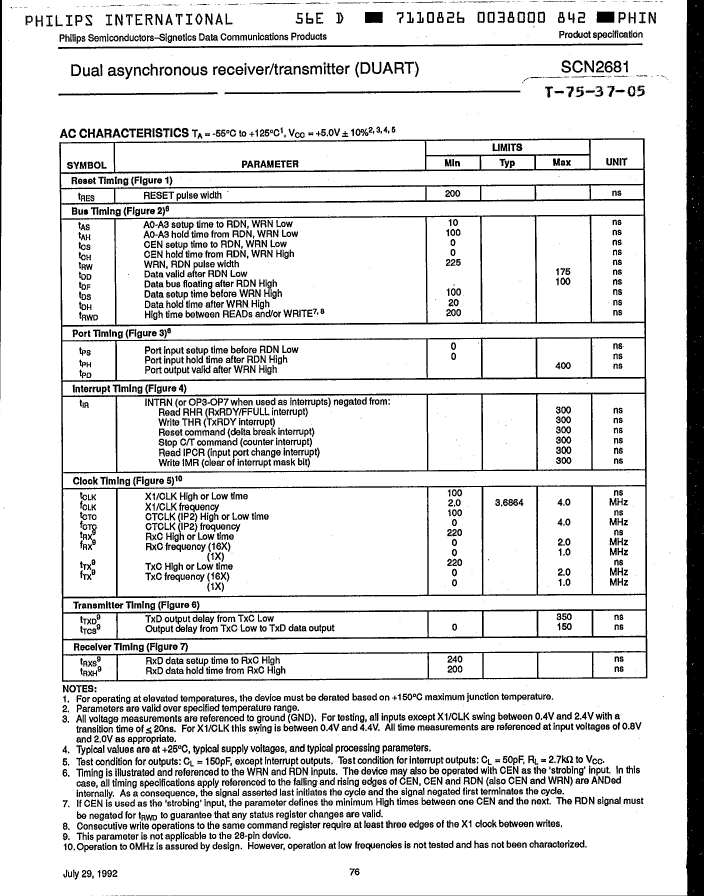

Serial I/O Controller, MOS, CDIP28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknow
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

	SCN2681AC1F28	SCN2681AC1F40
Description	Serial I/O Controller, MOS, CDIP28,	Serial I/O Controller, MOS, CDIP40,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP28,.6	DIP, DIP40,.6
Reach Compliance Code	unknow	unknown
JESD-30 code	R-XDIP-T28	R-XDIP-T40
JESD-609 code	e0	e0
Number of terminals	28	40
Maximum operating temperature	70 °C	70 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
