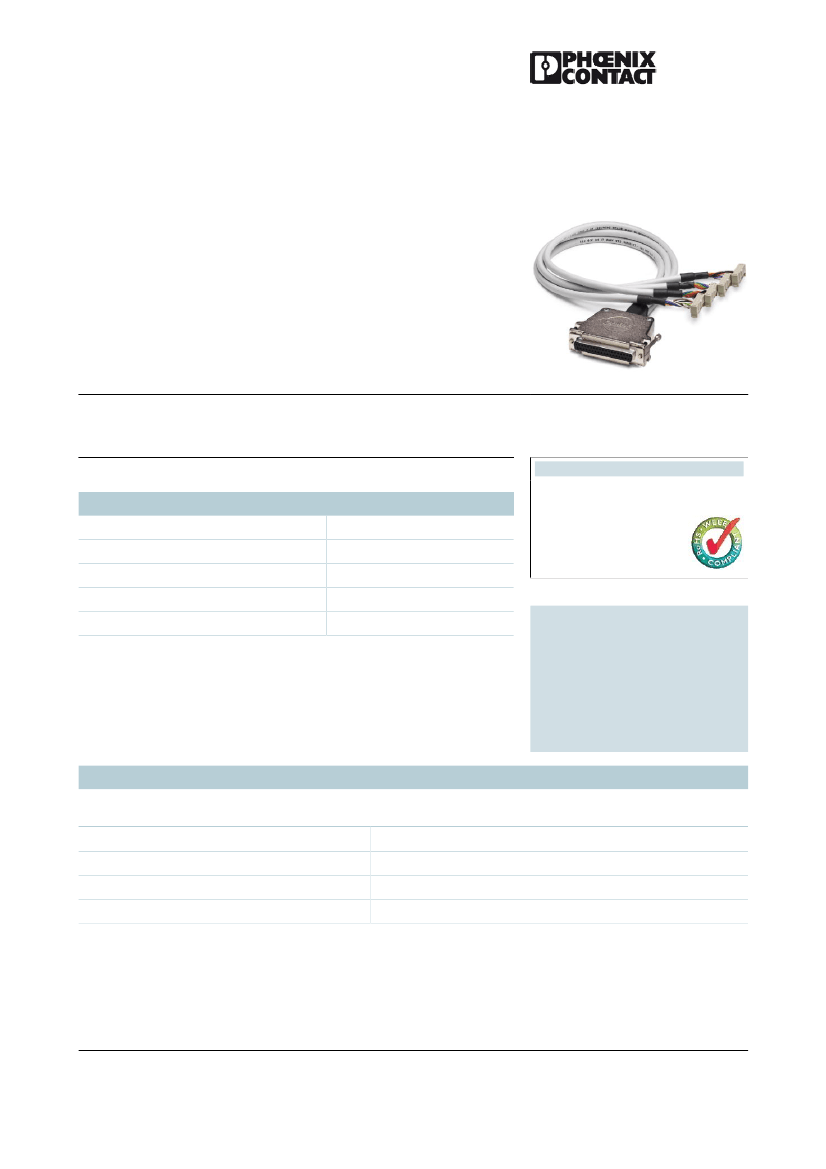

Extract from the online
catalog
CABLE-D37-M2,5/4X14/300/X81-I
Order No.: 2302544
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2302544
Splitting cable for Mitsubishi Electric MELSEC Q X81, MELSEC A1S
X81, MELSEC A AX82, cable length 3.0 m
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918906757
1 pcs.
85444290
0.7393 KG
Page 202 (IF-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
03/16/2006
Technical data
General
Nominal voltage U
N
< 50 V AC
60 V DC
Max. current carrying capacity per path
Max. conductor resistance
1A
0.16 Ω/m
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 3
Jul 12, 2009
CABLE-D37-M2,5/4X14/300/X81-I
Order No.: 2302544
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2302544
Ambient temperature (operation)
Ambient temperature (storage/transport)
Number of positions, control side
Number of connectors, control side
Number of positions, module side
Number of connectors, modul side
Fixed cable length
Single wire, cross section
AWG
Conductor construction: Number of litz wires:
Single wire, material
External diameter
Shielding
Drawings
Dimensioned drawing
-20 °C ... 50 °C
-20 °C ... 70 °C
37
1
14
4
3m
0.14 mm²
26
7
Cu tin-plated
6.3 mm
no
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 3
Jul 12, 2009
CABLE-D37-M2,5/4X14/300/X81-I
Order No.: 2302544
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2302544
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
