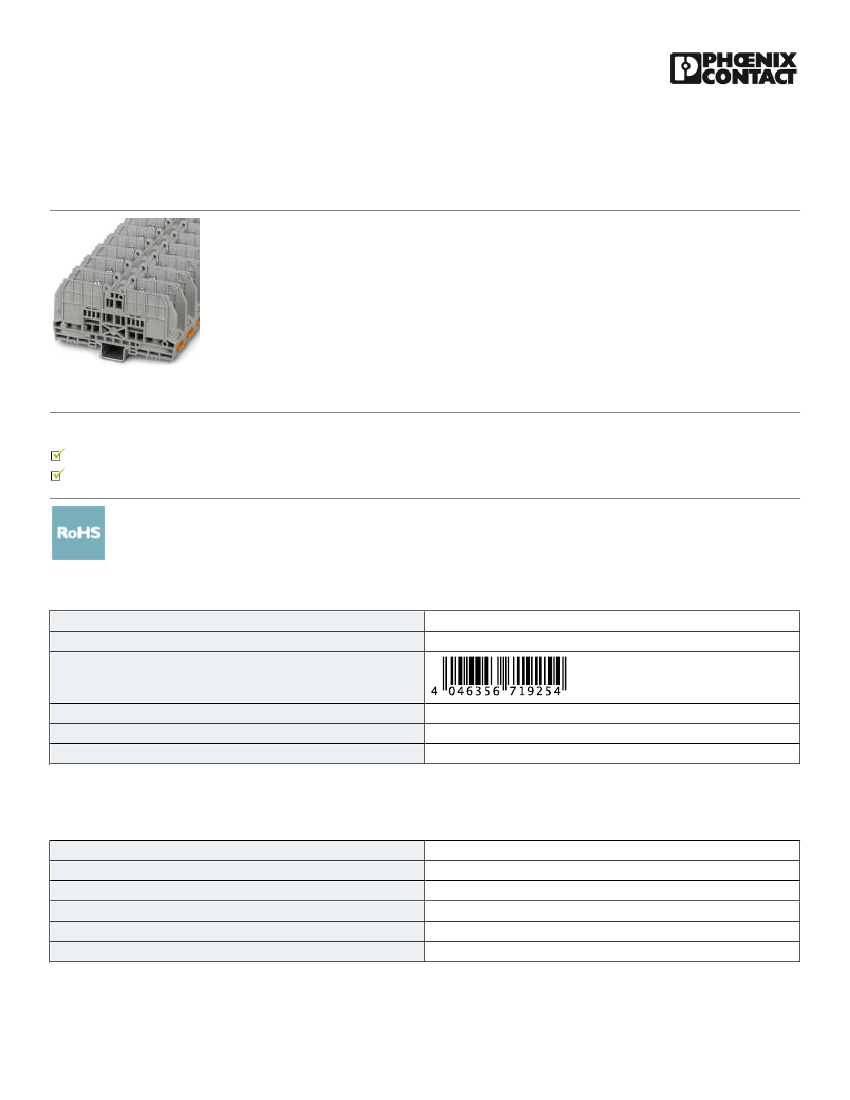

Bolt connection terminal block - RBO 8-FE - 3213139
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bolt connection terminal block, Connection method: Bolt connection, Number of positions: 1, Width: 29 mm,
Height: 66 mm, Color: black/yellow, Mounting type: NS 35/7,5, NS 35/15, ct screw connection
The illustration shows the version in
gray
Why buy this product
Mounting on standard DIN rails or directly in control boxes
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Country of origin
4046356719254
85369010
China
1 STK
5 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
1
1
2
1
70 mm²
black/yellow
02/10/2017 Page 1 / 15
https://www.phoenixcontact.com/us/products/3213139
Bolt connection terminal block - RBO 8-FE - 3213139
Technical data
General
Insulating material
Flammability rating according to UL 94
Area of application
PA
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
8 kV
3
III
I
192 A (in case of a 70 mm² conductor cross section, the maximum
load current must not be exceeded by the total current of all connected
conductors.)
192 A
1000 V
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Dimensions
Width
Length
Height
Height NS 35/7,5
Height NS 35/15
29 mm
136 mm
66 mm
67 mm
74.5 mm
02/10/2017 Page 2 / 15
https://www.phoenixcontact.com/us/products/3213139
Bolt connection terminal block - RBO 8-FE - 3213139
Technical data
Dimensions
Pitch
29 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Screw thread
Connection bolts
Bolt connection
IEC 60947-7-1
6 mm²
70 mm²
8
2/0
DIN 46234
2.5 mm²
70 mm²
8.4 mm
22 mm
8 mm
M8
6 Nm
12 Nm
DIN 46235
16 mm²
70 mm²
8.4 mm
24 mm
8 mm
M8
6 Nm
12 Nm
DIN 46237
2.5 mm²
6 mm²
8.4 mm
14 mm
8 mm
M8
6 Nm
12 Nm
M8
02/10/2017 Page 3 / 15
https://www.phoenixcontact.com/us/products/3213139
Bolt connection terminal block - RBO 8-FE - 3213139
Technical data
Connection data
Tightening torque, min
Tightening torque max
6 Nm
12 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
UL
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Dimensional drawing
29
14,5
Ø6,4
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
27141120
27141120
27141120
27141120
27141120
02/10/2017 Page 4 / 15
88,9
23,5
https://www.phoenixcontact.com/us/products/3213139
Bolt connection terminal block - RBO 8-FE - 3213139
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / EAC
Ex Approvals
IECEx / ATEX
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
175 A
600 V
FILE E 60425
175 A
600 V
EAC
7500651.22.01.00246
Accessories
Accessories
