Printed-circuit board connector - BCH-508H- 3 BK - 5452291
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5.08 mm, Color: black,
Contact surface: Tin, Mounting: Wave soldering

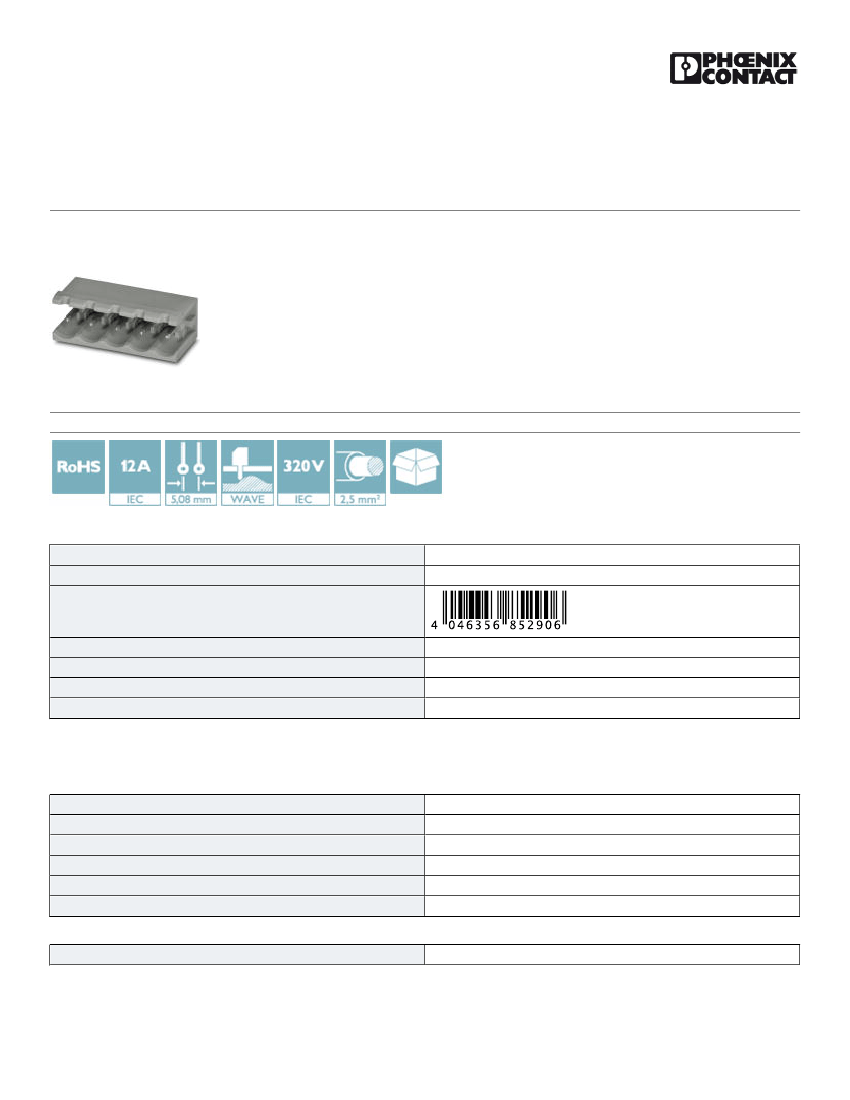

The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356852906
1.200 g
85366930
China
1 STK
100 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Length of the solder pin
Pin dimensions
Hole diameter
12 mm
5.08 mm
10.16 mm
3.5 mm
1 x 1 mm
1.4 mm
General
Range of articles
BCH-H
03/14/2017 Page 1 / 3
https://www.phoenixcontact.com/us/products/5452291
Printed-circuit board connector - BCH-508H- 3 BK - 5452291
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
I
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
12 A
PA
V0
black
3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Dimensional drawing
22
12
a+5
(a+5,08)
15
Approvals
Approvals
03/14/2017 Page 2 / 3
3,5
2
8,6
2,5
(2,54)
5
(5,08)
a
https://www.phoenixcontact.com/us/products/5452291
Printed-circuit board connector - BCH-508H- 3 BK - 5452291
Approvals
Approvals
UL Recognized / cUL Recognized / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
D
15 A
150 V
FILE E 60425
15 A
300 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
D
15 A
150 V
FILE E 60425
15 A
300 V
VDE Gutachten mit
Fertigungsüberwachung
http://www.vde.com/en/Institute/OnlineService/
VDE-approved-products/Pages/Online-Search.aspx
40040694
IECEE CB Scheme
http://www.iecee.org/
DE1-54922
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
