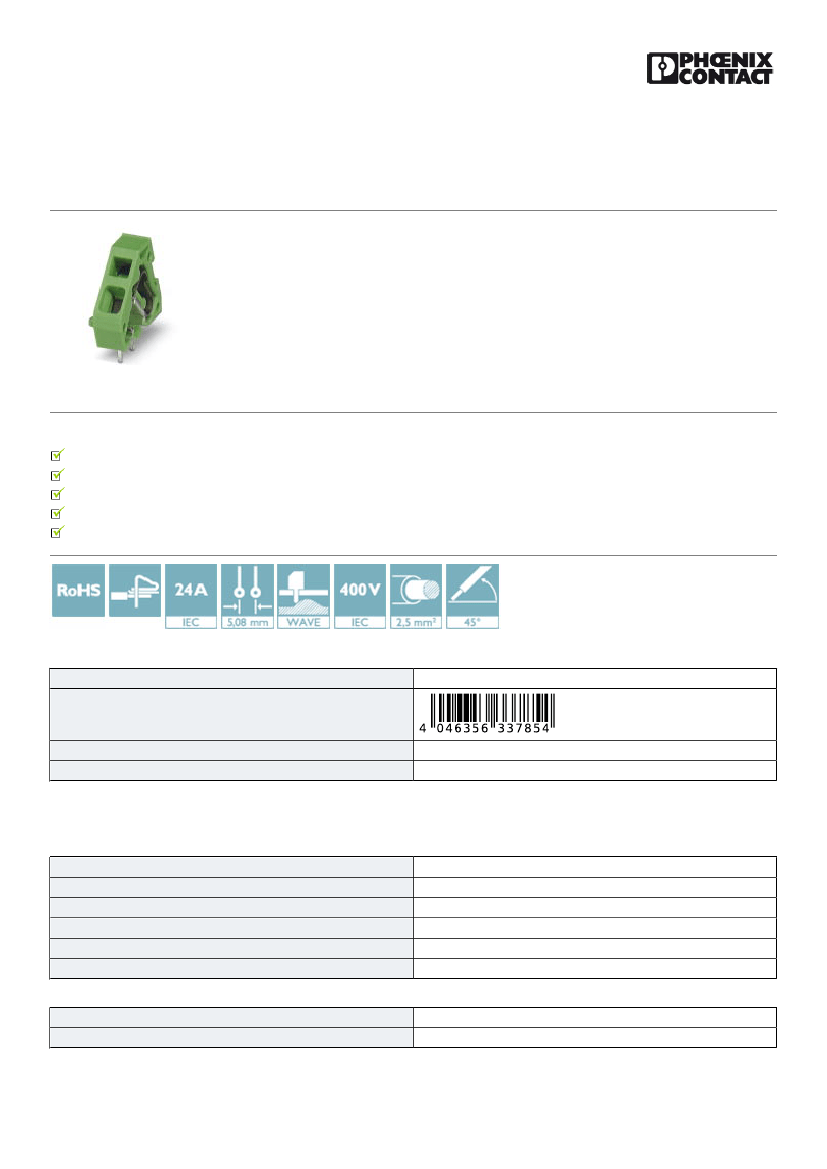

PCB terminal block - ZFKDSA 2,5-5,08- 8 NZ175N2570 - 1756757
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 8,
connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction:
45 °, color: green
The figure shows a 1-pos. version
of the product
Your advantages
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Angled connection enables multi-row arrangement on the PCB
The latching on the side enables various numbers of positions to be combined
Two solder pins reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356337854
85369010
1
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Height
Solder pin [P]
Hole diameter
16.85 mm
5.08 mm
35.56 mm
15 mm
3.5 mm
1.3 mm
General
Range of articles
Insulating material group
ZFKDS(A) 2,5
I
01/16/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1756757
PCB terminal block - ZFKDSA 2,5-5,08- 8 NZ175N2570 - 1756757
Technical data
General
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
24 A
2.5 mm²
24 A
PA
V0
A3
7 mm
8
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
24
12
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141111
27141109
27141190
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 3.0
EC001121
01/16/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1756757
PCB terminal block - ZFKDSA 2,5-5,08- 8 NZ175N2570 - 1756757
Classifications
ETIM
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC002643
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
B.01742
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/16/2019 Page 3 / 3
