ZFKKDSA 2,5-5,08- 3 GY7035 - 1708453
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 17.5 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 3,
connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction:
45 °, color: light gray

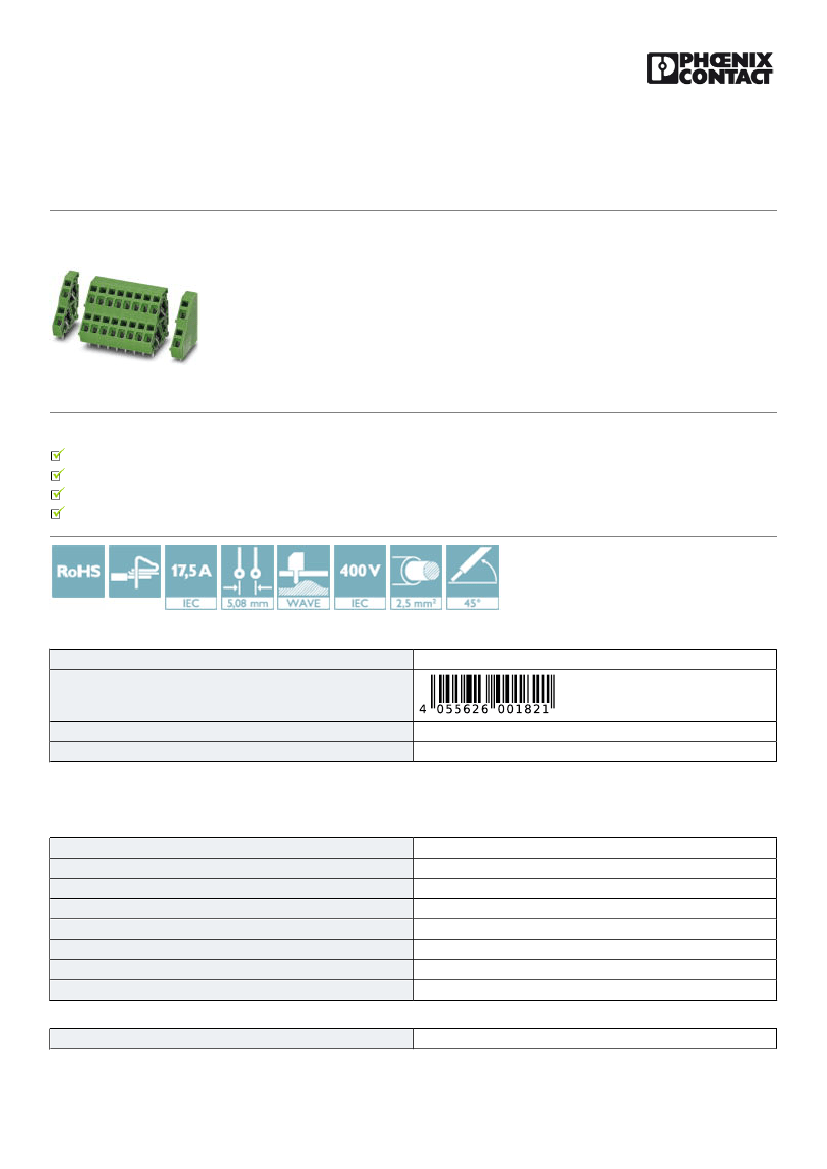

The figure shows a 10-pos. version
with 20 contacts
Your advantages
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Conductor connection on several levels enables higher contact density
The latching on the side enables various numbers of positions to be combined
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626001821
85369010
1
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Hole diameter
24 mm
5.08 mm
10.16 mm
16.24 mm
25.5 mm
29 mm
3.5 mm
1.3 mm
General
Range of articles
ZFKKDS(A) 2,5
01/13/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1708453
ZFKKDSA 2,5-5,08- 3 GY7035 - 1708453
Technical data
General
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Internal cylindrical gage
Stripping length
Number of positions
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
17.5 A
2.5 mm²
A3
7 mm
3
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
24
12
Standards and Regulations
Connection in acc. with standard
EN-VDE
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC002643
EC002643
EC002643
UNSPSC
UNSPSC 13.2
39121432
Approvals
Approvals
01/13/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1708453
ZFKKDSA 2,5-5,08- 3 GY7035 - 1708453
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
Approval details
EAC
D
300 V
10 A
26-12
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19941110
B
250 V
10 A
26-12
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/13/2019 Page 3 / 3
