EMP10
FEATURES
10mm Enclosed Cermet
Preset Potentiometer
High dissipation metal-glaze resistive element on a
ceramic base. Insulated actuating device with hexagonal
slot or cross slot. Both sides suitable for actuating.
Horizontal adj. and vertical adj. versions. Adjustment by
means of insulated hexagonal or cross slots. Overall
width: 9,8 mm (allows for high density use with air-gap
isolation on a 2,5 mm grid). The glass-filled synthetic
resin housing is fire resistant. Stable high quality
performance.Can be mounted by automatic insertion
machines.
STANDARD SPECIFICATIONS
Resistance range:
Standard tolerance:
Rated disipation
at 70ºC (P
max
)
Taper:
Temperature Range:
Mechanical Angle:
Electrical Angle:
Rotational Torque:
Max. Voltage:
Stop Torque (max.):
0,5 W
Linear
-55ºC to +125ºC
300º ± 5º
285º ± 10º
3 to 20 mNm
250 VDC
50 mNm
47
to 10 M
± 20% and ± 10%
TYPICAL APPLICATIONS
Designed for video, audio and industrial applications and
especially suited for equipment in which automatic

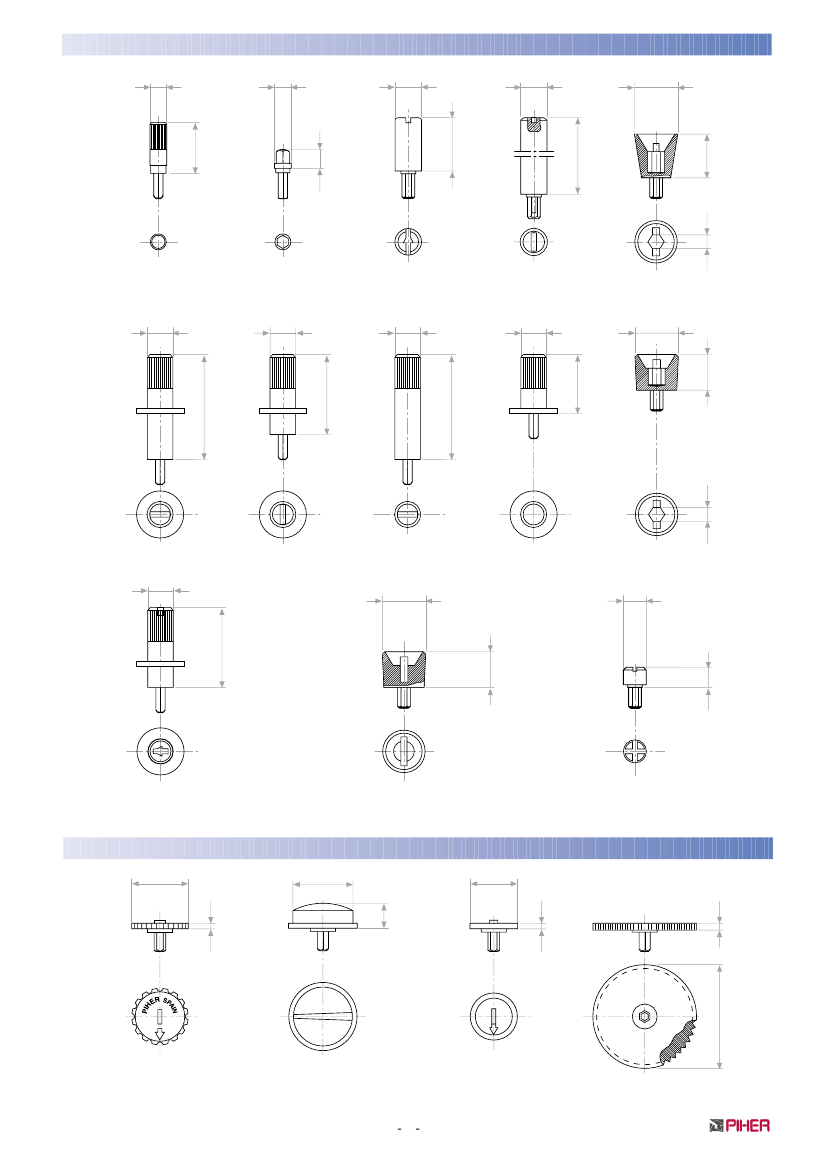

adjustment is required. Versions with a hexagonal slot
are available with a knob to facilitate manual adjustment
TERMINAL DESIGNATION
Terminals a and c are the end terminals; b is the central
terminal connected to the wiper. All terminals are either
straight or snap-in pins for mounting on printed-wiring
boards of nominal 1,0 to 1,6 mm thickness, grid pitch 2,5
or 2,54 mm.
a
c
b
HOW TO ORDER
2322 484
Series
2322 484
1
Mounting method, rotor
1 = horiz. adj.(vert. mount), hex. slot
2 = horiz. adj.(vert. mount), cross slot
6 = vert. adj.(horiz. mount), hex. slot
7 = vert. adj.(horiz. mount), cross slot
2
Tolerance, pins, packaging
2 = ± 20%, snap-in, bulk packaging
3 = ± 10%, snap-in, bulk packaging
4 = ± 20%, straight, bulk packaging
5 = ± 10%, straight, bulk packaging
101
Resistance code
470 = 47
680 = 68
101 = 100
151 = 150
221 = 220
331 = 330
471 = 470
681 = 680
102 = 1 k
152 = 1,5 k
222 = 2,2 k
332 = 3,3 k
472 = 4,7 k
682 = 6,8 k
103 = 10 k
153 = 15 k
223 = 22 k
333 = 33 k
473 = 47 k
683 = 68 k
104 = 100 k
154 = 150 k
224 = 220 k
334 = 330 k
474 = 470 k
684 = 680 k
105 = 1 M
155 = 1,5 M
225 = 2,2 M
335 = 3,3 M
475 = 4,7 M
685 = 6,8 M
106 = 10 M
NOTES:
NOTE: The information contained here should be used for reference purposes only.
QS 9000 ISO 14001
Certificate Nº 72037
Certificate Nº 65663
v01
-1-
POWER DERATING CURVE
Potentiometers covered by this specification are derated
according to the curve below. Dissipation in % of the dissipation
at 70ºC (0.5W).
TAPER
Potentiometers covered by this specification are linear.
100%
Rab
Rac
%
100
50
0
-55°
0°
50°
70°
125°
C
ambient temperature
55
50
45
0
0
50±3
100%
Dissipation as a function of ambient temperature.
Mechanical angle of rotation

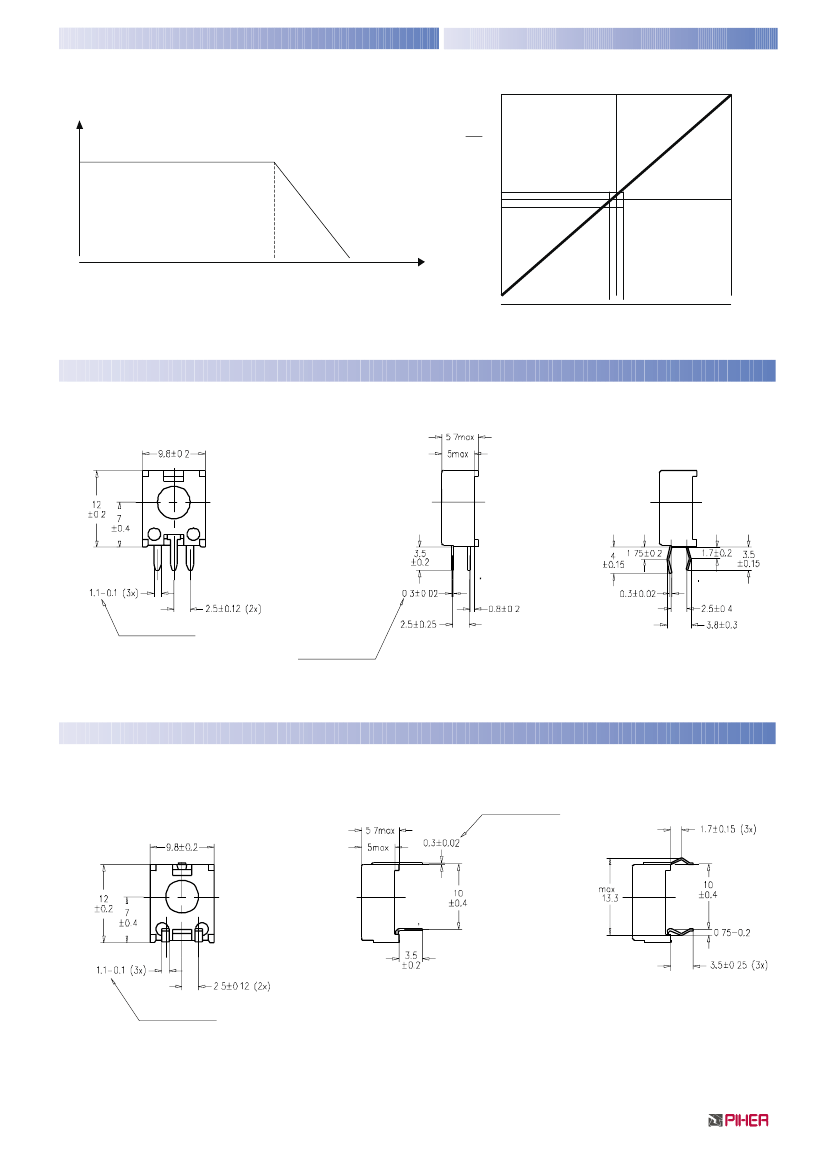

HORIZONTAL ADJUST - VERTICAL MOUNT
c
b
a
b
ca
b
ca
Incl. burrs max. 1.2
Incl. burrs max. 0.4
VERTICAL ADJUST - HORIZONTAL MOUNT
Incl. burrs max. 0.4
b
c a
c
a
Incl. burrs max. 1.2
www.piher.net
-2-

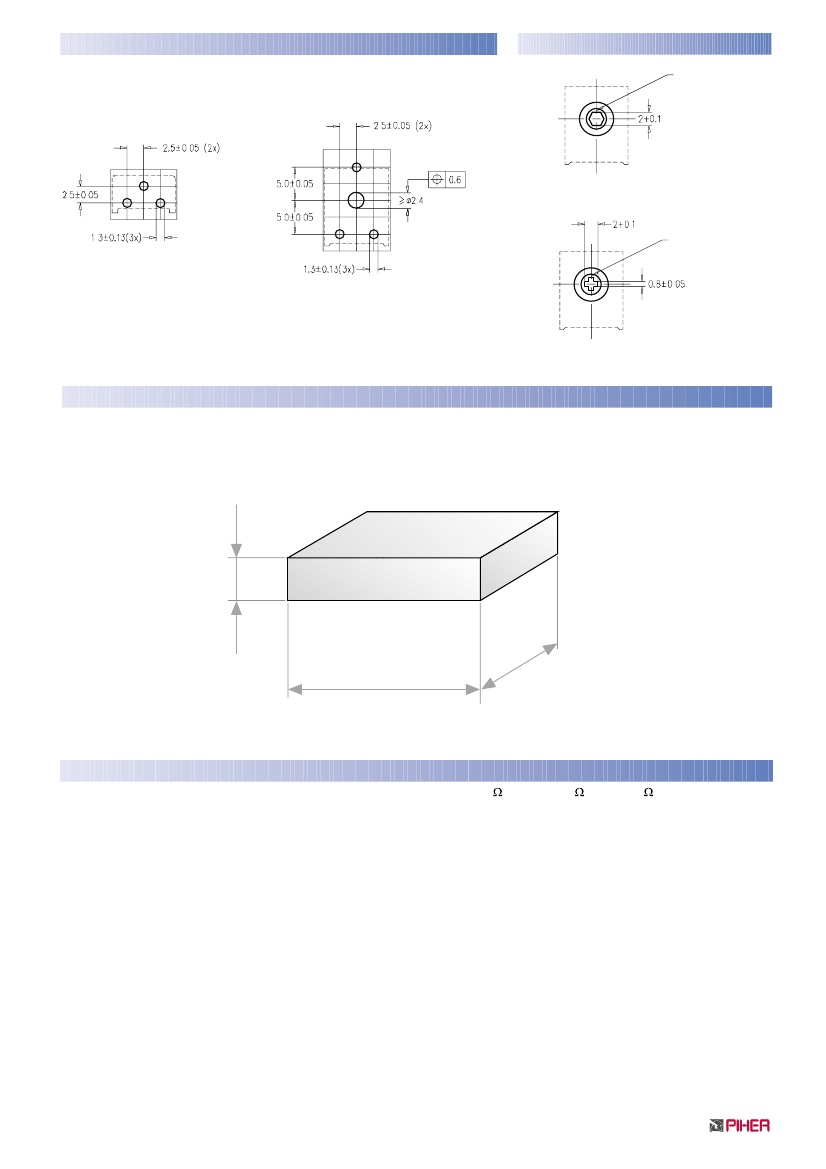

FOOTPRINT
ROTORS
wiper position mark
b
b
a
c
a
c
Hexagonal slot, insulated wiper
wiper position mark
Hole pattern for horiz. adj. versions,
viewed from component side
Hole pattern for vert. adj. versions,
viewed from component side
Cross slot, insulated wiper
PACKAGING
BULK
1000 Units per box.
75
205
0
11
MARKING
The potentiometers are marked with the rated resistance, according to IEC 62, e.g. 220
The package is marked with:
- catalogue number
- date of production,
- quantity.
= 220 R; 10 k
= 10 k; 1 M
= 1MO.
www.piher.net
-3-
