CLF3225-5.000-2.5-25-T-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CLF3225-5.000-2.5-25-T-TR

Preview

CLF3225-5.000-2.5-25-T-TR: DescriptionLVDS Output Clock Oscillator, 5MHz Nom,; CategoryPassive components oscillator; File Size225KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CLF3225-5.000-2.5-25-T-TR Overview

LVDS Output Clock Oscillator, 5MHz Nom,

CLF3225-5.000-2.5-25-T-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Raltron
package instruction	LCC6,.1X.12,95/75
Reach Compliance Code	unknow
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
maximum descent time	0.4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	100 OHM
Encapsulate equivalent code	LCC6,.1X.12,95/75
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	0.4 ns
Maximum slew rate	40 mA
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

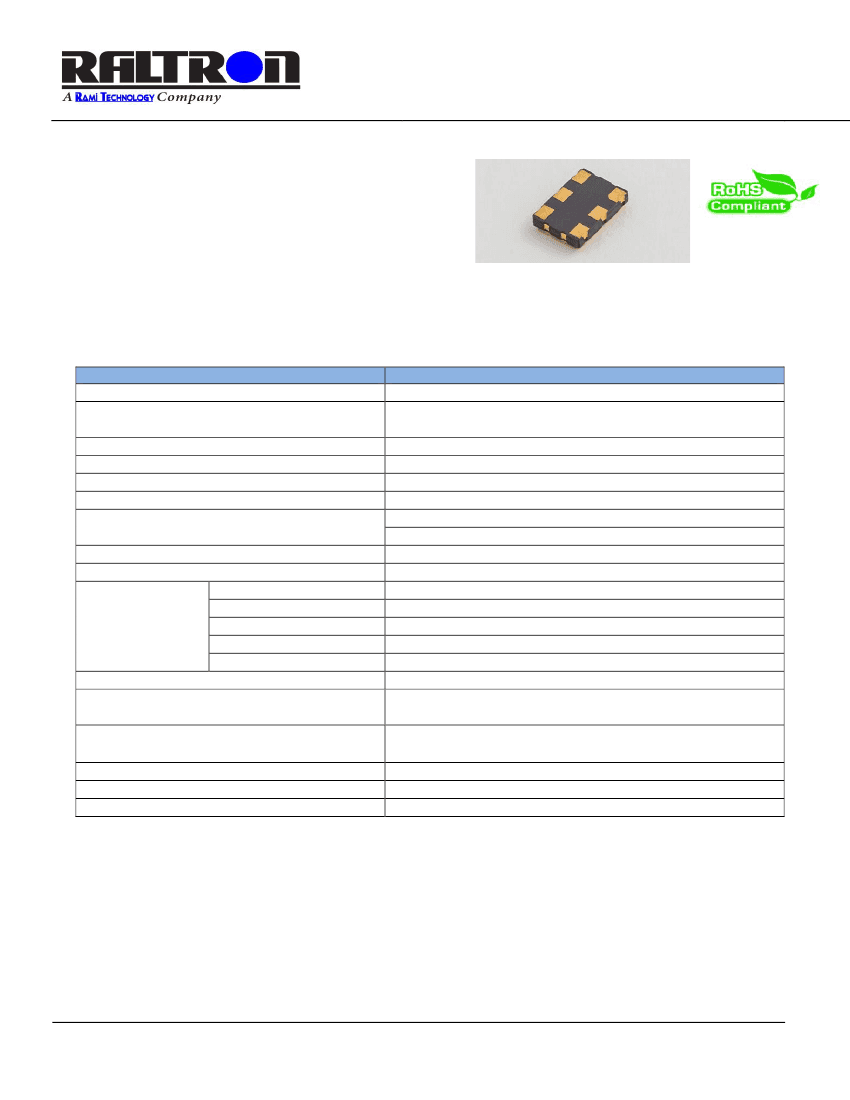

LVDS FUNDAMENTAL SURFACE

MOUNT CLOCK OSCILLATOR

SERIES CLF3225

◼

ELECTRICAL SPECIFICATION

PARAMETER

Frequency Range

Operating Temperature Range

Frequency Stability, max

Aging, first year @+25°C, max

Storage Temperature Range, Absolute Max

Supply Voltage (Vcc)

Standby Control Voltage (Pin 1)

Supply Current

Standby Current

Output

LVDS

Symmetry at 50% V

CC

Rise / Fall Time

Logic “0” Level

Logic “1” Level

Load

VALUE

5.000 MHz ~ 175.000 MHz

-20°C ~ +70°C Standard

-40°C ~ +85˚C Extended

±20 ppm, ±25 ppm, ±30 ppm, ±50 ppm, ±100ppm

±5 ppm

-50°C to +125°C

2.5 V±5%, 3.3 V ±5%

V

IH

: 70% Vcc min

V

IL

: 30% Vcc max

40 mA max

15 μA max

45% ~ 55%

0.4 ns max @ 20% ~ 80% Output swing level

0.9 V min

1.6 V max

100 Ω (OUT – OUT Differential)

10 ms max

-153 dBc / Hz, typ

125 fs typ, 500 fs max

200 ns max

4 ms max

0.33Vp-p typ (0.25Vp-p min)

Start-up time

SSB Phase Noise @ Vcc = 3.3V, 133.000MHz

@ 100kHz offset

RMS Jitter (12kHz ~ 20 MHz) @ Vcc = 3.3V,

133.000MHz

Disable delay time

Enable delay time

Differential Output Voltage

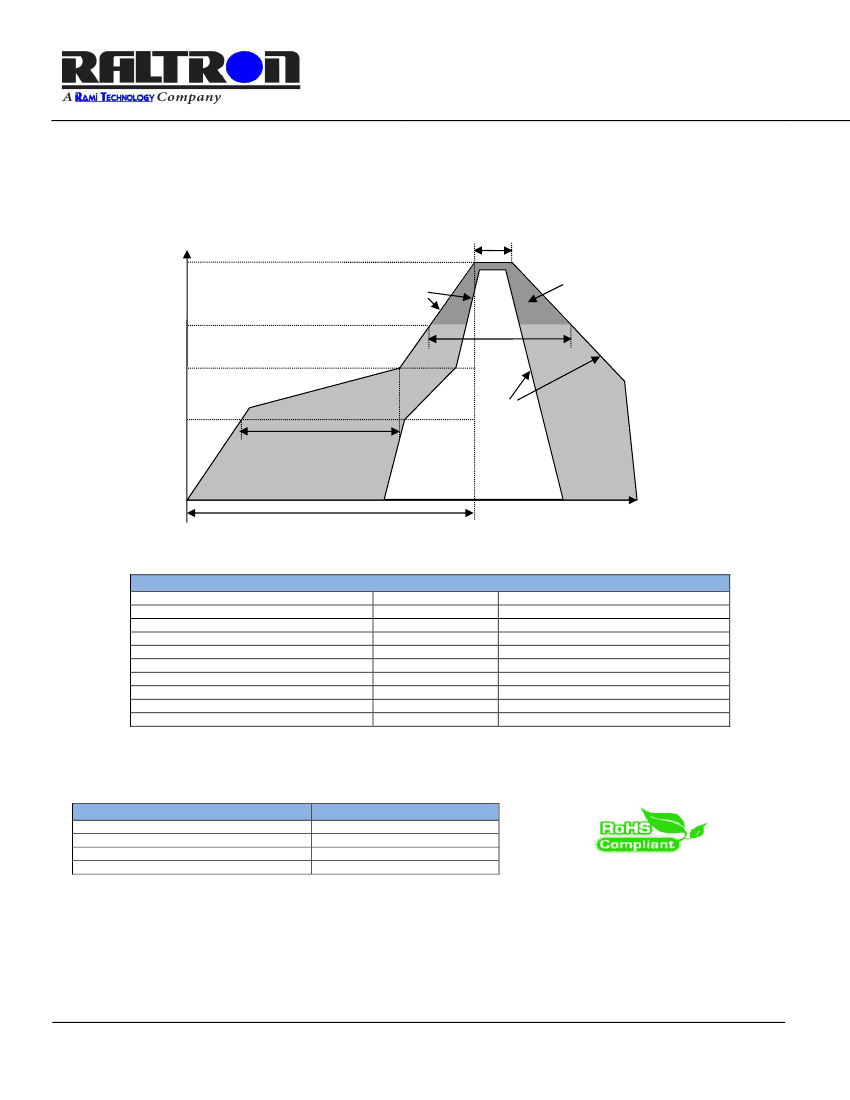

RALTRON ELECTRONICS

▪

10400 N.W. 33

rd

STREET

▪

Miami, Florida 33172

▪

U.S.A.

Telephone: 1-305-593-6033

▪

Fax: 1-305-594-3973

▪

e-mail: sales@raltron.com

▪

web site: www.raltron.com
