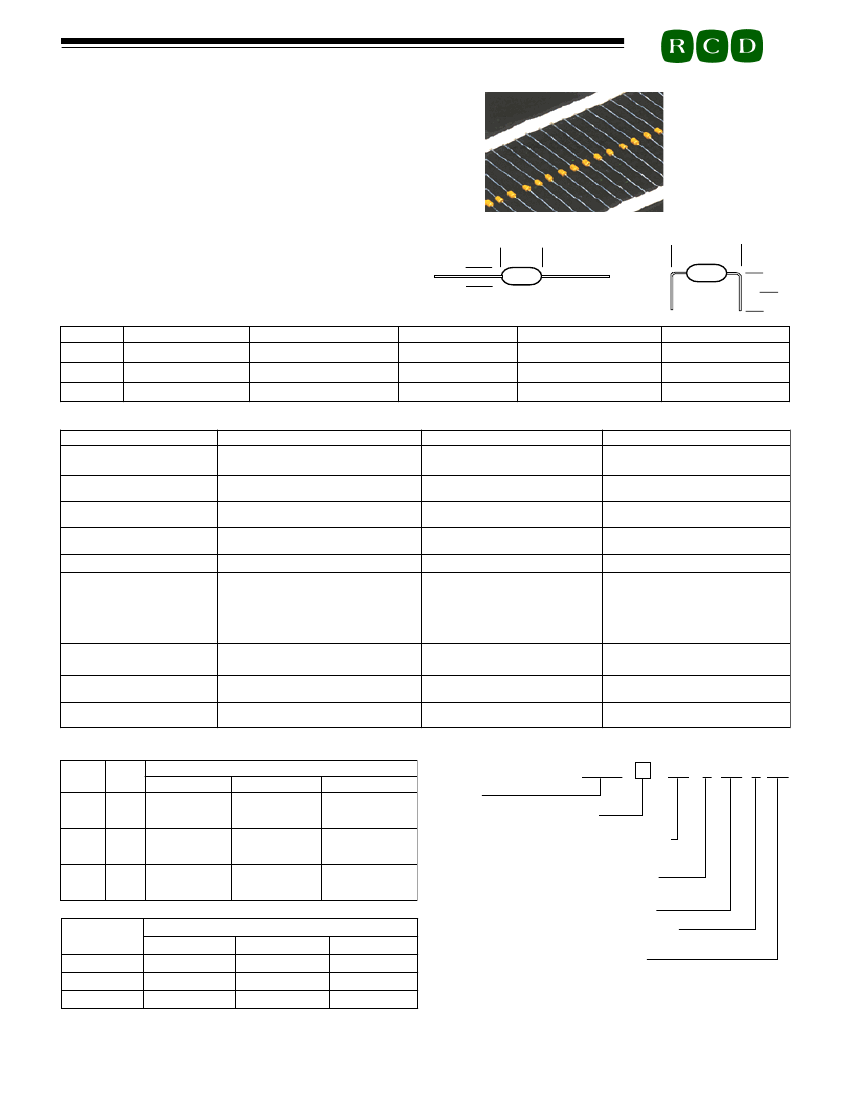

MULTILAYER CERAMIC CAPACITORS
AXIAL LEADS, MINIATURE
RESISTORS
MCAPS
& COILS
MDELAY
LINES
+-)5-41-5
FEATURES
H
Conformal coated and miniature size
H
Wide range of capacitance, tolerance, TC, and voltage
H
Axial leaded for thru-hole placement
H
COG (NPO), X7R, Z5U and Y5V temperature coefficients
H
Tape and reel and ammo packaging
H
Industry standard sizes
H
Increased voltage ratings available
H
Radial style (CER Series) available
OPTION R
(Custom radial lead forming)*
D
↓
↑
←
L
→
↓
↑
d
←
F
→
↑
.200[5.08]
.400[10.2]
↓
DIMENSIONS
Size
CEA05
CEA10
CEA12
L (Length)
0.149±.028 [3.8±.7]
0.169±.028 [4.3±.7]
0.2±.028 [5.1±.7]
D (Diameter)
.098±0.032 [2.5±.81]
.098±0.032 [2.5±.81]
.118±0.032 [3.0±.81]
F
±..025 [.63]
0.2 [5.08]
0.2 [5.08]
0.295 [7.5]
d (Lead Dia)
.018±.003 [0.45±.08]
.02±.003 [0.5±.08]
.02±.003 [0.5±.08]
*Consult factory for additional sizes
Lead Length
1.06 Min. [27]
1.06 Min. [27]
1.06 Min. [27]
PERFORMANCE CHARACTERISTICS
CHARACT ERIST ICS
Capacitance Range
Capacitance Tolerance
Operating Temperature Range
Temperature Characteristics
Voltage Rating
COG (NPO)
1 pF- 4,700 pF
±1%(F), ±2%(G),
±5%(J), ±10%(K)
-55°C TO +125°C
0 ± 30ppm/°C
50, 100 & 200VDC
0.15% Max. (+25°C & +125°C)
For values greater than 30pf.
For values of 30pf and below:
Q = 20 X C + 400
1.0VRMS, 1MHz for values > 100pF
100KM
Ω
or 1000M
Ω
-uF
Min. Whichever is less
250% of rated VDC
200% of rated voltage at +125°C
X7R
100 pF - 220,000 pF
±5%(J), ±10%(K),
±20%(M)
-55°C TO +125°C
±15% (0Vdc)
50, 100 & 200VDC
Z5U/Y5V
2,200 pF - 1,200,000 pF
±20%(M) TO +80 - 20%(Z)
(Z5U) +10°C TO +85°C
(Y 5V) -30°C TO +85°C
(Z5U) +22%, -56%
(Y 5V) +22%, -82%
50 & 100VDC
Dissipation Factor
2.5% Max. at 1KHz, 1VRMS Max.
4.0% Max. at 1KHz, 5 VRMS Max.
Insulation Resistance 25°C
(MIL-STD-202-METHOD-302)
Dielectric Strength
Life Test (1000 hours)
100KM
Ω
or 1000M
Ω
-uF
Min. Whichever is less
250% of rated VDC
200% of rated voltage at +125°C
100KM
Ω
or 1000M
Ω
-uF
Min. Whichever is less
250% of rated VDC
150% of rated voltage at +85°C
SPECIFICATIONS
SIZE
C E A 05
P/N DESIGNATION:
CEA10
RCD Type
Option Code:
R (Radial Lead Form)*
3-Digit Capacitance Code in pF:
2 significant digits
and multiplier (1R0=1pF,100=10pF,101=100pF,
103=10,000pF)
Tolerance:
F=1%, G=2%, J=5%, K=10%, M=20%,
Z=+80%/-20%, B=±0.1pF, C=±0.25pF, D=±0.5pF
3-Digit Voltage Code:
050=50, 101=100, 201=200
WVDC
25
50
100
25
50
100
25
50
100
CAPACITANCE RANGE (pF)
COG (NPO)
X 7R
Z5U/Y5V
0.5 - 1000
0.5 - 820
0.5 - 560
0.5 - 3300
150 - 820
1000 - 1200
0.5 - 4,700
0.5 - 3,900
0.5 - 1,500
100 - 33,000
100 - 22,000
100 - 4,700
330 - 100,000
330 - 47,000
330 - 22,000
1,000 - 220,000
1,000 - 100,000
1,000 - 68,000
2,200 - 220,000
2,200 - 150,000
-
-
10,000 - 1,000,000
10,000 - 680,000
-
-
10,000 - 1,200,000
10,000 - 1,000,000
-
-
- 102 - K 050 R T52
C E A 10
C E A 12
SIZE
CEA05
CEA10
CEA12
STANDARD PACKAGING
T/R
5000
5000
2500
Ammo
5000
5000
2500
Bulk
1000
1000
500
Temperature Characteristic:
G=COG (NPO), R=X7R,
U=Z5U, V=Y5V
Packaging:
B=Bulk, A=Ammo, T=Tape & Reel
(T&R code: For 26mm= 26, 52.4mm= 52)
* OPTION R: Custom radial lead forming is available for all sizes.
Consult factory for additional lead spacings.
RCD Components Inc.,
520 E. Industrial Park Dr., Manchester, NH USA 03109
Tel: (603) 669-0054 Fax:(603) 669-5455 E-mail: sales@rcdcomponents.com
www.rcdcomponents.com
FAxxxx specifications subject to change without notice
