TGL41-6.8 THRU TGL41-200A
SURFACE MOUNT T
RANS
Z
ORB
™ TRANSIENT VOLTAGE SUPPRESSOR
Breakdown Voltage
- 6.8 to 200 Volts
Peak Pulse Power
- 400 Watts
FEATURES
DO-213AB
SOLDERABLE ENDS
1st BAND
D2
D1=
0.105
0.095
(2.67)
(2.41)
0.022 (0.56)
0.018 (0.46)
0.205 (5.2)
0.185(4.7)
1st band denotes type and positive end (cathode)
0
D2 = D1 + 0.008 (0.20)
-
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
For surface mounted applications
♦
Glass passivated junction
♦
Excellent clamping capability
♦
Low incremental surge resistance
♦
Fast response time typically less than 1.0ps from
0 Volts to V
(BR)
♦
400W peak pulse capability with a 10/1000µs waveform,
repetition rate (duty cycle): 0.01%
♦
For devices with V
(BR)
≥10V,
I
D
are typically less
than 1.0µA
♦
High temperature soldering guaranteed:
250°C/10 seconds at terminals
MECHANICAL DATA
Case:
JEDEC DO-213AB molded plastic body over
passivated junction
Terminals:
Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity:
Blue bands denotes the cathode which is positive
with respect to the anode under normal TVS operation
Mounting Position:
Any
Weight:
0.116 gram, 0.0046 ounce
Dimensions in inches and (millimeters)
Available in uni-directional only
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATINGS
SYMBOL
VALUE
UNITS
Peak pulse power dissipation with a
10/1000µs waveform
(NOTE 1, FIG. 1)
Steady state power dissipation at T
L
=75°C
(NOTE 2)
Peak pulse current with a 10/1000µs waveform
(NOTE 1, FIG. 3)
P
PPM
P
M(AV)
I
PPM
Minimum 400
1.0
SEE TABLE 1
Watts
Watt
Amps
Peak forward surge current, 8.3ms single half
sine-wave superimposed on rated load for unidirectional only
(JEDEC Method)
(NOTE 3)
Maximum instantaneous forward voltage at 25A
for unidirectional only
Operating junction and storage temperature range
I
FSM
40.0
Amps
V
F
T
J
, T
STG
3.5
-55 to +150
Volts
°C
NOTES:
(1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
=25°C per Fig. 2
(2) Mounted on copper pads to each terminal of 0.31 in (8.0 mm ) per Fig. 5
(3) Measured at 8.3ms single half sine-wave or equivalent square wave duty cycle=4 pulses per minute maximum
2
2
1/20/99

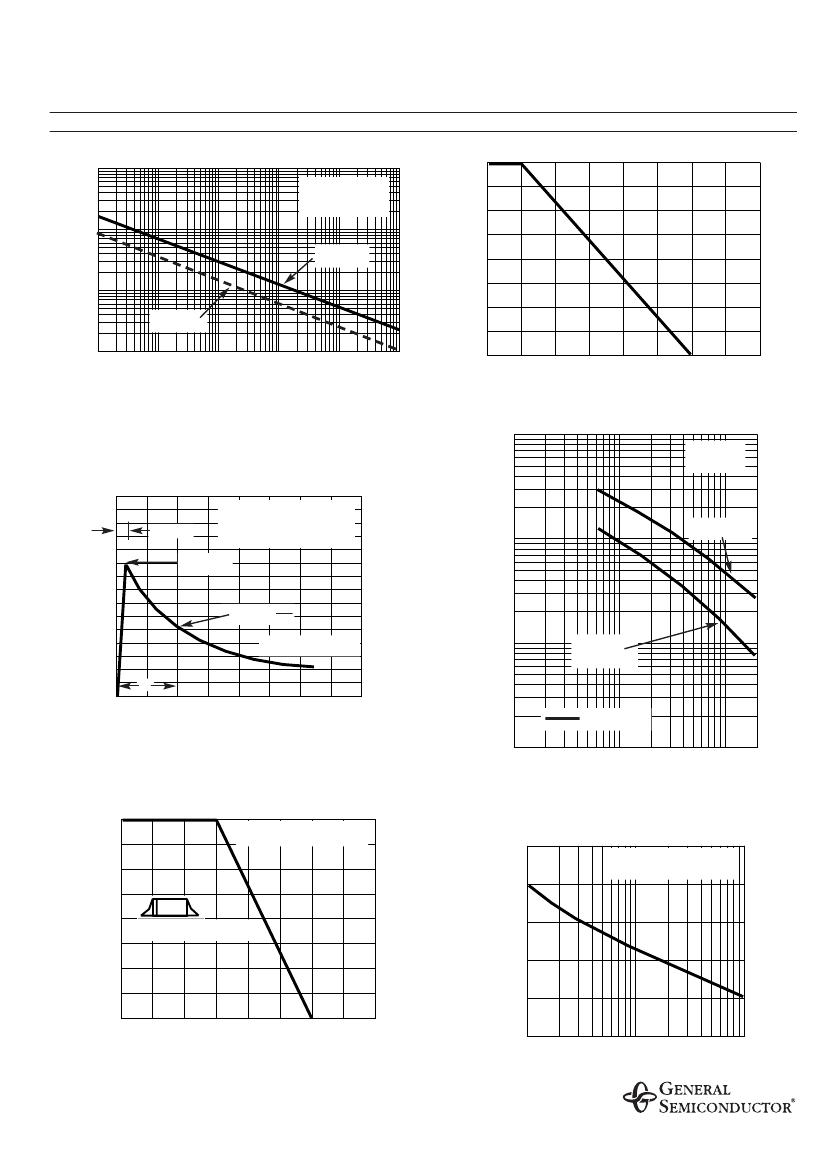

RATINGS AND CHARACTERISTIC CURVES TGL41-6.8A THRU TGL41-200A
FIG. 1 - PEAK PULSE POWER RATING CURVE
NON-REPETITIVE
PULSE WAVEFORM
SHOWN in FIG. 3
T
A
=25°C
FIG. 2 - PULSE DERATING CURVE
PEAK PULSE POWER (P
PP
) or CURRENT (I
PP
)
DERATING IN PERCENTAGE, %
100
P
PPM
, PEAK PULSE POWER, kW
100
75
10
TGL41-6.8 -
TGL41-91A
50
1.0
TGL41-100 -
TGL41-200A
25
0.1
0.1
µ
s
1.0
µ
s
10
µ
s
100
µ
s
1.0ms
10ms
0
0
25
50
75
100
125
150
175
200
T
A
, AMBIENT TEMPERATURE, °C
td, PULSE WIDTH, sec.
FIG. 4 - TYPICAL JUNCTION CAPACITANCE
10,000
T
J
=25°C
f=1.0 MHz
Vsq=50MVpp
FIG. 3 - PULSE WAVEFORM
150
C
J
, JUNCTION CAPACITANCE, pF
I
PPM,
PEAK PULSE CURRENT, %
tr=10µsec
T
A
=25°C
PULSE WIDTH (td) is DEFINED
as the POINT WHERE the PEAK
CURRENT DECAYS to 50% of I
PP
MEASURED at
ZERO BIAS
1,000
100
PEAK VALUE
I
PPM
HALF VALUE - I
PP
2
50
10/1000µsec. WAVEFORM
as DEFINED by R.E.A.
100
MEASURED at
STAND-OFF
VOLTAGE, V
WM
td
0
0
1.0
2.0
t, TIME, ms
3.0
4.0
UNIDIRECTIONAL
10
1.0
10
100
200
V
(BR)
, BREAKDOWN VOLTAGE, VOLTS
FIG. 5 - STEADY STATE POWER DERATING CURVE
PM
(AV),
STEADY STATE POWER DISSIPATION,
WATTS
1.00
60 H
Z
RESISTIVE OR INDUCTIVE LOAD
FIG. 6 - MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT UNIDIRECTIONAL ONLY
I
FSM,
PEAK FORWARD SURGE CURRENT,
AMPERES
50
40
30
20
10
0
0.75
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
T
J
=T
J
max.
0.50
0.31 x 0.31 x 0.08" COPPER PADS
(8 X 8 x 2mm)
0.25
0
0
25
50
75
100
125
150
175
200
T
L,
LEAD TEMPERATURE,°C
1
10
NUMBER OF CYCLES AT 60 H
Z
100
