5KP8.5A: DescriptionTrans Voltage Suppressor Diode, 5000W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, R-6, 2 PIN; CategoryDiscrete semiconductor diode; File Size968KB，4 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5KP8.5A Overview

Trans Voltage Suppressor Diode, 5000W, 8.5V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, R-6, 2 PIN

5KP8.5A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
package instruction	PLASTIC, R-6, 2 PIN
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	LOW ZENER IMPEDANCE
Maximum breakdown voltage	10.4 V
Minimum breakdown voltage	9.44 V
Breakdown voltage nominal value	9.92 V
Shell connection	ISOLATED
Maximum clamping voltage	14.4 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	265
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	8.5 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

TVS

5KP

SERIES

GPP TRANSIENT VOLTAGE SUPPRESSOR

5000 WATT PEAK POWER 5.0 WATT STEADY STATE

FEATURES

*

Plastic package has underwriters laboratory

Glass passivated chip construction

5000 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

R-6

Ratings at 25

o

C ambient temperature unless otherwise specified.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

o

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load,

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix for types 5KP5.0 thru 5KP110

Electrical characteristics apply in both direction

MAXIMUM RATINGS

(At T

A

= 25 C unless otherwise noted)

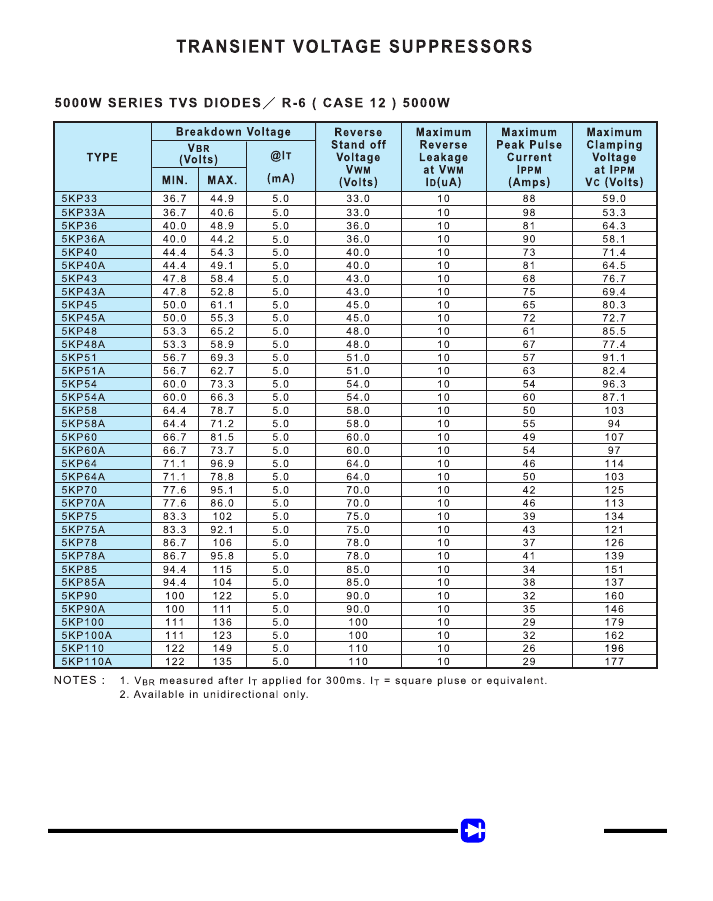

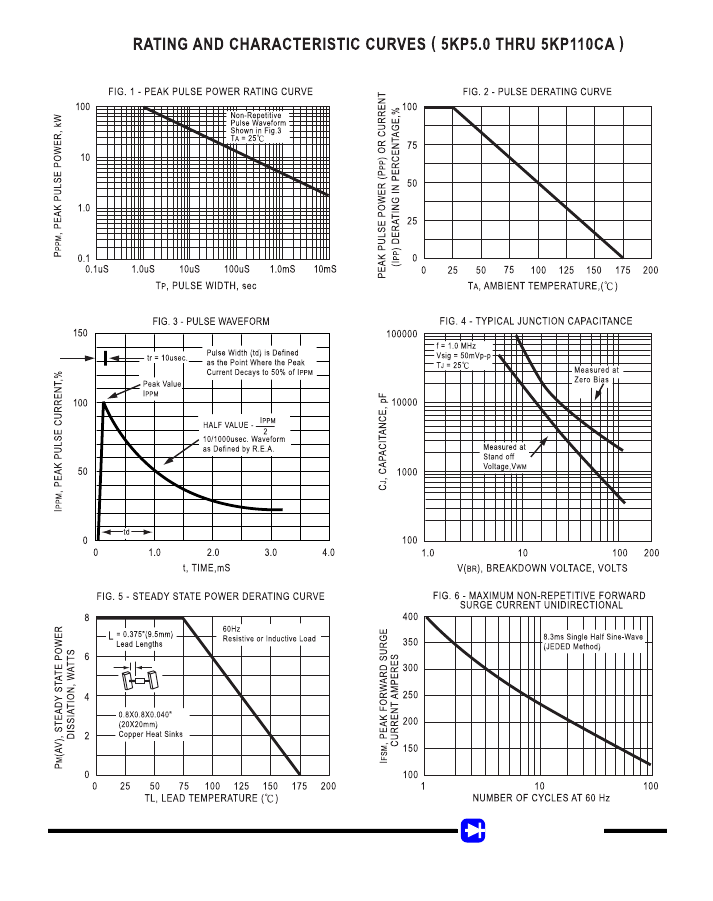

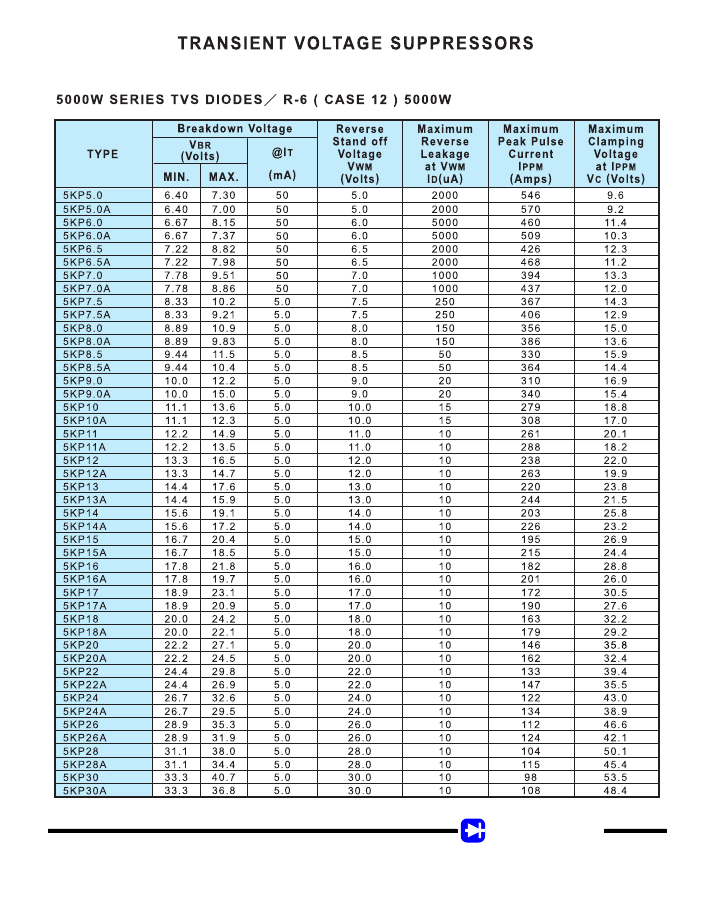

RATINGS

Peak Pulse Power Dissipation with a 10/1000uS

waveform (Note 1, FIG.1)

Peak Pulse Current with a 10/1000uS waveform (Note 1, Fig. 3)

Steady State Power Dissipation at T

L

= 75 C lead lengths

0.375” (9.5mm) (Note 2)

Peak Forward Surge Current, 8.3ms single half sine wave-

superimposed on rated load( JEDEC METHOD ) (Note 3)

Instantaneous Forward Voltage at 100A, (Note 3)

Operating and Storage Temperature Range

o

SYMBOL

P

PPM

I

PPM

P

M(AV)

I

FSM

V

F

T

J

, T

STG

VALUE

Minimum 5000

SEE TABLE 1

8.0

400

3.5

-55 to + 175

UNITS

Watts

Amps

Watts

Amps

Volts

0

C

1998-8

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

A

= 25 C per Fig.2.

2. Mounted on copper pad area of 0.8 X 0.8” ( 20 X 20mm ) per Fig. 5

3. Measured on 8.3mS single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

Back
