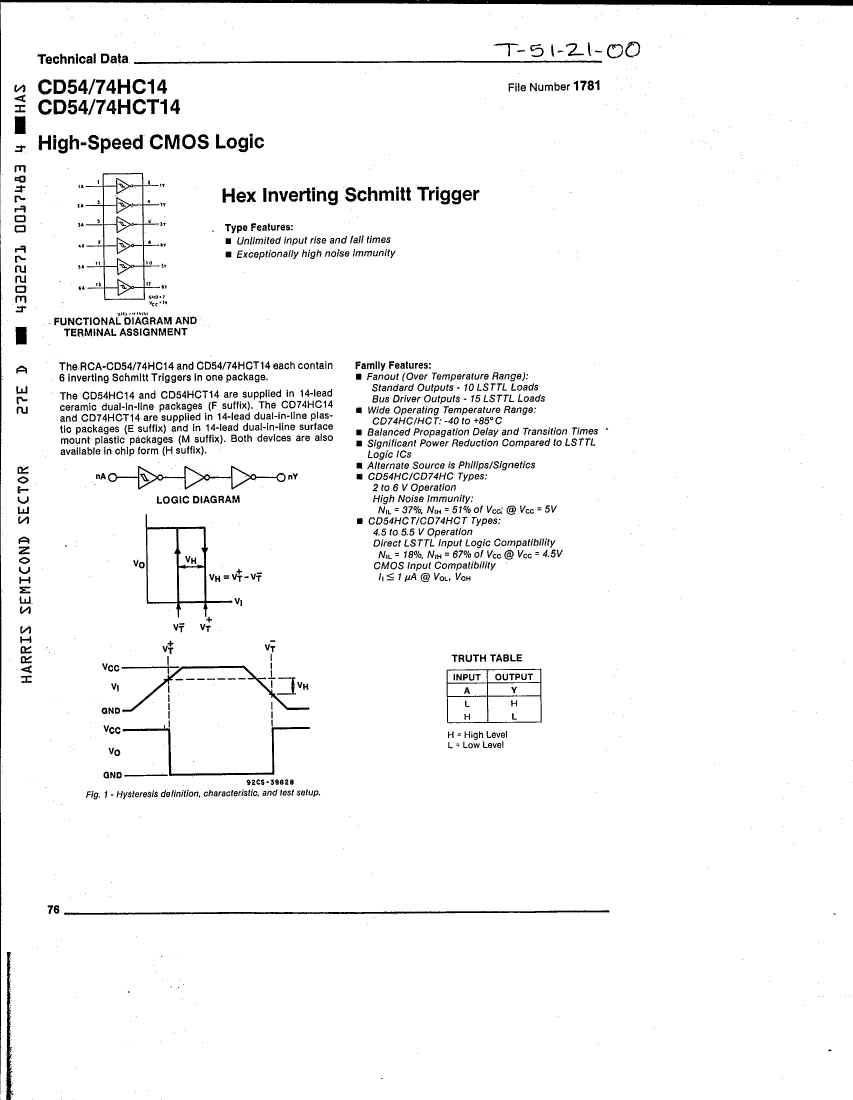

5962-01-300-9155

Description
IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC
Categorylogic    logic
File Size263KB,4 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric Compare View All

5962-01-300-9155 Overview

IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC

5962-01-300-9155 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerRenesas Electronics Corporation
package instructionDIP, DIP14,.3
Reach Compliance Code_compli
JESD-30 codeR-XDIP-T14
Load capacitance (CL)50 pF
Logic integrated circuit typeINVERTER

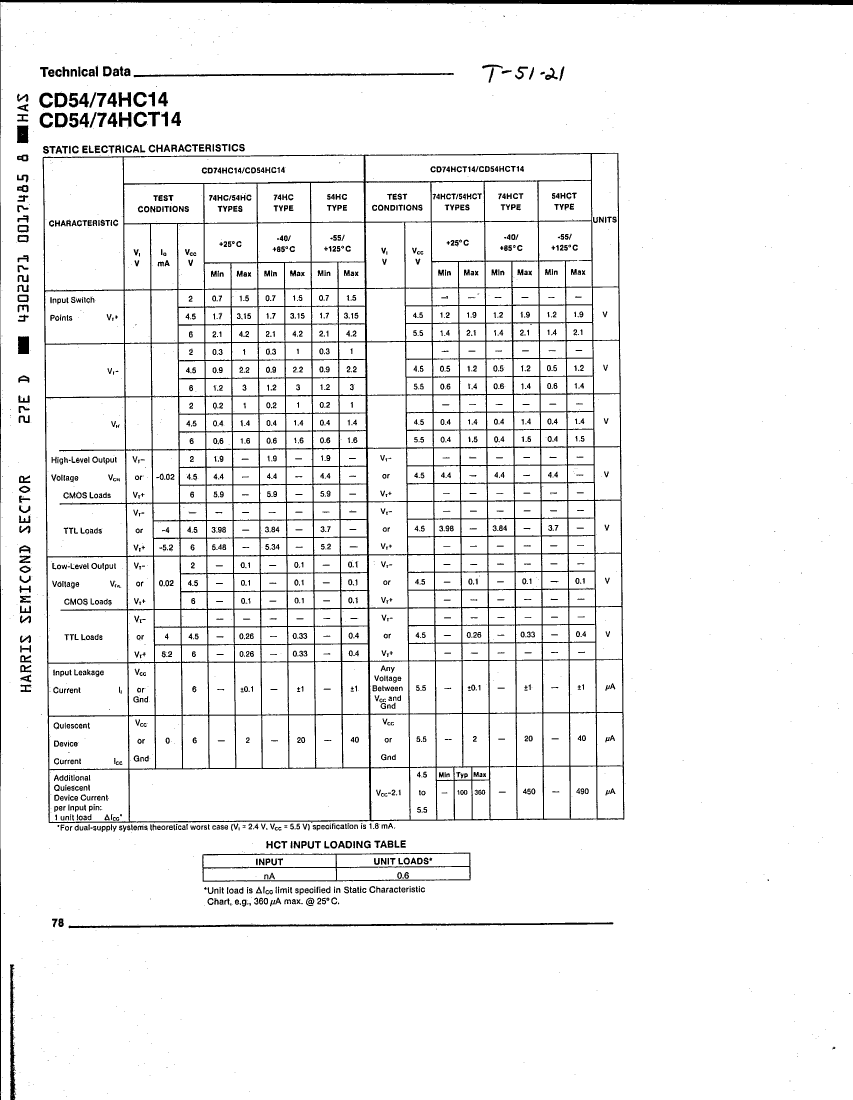

MaximumI(ol)0.004 A
Number of terminals14

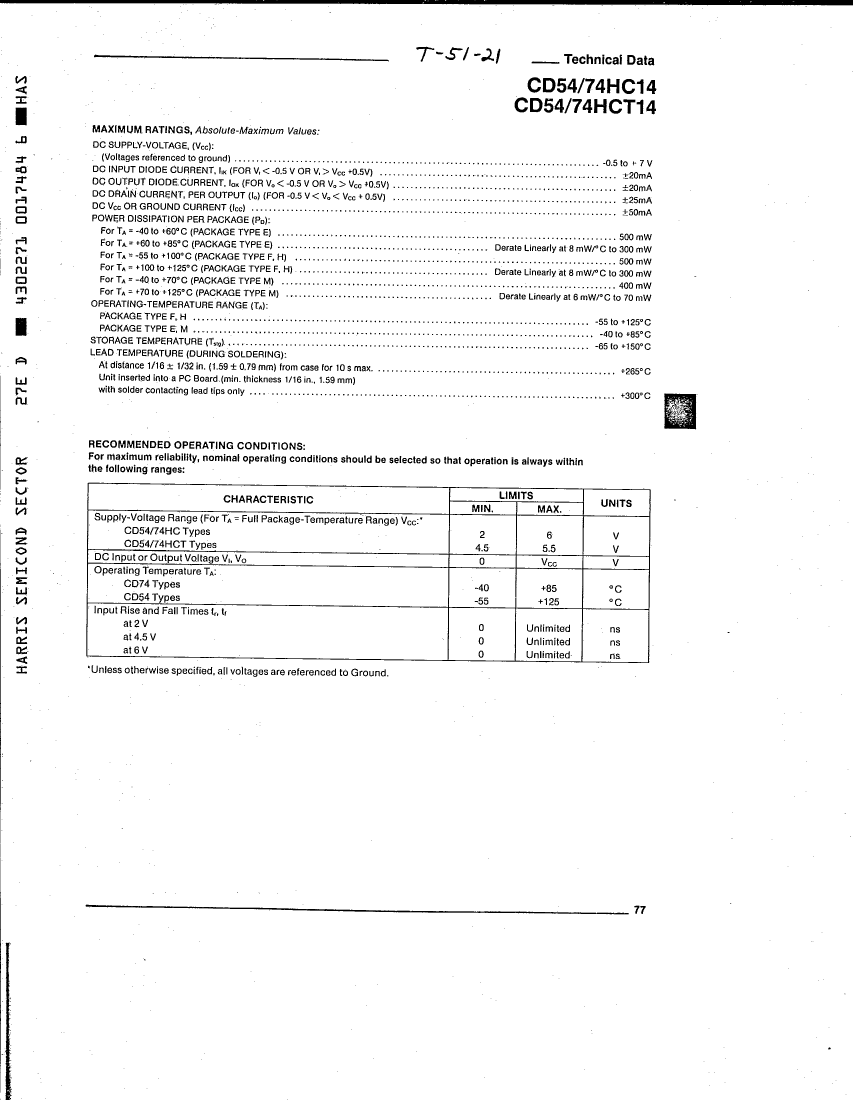

Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply2/6 V

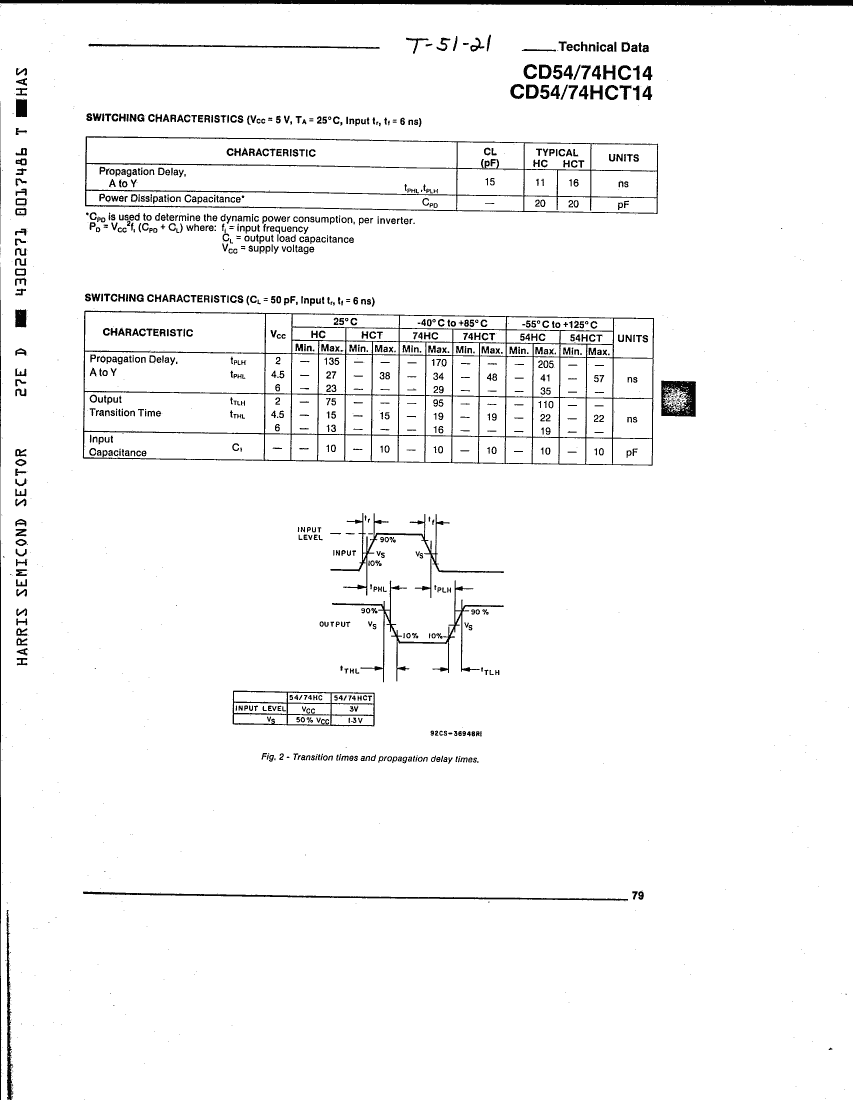

Prop。Delay @ Nom-Su41 ns
Certification statusNot Qualified
Schmitt triggerYES
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

5962-01-300-9155 Related Products

5962-01-300-9155 CD54HC14F CD54HC14H CD54HCT14H
Description IC,LOGIC GATE,HEX INVERTER,HC-CMOS,DIP,14PIN,CERAMIC CD54HC14F CD54HC14H CD54HCT14H
Maker Renesas Electronics Corporation Renesas Electronics Corporation Renesas Electronics Corporation Renesas Electronics Corporation
package instruction DIP, DIP14,.3 DIP, DIP14,.3 , DIE OR CHIP , DIE OR CHIP
Reach Compliance Code _compli not_compliant unknown unknown
Load capacitance (CL) 50 pF 50 pF 50 pF 50 pF
Logic integrated circuit type INVERTER INVERTER INVERTER INVERTER
MaximumI(ol) 0.004 A 0.004 A 0.004 A 0.004 A
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Encapsulate equivalent code DIP14,.3 DIP14,.3 DIE OR CHIP DIE OR CHIP
power supply 2/6 V 2/6 V 2/6 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Schmitt trigger YES YES YES YES
technology CMOS CMOS CMOS CMOS
Temperature level MILITARY MILITARY MILITARY MILITARY
Prop。Delay @ Nom-Sup - 41 ns 41 ns 57 ns
