PHOTOCOUPLER
PS2533-1,-2,-4,PS2533L-1,-2,-4
HIGH COLLECTOR TO EMITTER VOLTATGE
HIGH ISOLATION VOLTAGE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2533-1, -2, -4 and PS2533L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode
and an NPN silicon darlington connected phototransistor.
The PS2533-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2533L-1, -2, -4 are lead bending type
(Gull-wing) for surface mount.
−NEPOC
Series−
FEATURES
• High collector to emitter voltage (V
CEO
= 350 V)
• High Isolation voltage (BV = 5 000 Vr.m.s.)
• High current transfer ratio (CTR = 4 000 % TYP.)
• High-speed switching (t
r,
t
f
= 100
µ
s TYP.)
• Ordering number of tape product: PS2533L-1-E3, E4, F3, F4, PS2533L-2-E3, E4
• Safety standards
• UL approved: File No. E72422 (S)
• BSI approved: No. 8221/8222
• CSA approved: No. CA 101391
• NEMKO approved: No. P98101708
• SEMKO approved: No. 9824187/01-02
• DEMKO approved: No. 307863
• FIMKO approved: No. F1 11397
• VDE0884 approved (Option)
APPLICATIONS
• Telephone, Exchange equipment
• FAX/MODEM
Document No. PN10233EJ01V0DS (1st edition)
(Previous No. P11435EJ6V0DS00)
Date Published February 2003 CP(K)
The mark
shows major revised points.
PS2533-1,-2,-4,PS2533L-1,-2,-4

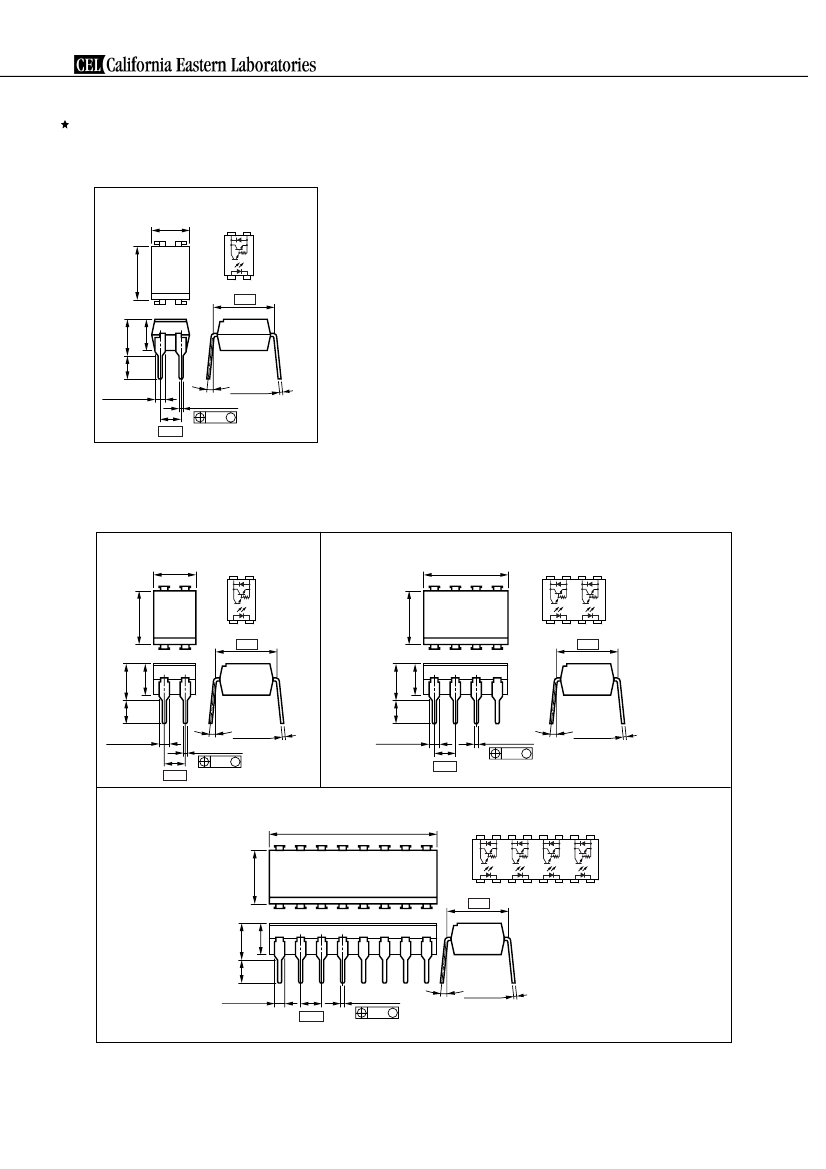

PACKAGE DIMENSIONS (Unit : mm)
DIP Type (New package)
PS2533-1
4.6±0.35
4
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
6.5±0.5
1
2
7.62
3.2±0.4
4.15±0.4
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
Caution New package 1-ch only
DIP Type
PS2533-1
4.6±0.5
4
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
PS2533-2
9.7±0.5
8
7
TOP VIEW
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
6.5±0.5
6.5±0.5
1
2
7.62
1
2
3 4
7.62
3.3±0.5
4.15±0.4
3.3±0.5
4.15±0.4
3.5±0.3
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
2.54
PS2533-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
1
2
3
7.62
3.3±0.5
4.15±0.4
3.5±0.3
4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
2
Data Sheet PN10233EJ01V0DS
PS2533-1,-2,-4,PS2533L-1,-2,-4

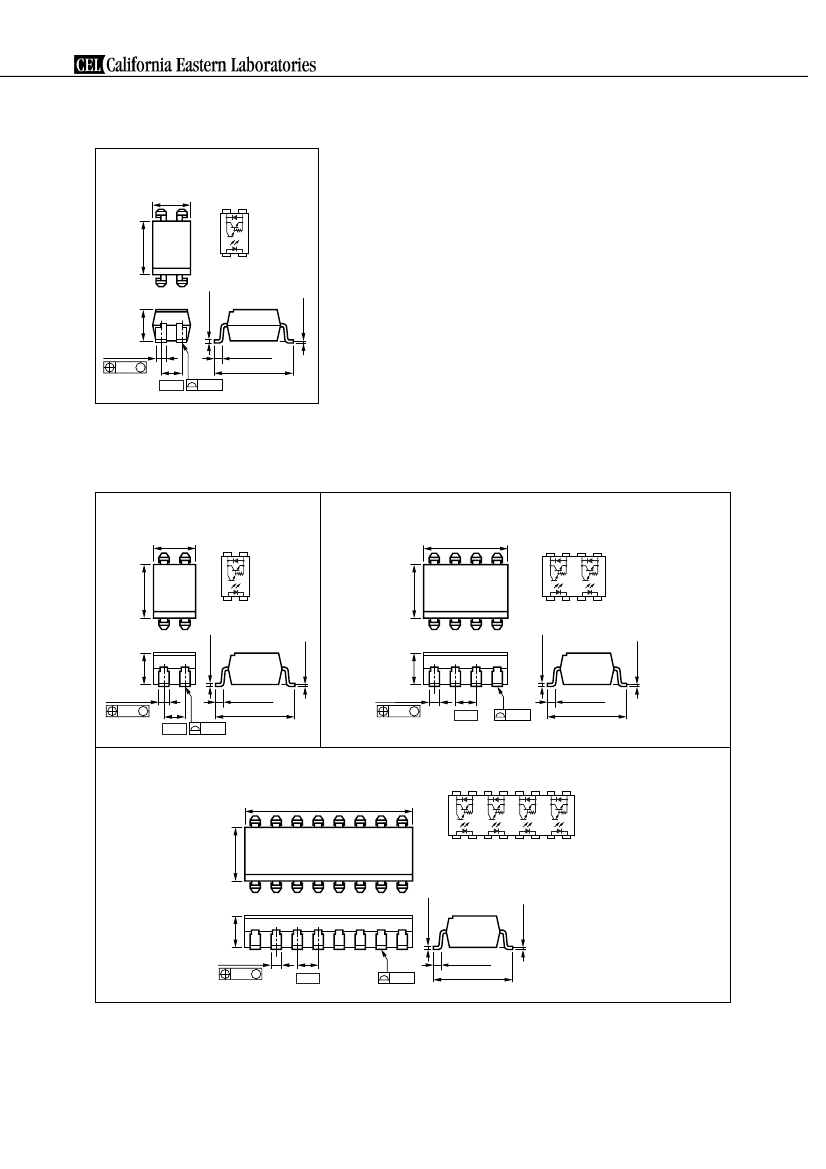

Lead Bending Type (New package)
PS2533L-1
4.6±0.35
TOP VIEW
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
6.5±0.5
1
0.25
+0.1
–0.05
2
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
Caution New package 1-ch only
Lead Bending Type
PS2533L-1
4.6±0.5
0.1
+0.1
–0.05
PS2533L-2
9.7±0.5
TOP VIEW
4
3
TOP VIEW
8
7
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
1
2
3
4
6.5±0.5
1
2
6.5±0.5
1. Anode
2. Cathode
3. Emitter
4. Collector
0.25
+0.1
–0.05
0.25
+0.1
–0.05
0.1
+0.1
–0.05
3.5±0.3
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
PS2533L-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
1
0.25
+0.1
–0.05
2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
0.1
+0.1
–0.05
0.1
+0.1
–0.05
Data Sheet PN10233EJ01V0DS
3
PS2533-1,-2,-4,PS2533L-1,-2,-4
MARKING EXAMPLE
PS2533-1
No. 1 pin
Mark
No. 1 pin
Mark
PS2533-2, -4
2533
M 003
Assembly Lot
PS2533-2
M 003
Country Assembled
Type Number
Assembly Lot
M
0 03
M
0 03
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Package
Standard PKG
New PKG
Made in Japan Made in Taiwan
Package
Standard PKG
New PKG
Made in Japan Made in Taiwan
Blank
E
F
Blank
F
4
Data Sheet PN10233EJ01V0DS
PS2533-1,-2,-4,PS2533L-1,-2,-4
ORDERING INFORMATION (Solder Contains Lead)
Part Number
Package
Packing Style
Safety Standard
Approval
PS2533-1
PS2533L-1
PS2533L-1-E3
PS2533L-1-E4
PS2533L-1-F3
PS2533L-1-F4
PS2533-2
PS2533L-2
PS2533L-2-E3
PS2533L-2-E4
PS2533-4
PS2533L-4
PS2533-1-V
PS2533L-1-V
PS2533L-1-V-E3
PS2533L-1-V-E4
PS2533L-1-V-F3
PS2533L-1-V-F4
PS2533L-2-V
PS2533L-2-V
PS253L-2-V-E3
PS2533L-2-V-E4
PS2533-4-V
PS2533L-4-V
16-pin DIP
Magazine case 20 pcs
PS2533-4
Embossed Tape 1 000 pcs/reel
8-pin DIP
Magazine case 45 pcs
PS2533-2
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
4-pin DIP
Magazine case 100 pcs
VDE0884 approved
products (Option)
PS2533-1
16-pin DIP
Magazine case 20 pcs
PS2533-4
Embossed Tape 1 000 pcs/reel
8-pin DIP
Magazine case 45 pcs
PS2533-2
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
4-pin DIP
Magazine case 100 pcs
Standard products
(UL, CSA, BSI,
NEMKO, SEMKO,
DEMKO, FIMKO
approved)
Application Part
Number
PS2533-1
*1
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet PN10233EJ01V0DS
5
