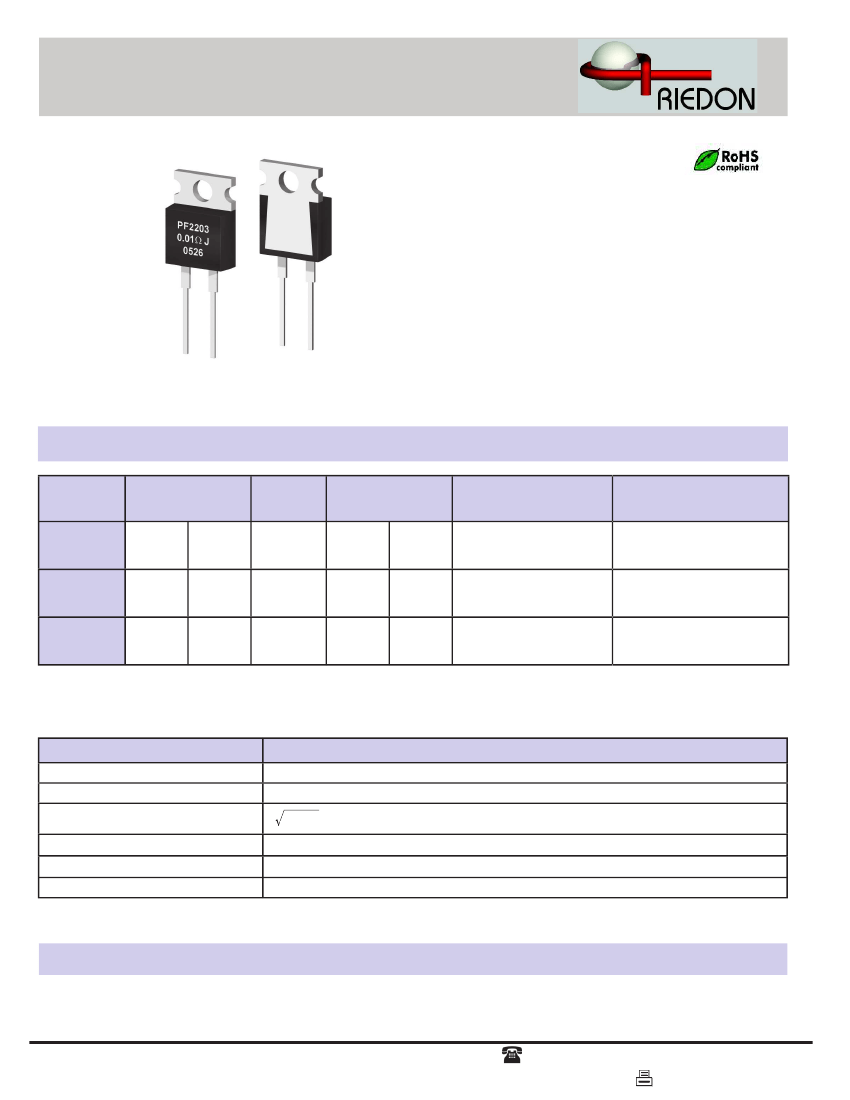

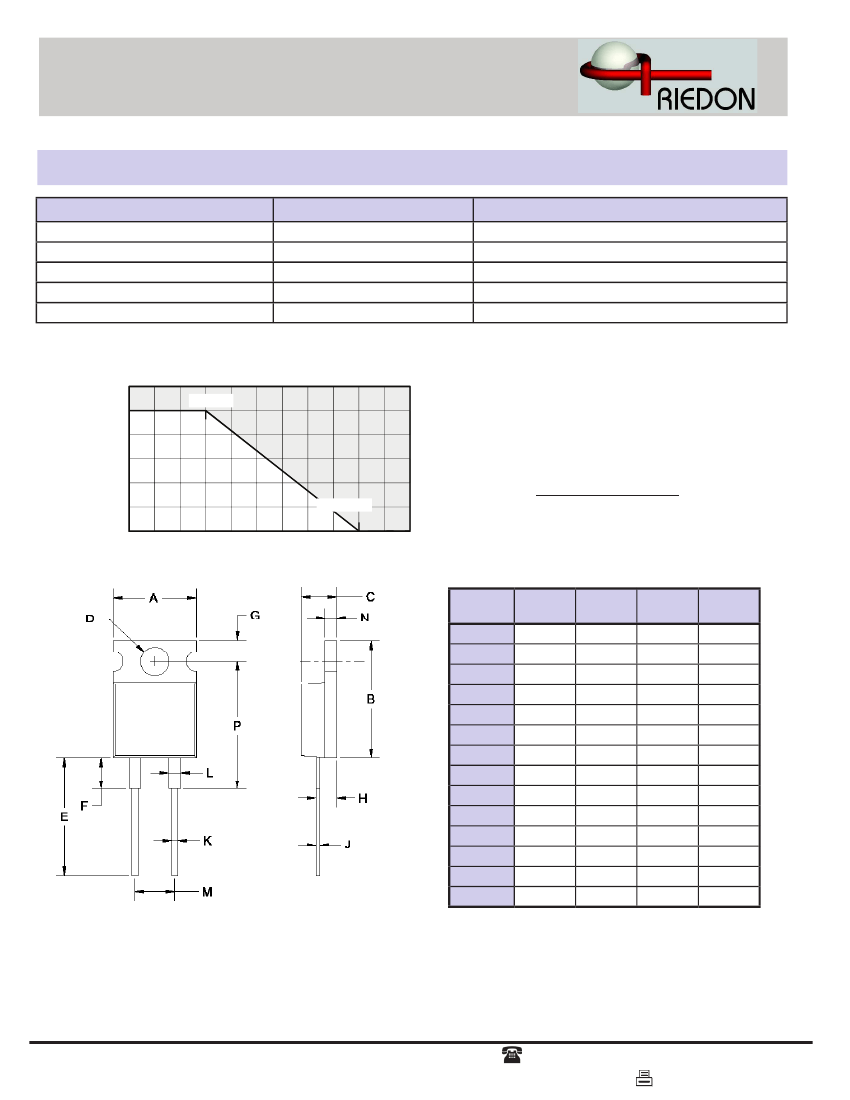

PF2200 Series
TO-220 Power Thin Film Resistors
•
•
•
•
•
•
•
•
TO-220 Housing
Rated Power to 50 Watts
Resistances from 0.02 to 51K Ohms
High Stability Film Resistance Elements
Resistance Tolerance to ±0.1%
TCR to ±50ppm/°C
Low Inductance ( <10nH )
Isolated Mounting Tab
SPECIFICATIONS
Type
Power Rating
Heatsink1
Free Air2
Thermal
Resistance
Resistance Range
3
Min
0.02Ω
Max
51KΩ
Tolerances
±1% ( R ≥0.1Ω
)
±5%
1% ( R ≥0.1Ω
)
±5%
0.1%,0.25%,0.5%, (R±≥10
Ω)
±1% ( R ≥0.1Ω
)
±5%
1
2
Temperature
Coefficients
±50ppm/°C ( R ≥10Ω
)
±100ppm/°C ( 0.1Ω ≤ R < 10Ω )
±250ppm/°C ( R < 0.1Ω )
±50ppm/°C ( R ≥10Ω
)
±100ppm/°C ( 0.1Ω ≤ R < 10Ω )
±250ppm/°C ( R < 0.1Ω )
±50ppm/°C ( R ≥10Ω
)
±100ppm/°C ( 0.1Ω ≤ R < 10Ω )
±250ppm/°C ( R < 0.1Ω )
PF2205
50W
1W
2.3°C/W
PF2203
35W
1W
3.3°C/W
0.01Ω
51KΩ
PF2202
20W
1W
5.9°C/W
0.02Ω
51KΩ
Power rating based on 25°C Flange Temperature
Power rating based on 25°C Ambient Temperature
3
Consult Factory for Higher or Lower Values
Specification
Temperature Range
Dielectric Strength
Max. Operating Voltage
Insulation Resistance
Terminal Finish
Inductance
Value
-55°C to +175°C
2000 VAC
P
*
R
( 500V MAX )
>1000 Meg-Ohm
Tin Plated Copper
PF2202 / PF2203 8.38 nH, PF2205 9.65 nH
Ordering Information
Part Description: Part Type - Resistance - Tolerance - TCR
Example: PF2203 0.5 Ohm 1% 100ppm
Riedon Inc.
08/17
300 Cypress Avenue
Alhambra CA 91801
www.riedon.com
(626) 284-9901
(626) 284-1704
PF2200 Series
TO-220 Power Thin Film Resistors
SPECIFICATIONS
(continued)
Environmental Performance
Load Life
Humidity Resistance
Temperature Cycle
Solder Heat
Vibration
∆R
±1%
±1%
±0.25%
±0.1%
±0.25%
Test Conditions
25°C, 90 min ON, 30 min OFF, 1000 hr
40°C, 90-95% RH, DC 0.1W, 1000 hr
-55°C for 30 min, +155°C for 30 min, 5 cycles
+350 / -5°C 3s
IEC60068-2-6
Power Derating
% Power
100
80
60
40
20
0
-50
0
+175 C
Where:
Power Rating Notes -
+25 C
The PF2200 Series Thin Film Resistors must be attached to a
suitable heatsink. Without a heatsink the maximum power rating
is 1W ( 1/2W for the PF2201 ). The maximum internal resistor
temperature is 175°C.
To specify an appropriate heatsink use the following formula :
R
H
H
=
200
T
MAX
- (
P
*
R
H
R
) -
T
A
P
50
100
150
Flange Temperature (C)
R
θH
= Thermal Resistance of Heatsink ( °C/W )
R
θR
= Thermal Resistance of Resistor ( °C/W )
T
MAX
= Maximum Temperature of Resistor ( °C )
mm
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Mounting Notes -
10.1
15.0
4.5
3.6
15.5
4.0
3.0
2.75
0.5
0.75
1.5
5.08
1.5
16.0
tol.
(±mm)
0.2
0.2
0.2
0.1
1.0
0.5
0.2
0.2
0.05
0.05
0.05
0.1
0.05
0.50
inches
0.40
0.60
0.18
0.14
0.61
0.16
0.12
0.11
0.02
0.03
0.06
0.20
0.06
0.63
tol.
(±inches)
0.008
0.008
0.008
0.004
0.04
0.02
0.008
0.008
0.002
0.002
0.002
0.004
0.002
0.02
The PF2200 Series
Thin Film Resistors must be attached to a suitable heatsink. Mount resistor using thermal grease to a clean, flat surface. Use
a compression washer to provide 150 to 300 pounds ( 665 to 1330N ) of mounting force. Torque mounting screw to 8 in-lbs ( 0.9 N-m ).
Mounting tab is isolated from both pins.
Riedon Inc.
08/17
300 Cypress Avenue
Alhambra CA 91801
www.riedon.com
(626) 284-9901
(626) 284-1704
PF2200 Series
TO-220 Power Thin Film Resistors
PULSE ENERGY DURABILITY
Pulse Energy Durability
Pulse Peak Power (W)
1000k
100k
PF2202_10ohm-1%
Tentative continuous-pulse power allowance at
duty 0.01. Load life test will be necessary in
actual equipment, Because curve will be changed
by resistance, repetition, duty and operating
temperature. Dotted shows estimation.
Pulse Energy Durability
Pulse Peak Power (W)
1000k
100k
PF2203_10ohm-1%
Tentative continuous-pulse power allowance at
duty 0.01. Load life test will be necessary in
actual equipment, Because curve will be changed
by resistance, repetition, duty and operating
temperature. Dotted shows estimation.
10k
10k
1k
1k
100
20W
400W
100
200W
10
10n 100n 1u
10u
100u 1m
10m 100m
1
10
10
10n 100n 1u
10u
100u 1m
35W
10m 100m
1
10
Pulse Energy Durability
Pulse Peak Power (W)
1000k
100k
PF2205_10ohm-1%
Tentative continuous-pulse power allowance at
duty 0.01. Load life test will be necessary in
actual equipment, Because curve will be changed
by resistance, repetition, duty and operating
temperature. Dotted shows estimation.
10k
1k
400W
50W
10n 100n 1u
10u
100u 1m
10m 100m
1
10
100
10
