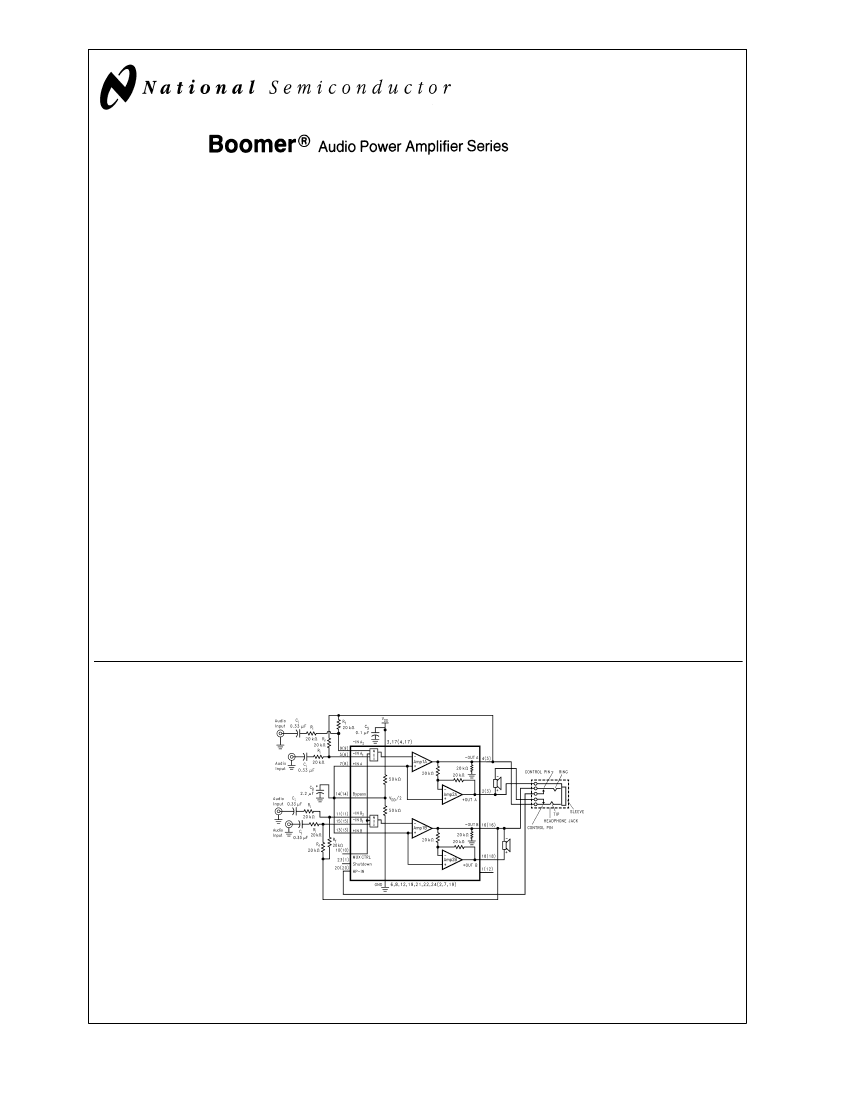

See NS Package Number MXA20A for Exposed-DAP TSSOP

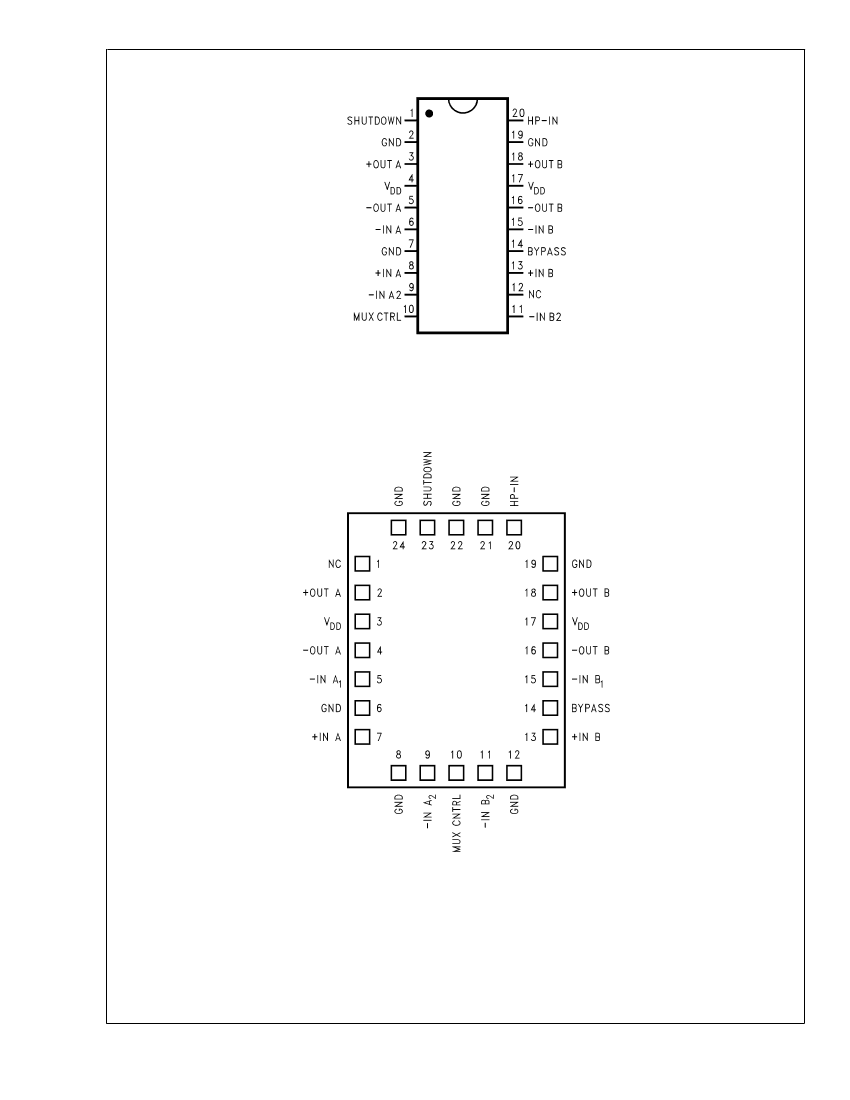

Connection Diagram
DS200013-38
Top View
Order Number LM4867LQ
See NS Package Number LQA24A for Exposed-DAP LLP
www.national.com
2
LM4867
Absolute Maximum Ratings
(Note 3)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage
6.0V
Storage Temperature
−65˚C to +150˚C
Input Voltage
−0.3V to V
DD
+0.3V
Power Dissipation (Note 4)
Internally limited
ESD Susceptibility (Note 5)
All pins except Pin 3 (MT, MTE), Pin 2 (LQ)
2000V
Pin 3 (MT, MTE), Pin 2 (LQ)
8000V
ESD Susceptibility (Note 6)
200V
Junction Temperature
150˚C
Solder Information
Small Outline Package
Vapor Phase (60 sec.)
215˚C
Infrared (15 sec.)
220˚C
See AN-450 “Surface Mounting and their Effects on
Product Reliablilty” for other methods of soldering surface
mount devices.
Thermal Resistance
θ
JC
(typ) — MTC20
θ
JA
(typ) — MTC20
θ
JC
(typ) — MXA20A
θ
JA
(typ) — MXA20A
θ
JA
(typ) — MXA20A
θ
JA
(typ) — MXA20A
θ
JC
(typ) — LQA24A
θ
JA
(typ) — LQA24A
θ
JA
(typ) — LQA24A
θ
JA
(typ) — LQA24A
20˚C/W
80˚C/W
2˚C/W
41˚C/W (Note 7)
51˚C/W (Note 8)
90˚C/W (Note 9)
3.0˚C/W
TBD˚C/W (Note 10)
TBD˚C/W (Note 11)
TBD˚C/W (Note 12)
Operating Ratings
Temperature Range
T
MIN
≤
T
A
≤
T
MAX
Supply Voltage
−40˚C
≤
T
A
≤
85˚C
2.0V
≤
V
DD
≤
5.5V
Electrical Characteristics for Entire IC
(Notes 3, 13)
The following specifications apply for V
DD
= 5V unless otherwise noted. Limits apply for T
A
= 25˚C.
Symbol
Parameter
Conditions
LM4867
Typical
(Note 14)
V
DD
I
DD
I
SD
Supply Voltage
Quiescent Power Supply Current
Shutdown Current
V
IN
= 0V, I
O
= 0A (Note 16) , HP-IN = 0V
V
IN
= 0V, I
O
= 0A (Note 16) , HP-IN = 4V
V
DD
applied to the SHUTDOWN pin
7.5
3.0
0.7
Limit
(Note 15)
2
5.5
15
6
2
V (min)
V (max)
mA (max)
mA (max)
µA (max)
Units
(Limits)
Electrical Characteristics for Bridged-Mode Operation
(Notes 3, 13)
The following specifications apply for V
DD
= 5V unless otherwise specified. Limits apply for T
A
= 25˚C.
Symbol
Parameter
Conditions
LM4867
Typical
(Note 14)
V
OS
P
O
Output Offset Voltage
Output Power (Note 17)
V
IN
= 0V
THD = 1%, f = 1kHz
LM4867MTE, R
L
= 3Ω (Note 18)
LM4867LQ, R
L
= 3Ω (Note 18)
LM4867MTE, R
L
= 4Ω (Note 19)
LM4867LQ, R
L
= 4Ω (Note 19)
LM4867, R
L
= 8Ω
THD+N = 10%, f = 1kHz
LM4867MTE, R
L
= 3Ω (Note 18)
LM4867LQ, R
L
= 3Ω (Note 18)
LM4867MTE, R
L
= 4Ω (Note 19)
LM4867LQ, R
L
= 4Ω (Note 19)
LM4867, R
L
= 8Ω
THD+N = 1%, f = 1 kHz, R
L
= 32Ω
3.0
3.0
2.6
2.6
1.5
0.34
W
W
W
W
W
W
2.2
2.2
1.9
1.9
1.1
1.0
W
W
W
W
W (min)
5
Limit
(Note 15)
50
mV (max)
Units
(Limits)
3
www.national.com
LM4867
Electrical Characteristics for Bridged-Mode Operation
(Notes 3, 13)
The following specifications apply for V
DD
= 5V unless otherwise specified. Limits apply for T
A
= 25˚C.
Symbol
Parameter
Conditions
(Continued)
LM4867
Typical
(Note 14)
Limit
(Note 15)
Units
(Limits)
THD+N
Total Harmonic Distortion+Noise
20Hz
≤
f
≤
20kHz, A
VD
= 2
LM4867MTE, R
L
= 4Ω, P
O
= 2W
LM4867LQ, R
L
= 4Ω, P
O
= 2W
LM4867, R
L
= 8Ω, P
O
= 1W
V
DD
= 5V, V
RIPPLE
= 200 mV
RMS
, R
L
= 8Ω,
C
B
= 2.2µF
f = 1 kHz, C
B
= 2.2µF
V
DD
= 5V, P
O
= 1.1W, R
L
= 8Ω
0.3
0.3
0.3
67
80
97
%
%
%
dB
dB
dB
PSRR
X
TALK
SNR
Power Supply Rejection Ratio
Channel Separation
Signal To Noise Ratio
Electrical Characteristics for Single-Ended Operation
(Notes 3, 13)
The following specifications apply for V
DD
= 5V unless otherwise specified. Limits apply for T
A
= 25˚C.
Symbol
Parameter
Conditions
LM4867
Typical
(Note 14)
V
OS
P
O
Output Offset Voltage
Output Power
V
IN
= 0V
THD = 0.5%, f = 1kHz, R
L
= 32Ω
THD+N = 1%, f = 1kHz, R
L
= 8Ω (Note
20)
THD+N
THD+N
THD+N
THD+N
V
OUT
THD+N
PSRR
X
TALK
SNR
Output Voltage Swing
Total Harmonic Distortion+Noise
Power Supply Rejection Ratio
Channel Separation
Signal To Noise Ratio
=
=
=
=
1%, f = 1kHz, R
L
= 16Ω
10%, f = 1kHz, R
L
= 32Ω
10%, f = 1kHz, R
L
= 16Ω
10%, f = 1kHz, R
L
= 32Ω
5
85
180
165
88
208
114
1
0.2
52
60
94
Limit
(Note 15)
50
75
mV (max)
mW (min)
mW
mW
mW
mW
mW
V
P-P
%
dB
dB
dB
Units
(Limits)
THD = 0.05%, R
L
= 5kΩ
A
V
= −1, P
O
= 75mW, 20 Hz
≤
f
≤
20kHz,
R
L
= 32Ω
C
B
= 2.2µF, V
RIPPLE
= 200mV
RMS
,
f = 1kHz
f = 1kHz, C
B
= 2.2µF
V
DD
= 5V, P
O
= 340mW, R
L
= 8Ω
Note 3:
Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is
functional, but do not guarantee specific performance limits. Electrical Characteristics state DC and AC electrical specifications under particular test conditions which
guarantee specific performance limits. This assumes that the device operates within the Operating Ratings. Specifications are not guaranteed for parameters where
no limit is given. The typical value however, is a good indication of device performance.
Note 4:
The maximum power dissipation must be derated at elevated temperatures and is dictated by T
JMAX
,
θ
JA
, and the ambient temperature T
A
. The maximum
allowable power dissipation is P
DMAX
= (T
JMAX
− T
A
)/θ
JA
. For the LM4867, T
JMAX
= 150˚C. For the
θ
JA
s for different packages, please see the Application
Information section or the Absolute Maximum Ratings section.
Note 5:
Human body model, 100 pF discharged through a 1.5 kΩ resistor.
Note 6:
Machine model, 220 pF–240 pF discharged through all pins.
Note 7:
The given
θ
JA
is for an LM4867 packaged in an MXA20A with the Exposed-DAP soldered to an exposed 2in
2
area of 1oz printed circuit board copper.
Note 8:
The given
θ
JA
is for an LM4867 packaged in an MXA20A with the Exposed-DAP soldered to an exposed 1in
2
area of 1oz printed circuit board copper.
Note 9:
The given
θ
JA
is for an LM4867 packaged in an MXA20A with the Exposed-DAP not soldered to printed circuit board copper.
Note 10:
The given
θ
JA
is for an LM4867 packaged in an LQA24A with the Exposed-DAP soldered to an exposed 2in
2
area of 1oz printed circuit board copper.
Note 11:
The given
θ
JA
is for an LM4867 packaged in an LQA24A with the Exposed-DAP soldered to an exposed 1in
2
area of 1oz printed circuit board copper.
Note 12:
The given
θ
JA
is for an LM4867 packaged in an LQA24A with the Exposed-DAP not soldered to printed circuit board copper.
Note 13:
All voltages are measured with respect to the ground (GND) pins, unless otherwise specified.
Note 14:
Typicals are measured at 25˚C and represent the parametric norm.
Note 15:
Limits are guaranteed to National’s AOQL (Average Outgoing Quality Level). Datasheet min/max specification limits are guaranteed by design, test, or
statistical analysis.
Note 16:
The quiescent power supply current depends on the offset voltage when a practical load is connected to the amplifier.
Note 17:
Output power is measured at the device terminals.
Note 18:
When driving 3Ω loads from a 5V supply, the LM4867LQ, LM4867MTE, or LM4867MTE-1 must be mounted to the circuit board and forced-air cooled (450
linear-feet per minute).
Note 19:
When driving 4Ω loads from a 5V supply, the LM4867LQ, LM4867MTE or LM4867MTE-1 must be mounted to the circuit board.
