DTC043X series
NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
l
Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
Value
50V
100mA
4.7kΩ
10kΩ
VMT3
EMT3F
DTC043XM
(SC-105AA)
UMT3F
DTC043XEB
(SC-89)
l
Features
1) Built-In Biasing Resistors, R
1
= 4.7kΩ,
R
2
= 10kΩ
2) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see inner circuit) .
3) The bias resistors consist of thin-film resistors
with complete isolation to allow negative biasing
of the input. They also have the advantage of
completely eliminating parasitic effects.
4) Only the on/off conditions need to be set
for operation, making the circuit design easy.
5) Complementary PNP Types: DTA043X series
6) Lead Free/RoHS Compliant.
DTC043XUB
(SC-85)
l
Inner circuit
l
Application
Switching circuit, Inverter circuit, Interface circuit,
Driver circuit
l
Packaging specifications
Part No.
DTC043XM
DTC043XEB
DTC043XUB
Package
Package
size
VMT3
EMT3F
UMT3F
1212
1616
2021
Taping
code
T2L
TL
TL
Reel size Tape width
(mm)
(mm)
180
180
180
8
8
8
Basic
ordering
unit.(pcs)
8000
3000
3000
Marking
68
68
68
www.rohm.com
©
2012 ROHM Co., Ltd. All rights reserved.
1/7
20130206 - Rev.001
DTC043X series
Datasheet
l
Absolute maximum ratings
(T
a
= 25°C)
Parameter
Supply voltage
Input voltage
Output current
Collector current
DTC043XM
Power dissipation
DTC043XEB
DTC043XUB
Junction temperature
Range of storage temperature
Symbol
V
CC
V
IN
I
O
I
C(MAX)*1
Values
50
20 to -7
100
100
150
Unit
V
V
mA
mA
P
D*2
150
200
mW
T
j
T
stg
150
-55 to +150
℃
℃
l
Electrical characteristics
(T
a
= 25°C)
Values
Parameter
Symbol
V
I(off)
Input voltage
V
I(on)
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T*1
Conditions
Min.
V
CC
= 5V, I
O
= 100μA
V
O
= 0.3V, I
O
= 5mA
I
O
/ I
I
= 5mA / 0.5mA
V
I
= 5V
V
CC
= 50V, V
I
= 0V
V
O
= 10V, I
O
= 5mA
-
-
V
CE
= 10V, I
E
= -5mA,
f = 100MHz
-
2.5
-
-
-
35
3.29
1.7
-
Typ.
-
-
0.05
-
-
-
4.7
2.1
250
Max.
0.5
V
-
0.15
1.8
500
-
6.11
2.6
-
V
mA
nA
-
kΩ
-
MHz
Unit
*1 Characteristics of built-in transistor
*2 Each terminal mounted on a reference footprint
www.rohm.com
©
2012 ROHM Co., Ltd. All rights reserved.
2/7
20130206 - Rev.001
DTC043X series
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

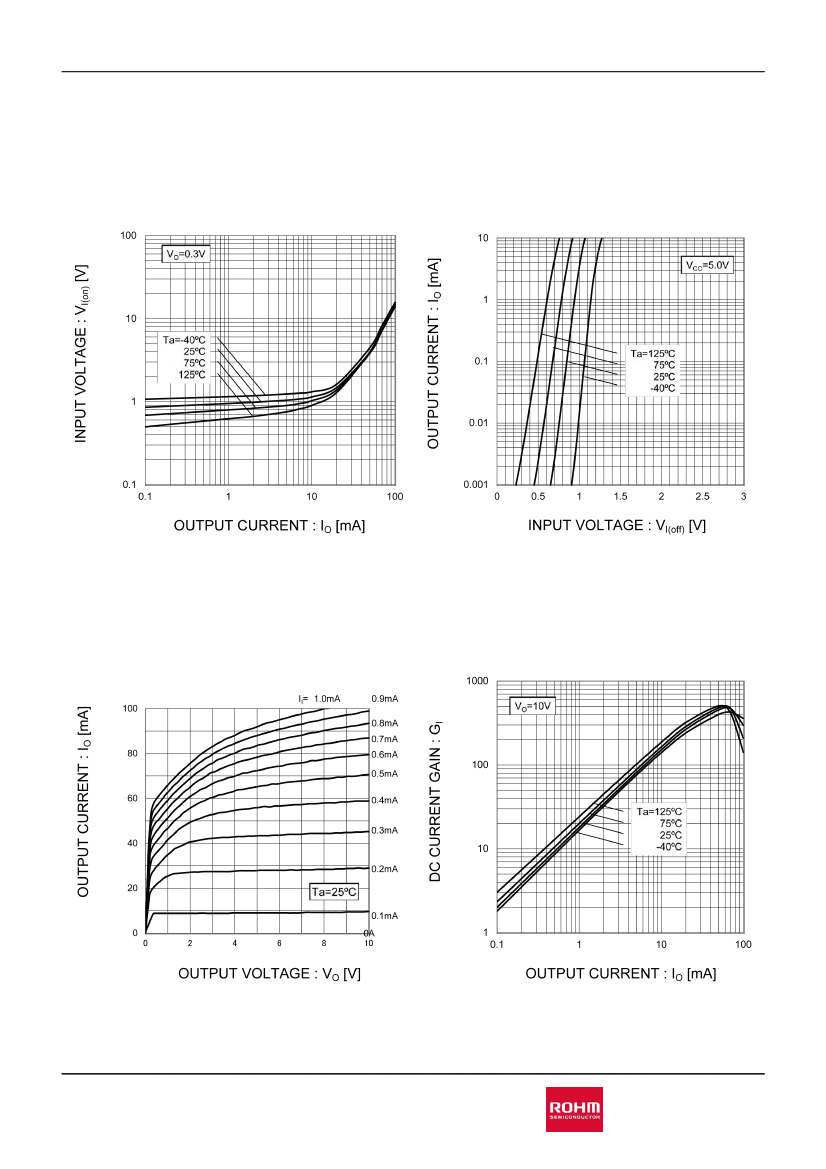

Fig.1 Input voltage vs. output current
(ON characteristics)
Fig.2 Output current vs. input voltage
(OFF characteristics)
Fig.3 Output current vs. output voltage
Fig.4 DC current gain vs. output current
www.rohm.com
©
2012 ROHM Co., Ltd. All rights reserved.
3/7
20130206 - Rev.001
DTC043X series
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

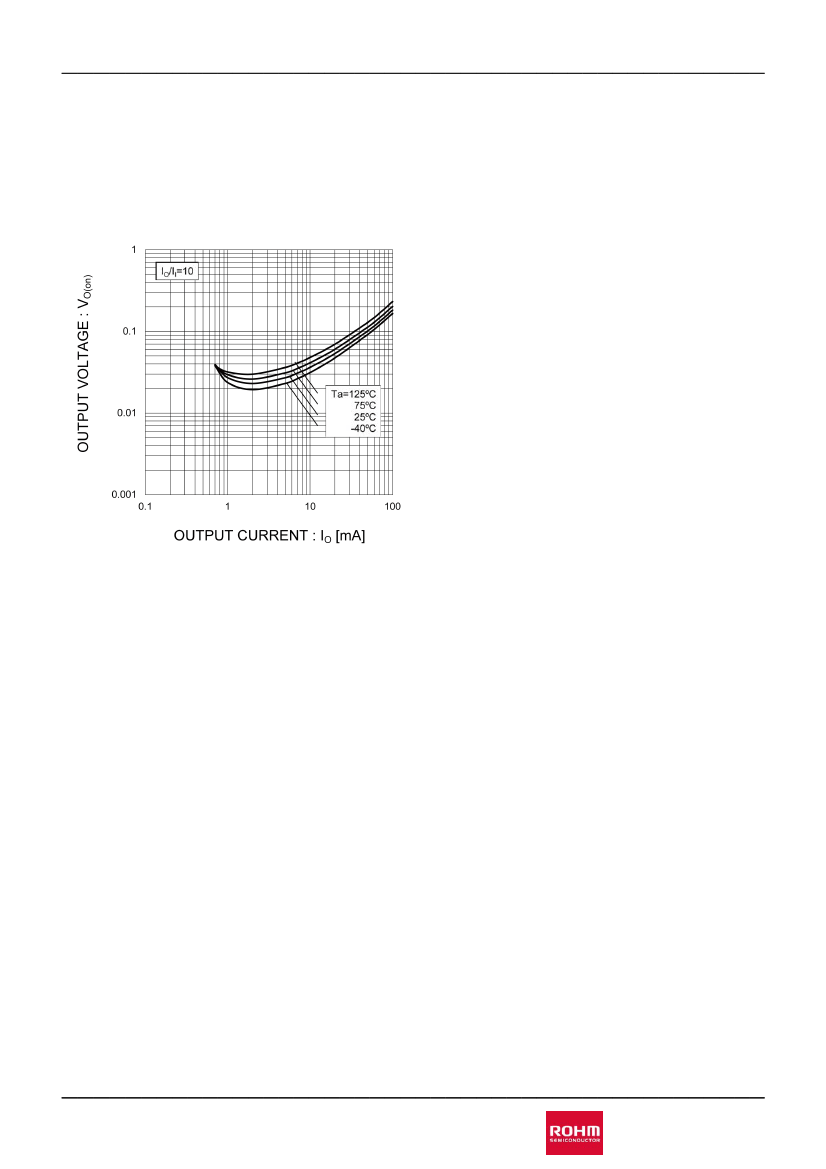

Fig.5 Output voltage vs. output current
www.rohm.com
©
2012 ROHM Co., Ltd. All rights reserved.
4/7
20130206 - Rev.001
