PTZTFTE2533B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PTZTFTE2533B

PTZTFTE2533B: DescriptionZener Diode, 33V V(Z), 5.71%, 1W, Silicon, Unidirectional, DO-214AC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size2MB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

PTZTFTE2533B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTZTFTE2533B	-	-	View	Buy Now

PTZTFTE2533B Overview

Zener Diode, 33V V(Z), 5.71%, 1W, Silicon, Unidirectional, DO-214AC, SMA, 2 PIN

PTZTFTE2533B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	R-PDSO-C2
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	20 weeks
Samacsys Descripti	ROHM - PTZTFTE2533B - ZENER DIODE, 34.95V, DO-214AC
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Guideline	AEC-Q101
Nominal reference voltage	33 V
surface mount	YES
technology	ZENER
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	5.71%
Working test current	10 mA

Preview

Download Datasheet

View All

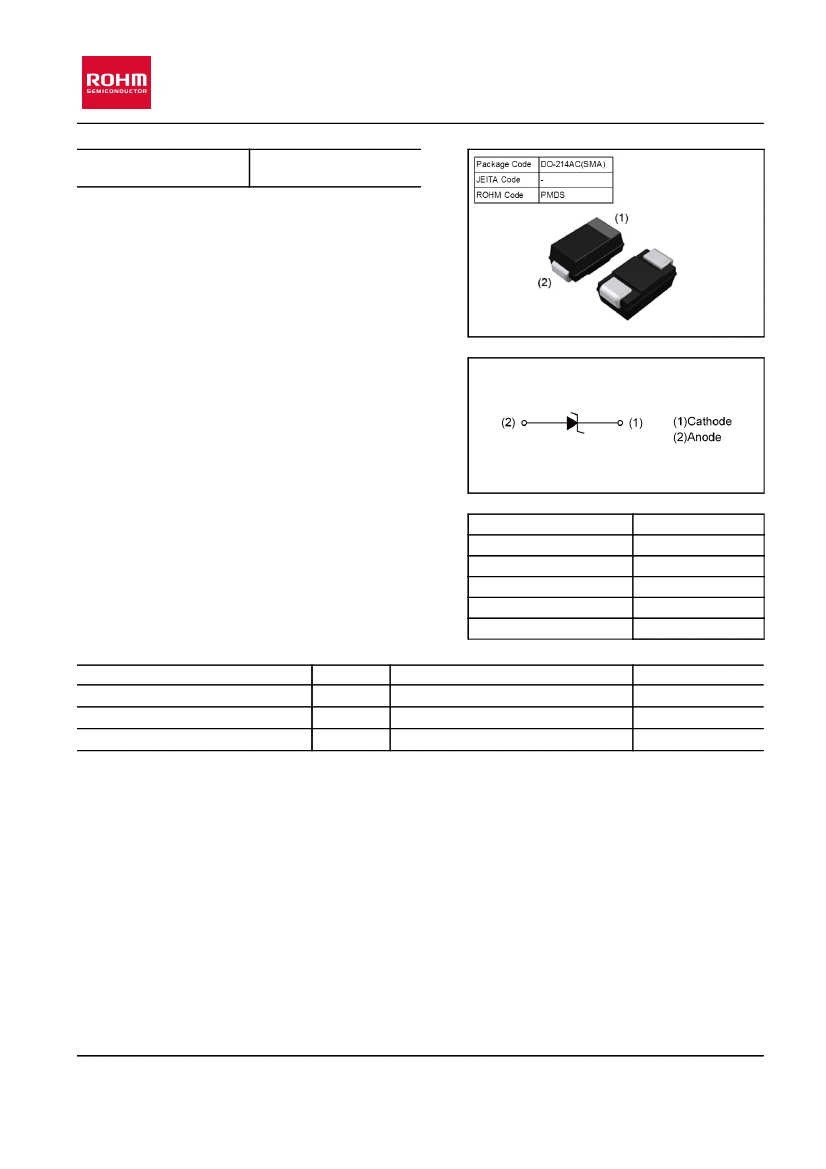

PTZTF33B

Zener Diode

AEC-Q101 qualified

Data sheet

●

Outline

1000

●

Features

●

Inner Circuit

High reliability

Small power mold type

●

Application

Voltage regulation

●

Structure

Silicon Epitaxial Planar

●

Absolute Maximum Ratings (T

= 25

℃

)

●

Packaging Specifications

Packing

Embossed T

ape

Reel Size(mm)

180

aping Width(mm)

Basic Ordering Unit(pcs)

1500

aping Code

TE25

Marking

33B

Parameter

Power dissipation

Junction temperature

Storage temperature

Symbol

stg

Limits

1000

150

-55

150

Unit

℃

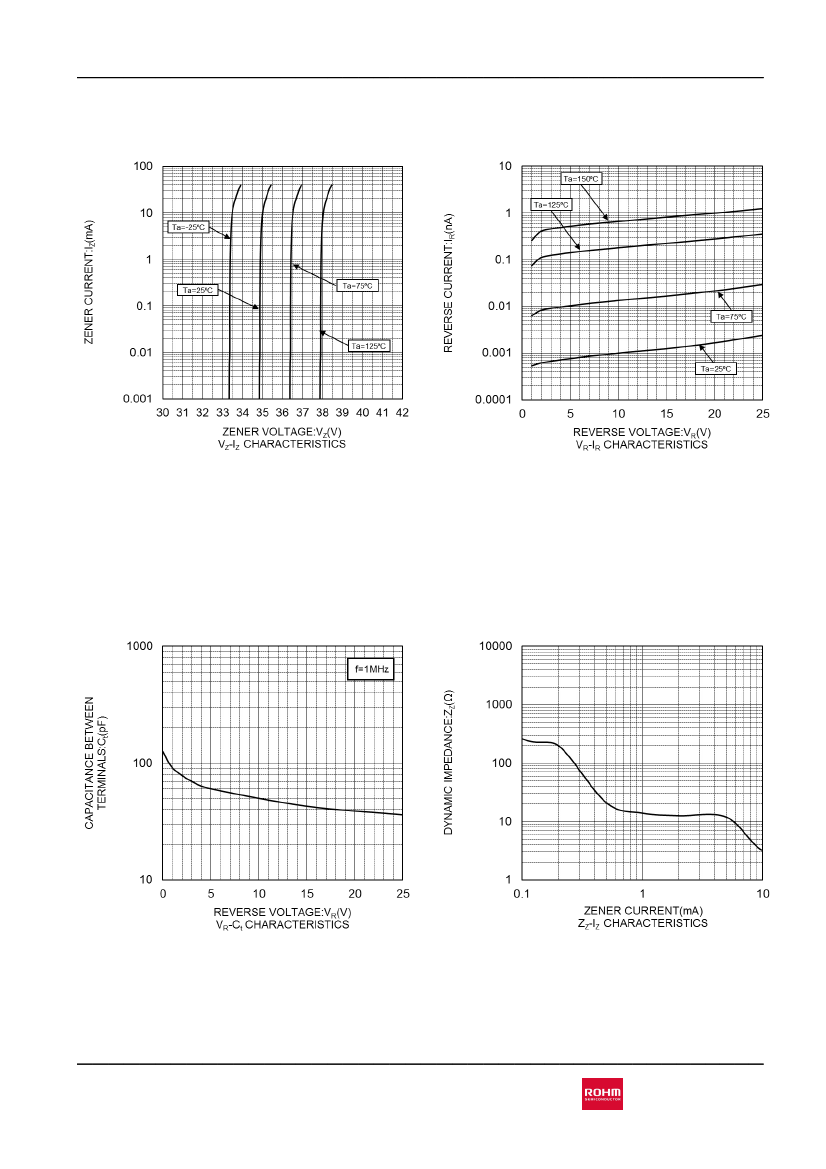

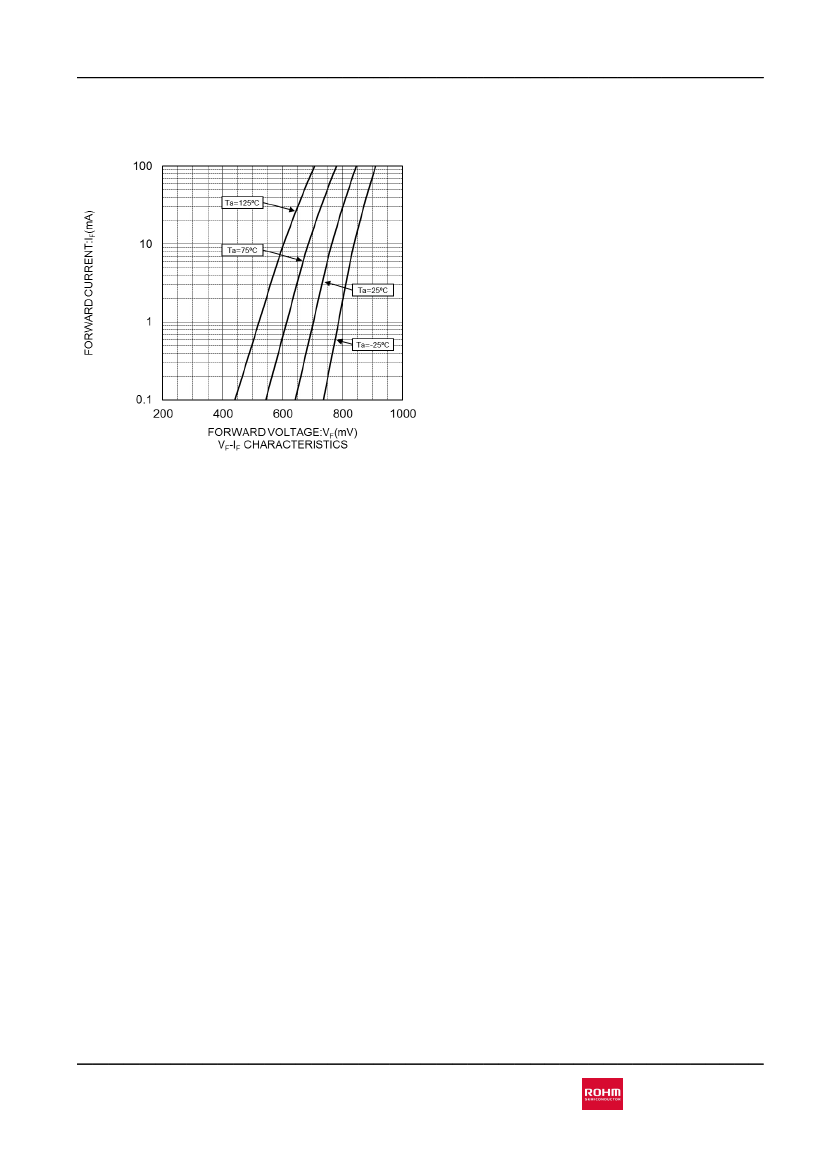

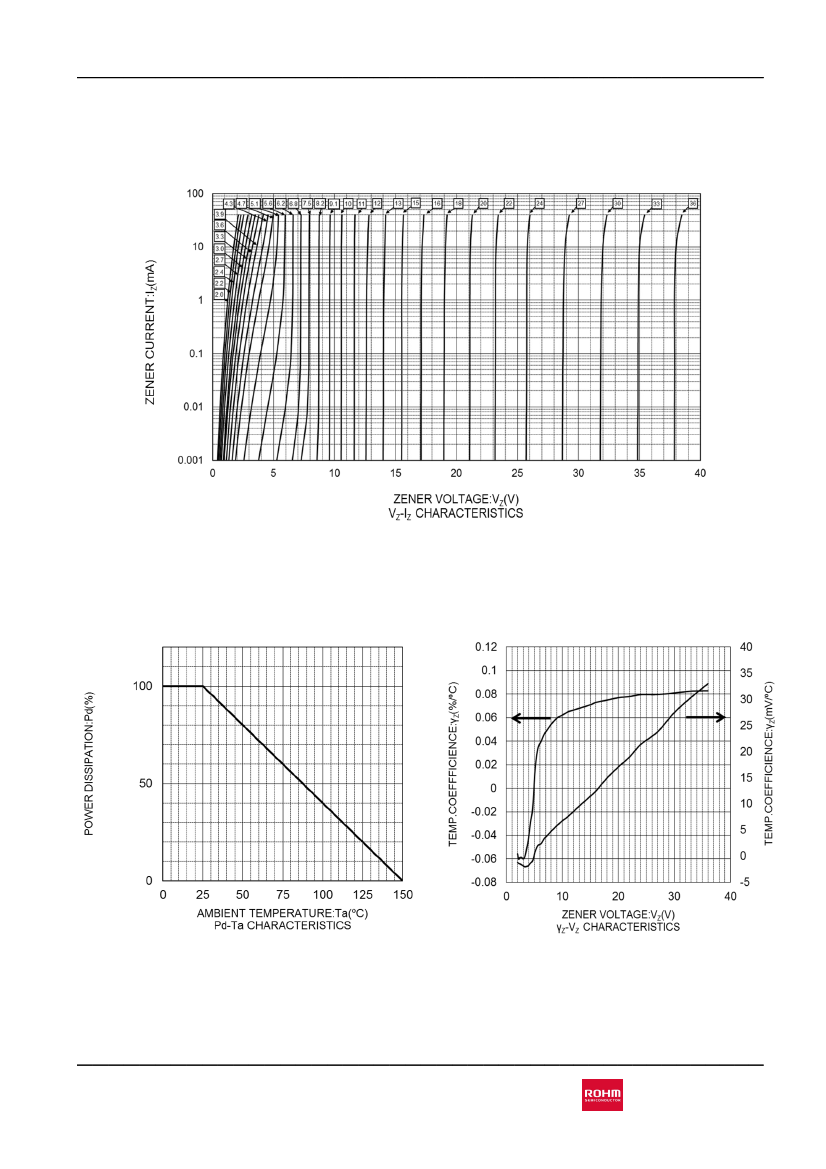

www.rohm.com

1/6

2016/04/12_Rev.002
