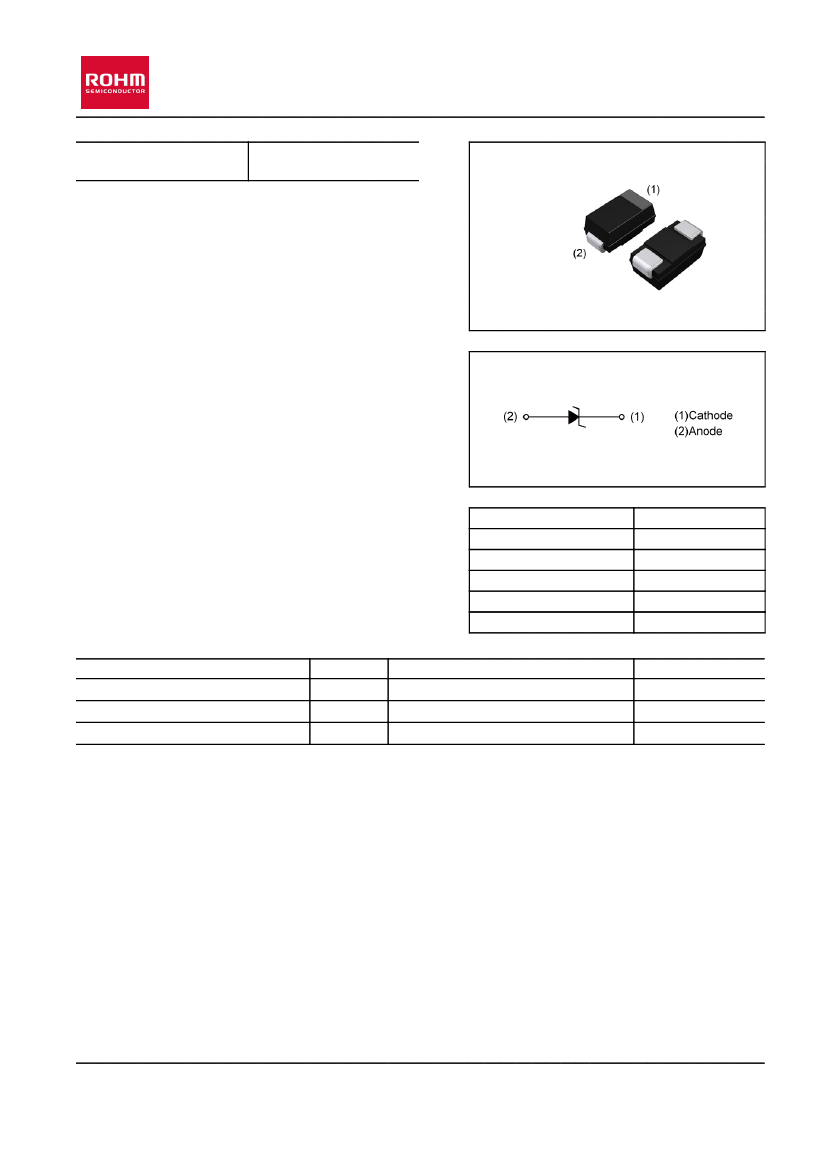

PTZTF36B
Zener Diode (AEC-Q101 qualified)
●
Outline
Data sheet
PMDS SOD106
P
D
1000
mW
●
Feature
●
Inner Circuit
High reliability
Small power mold type
●
Application
●
Packaging Specification
Packing
Reel Size(mm)
T
aping Width(mm)
Basic Ordering Unit(pcs)
T
aping Code
Marking
Voltage regulation
●
Structure
Silicon Epitaxial Planar
●
Absolute Maximum Rating (T
a
= 25
℃
)
Embossed T
ape
180
12
1500
TE25
36B
Parameter
Power dissipation
Junction temperature
Storage temperature
Symbol
P
D
T
j
T
stg
Limits
1000
150
-55
½
150
Unit
mW
℃
℃
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/6
2015/06/22_Rev.001
PTZTF Series
P/N
PTZTF 2.0B
PTZTF 2.4B
PTZTF 2.7B
PTZTF 3.0B
PTZTF 3.3B
PTZTF 3.6B
PTZTF 3.9B
PTZTF 4.3B
PTZTF 4.7B
PTZTF 5.1B
PTZTF 5.6B
PTZTF 6.2B
PTZTF 6.8B
PTZTF 7.5B
PTZTF 8.2B
PTZTF 9.1B
PTZTF 10B
PTZTF 11B
PTZTF 12B
PTZTF 13B
PTZTF 15B
PTZTF 16B
PTZTF 18B
PTZTF 20B
PTZTF 22B
PTZTF 24B
PTZTF 27B
PTZTF 30B
PTZTF 33B
PTZTF 36B
Data sheet
●
Electrical Characteristic (T
a
= 25ºC)
Zener Voltage:V
Z
(V)
Symbol
Dynamic Impedance:Z
Z
(Ω) Reverse Current:I
R
(μA)
MIN.
2.000
2.400
2.700
3.000
3.300
3.600
3.900
4.300
4.700
5.100
5.600
6.200
6.800
7.500
8.200
9.100
10.000
11.000
12.000
13.300
14.700
16.200
18.000
20.000
22.000
24.000
27.000
30.000
33.000
36.000
MAX.
2.240
2.700
3.100
3.400
3.700
4.000
4.400
4.800
5.200
5.700
6.300
7.000
7.700
8.400
9.300
10.200
11.200
12.300
13.500
15.000
16.500
18.300
20.300
22.400
24.500
27.600
30.800
34.000
37.000
40.000
I
z
(mA)
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
20
20
20
20
20
20
20
10
10
10
10
10
10
MAX.
25
15
15
15
15
15
15
15
10
8
8
6
6
4
4
6
6
8
8
10
10
12
12
14
14
16
16
18
18
20
I
z
(mA)
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
20
20
20
20
20
20
20
10
10
10
10
10
10
MAX.
200
200
200
100
80
60
40
20
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
V
R
(V)
0.5
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
3.0
3.5
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
V
Z
test time is 40ms
●
Marking
P/N
PTZTF 2.0B
PTZTF 2.4B
PTZTF 2.7B
PTZTF 3.0B
PTZTF 3.3B
PTZTF 3.6B
PTZTF 3.9B
PTZTF 4.3B
PTZTF 4.7B
PTZTF 5.1B
PTZTF 5.6B
PTZTF 6.2B
PTZTF 6.8B
PTZTF 7.5B
PTZTF 8.2B
Marking
2.0B
2.4B
2.7B
3.0B
3.3B
3.6B
3.9B
4.3B
4.7B
5.1B
5.6B
6.2B
6.8B
7.5B
8.2B
P/N
PTZTF 9.1B
PTZTF 10B
PTZTF 11B
PTZTF 12B
PTZTF 13B
PTZTF 15B
PTZTF 16B
PTZTF 18B
PTZTF 20B
PTZTF 22B
PTZTF 24B
PTZTF 27B
PTZTF 30B
PTZTF 33B
PTZTF 36B
Marking
9.1B
10B
11B
12B
13B
15B
16B
18B
20B
22B
24B
27B
30B
33B
36B
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
2/6
2015/06/22_Rev.001
PTZTF Series
●

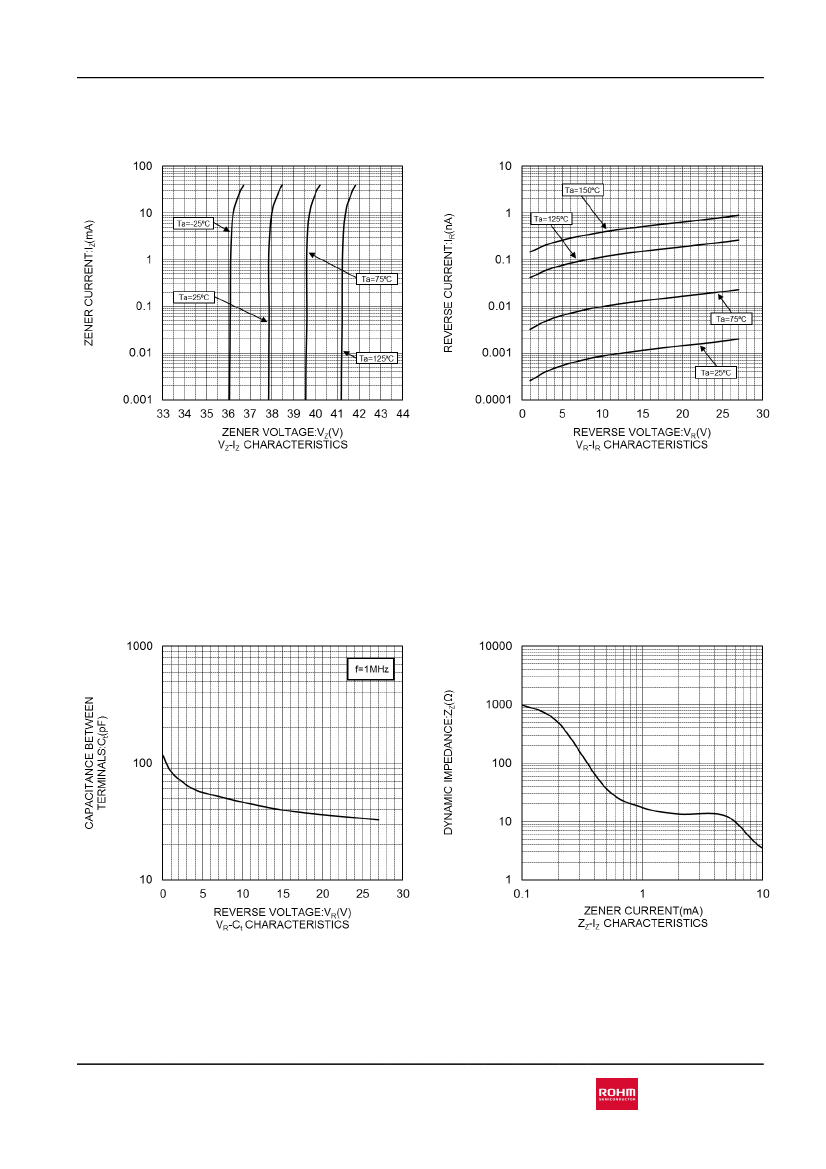

Electrical Characteristic Curves
Data sheet
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
3/6
2015/06/22_Rev.001
PTZTF36B
●

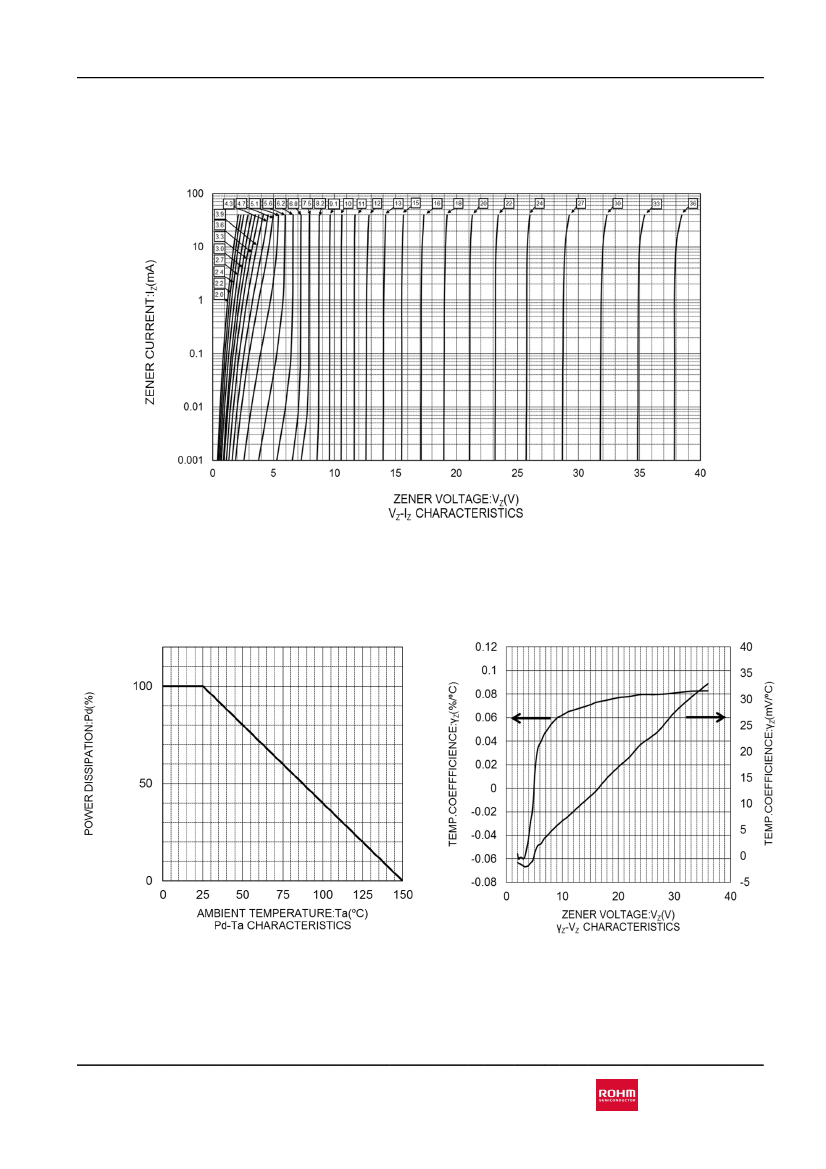

Electrical Characteristic Curves
Data sheet
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
4/6
2015/06/22_Rev.001
PTZTF36B
●

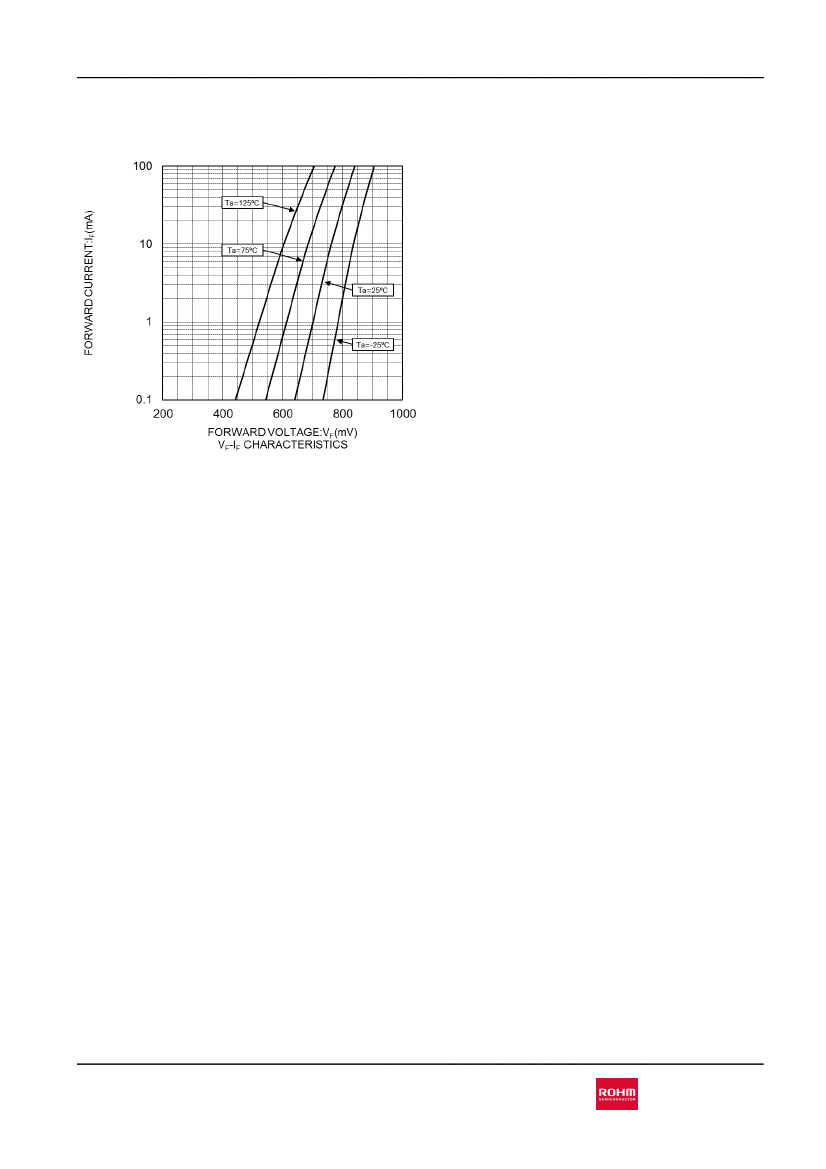

Electrical Characteristic Curves
Data sheet
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
5/6
2015/06/22_Rev.001
