TECHNICAL DATA SHEET
SMA
RIGHT ANGLE JACK PCB
SMD
32K264-40ML5

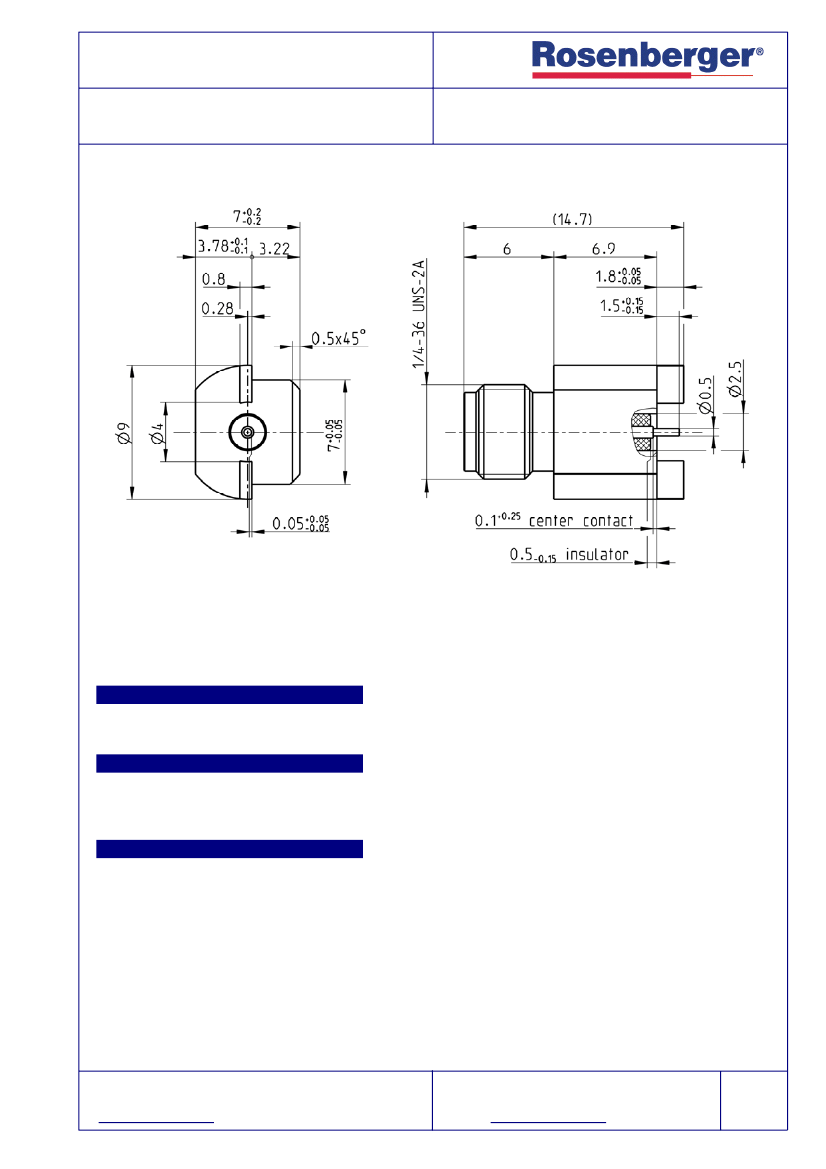

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310
Documents
PCB layout
Tape & reel packaging
B 210
VG57.50000
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
CuBe
Brass
PTFE
Plating
AuroDur®, gold plated
AuroDur®, gold plated
RF_35/06.07/5.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMA
RIGHT ANGLE JACK PCB
SMD
50
Ω
DC to 18 GHz
≤
1.1 + 0.02 x f [GHz]
≤
0.03 x
f(GHz)
dB
≥
5 x10
3
MΩ
≤
3 mΩ
≤
2 mΩ
1000 V rms
480 V rms
≤
200 W @ 2 GHz;
≤
100 W @ 10 GHz
≥
100 dB up to 1 GHz
32K264-40ML5
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- VSWR in application depends decisive on PCB layout -
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 100
≥
20 N
max. 0.6 Nm
0.5 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Max. soldering temperature
2002/95/EC (RoHS)
-65°C to +165°C
MIL-STD-202, Meth. 107, Cond. B
MIL-STD-202, Meth. 101, Cond. B
MIL-STD-202, Meth. 204, Cond. D
MIL-STD-202, Meth. 213, Cond. I
MIL-STD-202, Meth. 106
IEC 61760-1, +260°C for 10 sec.
compliant
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
100 pcs in blister, B0100B; 500 pcs in tape & reel, B0500T
3.4 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/06.07/5.0
Draft
Rong Fang
Date
16/07/08
Approved
Janßen
Date
24.09.08
Rev.
a00
Engineering change number
08-s470
