35PX220020CE16X25 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 35PX220020CE16X25

Preview

35PX220020CE16X25: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 2200uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size67KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35PX220020CE16X25 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 2200uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

35PX220020CE16X25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.77 mA
Manufacturer's serial number	PX
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	1370 mA
surface mount	NO
Delta tangent	0.16
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

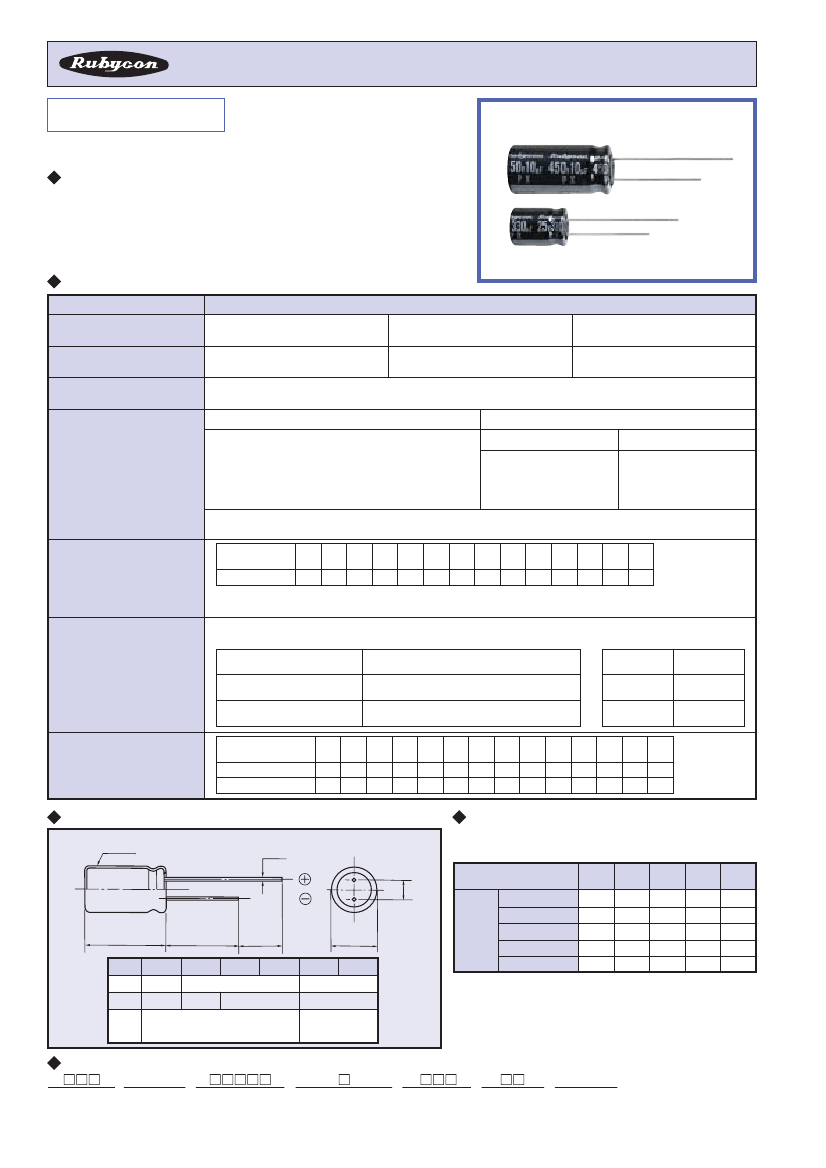

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

PX

SERIES

105

o

C Miniaturized

FEATURES

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-55

∼

+105

°

C

6.3

∼

100V.DC

-40

∼

+105

°

C

160

∼

400V.DC

+

- 20%(20

°

C, 120Hz)

-25

∼

+105

°

C

450V.DC

6.3

∼

100V.DC

I

=0.01CV

or 3

µ

A whichever is greater.

(After 2 minutes application of rated voltage)

160

∼

450V.DC

CV <1000

=

CV >1000

Leakage Current(MAX)

I

=

0.1CV

+

40

µ

A (1minute)

I

=

0.04CV

+

100

µ

A (1minute)

I

=

0.03CV

+

15

µ

A (5minutes)

I

=

0.02CV

+

25

µ

A (5minutes)

I

=Leakage

Current

(µA)

C

=Rated

Capacitance

(µF)

V

=Rated

Voltage

(V)

(20

°

C, 120Hz)

Dissipation Factor(MAX)

(tanδ)

Rated Voltage

6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

(V)

tanδ

0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.20 0.20 0.25 0.25 0.25

When rated capacitance is over 1000

µ

F, tanδ shall be added 0.02 to the listed value with increase of every 1000

µ

F.

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Rated Voltage

(V)

Z(

-

25°C)/Z(20°C)

Z(

-

40°C)/Z(20°C)

6.3

5

10

4

8

Not more than 200% of the specified value.

Not more than the specified value.

16

3

6

25

2

4

35

2

3

50

2

3

63

2

3

+

Within -25% of the initial value.

Case Dia

φ

D

<

8

=

φ

D

>

10

=

Life Time

(hrs)

1000

2000

Low Temperature Stability

Impedance Ratio(MAX)

100 160 200 250 350 400 450

2

3

4

3

4

8

6

8

6

10

7

-

(120Hz)

DIMENSIONS

SLEEVE

(mm)

φ

d

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

+

-

0.5

F

(Hz)

60(50) 120

0.50

0.65

0.80

1.00

500

1.20

1.10

1.05

1k

1.30

1.15

1.10

10k<

=

1.50

1.20

1.15

L+

α

MAX

15MIN

4MIN

φ

D+0.5MAX

φ

D

φ

d

F

6.3

0.5

2.5

8

10

0.6

12.5

16

0.8

7.5

2.0

18

1µF

2.2∼ 4.7µF

Coefficient

10∼ 47µF

100∼ 1000µF

2200∼ 33000µF

α

3.5

5.0

< 100:1.5

WV =

WV > 160:2.0

=

PART NUMBER

PX

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

D

×

L

Case Size
