CL21B222KC65PNL datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL21B222KC65PNL

CL21B222KC65PNL: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0022uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size477KB，9 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CL21B222KC65PNL Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0022uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

CL21B222KC65PNL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMSUNG
package instruction	, 0805
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.0022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, CARDBOARD PAPER, 13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

Feature

•Automotive

products are manufactured in state of the art facilities

recommended for registration to ISO/TS 16949:2002.

•Automotive

products meet AEC-Q-200 requirements.

•Automotive

products are RoHS compliant.

•Samsung

terminations are suitable for all flow and reflow soldering

systems. (10/21/31 size type only)

•Automotive

products meet JEDEC-020-D requirements.

•C0G

dielectric components contain BME and copper

terminations with a Ni/Sn plated overcoat.

•X7R

dielectric components have BME and soft

terminations with a Ni/Sn plated overcoat.

Application

•

Automotive Electronic Equipment

(Powertrain, Safety, Body & Chassis, Convenience, Infortainment)

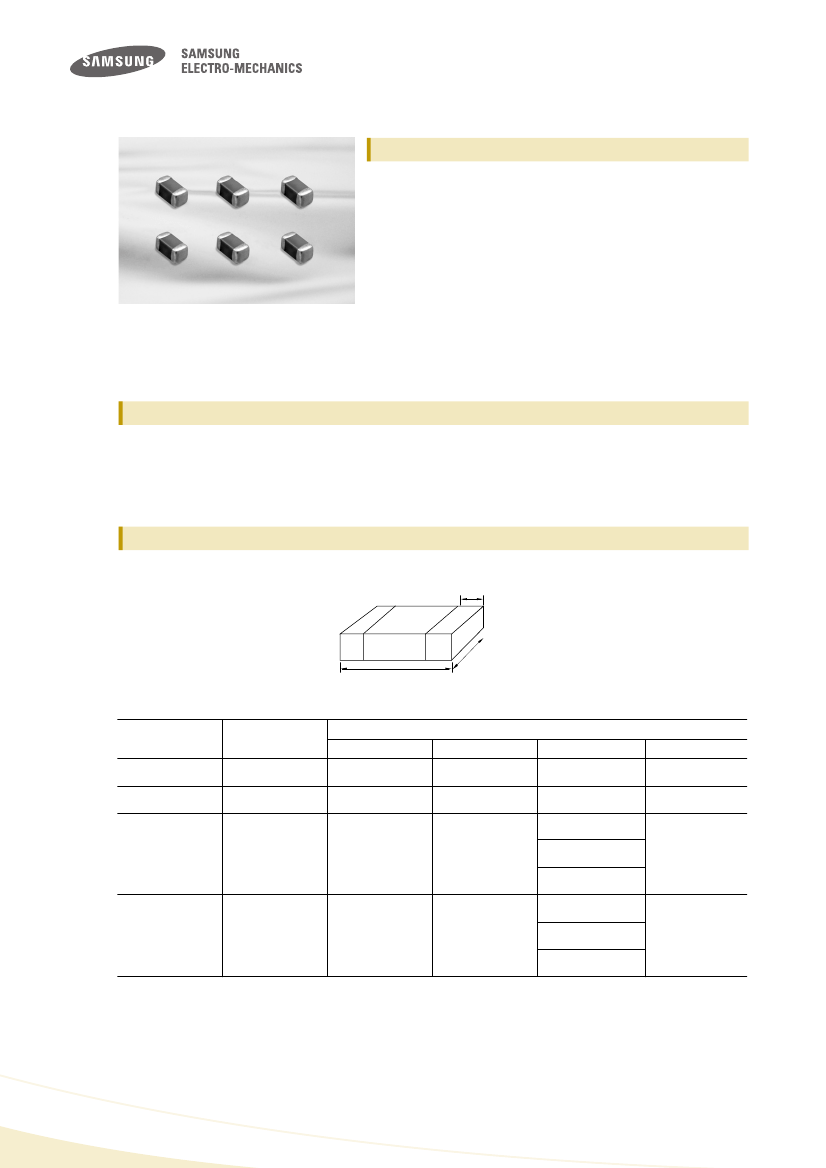

Structure and Dimensions

Code

EIA

Code

0402

0603

Dimension(mm)

1.00±0.05

1.60±0.10

0.50±0.05

0.80±0.10

0.50(±0.05)

0.80(±0.10)

0.60(±0.10)

0.2+0.15/-0.1

0.3±0.2

0805

2.00±0.10

1.25±0.10

0.85(±0.10)

1.25(±0.10)

0.85(±0.15)

0.5±0.2/-0.3

1206

3.20±0.20

1.60±0.20

1.15(±0.10)

1.60(±0.20)

0.5±0.3
