KM416S1120DT-G7 datasheet, PDF

Datasheet> All Categories > storage> storage> KM416S1120DT-G7

KM416S1120DT-G7: DescriptionSynchronous DRAM, 1MX16, 5.5ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50; Categorystorage storage; File Size2MB，43 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM416S1120DT-G7 Overview

Synchronous DRAM, 1MX16, 5.5ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50

KM416S1120DT-G7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP50,.46,32
Contacts	50
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	5.5 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	143 MHz
I/O type	COMMON
interleaved burst length	1,2,4,8
JESD-30 code	R-PDSO-G50
JESD-609 code	e0
length	20.95 mm
memory density	16777216 bi
Memory IC Type	SYNCHRONOUS DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	50
word count	1048576 words
character code	1000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP50,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	1.2 mm
self refresh	YES
Continuous burst length	1,2,4,8,FP
Maximum standby current	0.002 A
Maximum slew rate	0.14 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

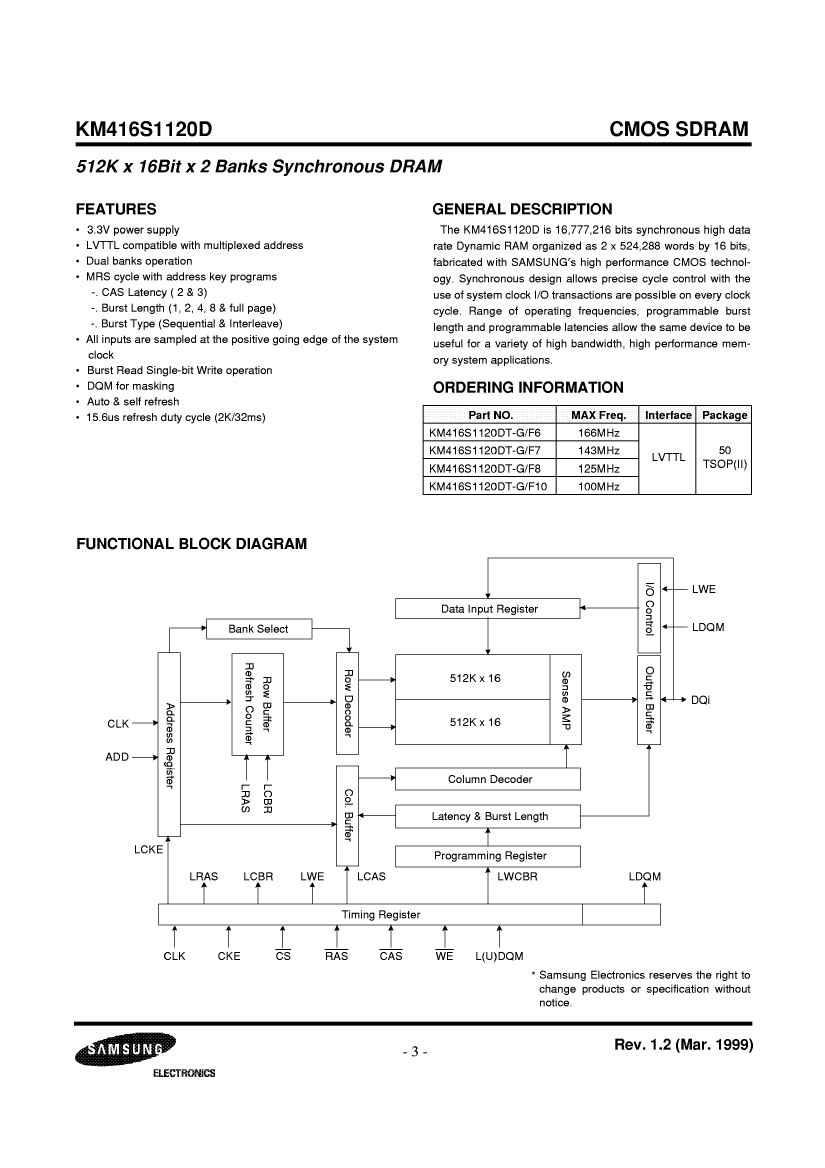

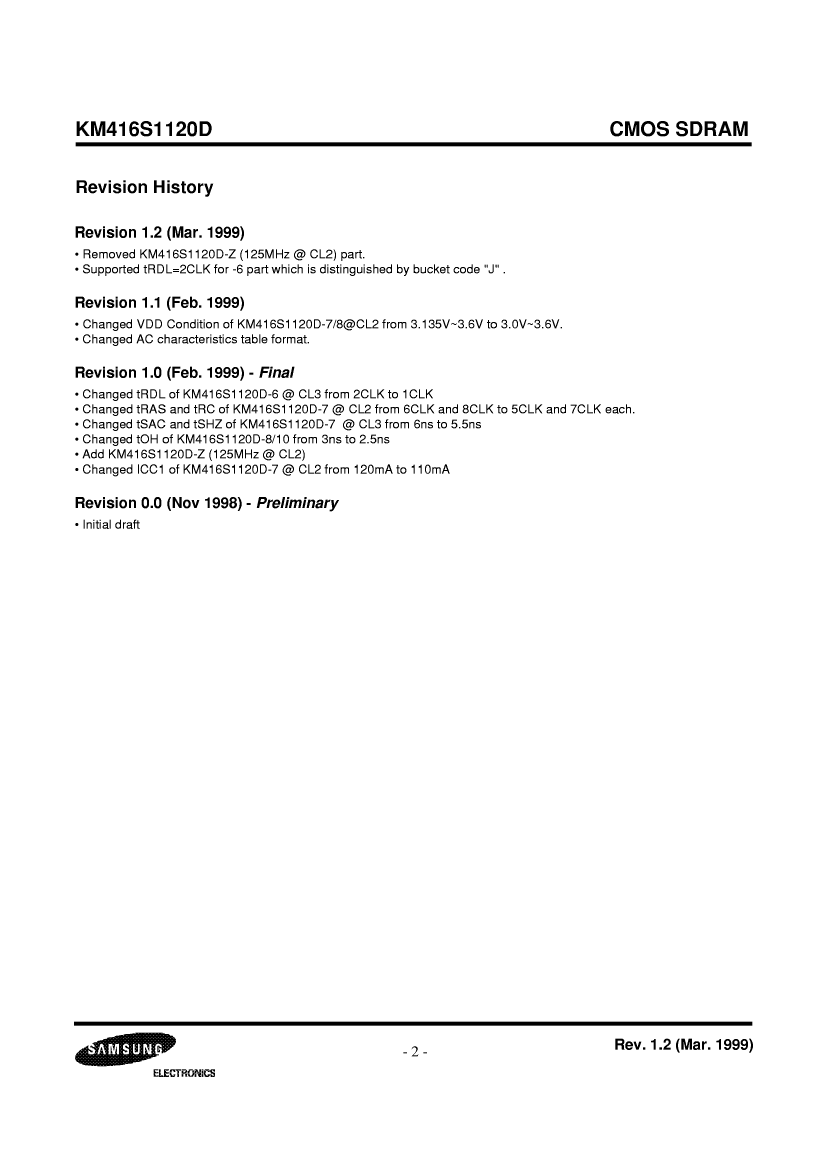

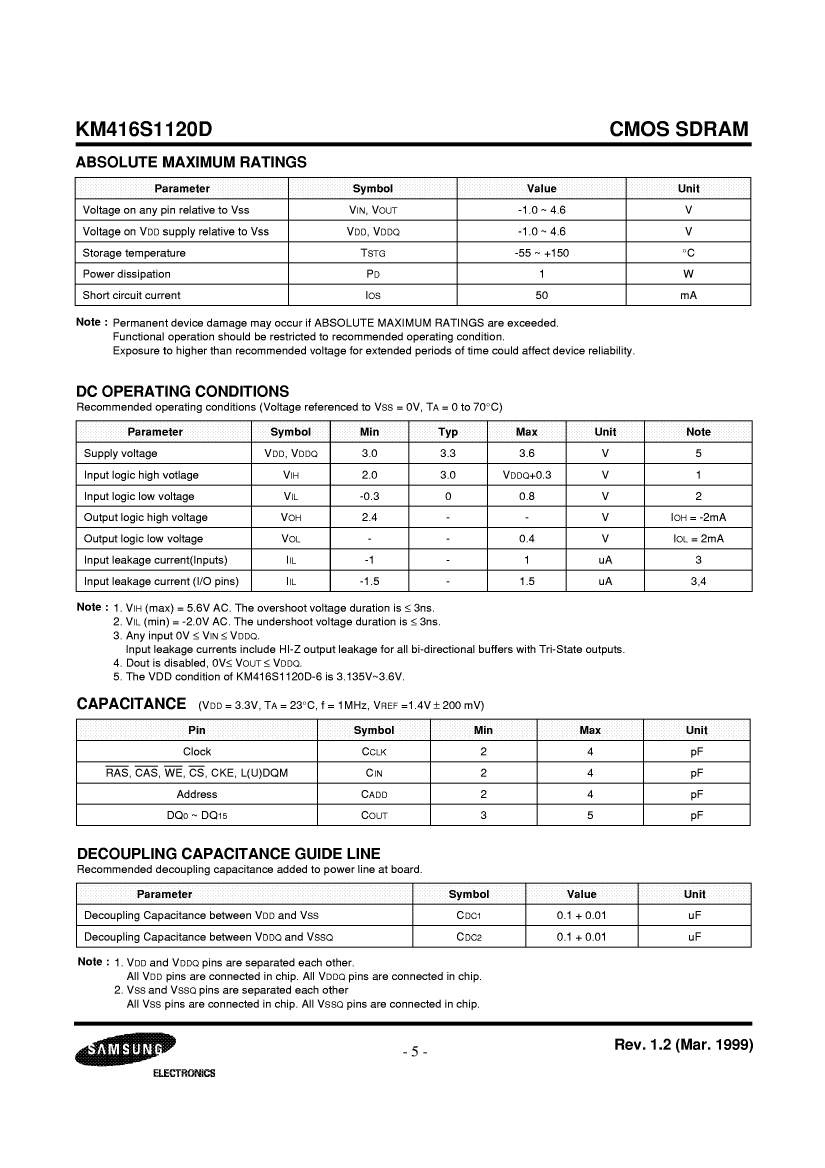

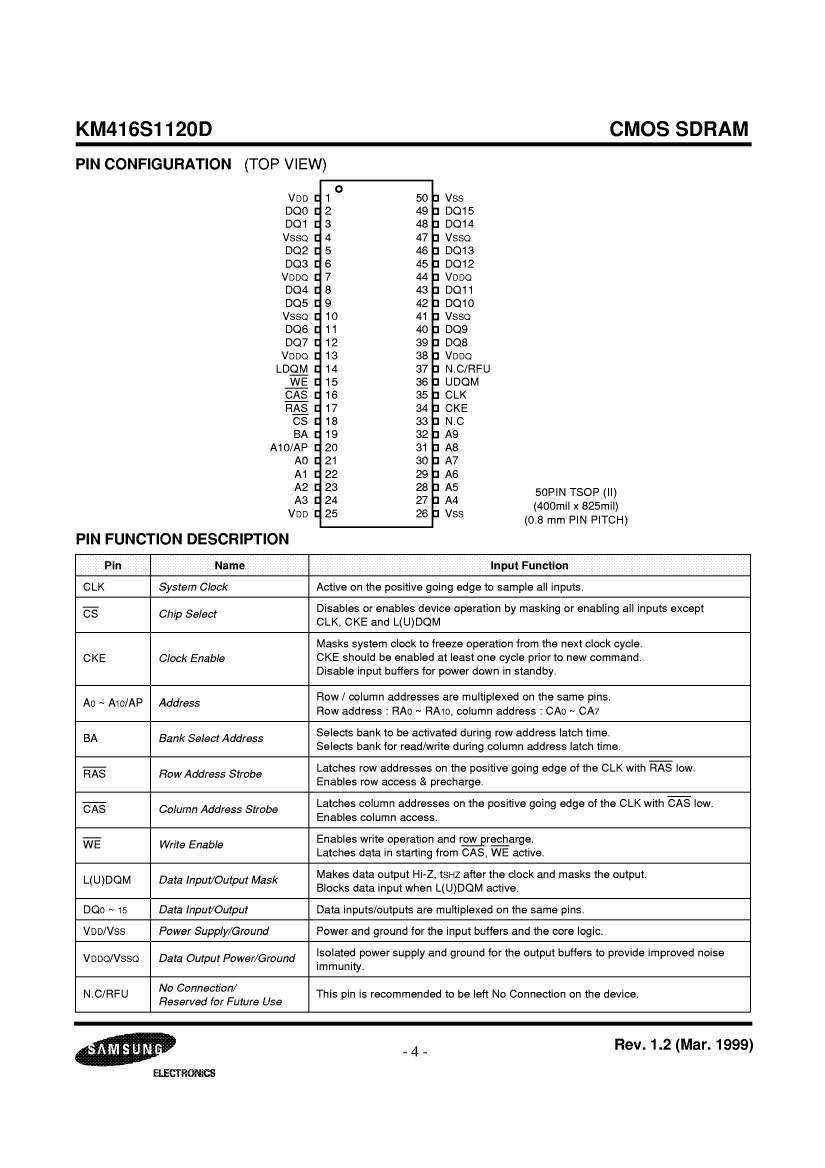

Preview

Download Datasheet

View All

KM416S1120DT-G7 Related Products

	KM416S1120DT-G7	KM416S1120DT-F10	KM416S1120DT-F8	KM416S1120DT-F6	KM416S1120DT-G6	KM416S1120DT-G10	KM416S1120DT-F7
Description	Synchronous DRAM, 1MX16, 5.5ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50	Synchronous DRAM, 1MX16, 6ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50	Synchronous DRAM, 1MX16, 6ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50	Synchronous DRAM, 1MX16, 5.5ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50	Synchronous DRAM, 1MX16, 5.5ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50	Synchronous DRAM, 1MX16, 6ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50	Synchronous DRAM, 1MX16, 5.5ns, CMOS, PDSO50, 0.400 X 0.825 INCH, 0.80 MM PITCH, TSOP2-50
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2, TSOP50,.46,32	TSOP2, TSOP50,.46,32	TSOP2, TSOP50,.46,32	TSOP2, TSOP50,.46,32	TSOP2, TSOP50,.46,32	TSOP2, TSOP50,.46,32	TSOP2, TSOP50,.46,32
Contacts	50	50	50	50	50	50	50
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	5.5 ns	6 ns	6 ns	5.5 ns	5.5 ns	6 ns	5.5 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	143 MHz	100 MHz	125 MHz	166 MHz	166 MHz	100 MHz	143 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
interleaved burst length	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8
JESD-30 code	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50	R-PDSO-G50
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	20.95 mm	20.95 mm	20.95 mm	20.95 mm	20.95 mm	20.95 mm	20.95 mm
memory density	16777216 bi	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bi	16777216 bi
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1
Number of terminals	50	50	50	50	50	50	50
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
Encapsulate equivalent code	TSOP50,.46,32	TSOP50,.46,32	TSOP50,.46,32	TSOP50,.46,32	TSOP50,.46,32	TSOP50,.46,32	TSOP50,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048	2048	2048	2048
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
self refresh	YES	YES	YES	YES	YES	YES	YES
Continuous burst length	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP
Maximum standby current	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A
Maximum slew rate	0.14 mA	0.115 mA	0.13 mA	0.15 mA	0.15 mA	0.115 mA	0.14 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Maker	SAMSUNG	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
