RC3216J621AS datasheet, PDF - EEWORLD Datasheet

RC3216J621AS: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.25W, 620ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP; CategoryPassive components The resistor; File Size435KB，6 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

RC3216J621AS Overview

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 620ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMSUNG
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.6 mm

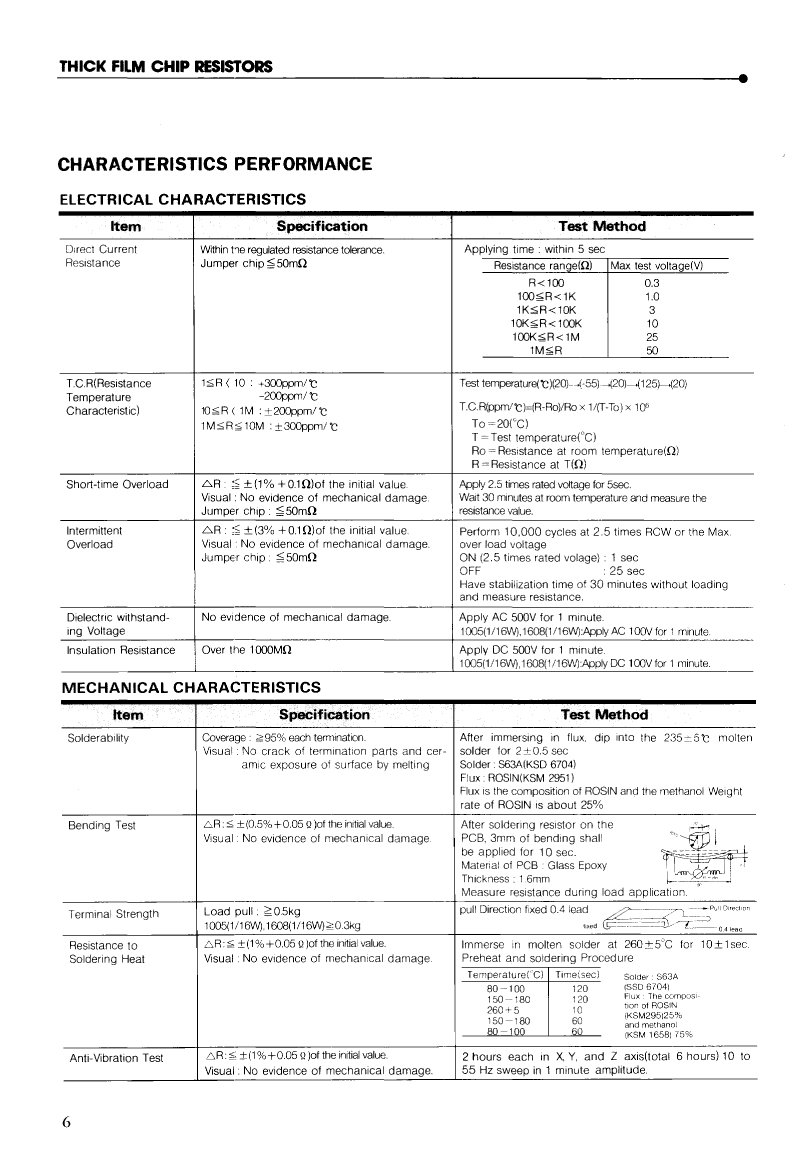

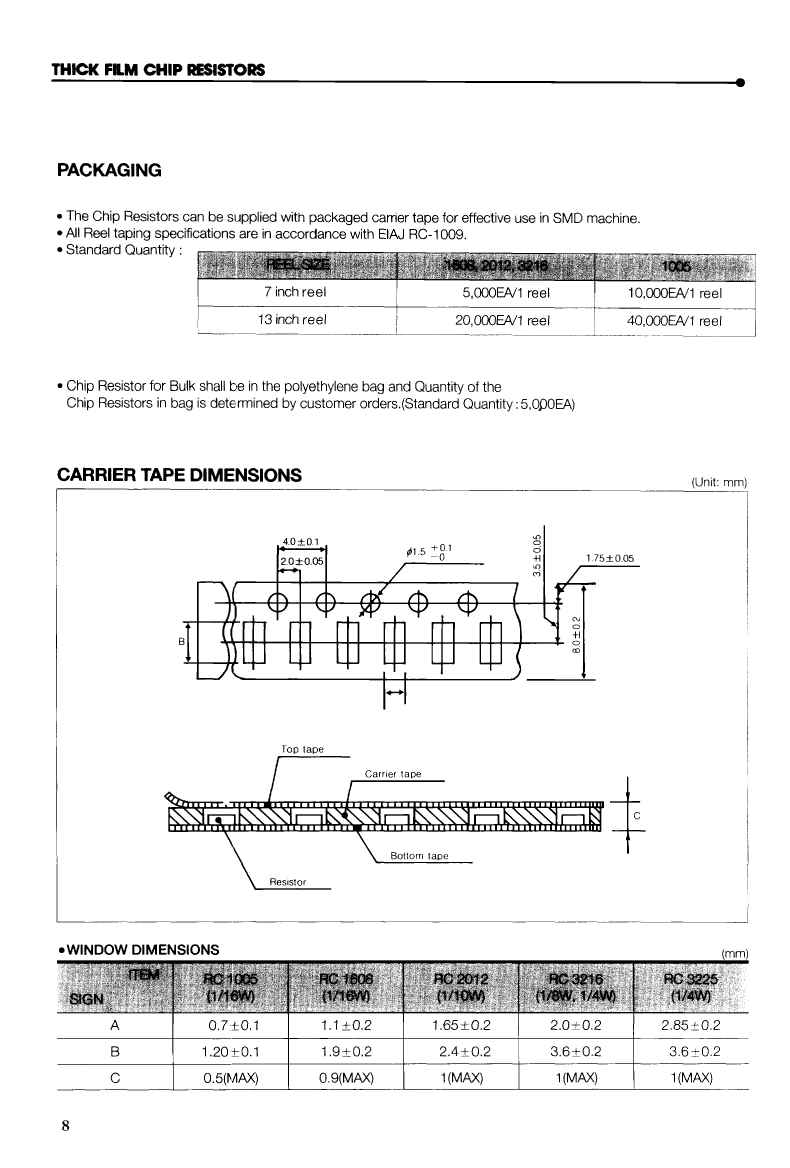

method of packing	TR, 13 INCH

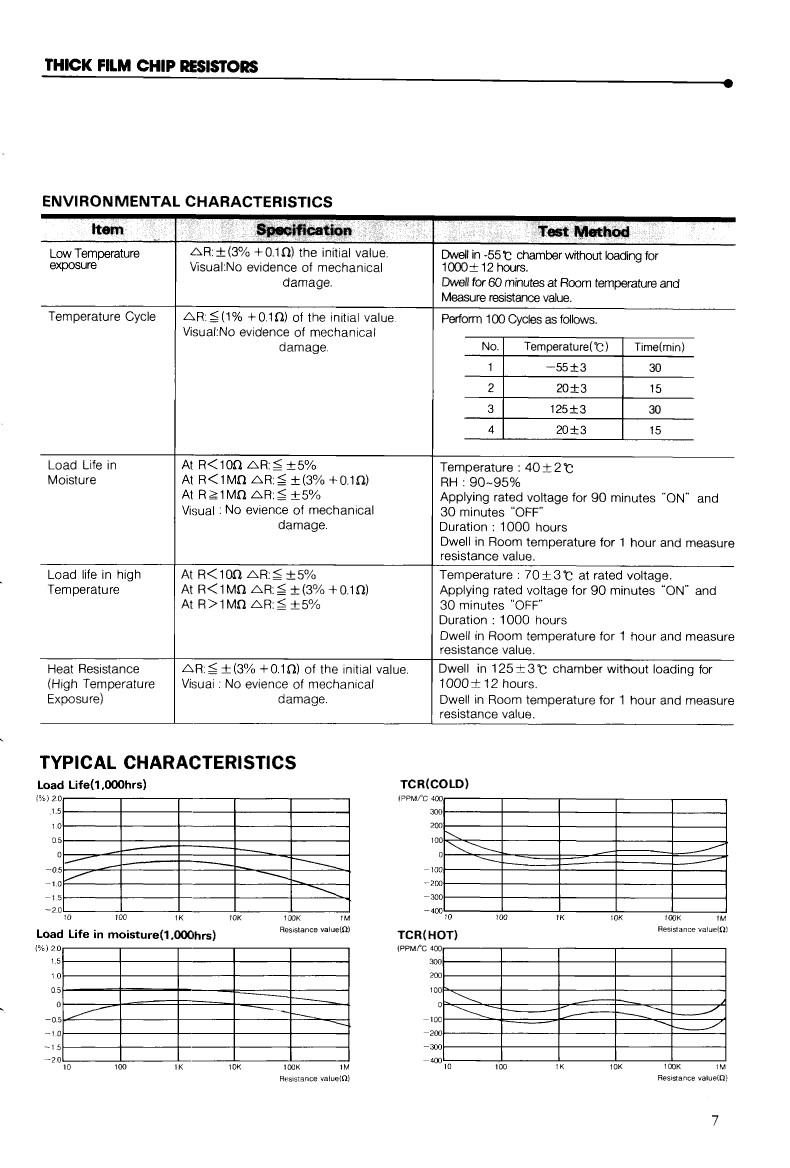

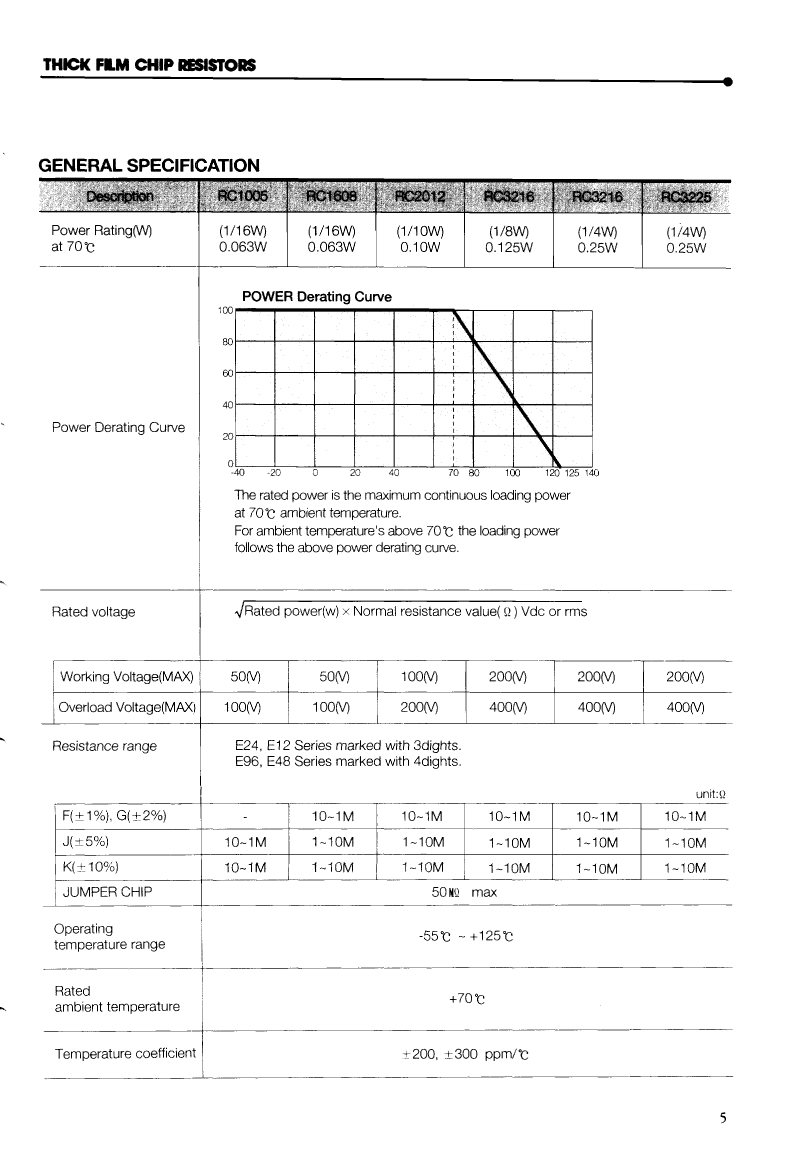

Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	620 Ω
Resistor type	FIXED RESISTOR

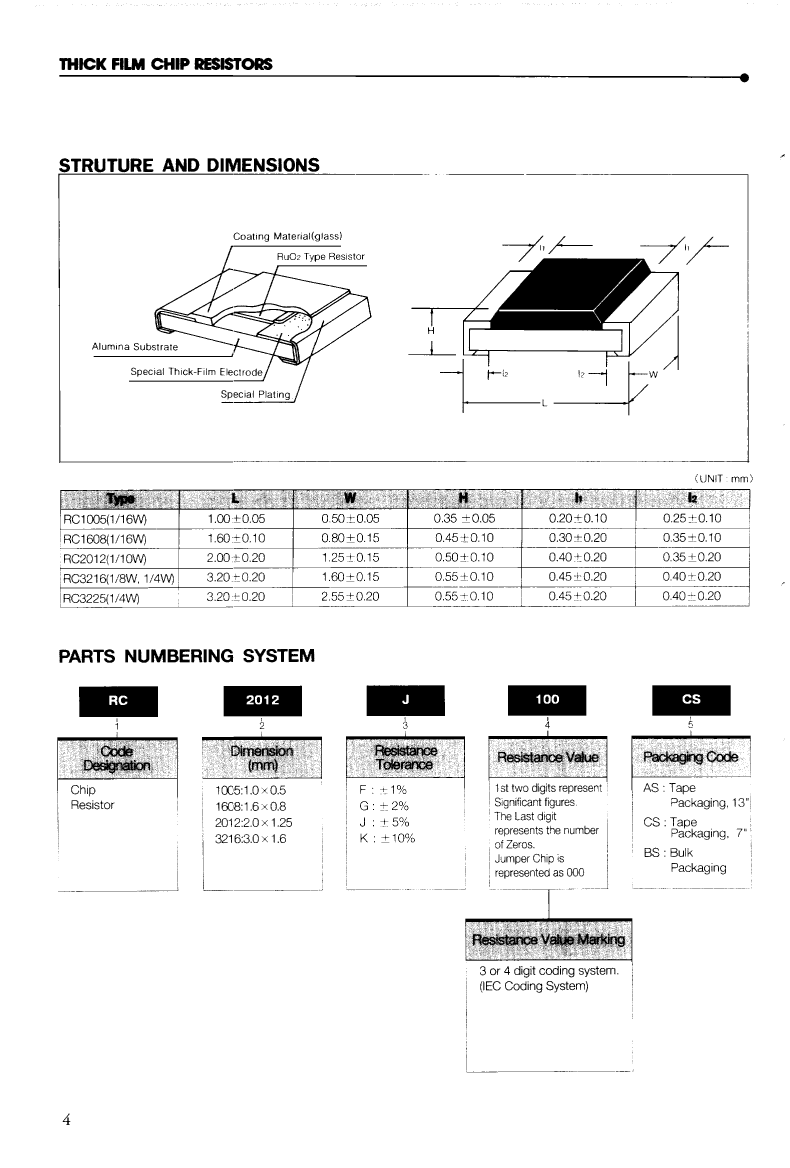

size code	1206
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	200 V
