ACP-22-06-H-00.50-T-T-M-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ACP-22-06-H-00.50-T-T-M-2

ACP-22-06-H-00.50-T-T-M-2: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ACP-22-06-H-00.50-T-T-M-2 Overview

Interconnection Device, ROHS COMPLIANT

ACP-22-06-H-00.50-T-T-M-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Connector type	INTERCONNECTION DEVICE

ACP-22-06-H-00.50-T-T-M-2 Preview

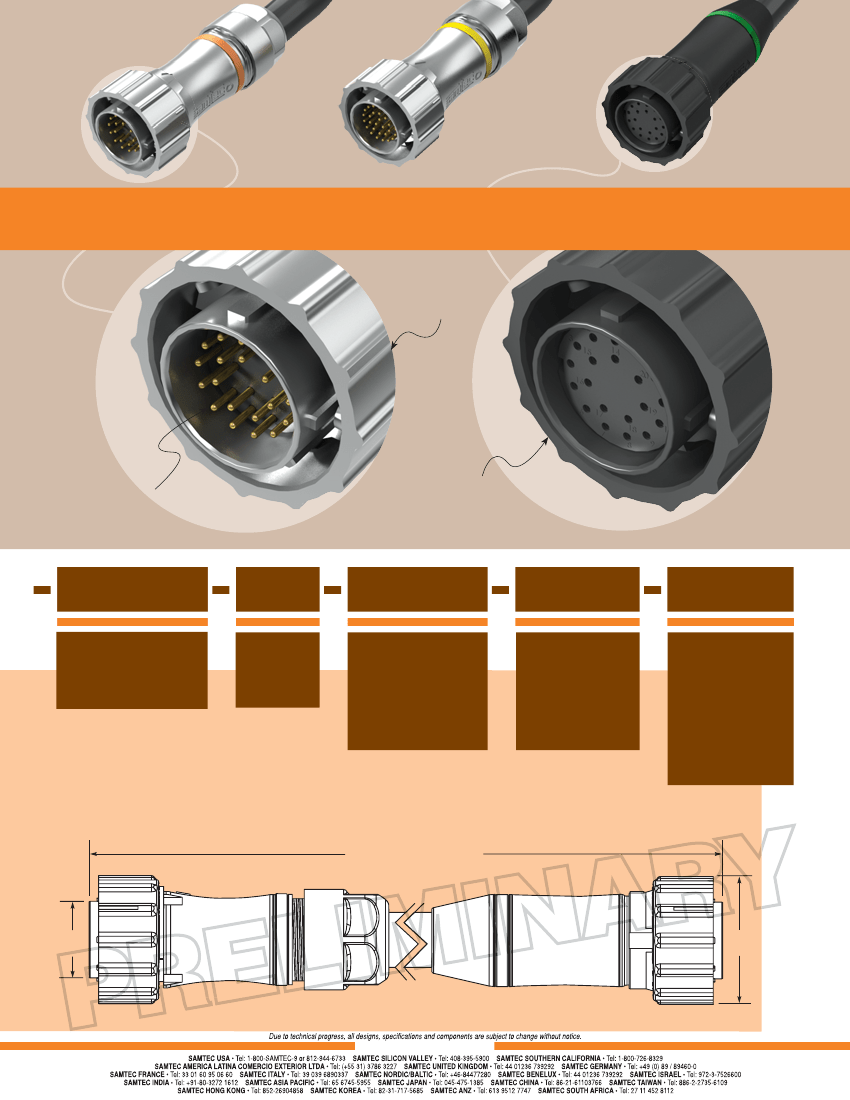

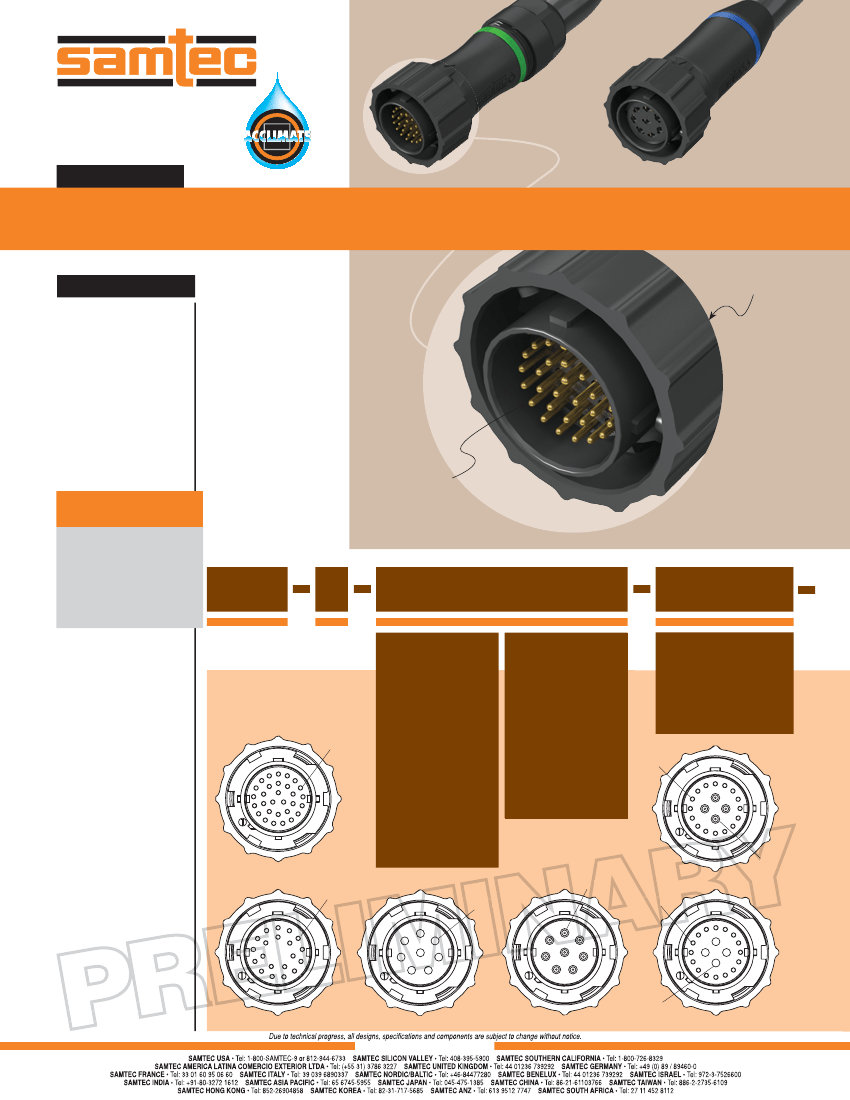

F-211

ACP-22 SERIES

ACP–22–01–G–00.25–T–S–P–2

ACP–22–03–G–00.25–S–S–P–3

IP68 SEALED M22 CABLE ASSEMBLY

SPECIFICATIONS

For complete speciﬁcations see

www.samtec.com?ACP-22

Insulator Material:

Thermoplastic

Terminal Material:

Brass

Contact Material:

Brass/BeCu

Housing:

–P & –O: Thermoplastic

–M: Zinc Alloy

Current Rating:

Testing Now!

RoHS Compliant:

Yes

Mates with:

ACR-22

Will test to IP68

for dust & water

ALSO

AVAILABLE

• Field Termination Kit

• Bulk Cable

• Dust Caps:

DCA-ACP-22-M-X

DCA-ACP-22-P-X

Call Samtec.

Signal, power, RF

or combination

signal/power, signal/RF

ACP

–01

LEAD

STYLE

PLATING

–05

= 1,5mm DIA (4)

terminals or sockets

(16 AWG)

+ 1,0mm DIA (16)

terminals or sockets

(24 AWG)

= 1,0mm DIA (30)

terminals or sockets

(24 AWG)

–G

= 10µ" (0,25µm) Gold over

50µ" (1,27µm) Ni on contact

–02

= 1,0mm DIA (20)

terminals or sockets

(24 AWG)

–H

= 30µ" (0,76µm) Gold over

50µ" (1,27µm) Ni on contact

–06

= 1,0mm DIA (16)

terminals or sockets

(24 AWG)

+ RF (4)

terminals or sockets

(RG 316)

–03

= 1,5mm DIA (8)

terminals or sockets

(16 AWG)

–04

= RF (8)

terminals or sockets

(RG 316)

–01

–06

ome lengths,

Note:

Some lengths

yles

styles and options are

n-stand

non-standard, non-returnable.

–02

–03

–04

–05

WWW.SAMTEC.COM

ACP–22–02–H–00.25–T–S–M–1

ACP–22–01–H–00.25–T–S–M–4

ACP–22–02–G–00.25–S–T–O–2

Field

termination

kit option

Choice of

terminals or sockets

Choice of

plastic, metal or

overmolded plastic

LENGTH

END 1

OPTION

END 2

OPTION

HOUSING

MATERIAL

KEYING

OPTIONS

–“XX.XX”

= Length in meters

(00.25m min. to 50m max.)

Contact Samtec for

other lengths

–T

= Terminal

–T

= Terminal

–P

= Plastic

–1

= Orange

–S

= Socket

–S

= Socket

–M

= Metal

–2

= Green

–BC

= Blunt Cut

–O

= Overmolded Plastic

–3

= Blue

–4

= Yellow

Overall Length (XX.XX) ± 2%

(19,50)

.768

768

(32,50)

1.280

–P or –M

HOUSING

–O

HOUSING

WWW.SAMTEC.COM

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
