203267 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 203267

Preview

203267: Description8 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

203267 Overview

8 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK

203267 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PANEL MOUNTABLE, SHIELDED
Board mount options	LOCATING POSTS
body width	0.537 inch
subject depth	0.85 inch
body length	0.625 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	1000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	203267
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

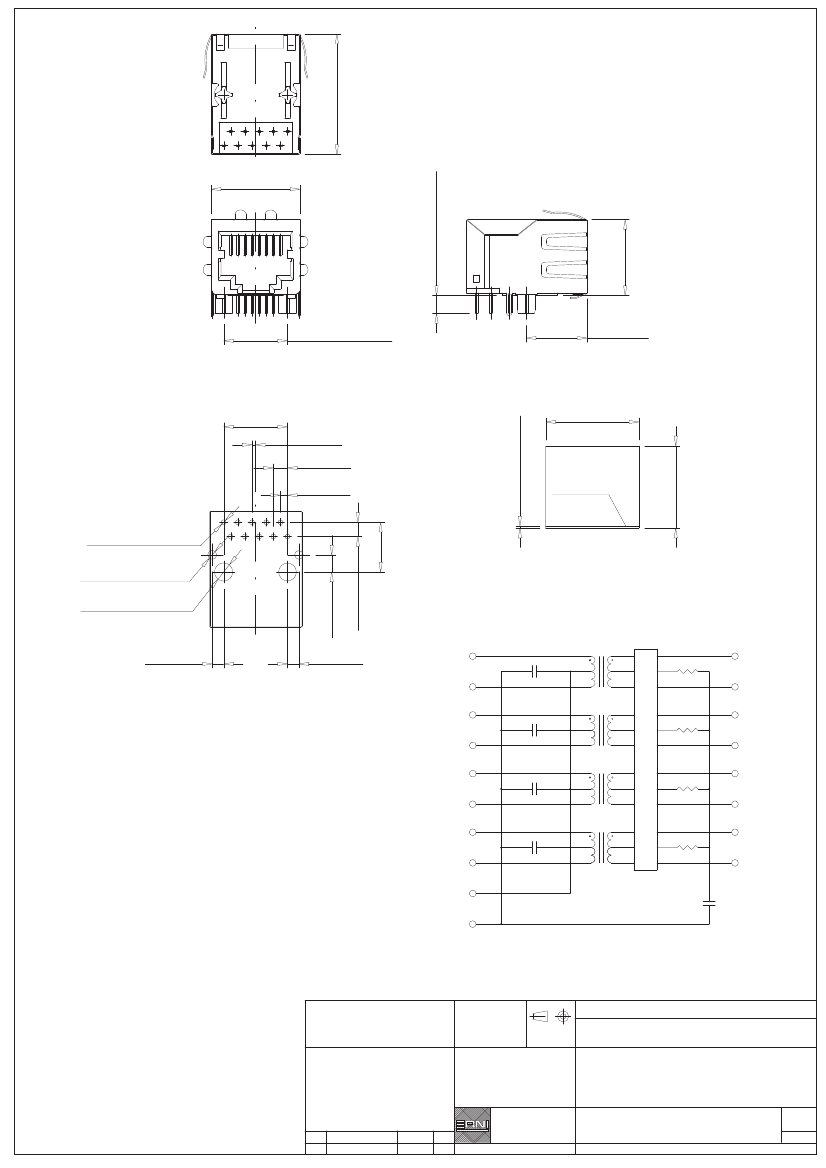

21.59 [.850] MAX

15.88 [.625]

3.20±0.20 [.126±.008]

1

8

11.43±0.13 [.450±.005]

10.89 [.429]

RECOMMENDED PCB LAYOUT (COMPONENT SIDE VIEW)

EMPFOHLENER FUER LEITERPLATTE (BESTUECKUNGSSEITE)

TOL

±0.05

[.002] UNLESS NOTED

11.43 [.450]

0.64 [.025]

2.54 [.100]

1.27 [.050]

1

˚0.89±0.07 [

˚.035±.003] X10

10

RECOMMENDED PANEL

CUTOUT

EMPFOHLENER FRONTPLATTEN AUSSCHNITT

16.66 [.656]

0.38±0.10 [.015±.004]

13.63 [.537]

PCB EDGE

LP

˚1.60±0.07 [

˚3.25±0.07 [

˚.063±.003] X2

˚.128±.003] X2

3.05 [.120]

2.54 [.100]

8.89 [.350]

ELECTRICAL SCHEMATICS 1000 BASE T - M5A01

ELEKTRISCHES DIAGRAMM

PC

B

TD0+ P1

TD0- P2

TD1+ P3

TD1- P6

CABL

E

J1 MX0+

J2 MX0-

J3 MX1+

2.03 [.080]

CMR CHOKES

14.72 [.580]

J6 MX1-

J4 MX2+

J5 MX2-

J7 MX3+

J8 MX3-

MAGNETIC SPECIFICATIONS @ 25˚C

ISOLATION

CMR (0.1-100MHz)

1,500 Vrms

-40dB TYP.

TD2+ P4

TD2- P5

TD3+ P7

TD3- P8

0.01

µf

X4

VCC

P9

OCL (100KHz, 0.1V, 8mA):

350µH MIN

INSERTION LOSS (0.1-100MHz): -1.1dB MAX

CROSSTALK (0.1-100MHz): -[33-20log(F/100MHz)]dB TYP

RETURN LOSS:

1-40MHz

60MHz

80MHz

100MHz

-18dB MIN

-14.5dB MIN

-12dB MIN

-10dB MIN

4X 75 W

1000 pf/2KV

GND P10

MATERIALS AND FINISH

HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK

SHIELDING: Cu ALLOY, PLATED WITH Ni

CONTACTS: PHOSPHOR BRONZE

CONTACT FINISH: Au, 0.8µm [30µin], OVER Ni

Consider protection memo from DIN 34

NOTE 1: SIDE SHIELD TABS IN REAR 3.05mm (R)

NOTE 2: PANEL GROUND FLANGES BOTH SIDES AND TOP (GF5)

Information:

Tolerances

All Dimensions

Scale

2:1

-

SCHEMATIC NUMBER: M5A01

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

in mm [in]

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TERMINAL FINISH: SnPb

MECHANICAL CHARACTERISTICS

DURABILITY: 1000 MATING CYCLES

ELECTRICAL CHARACTERISTICS

CONTACT RESISTANCE: 30 MILLIOHMS MAX

OPERATING TEMPERATURE: 0˚C TO 70˚C

MOD JACK - MJIM

8C10T, 1X1, INTEGRATED MAGNETICS

ERNI Components

-

Rev.

-

Date

-

CHESTER, VA U.S.A.

-

Group/Type

203267

MJIM

I
