190730015: DescriptionCOPPER ALLOY, TIN FINISH, RING TERMINAL; CategoryThe connector terminals; File Size101KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

190730015 Overview

COPPER ALLOY, TIN FINISH, RING TERMINAL

190730015 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	19073
Terminal and terminal strip types	RING TERMINAL
Wire gauge	18 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

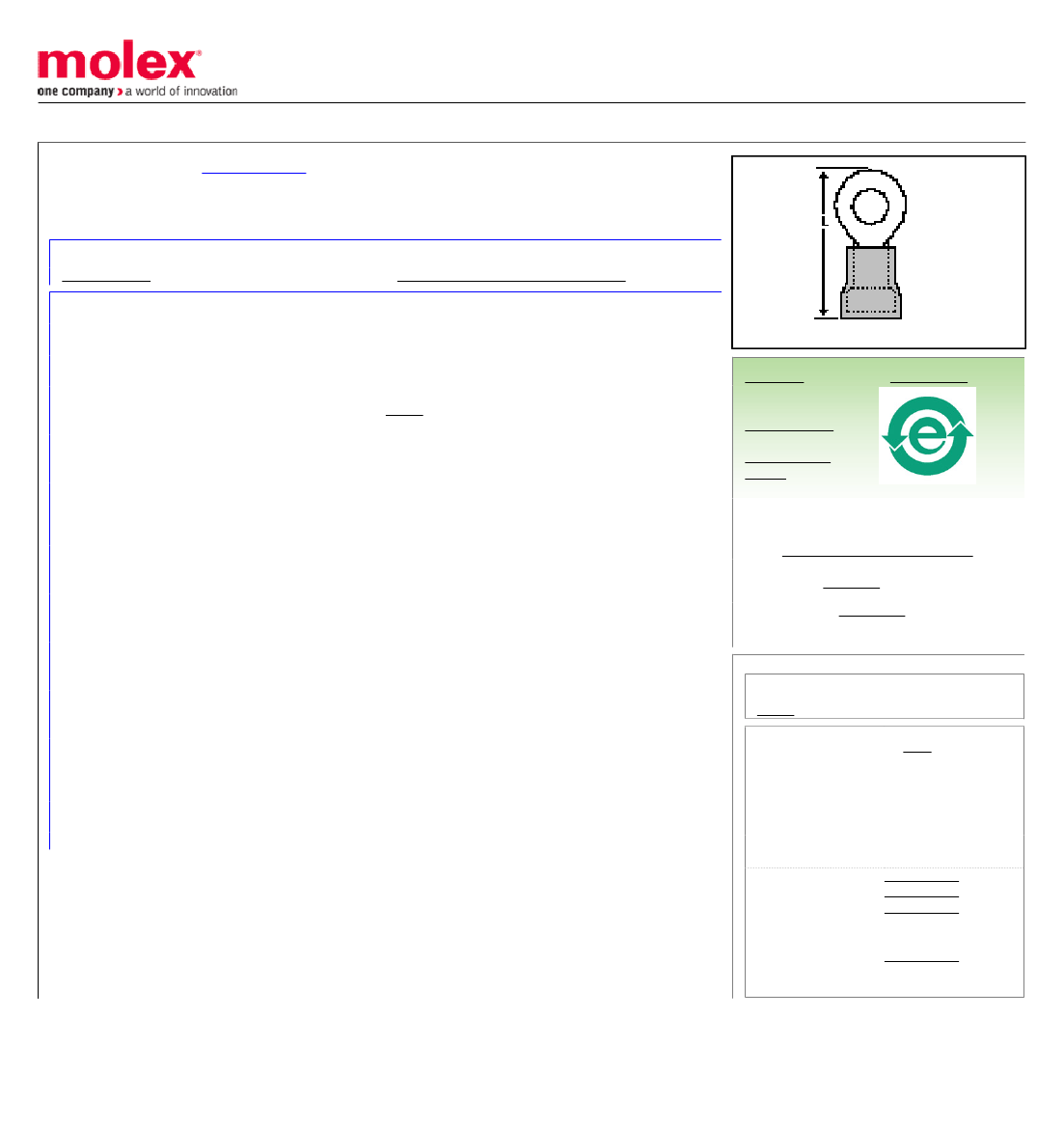

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0190730005

Active

Avikrimp™ Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 2, Length

18.00mm (.708")

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

E32244

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

General

Product Family

Series

Comments

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19073

Type II Insulated; Class 1 and 2

Yes

AS25036-159, MS25036-159

Avikrimp™

Ring

Physical

Barrel Type

Flammability

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

94V-0

Nylon (PA)

Tin

Bag

100

2.5

100

2.5

1-2 (M2)

Crimp or Compression

3.60mm (.142") max.

18, 20, 22

0.35 - 0.80

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

19073Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

0640010100

Hand Crimp Tool

0640011200

Crimp Head for the 0640050100

AT-200™ Pneumatic

Hand Tool

Crimp Head for the 0640051200

AT-200™ Pneumatic

Hand Tool

Material Info

Old Part Number

AA-820-02

Reference - Drawing Numbers

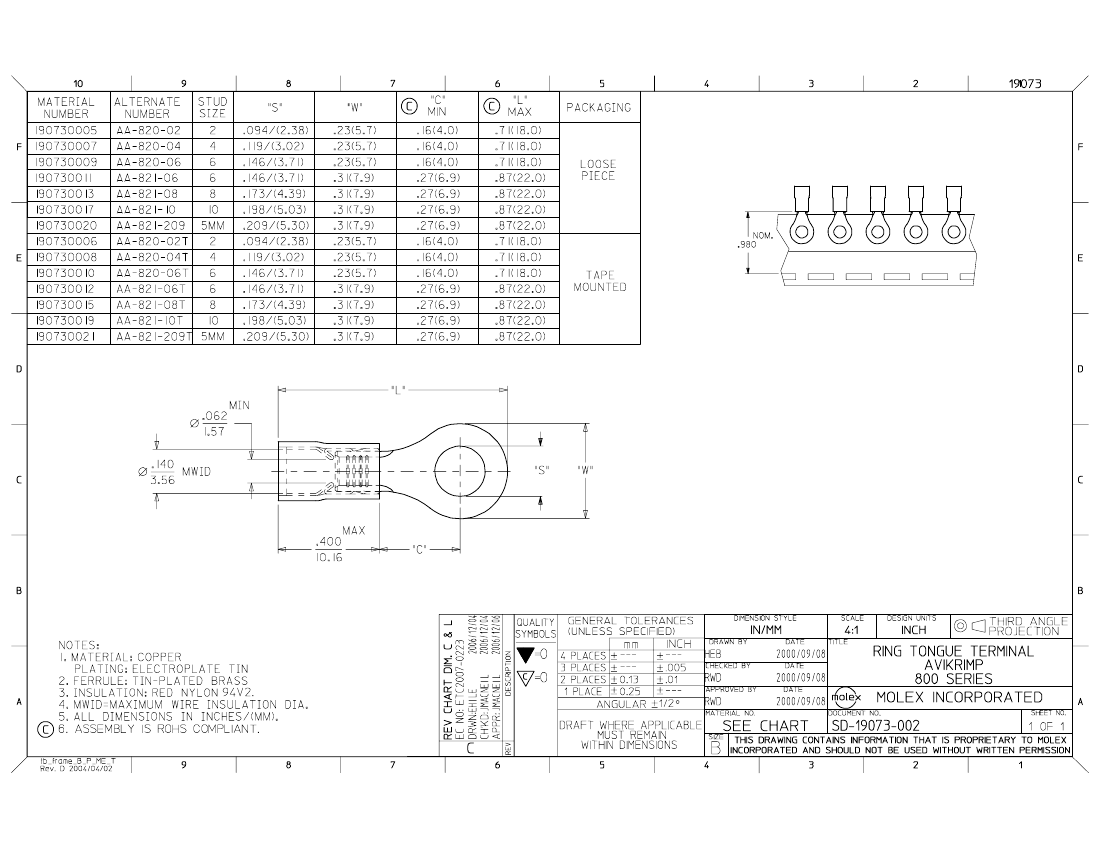

Sales Drawing

SD-19073-002

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
