PTHF-123-03-H-Q datasheet, PDF

Datasheet> All Categories > The connector> The connector> PTHF-123-03-H-Q

PTHF-123-03-H-Q: DescriptionBoard Connector, 92 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Socket,; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PTHF-123-03-H-Q Overview

Board Connector, 92 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Socket,

PTHF-123-03-H-Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compli
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	PTHF
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	92

Preview

Download Datasheet

View All

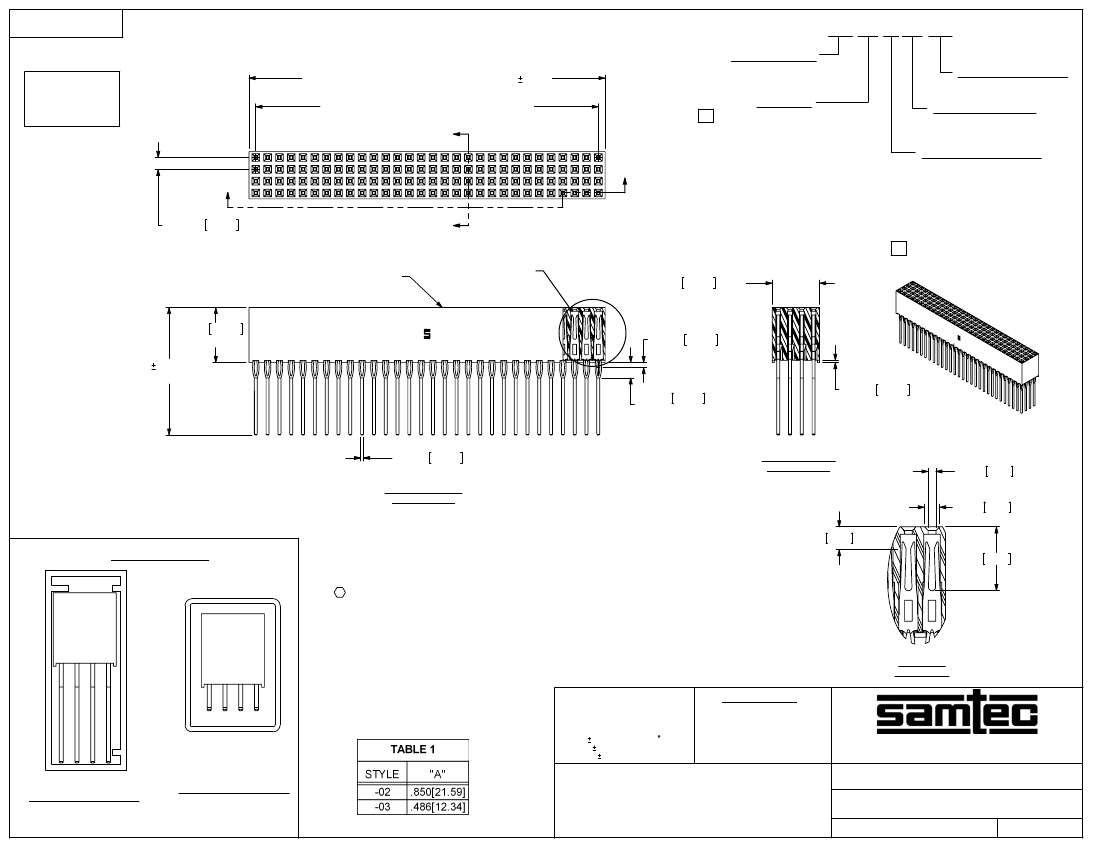

REVISION R

((No of POS x .07874[2.00]) + .0117[.297]) .010

(No of POS x .07874[2.00]) - .0789 [2.00]

"B"

"A"

PTHF-1XX-XX-XX-Q-368

No OF POSITIONS

2 - 30 PER ROW

LEAD STYLE

-02: (USE ASP-71280-XX-X)

-03: (USE ASP-71716-02-X)

BOARD STACK HEIGHT

ROW SPECIFICATION

-Q: QUAD ROW

(USE ASP-81021-03)

PLATING SPECIFICATION

-G: (USE ASP-71280-02-G)

-02 LEAD STYLE ONLY

-M: (USE ASP-71716-02-M)

-03 LEAD STYLE ONLY

-H: (USE ASP-71716-03-H)

-03 LEAD STYLE ONLY

-MM: (USE ASP-71716-02-MM)

-03 LEAD STYLE ONLY

-GF: (USE ASP-71280-07-GF)

-02 LEAD STYLE ONLY

DO NOT

SCALE FROM

THIS PRINT

"A"

.07874 2.000 REF

"B"

ASP-81021-03

'A'

.315 8.000 REF

.368 9.347

REF

"A" .010[.25]

(SEE TABLE 1)

.0323 0.820 REF

.1020 2.590 REF

(SEE NOTE 8)

.0150 0.381 REF

.0197 0.500 SQ. REF

SECTION "A"-"A"

SCALE 1.5 : 1

SECTION "B"-"B"

SCALE 1.5 : 1

.026 0.66 SQ REF

.051 1.30 SQ REF

.076 1.93 REF

PACKAGING VIEWS

NOTES:

REPRESENTS A CRITICAL DIMENSION..

2. BURR ALLOWANCE: .0015[.04] MAX.

3. MAXIMUM CUT FLASH: .010[.25].

4. MINIMUM PUSHOUT FORCE: .5 LB.

5. MAXIMUM ALLOWABLE BOW: .002[.05]

INCH/INCH AFTER ASSEMBLY.

6. DELETED

7. 5 THRU 30 POSITION PARTS TO BE TUBE

PACKAGED, 2 THRU 4 POSITION PARTS

TO BE BULK PACKAGED.

8. SEE SAMTEC'S RECOMMENDED PCB

FOOTPRINT FOR PROPER BOARD LAYOUT.

.213 5.41 REF

DETAIL 'A'

SCALE 3 : 1

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

PTHF-1XX-02-G-Q

TUBE: PT-1-24-02-51

PLUG: TP-26

PTHF-1XX-03-M-Q

TUBE: PT-1-24-01-52

PLUG: TP-13

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP; BLACK

CONTACT: PHOS BRONZE

c:\enterprisevault\DWG\MISC\MKTG\PTHF-1XX-XX-XX-Q-368-MKT.SLDDRW

2mm PC104+ COMPLIANT PIN SOCKET

PTHF-1XX-XX-XX-Q-368

12/05/2000

SHEET

BY:

T.WERNE
