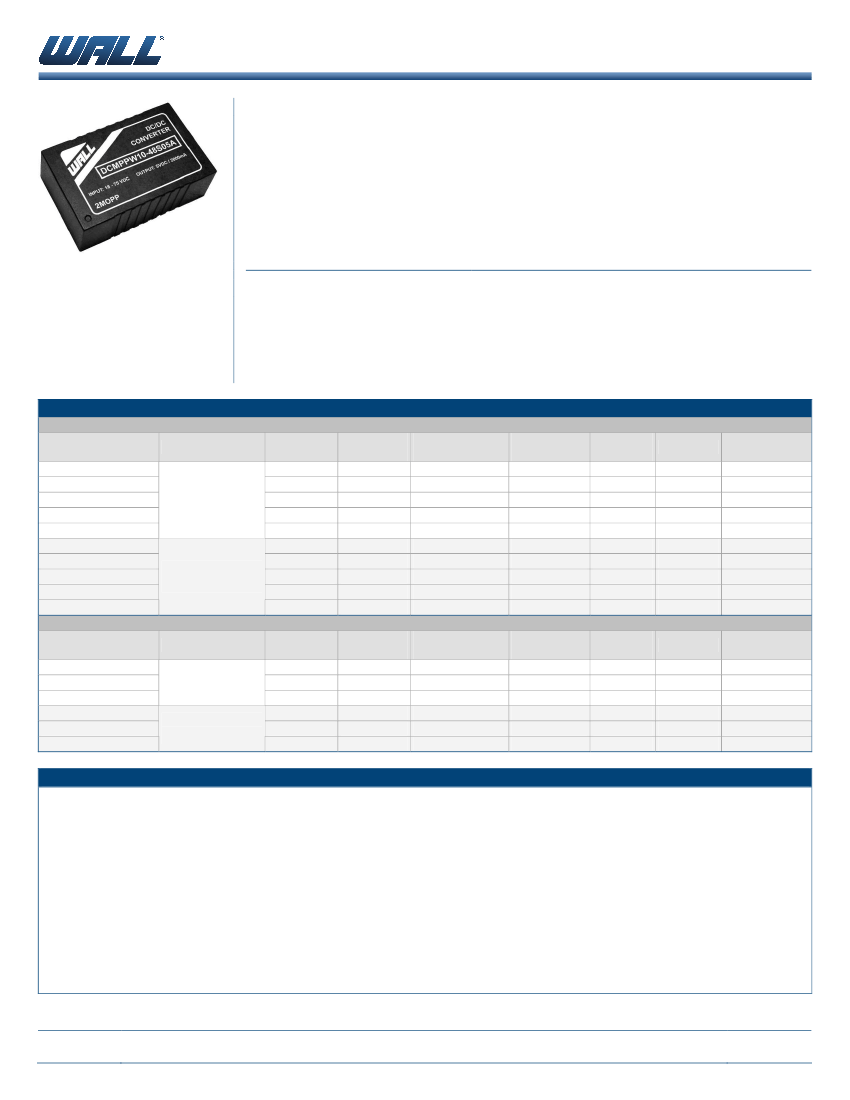

The DCMPPW10 series of medical DC/DC power converters provides up to 10 Watts of output power in a 1.25” x
0.80” x 0.40” DIP package. This series consists of single and dual output models with 4:1 ultra wide input voltage
ranges of 9-36VDC and 18-75VDC. Some features include high efficiency up to 89%, 5000VAC I/O (2 MOPP)
isolation, and -40°C to +105°C operating temperature range. These converters are also protected against short
circuit, over voltage, and over load conditions. All models are RoHS compliant and have ANSI/AAMI ES60601-1,
EN60601-1, and IEC60601-1 safety approvals. Remote on/off and Trim functions are also available for this series.
MODEL SELECTION TABLE
Model Number
(1)
DCMPPW10-24S33x
DCMPPW10-24S05x
DCMPPW10-24S12x
DCMPPW10-24S15x
DCMPPW10-24S24x
DCMPPW10-48S33x
DCMPPW10-48S05x
DCMPPW10-48S12x
DCMPPW10-48S15x
DCMPPW10-48S24x
Model Number
(1)
DCMPPW10-24D05x
DCMPPW10-24D12x
DCMPPW10-24D15x
DCMPPW10-48D05x
DCMPPW10-48D12x
DCMPPW10-48D15x
Input Voltage
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
24 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
24 VDC
Output
Voltage
±5 VDC
±12 VDC
±15 VDC
±5 VDC
±12 VDC
±15 VDC
SINGLE OUTPUT MODELS
Output
Output
Current
Ripple & Noise
2500mA
30mVp-p
2000mA
30mVp-p
830mA
40mVp-p
670mA
40mVp-p
416mA
50mVp-p
2500mA
30mVp-p
2000mA
30mVp-p
830mA
40mVp-p
670mA
40mVp-p
416mA
50mVp-p
DUAL OUTPUT MODELS
Output
Output
Current
Ripple & Noise
±1000mA
30mVp-p
±416mA
40mVp-p
±333mA
40mVp-p
±1000mA
30mVp-p
±416mA
40mVp-p
±333mA
40mVp-p
No Load
Input Current
6mA
6mA
6mA
6mA
6mA
4mA
4mA
4mA
4mA
4mA
No Load
Input Current
6mA
6mA
6mA
4mA
4mA
4mA
Output
Power
8.25W
10W
10W
10W
10W
8.25W
10W
10W
10W
10W
Output
Power
10W
10W
10W
10W
10W
10W
Efficiency
83%
86.5%
89%
89%
89%
82.5%
86.5%
89%
89%
88.5%
Efficiency
85%
89%
88%
85%
88%
88%
Maximum
Capacitive Load
3000µF
2500µF
430µF
350µF
125µF
3000µF
2500µF
430µF
350µF
125µF
Maximum
Capacitive Load
±1440µF
±250µF
±180µF
±1440µF
±250µF
±180µF
24VDC
(9 - 36 VDC)
48 VDC
(18 - 75 VDC)
Input Voltage
24 VDC
(9 - 36 VDC)
48 VDC
(18 - 75 VDC)
NOTES
1. The “x” in the model number represents the Pin Connection type. It can be “A” for pin connection type A or “B” for pin connection type B. See mechanical
drawings on page 4 for more information.
2. The DCMPPW10 series meets EMI Class A without an external filter added. This series can only meet EMI Class B with external components added. Please
contact factory for more information.
3. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
• For 24VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 470µF/50V) in parallel.
• For 48VDC nominal input models we recommend connecting an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 330µF/100V) in parallel.
4. Remote On/Off control is optional and is only available for “B” type pin connection models. To order the converter with remote on/off add the suffix
“-P” to the model number (Ex: DCMPPW10-48S12B-P).
5. Trim function is optional and is only available for “B” type pin connection models. To order the converter with Trim pin add the suffix “-T” to the model
number (Ex: DCMPPW10-48S12B-T).
CAUTION:
This power module is not internally fused. An input line fuse must always be used.
