UPS-02-07.0-02-T-V: DescriptionRectangular Power Connector, 2 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size222KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

UPS-02-07.0-02-T-V Overview

Rectangular Power Connector, 2 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT

UPS-02-07.0-02-T-V Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	POWER STRIP
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	UPS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

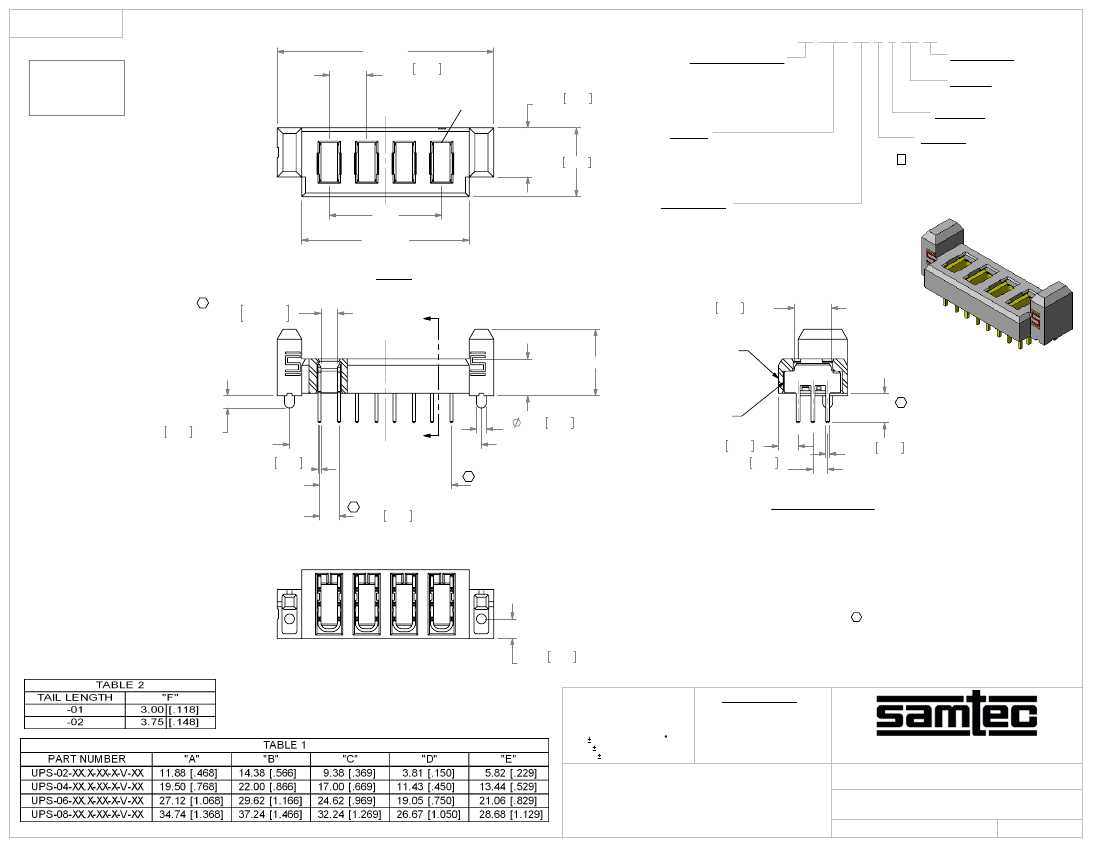

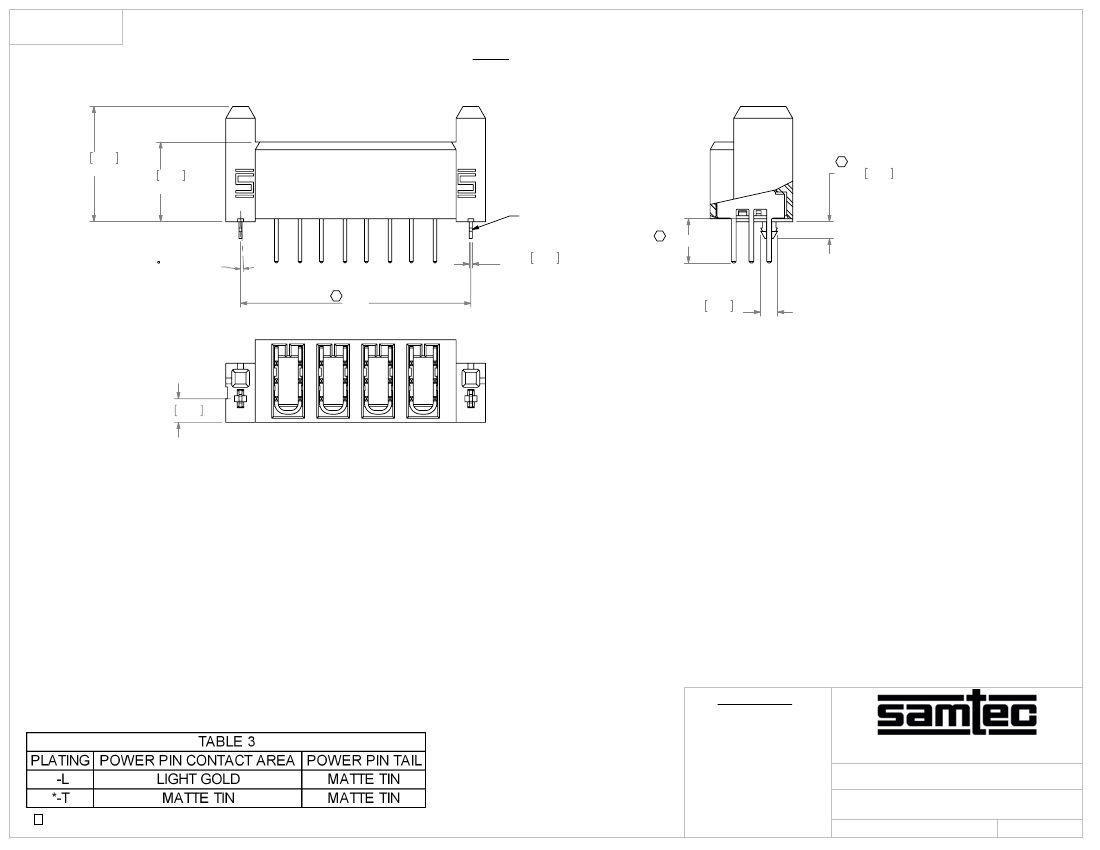

REVISION A

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

UPS-XX-XX.X-XX-X-V-XX-TR

"B" REF

3.81 .150

REF (TYP)

5.00 .197

REF

No. OF POSITIONS

-02: 2 POSITIONS

-04: 4 POSITIONS

-06: 6 POSITIONS

-08: 8 POSITIONS

HEIGHT

-04.0: (USE SUB-C-258-04.0-XX-X)

(SEE FIG. 1)

-07.0: (USE SUB-C-258-07.0-XX-X)

(SEE FIG. 2)

TAIL LENGTH

-01: FOR 1.57[.062] THICK PCB (SEE FIG. 1)

(USE SUB-C-258-XX.XX-01-X)

-02: FOR 2.36[.093] THICK PCB (SEE FIG. 2)

(USE SUB-C-258-XX.XX-02-X)

TAPE & REEL

OPTION

-LC: LOCKING CLIP

VERTICAL

PLATING

-L: (SEE TABLE 3)

-T: (SEE TABLE 3)

* = NOT RELEASED FOR PRODUCTION

7.00 .276 REF

"D"

"C" REF

(UPS-04-04.0-01-X-V SHOWN)

1.69

+0.13

0.00

FIG. 1

.067

- .000

+.005

"A"

3.75 .148 REF

6.75 REF

3.75 REF

UPS-XX-XX.X-V

1.25 .049 REF

"A" REF

0.30 .012

REF (TYP)

"A"

1.00 .039

REF

SUB-C-258-XX.X-XX-X

2.00 .079

1.50 .059

REF (TYP)

"F"

0.40 .016

REF (TYP)

"E"

2.00 .079 (TYP)

SECTION "A"-"A"

NOTES:

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

2.00 .079

REF

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

REPRESENTS A CRITICAL DIMENSION.

BURR ALLOWANCE: 0.038[.0015] MAX.

MINIMUM PUSHOUT FORCE: 4.45N[1.0 LB].

MAXIMUM BOW: 0.15[.006].

MINIMUM -LC PULL OUT FORCE: 2.23 N [0.5 LB]

PARTS TO BE PACKAGED IN TAPE AND REEL.

TOLERANCES ARE:

DECIMALS

X.X: 0.3 [.01]

X.XX: 0.13 [.005]

X.XXX: 0.051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2.5:1

INSULATOR: LCP, COLOR: BLACK

CONTACT: BeCu

LOCKING CLIP: PHOS BRONZE

UPS-V, ASSEMBLY

UPS-XX-XX.X-XX-X-V-XX-TR

B RAY

08/20/2008

SHEET

C:\EnterpriseVault\DWG\MISC\MKTG\UPS-XX-XX.X-XX-X-V-XX-TR-MKT.SLDDRW

BY:
