DF2Z307V25030LC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> DF2Z307V25030LC

DF2Z307V25030LC: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 360V, 20% +Tol, 10% -Tol, 300uF, Chassis Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size205KB，2 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

DF2Z307V25030LC Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 360V, 20% +Tol, 10% -Tol, 300uF, Chassis Mount, ROHS COMPLIANT

DF2Z307V25030LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMWHA
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.3 mA
Manufacturer's serial number	DF
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	360 V
surface mount	NO
Delta tangent	0.1
Terminal surface	Tin (Sn)
Terminal shape	LUG

Preview

Download Datasheet

View All

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

For Photo Flash

Series

·For

photo flash applications with lug terminal

·Low

dissipation factor, low leakage current and high stability

during the repetition of charge and discharge

·Complied

to the RoHS directive

Item

Operating temperature range

Capacitance tolerance

Leakage current max.

Dissipation factor max.

(at 120Hz, 20°

Characteristics

-20 ~ +55°

-10 ~ +20% at 120Hz, 20°

I=1×C (μ (after 5 minutes), where C=Nominal capacitance (μ

Capacitance range(μ

tanδ

150 ~ 600

0.10

700 ~ 1500

0.15

Charge and discharge at rated voltage at 5~35° with a switch sequence of 30 seconds for 5000

times via xenon flash tube with discharge resistance of 0.7~1.0Ω

Charge and discharge

characteristics

Leakage current

Capacitance change

tanδ

Less than 150% of specified value

Within

±10%

of initial value

Less than 150% of specified value

Shelf life

After leaving capacitors under no load at 55° for 1000 hours.

The measurement shall be performed at 20° by the KS C 6035 clause 5.4.

Less than 300% of specified value

Leakage current

Within

±10%

of initial value

Capacitance change

Less than 150% of specified value

tanδ

●

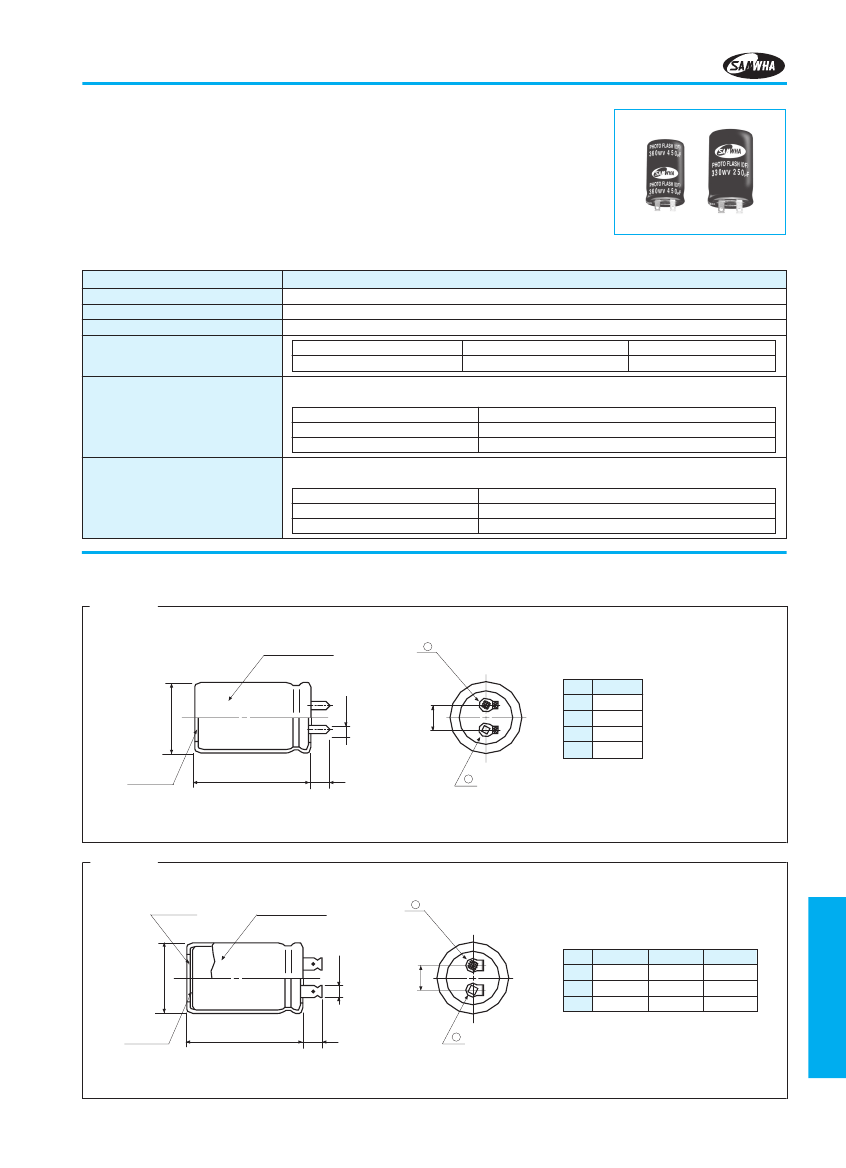

DRAWING

●ØD≦20

－

Unit : mm

Insulating sleeve

＋

ØD=20

2.5

1.0

2.0

4.0

ØD+α

max.

W±0.1

Safety vent

L+β

max.

A±1

●ØD≧22

Bottom plate

Insulating sleeve

－

6±1

LARGE TYPES

＋

ØD=22

3.5

6.0

8.0

ØD≧25.4

4.5

8.0

10.0

ØD=40

4.5

11.0

18.0

ØD+1

max.

A±1

Safety vent

L+2 max.

B±1

Note

Ø40

is available upon request. Please check with us individual size and dimensions.

P±1
