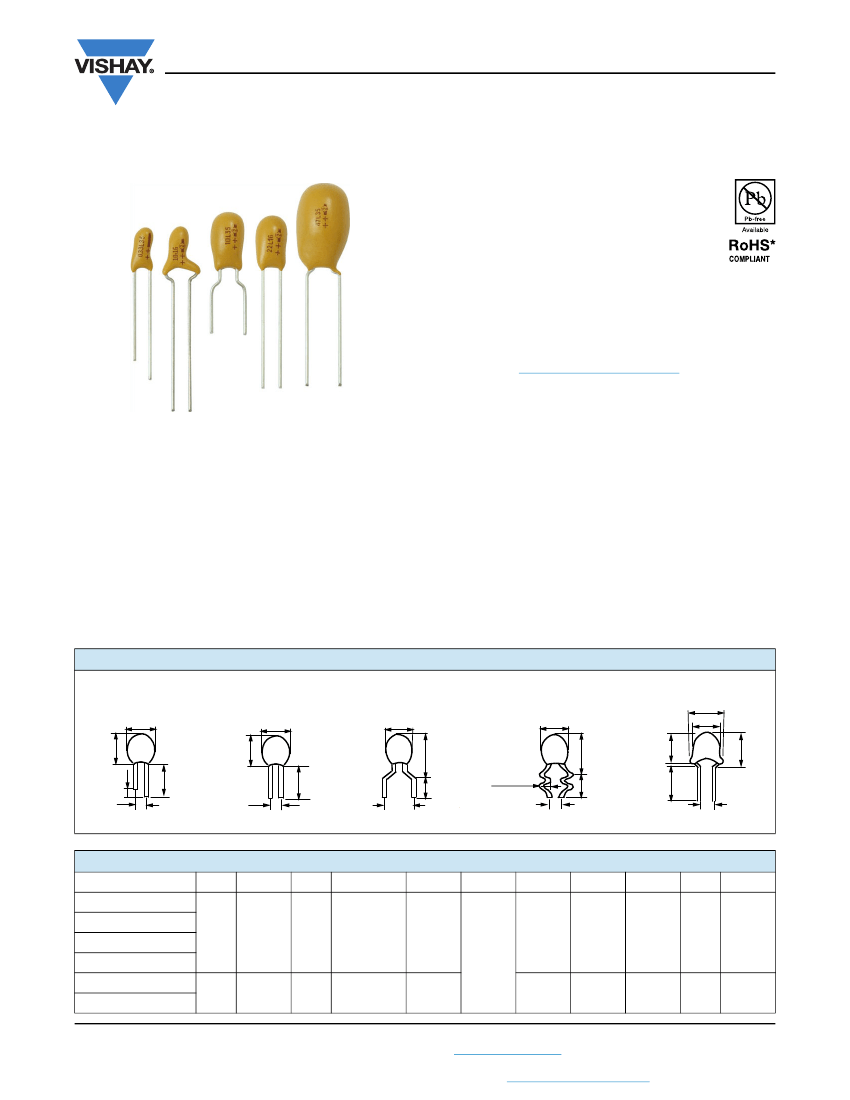

Solid-Electrolyte TANTALEX® Capacitors, Resin-Coated, Radial-Lead

199D
www.vishay.com
Vishay Sprague
Solid-Electrolyte T
ANTALEX®
Capacitors,
Resin-Coated, Radial-Lead
FEATURES
• Terminations: Tin/lead (SnPb), 100 % tin (Sn)
• Economy and high performance are combined
in these radial-lead, solid-electrolyte T
ANTALEX
®
capacitors
• Rugged, reliable capacitors featuring low
leakage current and low dissipation factor
• Six miniature case sizes and five lead styles. All case sizes
are available in standard tape and reel packaging per
EIA-468
• Standard ratings include replacements for Type 196D
capacitors
• Lead (Pb)-free capacitors have “L” in body marking
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
APPLICATIONS
Suitable for a broad range of consumer, commercial and
industrial equipment
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(to + 125 °C with voltage derating)
Capacitance Tolerance:
At 120 Hz, + 25 °C, ± 20 %,
± 10 % standard. ± 5 % available as special
Dissipation Factor:
At 120 Hz, + 25 °C. Dissipation factor,
shall not exceed the values listed in the Standard Ratings
tables.
DC Leakage Current (DCL Max.):
At + 25 °C:
Leakage current shall not exceed the values
listed in the Standard Ratings tables.
At + 85 °C:
Leakage current shall not exceed 10 times the
values listed in the Standard Ratings tables.
At + 125 °C:
Leakage shall not exceed 15 times the values
listed in the Standard Ratings tables.
Life Test:
Capacitors shall withstand rated DC voltage
applied at + 85 °C for 1000 h with a circuit resistance not
greater than 3
.
Following the life test:
1.
DCL shall not exceed 125 % of the initial requirements
2.
Dissipation Factor shall meet the initial requirement
3.
Change in capacitance shall not exceed ± 10 %
LEAD STYLE CONFIGURATIONS AND DIMENSIONS**
(LL = Lead Length)
“LONG/SHORT” LL
1, 3 and Y
D
H
3±1
+
+
EVEN LL
2, 4 and 5
D
H
+
+
“OUTSIDE HOCKEYSTICK”
6 and 7
D
+
+
“SNAP- IN”
9
D
+
+
“HAIRPIN” X, Z
6.35 max.
D
H
1
L
1.1 ± 0.05
P
H
L
H
L
P
H
1
L
P
P
L
P
(1) - WIRE DIAMETER (NOMINAL) 0.020" [0.51 mm]
AVAILABLE LEAD STYLES AND PACKAGING TYPES PER CASE SIZE
LEAD STYLE/CASE
A
B
C
D
E
F
Revision: 29-Nov-12
Bulk
V1
1
2
Bulk
V1
Reel
B1
Ammo
A1
Bulk
V1
Bulk/Reel
Ammo
3
4
5
Bulk
V1
Reel
B1
Ammo
A1
6
7
Bulk
V1
Reel
B1
Ammo
A1
9
Bulk
V1
Reel
B1
Ammo
A1
X
Bulk
V1
Reel
B1
Ammo
A1
Y
Z
Bulk
V1
Reel
B1
Ammo
A1
Bulk
V1
Reel
B1
Ammo
A1
Bulk
V1
Document Number: 40020
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
