KYZ35K2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> KYZ35K2

KYZ35K2: DescriptionRectifier Diode, 1 Phase, 1 Element, 35A, 200V V(RRM), Silicon, METAL PACKAGE-1; CategoryDiscrete semiconductor diode; File Size243KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

KYZ35K2 Overview

Rectifier Diode, 1 Phase, 1 Element, 35A, 200V V(RRM), Silicon, METAL PACKAGE-1

KYZ35K2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	O-MUPF-D1
Contacts	1
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-MUPF-D1
JESD-609 code	e2
Maximum non-repetitive peak forward current	360 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	35 A
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

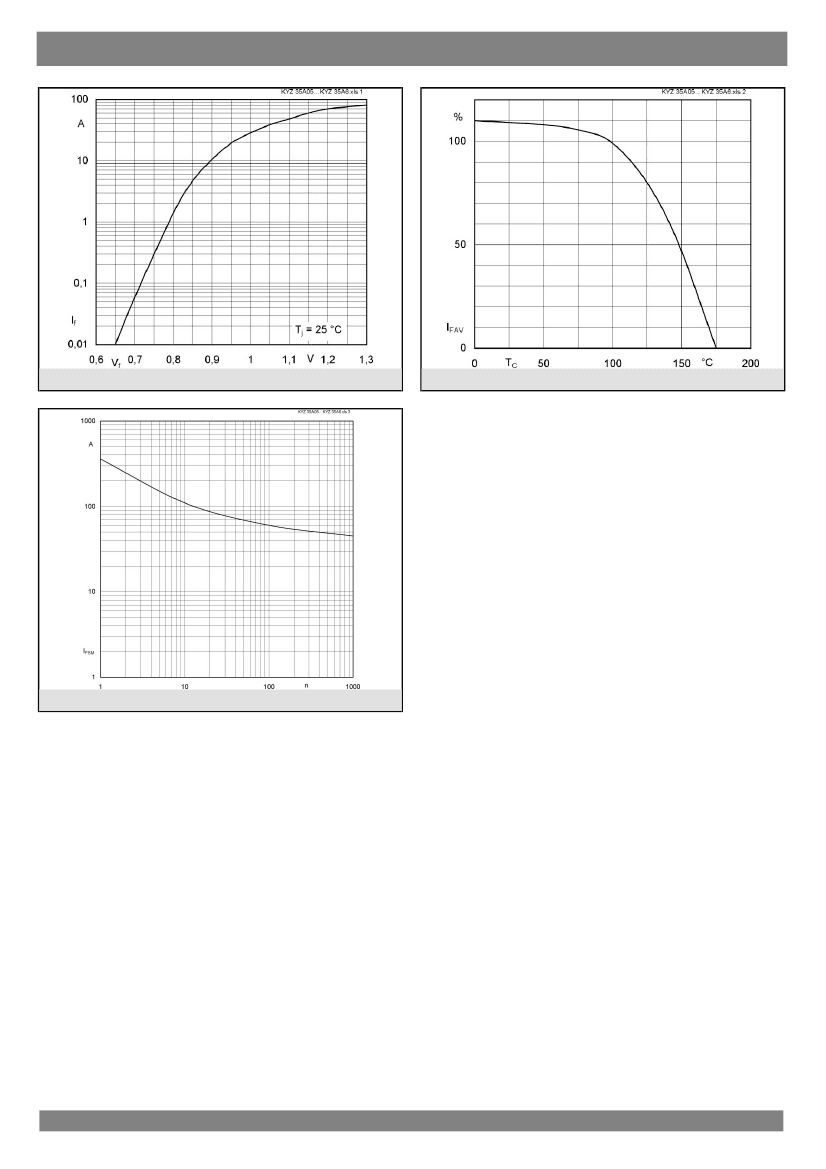

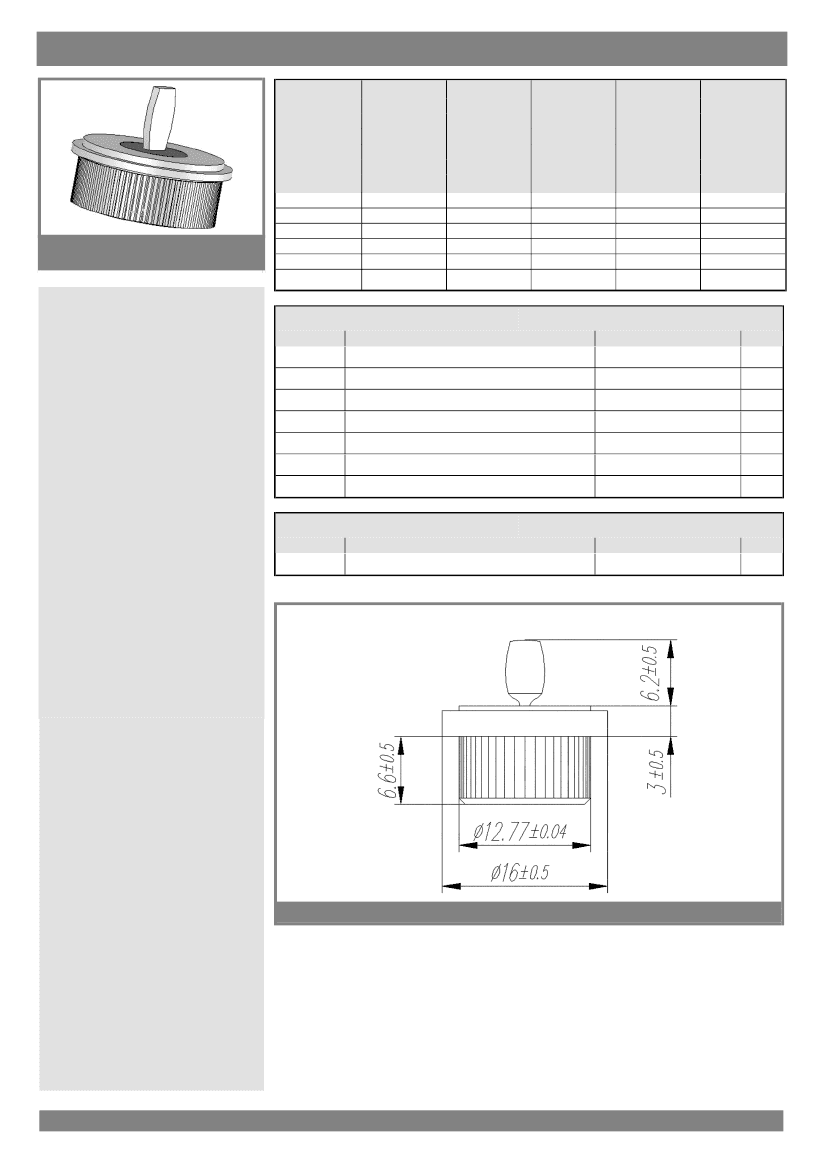

KYZ 35A05 ... KYZ 35K6

Silicon Press-Fit-Diodes

Absolute Maximum Ratings

Symbol Conditions

KYZ 35A05...KYZ 35K6

Forward Current: 35 A

Reverse Voltage: 50 to 600 V

Publish Data

Values

Units

Features

Characteristics

Symbol Conditions

Mechanical Data

Values

Units

Dimensions in mm

13-04-2004 SCT

KYZ35K2 Related Products

	KYZ35K2	KYZ35K3	KYZ35K6	KYZ35K1	KYZ35K4
Description	Rectifier Diode, 1 Phase, 1 Element, 35A, 200V V(RRM), Silicon, METAL PACKAGE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 300V V(RRM), Silicon, METAL PACKAGE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 600V V(RRM), Silicon, METAL PACKAGE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 100V V(RRM), Silicon, METAL PACKAGE-1	Rectifier Diode, 1 Phase, 1 Element, 35A, 400V V(RRM), Silicon, METAL PACKAGE-1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1
Contacts	1	1	1	1	1
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1
JESD-609 code	e2	e2	e2	e2	e2
Maximum non-repetitive peak forward current	360 A	360 A	360 A	360 A	360 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	1	1	1	1	1
Maximum output current	35 A	35 A	35 A	35 A	35 A
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	300 V	600 V	100 V	400 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
