Z2SMB6.8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> Z2SMB6.8

Z2SMB6.8: DescriptionZener Diode, 6.8V V(Z), 5%, 2W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size176KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

Z2SMB6.8 Overview

Zener Diode, 6.8V V(Z), 5%, 2W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMB, 2 PIN

Z2SMB6.8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-214AA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	2 W
Certification status	Not Qualified
Nominal reference voltage	6.8 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	100 mA

Preview

Download Datasheet

View All

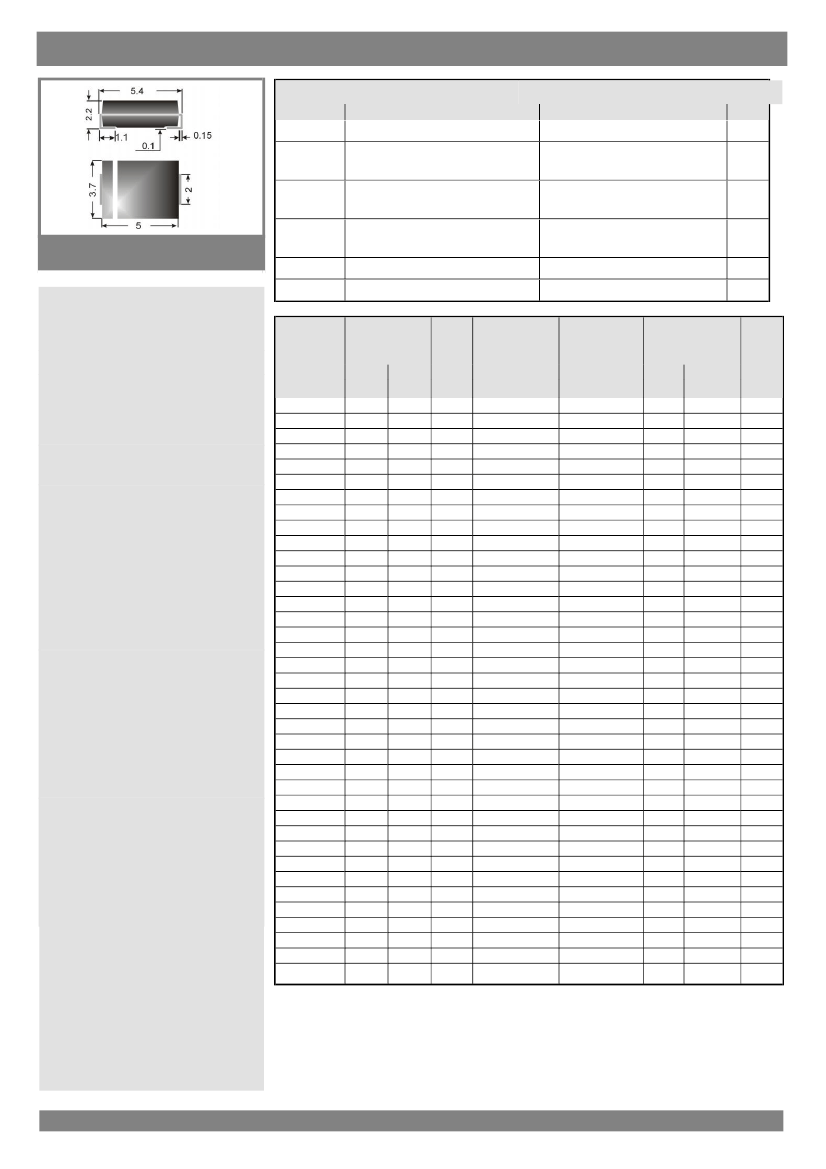

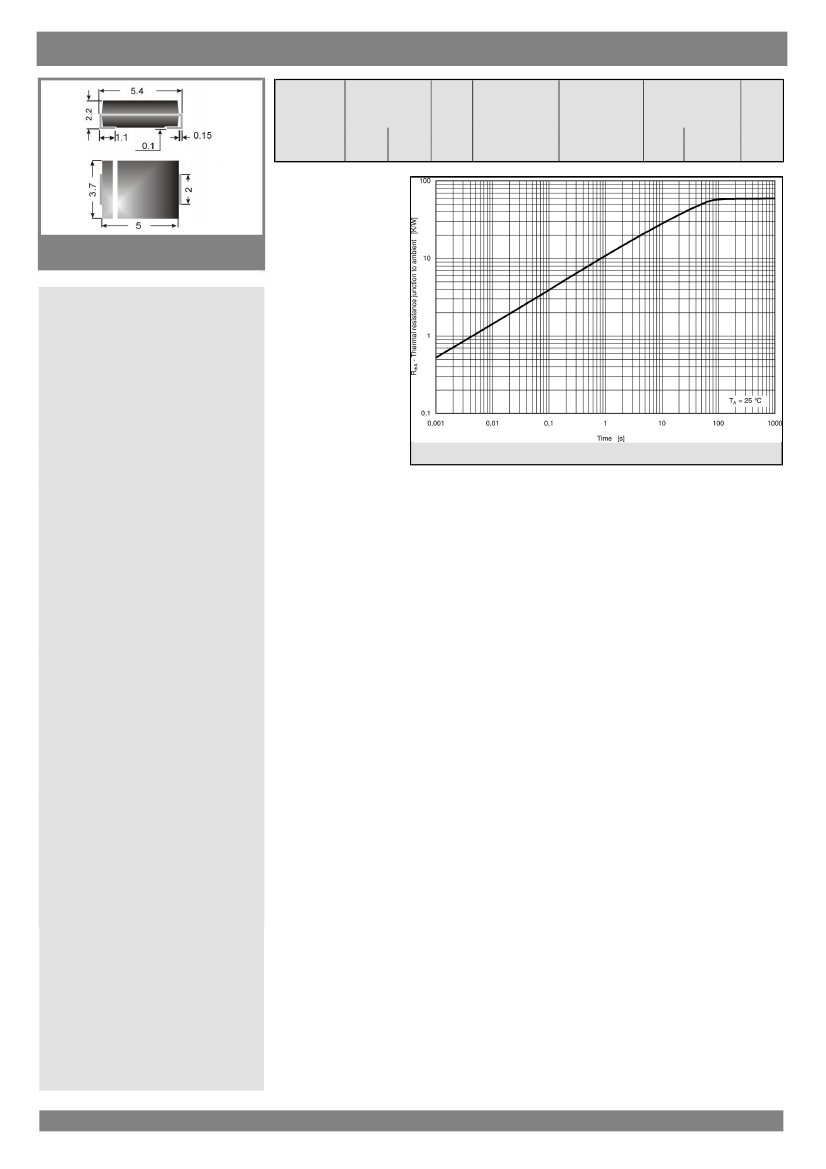

Z2 SMB 1 ... Z2 SMB 200 (2W)

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Surface mount diode

Zener silicon diodes

Z2 SMB 1 ... Z2 SMB 200 (2W)

Maximum Power

Dissipation: 2 W

Nominal Z-voltage: 1 to 200 V

Features

Mechanical Data

23-06-2009 MAM
