PC713VxNSZX Series
PC713VxNSZX
Series
DIP 6 pin Includes Base Terminal
Connection Photocoupler
■
Description
PC713VxNSZX Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 6 pin DIP, available in SMT gullw-
ing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V
(*)
and CTR is 50%
to 600% at input current of 5mA.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC713V)
2. Approved by TÜV (VDE0884) (as an option) file No.
R-9151576 (as model No.
PC713V)
3. Package resin : UL flammability grade (94V-0)
■
Applications
1. Home appliances
2. Programmable controllers
3. Personal computer peripherals
■
Features
1. 6 pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. With base terminal
4. High collector-emitter voltage (V
CEO
:80V
(*)
)
5. High isolation voltage between input and output
(V
iso(rms)
: 5.0kV)
(*) Up to Date code "P7" (July 2002) V
CEO
: 35V.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A04301EN
Date Nov. 28. 2003
© SHARP Corporation
PC713VxNSZX Series
■
Internal Connection Diagram
1
1
2
3
6
5
4
2
3
4
5
6
Anode
Cathode
NC
Emitter
Collector
Base
■

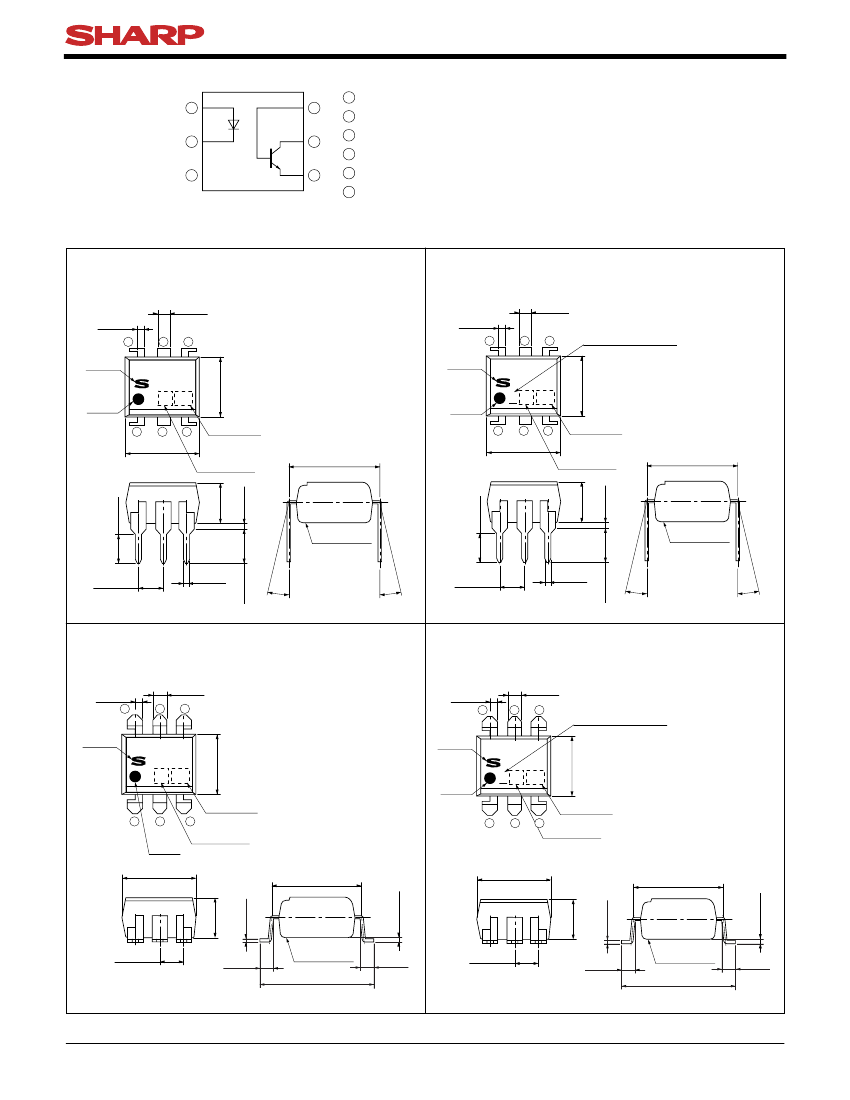

Outline Dimensions
1. Through-Hole [ex.
PC713VxNSZX]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
Anode
mark
1
2
3
±0.5
6
5
4
(Unit : mm)
2. Through-Hole (VDE0884 option) [ex.
PC713VxYSZX]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
6
5
4
VDE0884
Identification mark
6.5
±0.5
PC713V
PC713V
Anode
mark
1
4
2
3
±0.3
Date code
Rank mark
0.5
TYP.
3.5
±0.5
7.62
±0.3
7.12
7.12
6.5
±0.5
Date code
Rank mark
0.5
TYP.
3.5
±0.5
7.62
±0.3
2.9
±0.5
2.9
±0.5
Epoxy resin
3.25
±0.5
0.5
±0.1
0.5
±0.1
3.25
±0.5
Epoxy resin
2.54
±0.25
θ
θ
: 0 to 13˚
θ
2.54
±0.25
θ
θ
: 0 to 13˚
θ
3. SMT Gullwing Lead-Form [ex.
PC713VxNIPX]
1.2
±0.3
5
4
4. SMT Gullwing Lead-Form (VDE0884 option)
[ex.
PC713VxYIPX]
0.6
±0.2
6
5
0.6
±0.2
6
1.2
±0.3
4
SHARP
mark
"S"
6.5
±0.5
Anode
mark
1
4
Date code
1
2
3
2
3
Anode
mark
7.12
±0.5
Rank mark
7.62
±0.3
0.35
±0.25
0.26
±0.1
3.5
±0.5
7.12
±0.5
Rank mark
6.5
±0.5
Date code
PC713V
SHARP
mark
"S"
VDE0884
Identification mark
PC713V
7.62
±0.3
0.26
±0.1
3.5
±0.5
0.35
±0.25
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
Sheet No.: D2-A04301EN
2.54
±0.25
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
2.54
±0.25
1.0
+0.4
−0
Product mass : approx. 0.36g
2
PC713VxNSZX Series
■
Absolute Maximum Ratings
Parameter
Symbol
I
F
Forward current
*1
Peak forward current
I
FM
Reverse voltage
V
R
Power dissipation
P
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
Collector-base voltage
V
CBO
Emitter-base voltage
V
EBO
Collector current
I
C
Collector power dissipation
P
C
P
tot
Total power dissipation
T
opr
Operating temperature
T
stg
Storage temperature
*2
Isolation voltage
V
iso (rms)
*3
Soldering temperature
T
sol
(T
a
=25˚C)
Rating
Unit
50
mA
1
A
6
V
70
mW
*4
80
V
6
V
*4
80
V
6
V
50
mA
150
mW
170
mW
−25
to
+100
˚C
−40
to
+125
˚C
5
kV
260
˚C
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1minute, f=60Hz
*3 For 10s
*4 Up to Date code "P7" (July 2002) V
CEO
: 35V, V
CBO
: 35V.
■
Electro-optical Characteristics
Symbol
Parameter
V
F
Forward voltage
Peak forward voltage
V
FM
I
R
Reverse current
Terminal capacitance
C
t
I
CEO
Collector dark current
Collector-emitter breakdown voltage BV
CEO
Emitter-base breakdown voltage BV
EBO
Collector-base breakdown voltage BV
CBO
Current transfer ratio
I
C
Collector-emitter saturation voltage V
CE (sat)
Isolation resistance
R
ISO
C
f
Floating capacitance
f
C
Cut-off frequency
t
r
Rise time
Response time
Fall time
t
f
Conditions
I
F
=20mA
I
FM
=0.5A
V
R
=4V
V=0, f=1kHz
V
CE
=50V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
F
=5mA,
V
CE
=5V
I
F
=20mA,
I
C
=1mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω −3dB
Output
Input
Input
Output
Transfer
charac-
teristics
V
CE
=2V,
I
C
=2mA,
R
L
=100Ω
MIN.
−
−
−
−
−
*5
80
6
*5
80
2.5
−
5×10
10
−
−
−
−
TYP.
1.2
−
−
30
−
−
−
−
−
0.1
1×10
11
0.6
80
4
3
MAX.
1.4
3.0
10
250
100
−
−
−
30
0.2
−
1.0
−
18
18
(T
a
=25˚C)
Unit
V
V
µA
pF
nA
V
V
V
mA
V
Ω
pF
kHz
µs
µs
*5 Up to Date code "P7" (July 2002) BV
CEO
≥35V
and BV
CBO
≥35V.
Sheet No.: D2-A04301EN
4
