Data sheet
3SE2243-0XX40

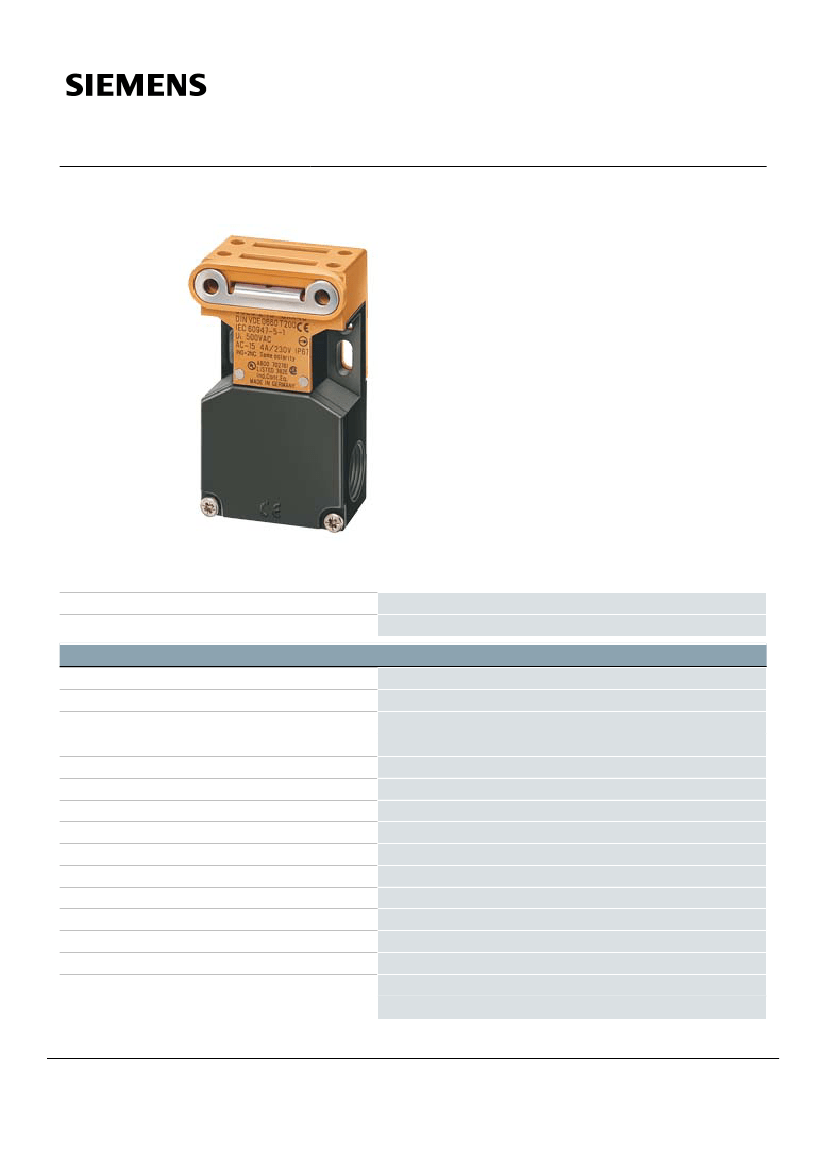

Safety position switch with separate actuator Molded-plastic
enclosure lateral and face-end Slow-action contacts 1 NO+2 NC, 3 x
(M20 x 1.5) Pull-out force 5 N Supplied without actuator
Product designation
Suitability for use safety switch
safety position switch
Yes
General technical data
Surge voltage resistance rated value
Protection class IP
Mechanical service life (switching cycles)
● typical
Thermal current
Reference code acc. to DIN EN 81346-2
Reference code acc. to DIN EN 61346-2
Active principle
Length of the sensor
Width of the sensor
Design of the switching contact
Operating frequency rated value
Number of NC contacts for auxiliary contacts
Number of NO contacts for auxiliary contacts
Operating current at AC-15
● at 230 V rated value
4 A
1 000 000
10 A
B
B
mechanical
90 mm
52 mm
mechanical
60 ... 50 Hz
2
1
6 kV
IP67
3SE2243-0XX40
Page 1/4
11/14/2019
Subject to change without notice
© Copyright Siemens
Operating current at DC-13
● at 24 V rated value
4 A
Enclosure
Design of the housing
Material of the enclosure
Coating of the enclosure
Design of the housing acc. to standard
wide
glass fiber reinforced thermoplast
Other types
No
Drive Head
Design of the operating mechanism
Design of the switching function
Circuit principle
Number of switching contacts safety-related
without
positive opening
slow-action contacts
1
Connections/ Terminals
Type of connectable conductor cross-sections
● solid
● finely stranded with core end processing
Cable entry type
2x (0.75 ... 2.5 mm²)
2x (0.75 ... 2.5 mm²)
3 x (M20 x 1.5)
Communication/ Protocol
Design of the interface
without
Ambient conditions
Ambient temperature
● during operation
● during storage
Explosion protection category for dust
-30 ... +80 °C
-30 ... +80 °C
none
Installation/ mounting/ dimensions
Mounting position
Mounting type
any
screw fixing
Certificates/ approvals
3SE2243-0XX40
Page 2/4
11/14/2019
Subject to change without notice
© Copyright Siemens
General Product Approval
Declaration of Conformity
Miscellaneous
Test Certific-
ates
Miscellaneous
Marine / Shipping
other
Confirmation
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
www.siemens.com/sirius/catalogs
Industry Mall (Online ordering system)
https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=3SE2243-0XX40
Cax online generator
http://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3SE2243-0XX40
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
https://support.industry.siemens.com/cs/ww/en/ps/3SE2243-0XX40
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3SE2243-0XX40&lang=en
3SE2243-0XX40
Page 3/4
11/14/2019
Subject to change without notice
© Copyright Siemens
40
16
5
40
.
∅5
5
18
90
7
29
20
M
52
last modified:
11/13/2019
30
3SE2243-0XX40
Page 4/4
11/14/2019
Subject to change without notice
© Copyright Siemens
44
51
