HYB5117800BJ-60 datasheet, PDF

Datasheet> All Categories > storage> storage> HYB5117800BJ-60

HYB5117800BJ-60: DescriptionFast Page DRAM, 2MX8, 60ns, CMOS, PDSO28; Categorystorage storage; File Size683KB，24 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

HYB5117800BJ-60 Overview

Fast Page DRAM, 2MX8, 60ns, CMOS, PDSO28

HYB5117800BJ-60 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J28
memory density	16777216 bi
Memory IC Type	FAST PAGE DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	2048
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal location	DUAL

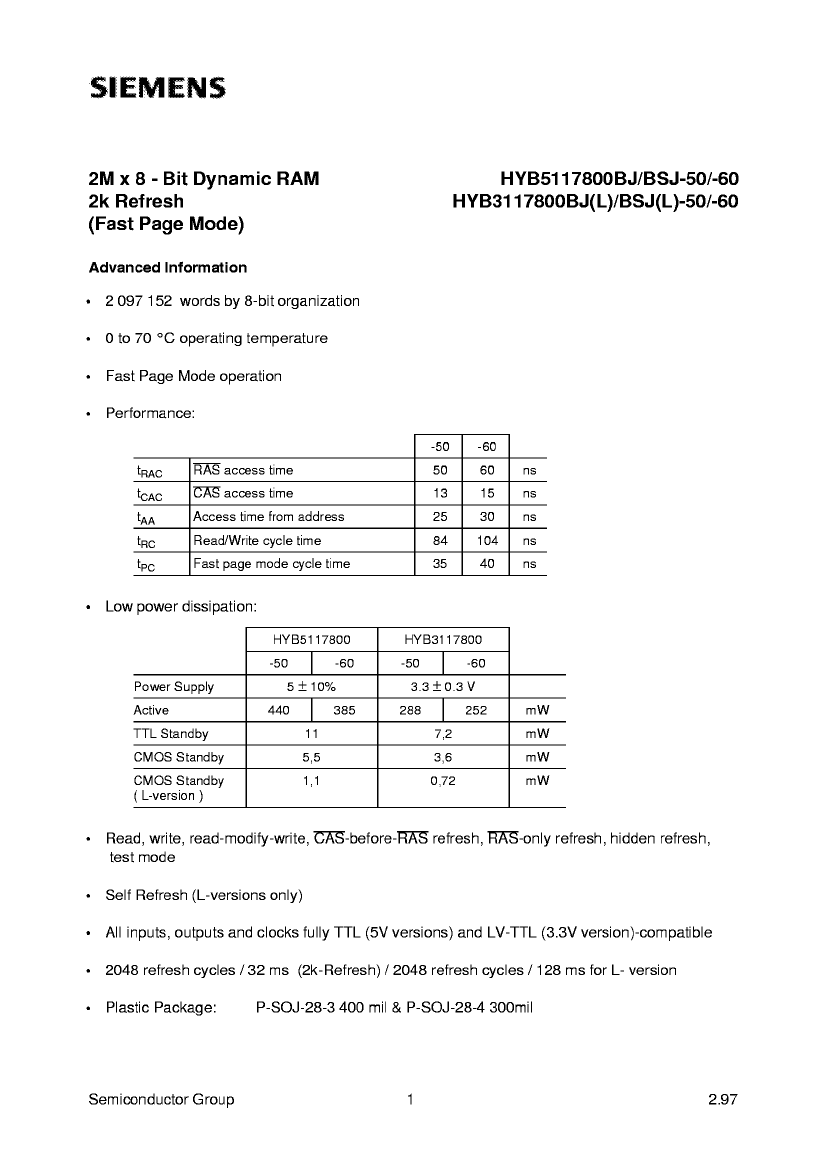

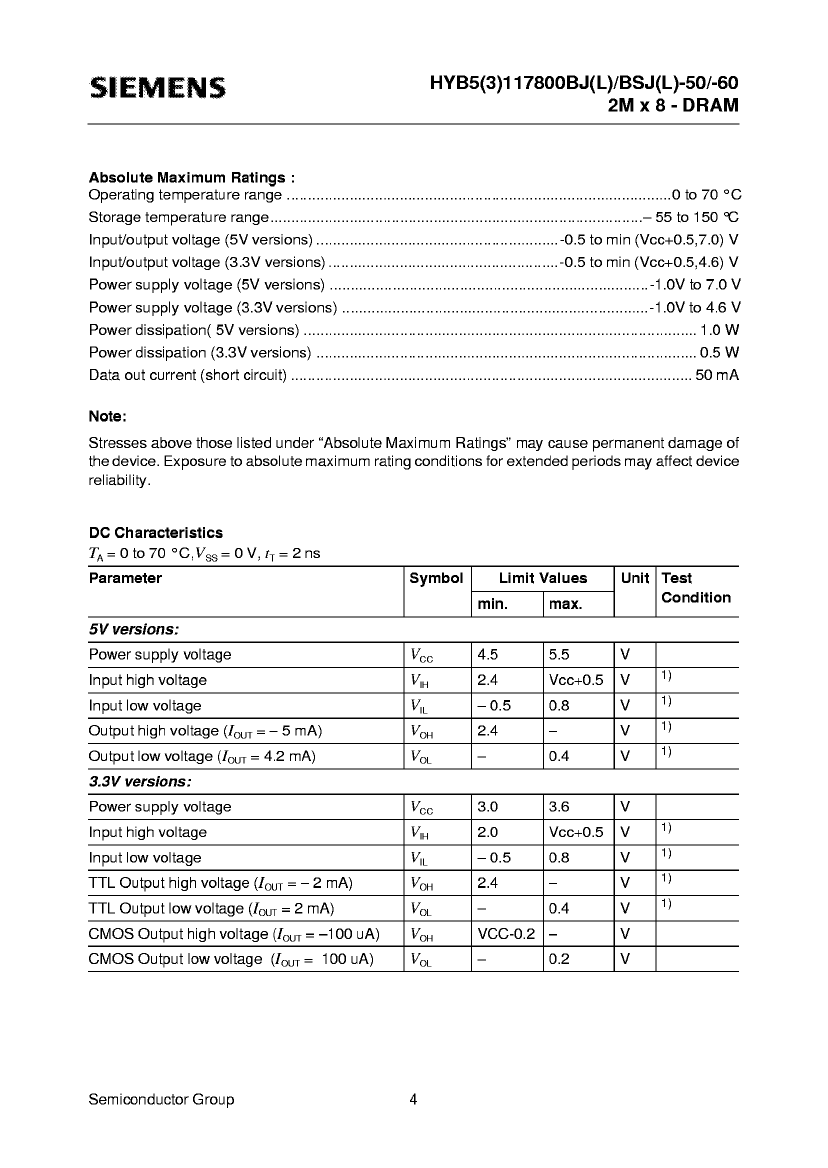

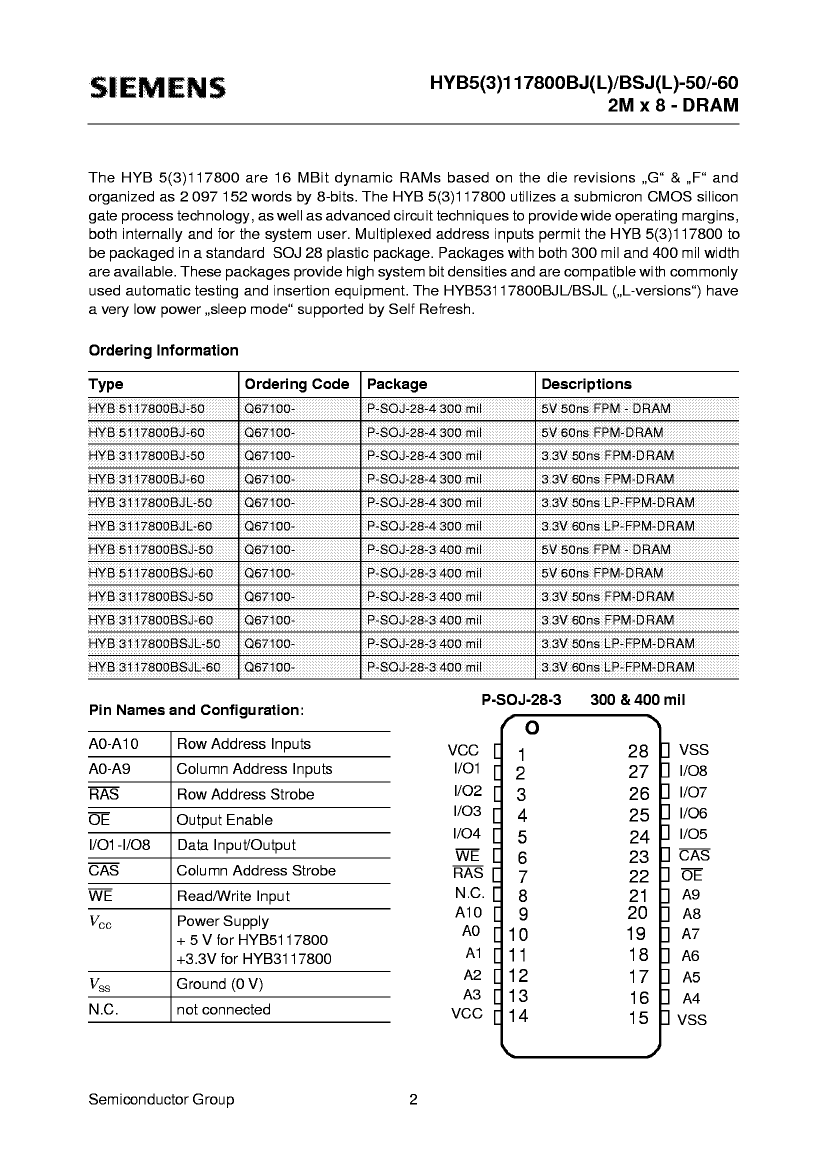

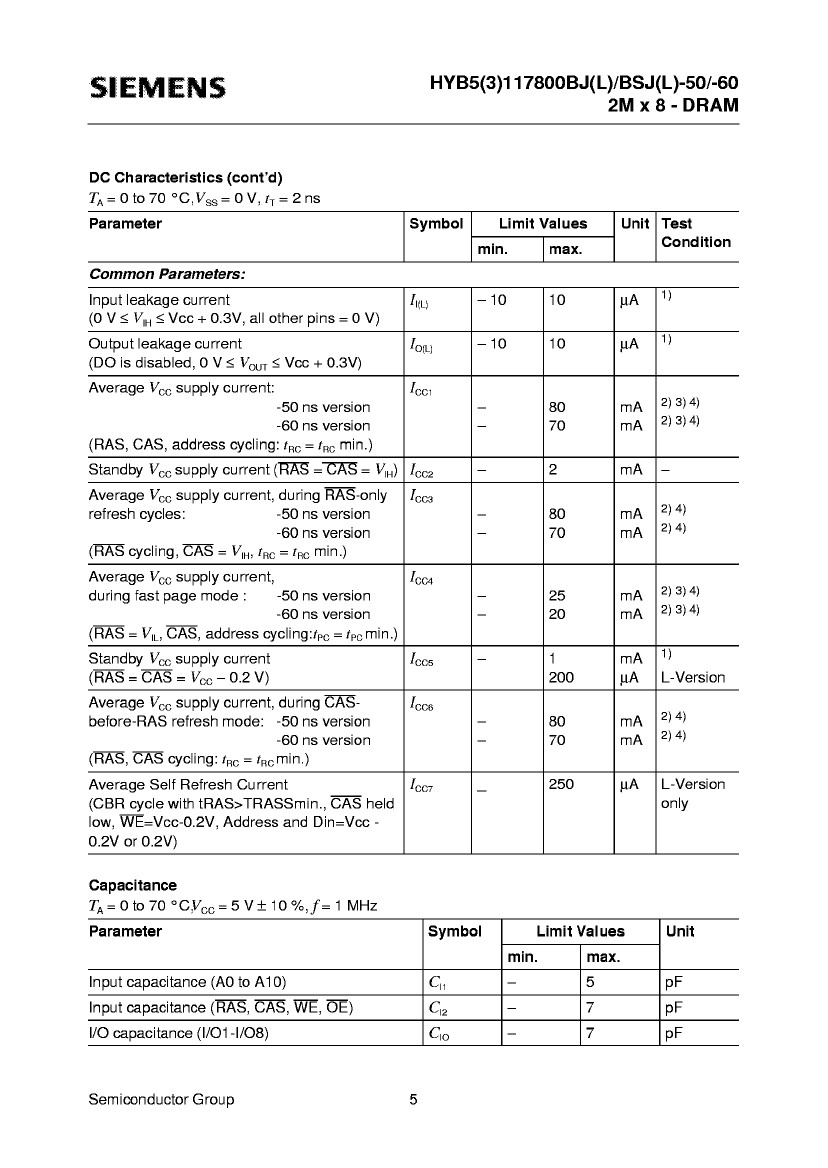

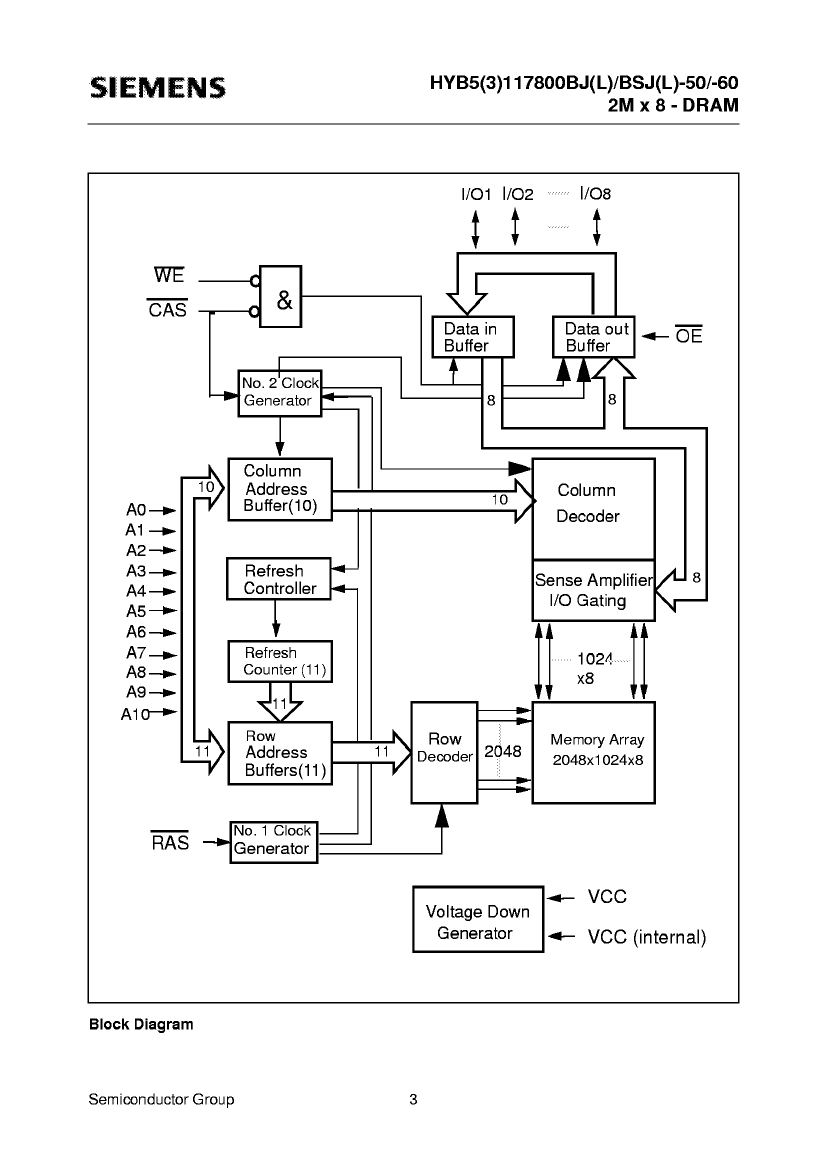

Preview

Download Datasheet

View All

HYB5117800BJ-60 Related Products

	HYB5117800BJ-60	HYB3117800BJL-60	HYB5117800BJ-50	HYB3117800BSJL-50	HYB3117800BSJL-60	HYB3117800BJ-60	HYB3117800BJL-50	HYB3117800BJ-50
Description	Fast Page DRAM, 2MX8, 60ns, CMOS, PDSO28	Fast Page DRAM, 2MX8, 60ns, CMOS, PDSO28	Fast Page DRAM, 2MX8, 50ns, CMOS, PDSO28	Fast Page DRAM, 2MX8, 50ns, CMOS, PDSO28	Fast Page DRAM, 2MX8, 60ns, CMOS, PDSO28	Fast Page DRAM, 2MX8, 60ns, CMOS, PDSO28	Fast Page DRAM, 2MX8, 50ns, CMOS, PDSO28	Fast Page DRAM, 2MX8, 50ns, CMOS, PDSO28
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	60 ns	50 ns	50 ns	60 ns	60 ns	50 ns	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28
memory density	16777216 bi	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048	2048	2048	2048	2048
Maximum supply voltage (Vsup)	5.5 V	3.6 V	5.5 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	4.5 V	3 V	4.5 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	3.3 V	5 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	SIEMENS	-	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
