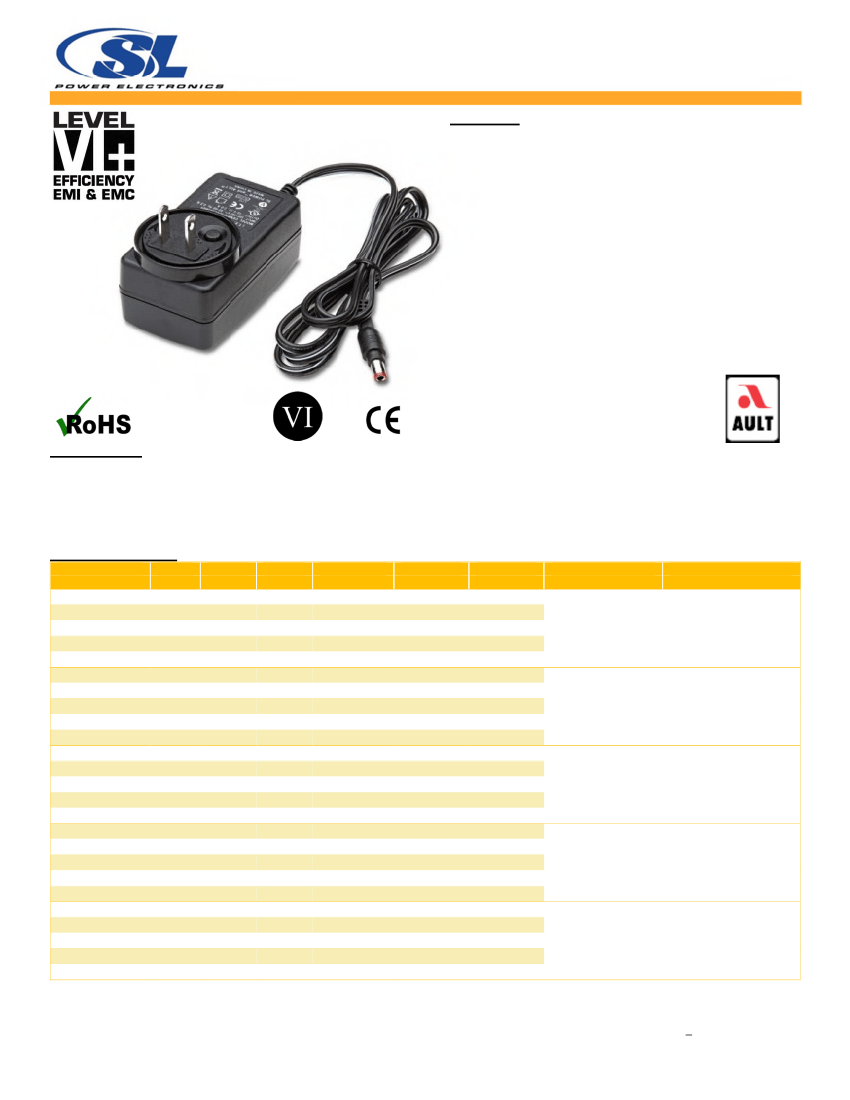

A high performance AC to DC external power supply family designed for test & measurement and industrial applications.
Fully compliant with Efficiency Level VI requirements per U.S. Dept. of Energy, and also compliant to the Heavy Industrial
levels of various EN61000-4-x standards for EMC. The TE10A series models also meet Class B conducted and radiated EMI
per FCC Part 15, EN55022, CISPR22. Designed to allow easy integration with test and measurement equipment and other
industrial applications.
Model Selection
Model
Number
TE10A0503F01
TE10A0603F01
TE10A0703F01
TE10A1203F01
TE10A2403F01
TE10A0503N01
TE10A0603N01
TE10A0703N01
TE10A1203N01
TE10A2403N01
TE10A0503Q01
TE10A0603Q01
TE10A0703Q01
TE10A1203Q01
TE10A2403Q01
TE10A0503B01
TE10A0603B01
TE10A0703B01
TE10A1203B01
TE10A2403B01
TE10A0503C01
TE10A0603C01
TE10A0703C01
TE10A1203C01
TE10A2403C01
Notes:
Volts
5.0V
5.9V
7.5V
12.0V
24.0V
5.0V
5.9V
7.5V
12.0V
24.0V
5.0V
5.9V
7.5V
12.0V
24.0V
5.0V
5.9V
7.5V
12.0V
24.0V
5.0V
5.9V
7.5V
12.0V
24.0V
Output
Current
2.0A
1.6A
1.3A
1.0A
0.5A
2.0A
1.6A
1.3A
1.0A
0.5A
2.0A
1.6A
1.3A
1.0A
0.5A
2.0A
1.6A
1.3A
1.0A
0.5A
2.0A
1.6A
1.3A
1.0A
0.5A
Output
Power
10W
10W
10W
12W
12W
10W
10W
10W
12W
12W
10W
10W
10W
12W
12W
10W
10W
10W
12W
12W
10W
10W
10W
12W
12W
Ripple &
Noise¹
75mV pk-pk
75mV pk-pk
75mV pk-pk
120mV pk-pk
240mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
120mV pk-pk
240mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
120mV pk-pk
240mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
120mV pk-pk
240mV pk-pk
75mV pk-pk
75mV pk-pk
75mV pk-pk
120mV pk-pk
240mV pk-pk
Line
Regulation
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%

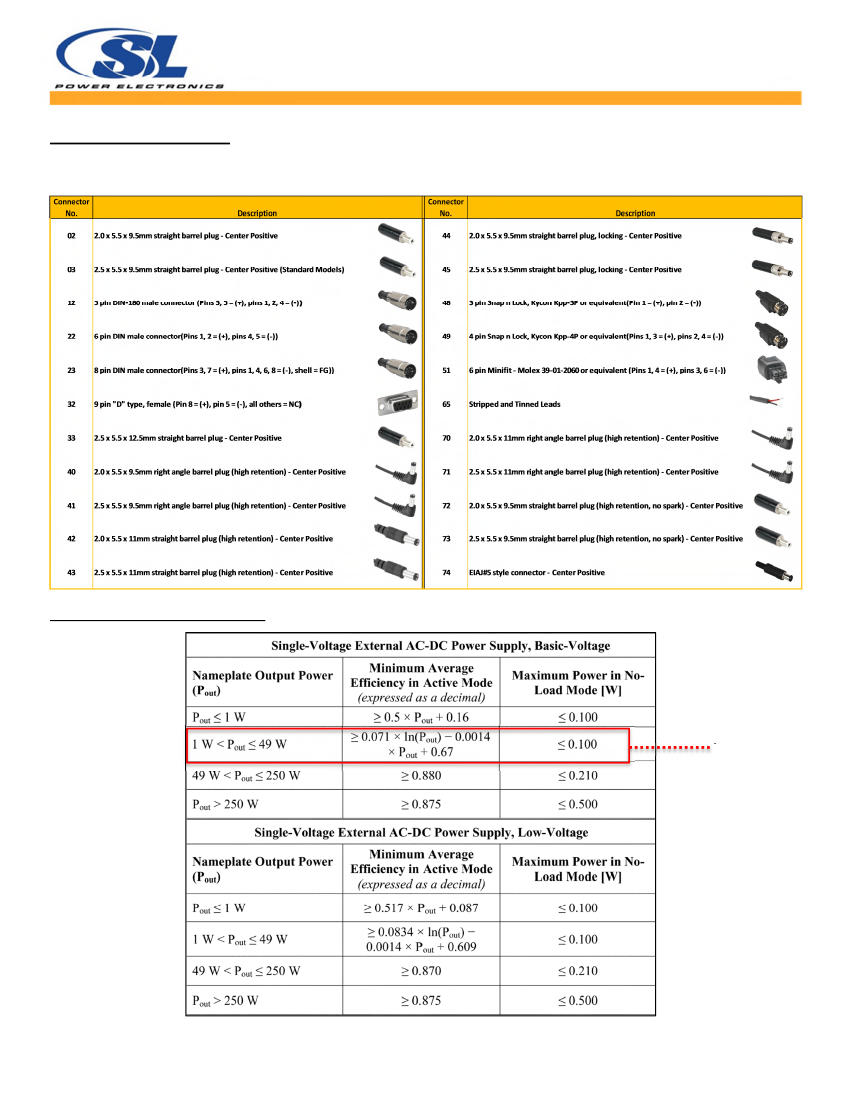

Output
Connector
2.5 x 5.5 x 9.5mm
Straight Barrel Type,
center positive
Input
Configuration
Class I Desktop,
IEC60320 C14
Receptacle
2.5 x 5.5 x 9.5mm
Straight Barrel Type,
center positive
Class II Desktop,
IEC60320 C8
Receptacle
2.5 x 5.5 x 9.5mm
Straight Barrel Type,
center positive
Class II Desktop,
IEC60320 C18
Receptacle
2.5 x 5.5 x 9.5mm
Straight Barrel Type,
center positive
Class II Wall-Plug,
Interchangeable Blades
(North American Blade
included)²
2.5 x 5.5 x 9.5mm
Straight Barrel Type,
center positive
Class II Wall-Plug, Fixed
North American Blades³
1. Measured at the output connector, with noise probe directly across output and load terminated with 0.1μF ceramic and 10μF low ESR capacitors. For 5V and
6V models, values listed are typical, 100mV pk-pk maximum with 0.1μF ceramic and 47μF low ESR capacitors used at measurement point.
2. Order blade kit KT-1027K for other blades (EU. UK, Australia)
3. For EU fixed blades, replace “C” in the model number with “M”, for UK blades, replace “C” with “G”, for Australia blades, replace “C” with “H”.
4. For Input Class I models: For AC GND connected to output common (-), insert a “B” in the part number where the “A” is located (TE10B0503F01).
5. All specifications are typical at nominal input, full load, at 25°C ambient unless noted.
www.slpower.com
TE10 Rev 2.3 1-JAN-16
1
TE10
10W-12W Single Output External Power
Test & Measurement/Industrial Series
General Specifications
AC Input
100-240Vac, ±10%, 47-63Hz, 1∅
Turn On Time
Less than 700mS @115Vac, full load
Input Current
115Vac: 0.45A, 230Vac: 0.28A
Hold-up Time
Overtemperature
Protection
Overload Protection
Short Circuit
Protection
Overvoltage
Protection
Isolation
20mS min., at full Load, 100Vac input
Inrush Current
264Vac, cold start: will not exceed 40A
Will shutdown upon an overtemperature
condition, auto-recovery.
Input Fuses
Earth Leakage
Current
Efficiency
F1, F2: 3.15A, 250Vac fuses (line & neutral
lines) provided on all models
Input-GND: <500μA@264Vac, 60Hz, NC
Output-GND: <4mA@264Vac, 60Hz, NC
Meets US DoE Efficiency Level VI Average
efficiency levels
10 to 12W continuous – See models chart for
specific voltage model ratings.
<0.1W per DoE Efficiency Level VI
Requirements
130 to 180% of rating, Hiccup Mode
Hiccup Mode, auto recovery.
130 to 150% of output voltage, hiccup mode
Input-Output: 4000Vac
Input-Ground: 1500Vac
Output-Ground: 1500Vac
EN/CSA/UL/IEC 60950-1, 2nd Edition, Am 2
-20°C to +50°C
Start Up at -40°C, full load,
(warmup period before
all parameters are within published specifications).
Output Power
No Load Input
Power
Ripple and Noise
Safety Standards
Operating
Temperature
Temperature
Derating
Storage Temperature
See models chart on pg 1.
Output Voltage
Transient
Response
Regulation
See models chart on pg 1.
500µs response time for return to within 0.5%
of final value for any 50% load step over the
range of 5% to 100% of rated load,
∆i/∆t<
0.2A/µs. Max. voltage deviation is +/-3.5%.
See models chart on pg 1.
Derate output power above 40°C to TBD at
50°C
-40°C to +85°C
Altitude
Operating: to 5000m.
Non-operating: -500 to 40,000 ft.
Drop Test
1.4m from table top to wooden platform, 6
faces.
Operating: 0.003g/Hz, 1.5grms overall, 3
axes, 10 min/axis, 1-500Hz.
Non-Oper.: random waveform, 3 minutes per
axis, 3 axes and Sine waveform, Vib.
frequency/acceleration: 10-500Hz/1g, sweep
rate of 1 octave / minutes, Vibration time of 10
sweeps / axes, 3 axes

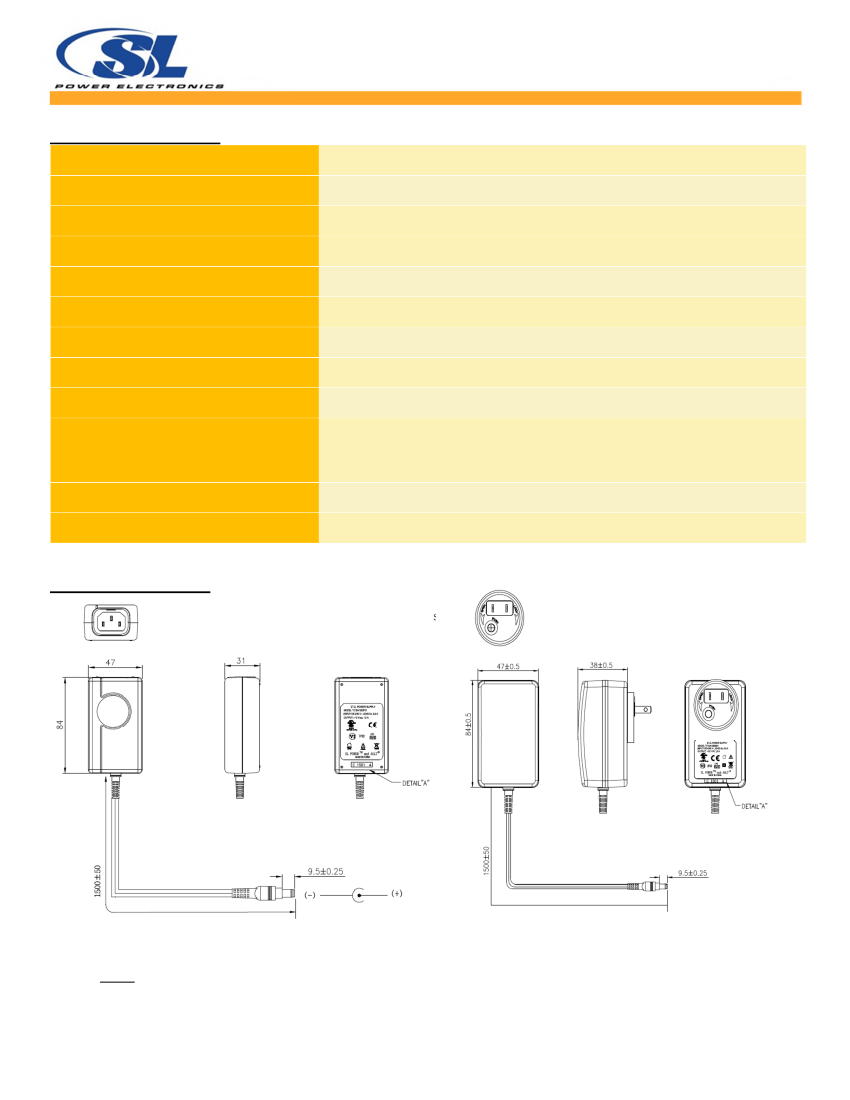

See outline drawings
Relative Humidity
5% to 95%, non-condensing
Operating: Half-sine, 20gpk, 10mS, 3 axes,
6 shocks total
Non-Operating: Half-sine waveform, impact
acceleration of 100G, Pulse duration of 6
mS, Number of shocks: 3 for each of the
three axis
>1,000,000 hours, full load, 110 & 220Vac
input, 25°C amb., per Telcordia 332 Issue 6,
Stress Method.
>10 year life based on calculations at
115Vac/60Hz & 230Vac/50Hz, ambient 25°C
at 24 hrs per day, 365 days/year, 6 power up
cycles per day.
Vibration
Shock
Dimensions
MTBF
Weight
110g
E-Cap Life
All specifications are typical at nominal input, full load, at 25°C ambient unless noted.
www.slpower.com
TE10 Rev 2.3 1-JAN-16
2
TE10
10W-12W Single Output External Power
Test & Measurement/Industrial Series
EMI/EMC Compliance
Conducted Emissions:
Radiated Emissions:
Common Mode Noise:
Electro-Static Discharge (ESD)
Immunity on Power ports:
Radiated RF EM Fields Susceptibility
Electrical Fast Transients (EFT) /Bursts:
Surges, Line to Line (Diff Mode) and Line
to GND (CMN Mode)
Conducted Disturbances induced by RF
Fields
Rated Power frequency magnetic fields
Voltage Interruptions, Dips, Sags &
Surges
Harmonic Current Emissions
Flicker Test
EN55022/CISPR22 Class B, FCC Part 15.107, Class B: 6db margin typ, at 115 and 230Vac
EN55022/CISPR22 Class B, FCC Part 15.109, Class B: 3db margin typ, at 115 and 230Vac
