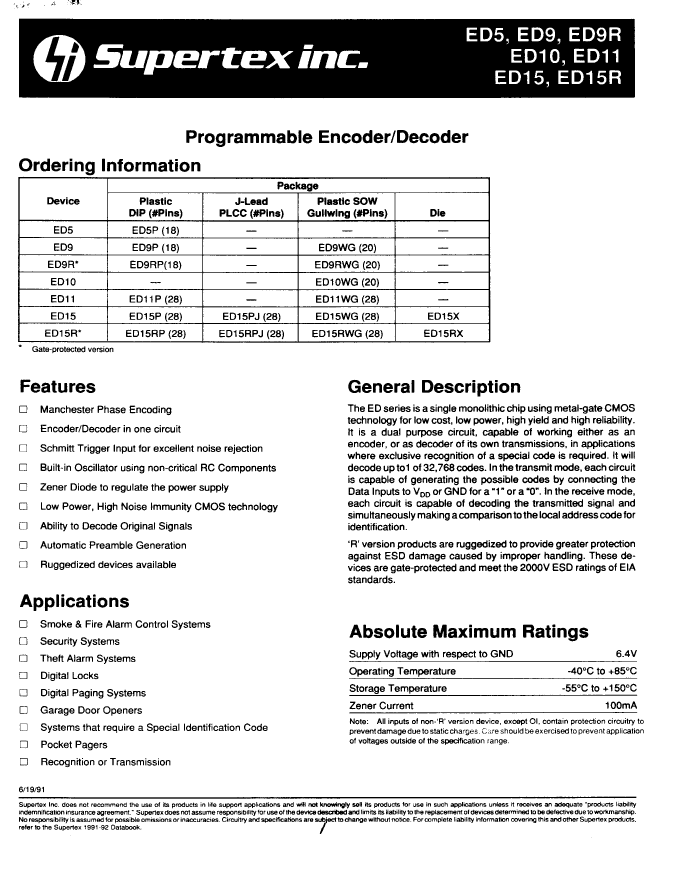

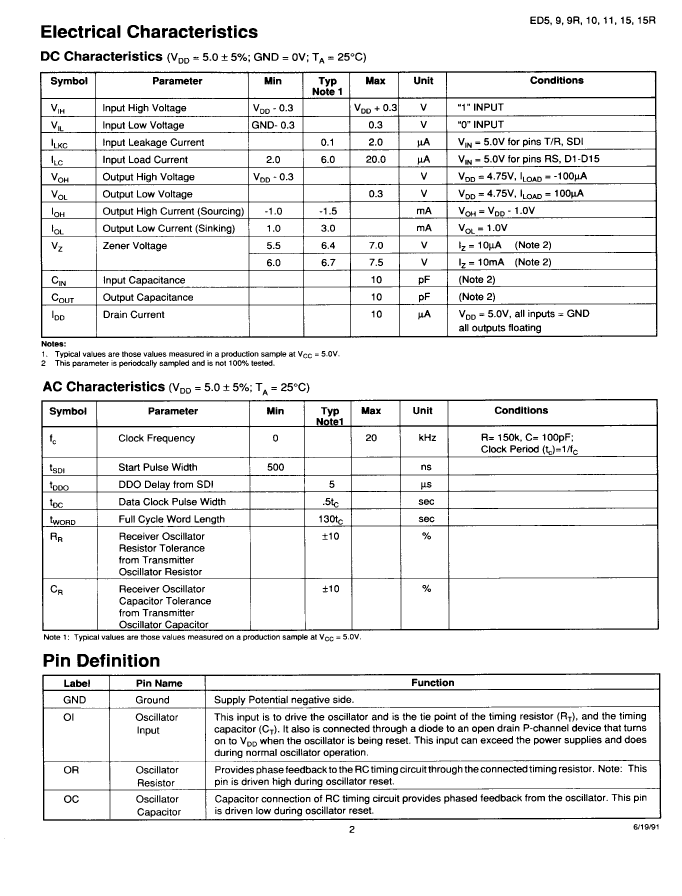

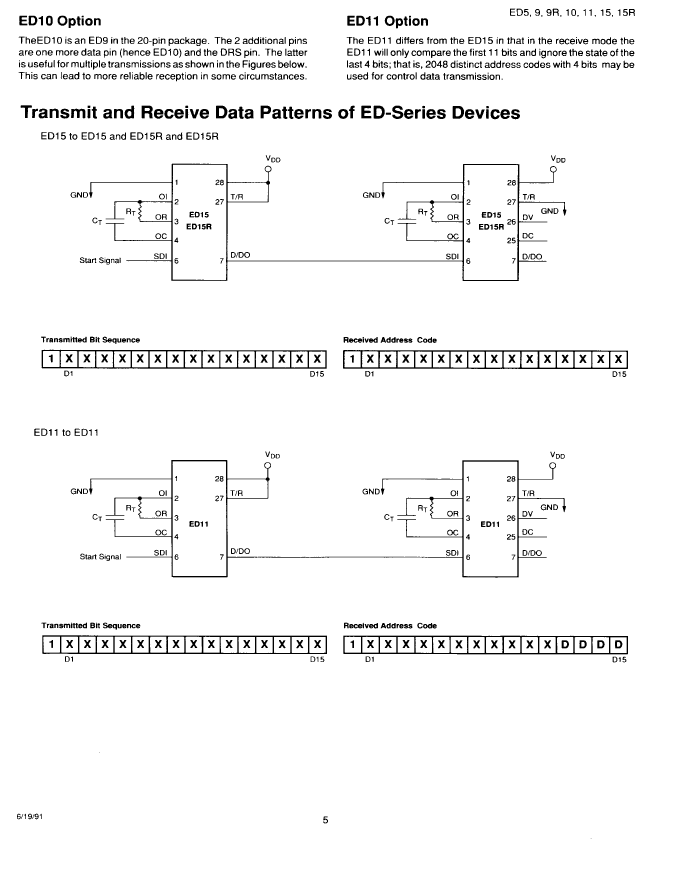

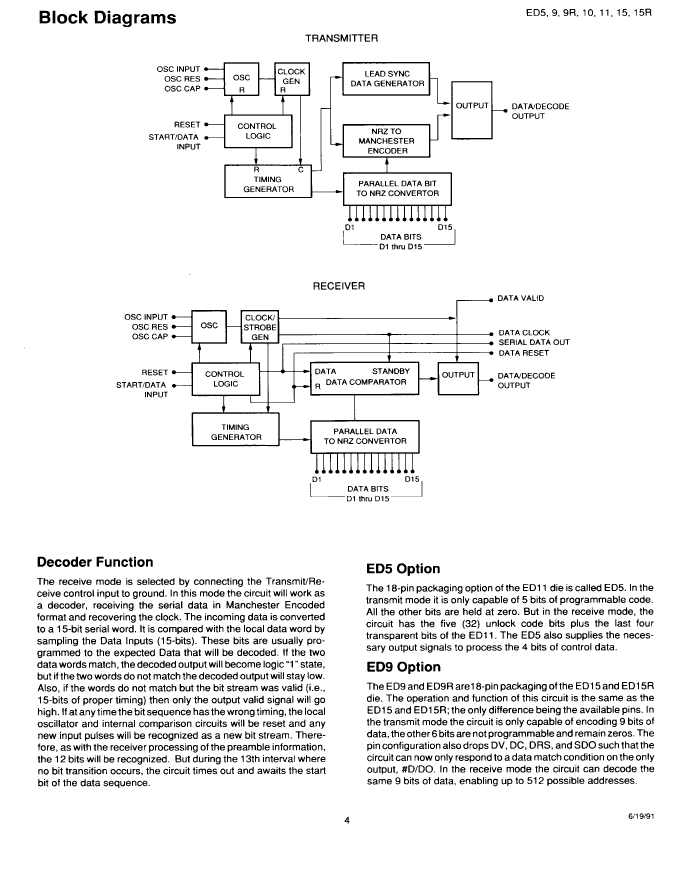

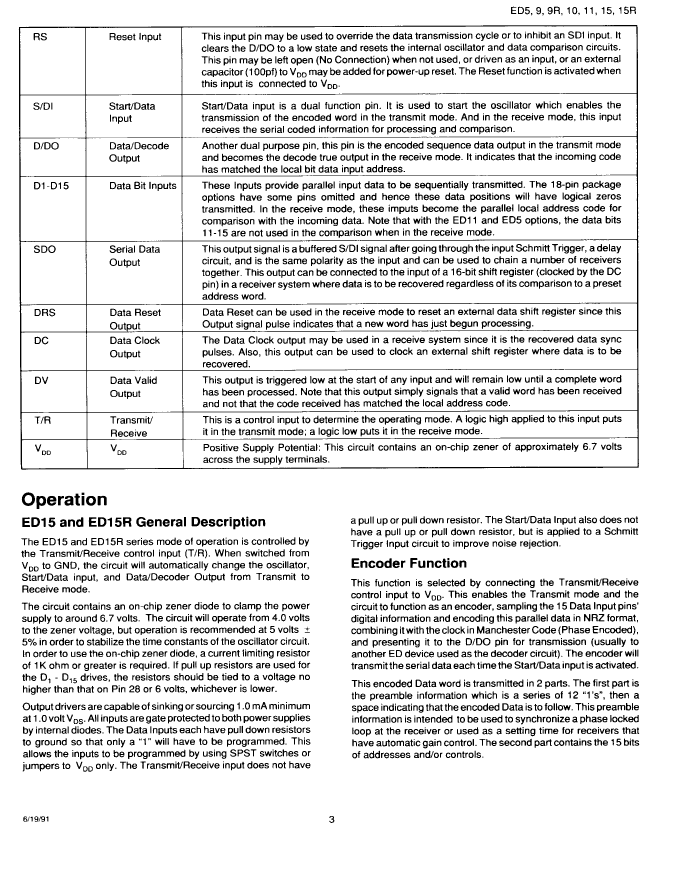

ED9RWG: DescriptionManchester Encoder/Decoder, CMOS, PDSO20, 1.27 MM PITCH, SO-20; CategoryWireless rf/communication Telecom circuit; File Size304KB，9 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

ED9RWG Overview

Manchester Encoder/Decoder, CMOS, PDSO20, 1.27 MM PITCH, SO-20

ED9RWG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Supertex
Parts packaging code	SOIC
package instruction	1.27 MM PITCH, SO-20
Contacts	20
Reach Compliance Code	unknow
JESD-30 code	R-PDSO-G20
length	12.8 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	MANCHESTER ENCODER/DECODER
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
