20CTQ...SPbF/20CTQ...-1PbF
Vishay High Power Products
Schottky Rectifier, 2 x 10 A
20CTQ...SPbF
20CTQ...-1PbF
FEATURES
• 175 °C T
J
operation
Available
• Center tap TO-220 package
• Low forward voltage drop
• High frequency operation
Base
common
cathode
2
Base
common
cathode
2
RoHS*
COMPLIANT
• High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• Lead (Pb)-free (“PbF” suffix)
2
1 Common
3
Anode cathode Anode
2
1 Common
3
Anode cathode Anode
• Designed and qualified for Q101 level
D
2
PAK
DESCRIPTION
TO-262
PRODUCT SUMMARY
I
F(AV)
V
R
2 x 10 A
35 to 45 V
The 20CTQ.. center tap Schottky rectifier series has been
optimized for low reverse leakage at high temperature. The
proprietary barrier technology allows for reliable operation up
to 175 °C junction temperature. Typical applications are in
switching power supplies, converters, freewheeling diodes,
and reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
CHARACTERISTICS
Rectangular waveform
Range
t
p
= 5 µs sine
10 Apk, T
J
= 125 °C (per leg)
Range
VALUES
20
35 to 45
1060
0.57
- 55 to 175
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
20CTQ035SPbF
20CTQ035-1PbF
35
20CTQ040SPbF
20CTQ040-1PbF
40
20CTQ045SPbF
20CTQ045-1PbF
45
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
See fig. 5
Maximum peak one cycle non-repetitive
surge current per leg
See fig. 7
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 145 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
Following any rated load
condition and with rated
V
RRM
applied
VALUES
20
1060
265
13
2.0
mJ
A
A
UNITS
T
J
= 25 °C, I
AS
= 2.0 A, L = 6.5 mH
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94163
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
20CTQ...SPbF/20CTQ...-1PbF
Vishay High Power Products
Schottky Rectifier, 2 x 10 A
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
10 A
Maximum forward voltage drop per leg
See fig. 1
V
FM (1)
20 A
10 A
20 A
Maximum reverse leakage current per leg
See fig. 2
Maximum junction capacitance per leg
Typical series inductance per leg
Maximum voltage rate of change
Note
(1)
Pulse width < 300 µs, duty cycle < 2 %
I
RM (1)
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
TEST CONDITIONS
T
J
= 25 °C
VALUES
0.64
0.76
0.57
0.68
2
15
900
8.0
10 000
mA
pF
nH
V/µs
V
UNITS
T
J
= 125 °C
V
R
= Rated V
R
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Maximum thermal resistance,
junction to case per leg
Maximum thermal resistance,
junction to case per package
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
Case style D
2
PAK
Case style TO-262
SYMBOL
T
J
, T
Stg
DC operation
See fig. 4
DC operation
R
thCS
Mounting surface, smooth and greased
TEST CONDITIONS
VALUES
- 55 to 175
3.25
1.63
0.50
2
0.07
6 (5)
12 (10)
g
oz.
kgf
⋅
cm
(lbf
⋅
in)
°C/W
UNITS
°C
R
thJC
Mounting torque
Marking device
20CTQ045S
20CTQ045-1
www.vishay.com
2
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94163
Revision: 13-Aug-08
20CTQ...SPbF/20CTQ...-1PbF
Schottky Rectifier, 2 x 10 A
Vishay High Power Products
1000
1000
I
F
- Instantaneous Forward
Current (A)
100
I
R
- Reverse Current (mA)
100
10
1
T
J
= 100 °C
0.1
0.01
0.001
0.0001
T
J
= 75 °C
T
J
= 50 °C
T
J
= 25 °C
0
5
10
15
20
25
30
T
J
= 175 °C
T
J
= 150 °C
T
J
= 125 °C
10
T
J
= 175 °C
T
J
= 125 °C
T
J
= 25 °C
1
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
35
40
45
V
FM
- Forward Voltage Drop (V)

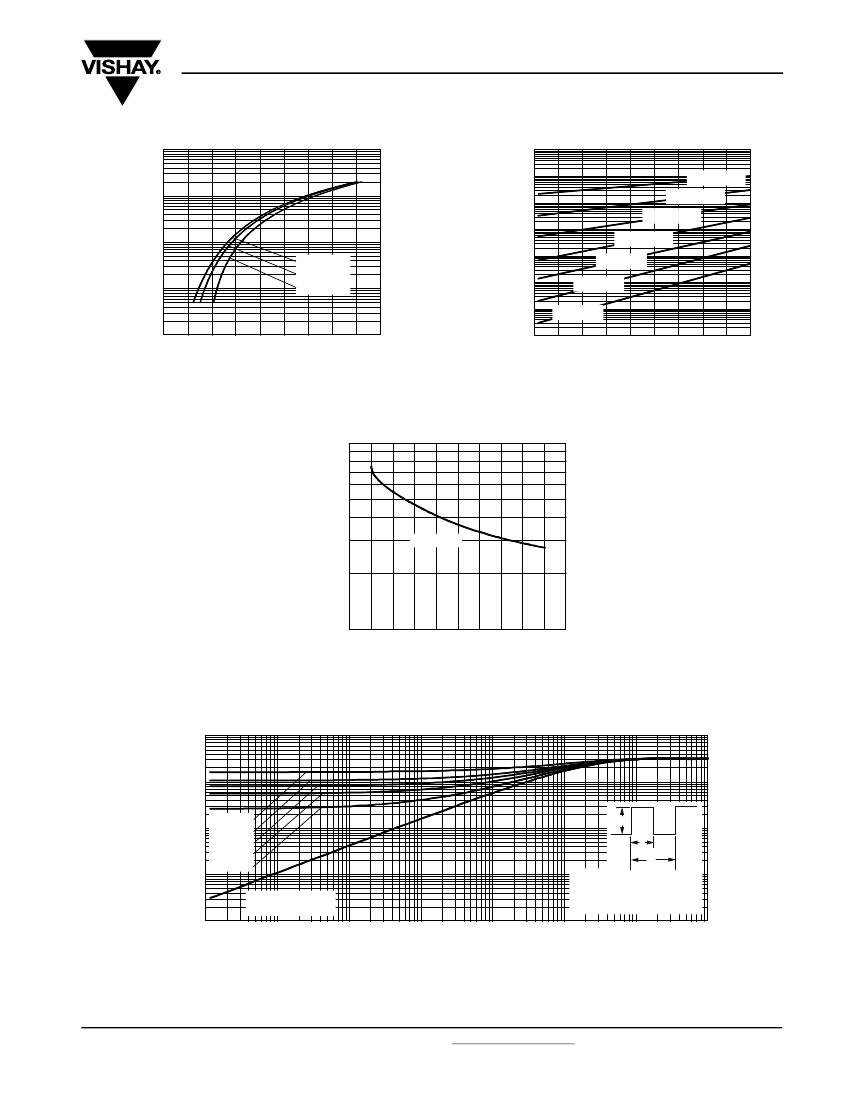

Fig. 1 - Maximum Forward Voltage Drop Characteristics
(Per Leg)
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage (Per Leg)
1000
C
T
- Junction Capacitance (pF)
T
J
= 25 °C
100
0
10
20
30
40
50
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg)
Z
thJC
- Thermal Impedance (°C/W)
10
1
0.1
0.01
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
Single pulse
(thermal resistance)
P
DM
t
1
t
2
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.001
0.01
0.1
1
10
100
0.001
0.00001
0.0001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics (Per Leg)
Document Number: 94163
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
3
20CTQ...SPbF/20CTQ...-1PbF
Vishay High Power Products
Schottky Rectifier, 2 x 10 A
180
9
Allowable Case Temperature (°C)
Average Power Loss (W)
175
170
165
160
155
150
145
0
5
DC
20CTQ
R
thJC
(DC) = 3.25 °C/W
8
7
6
5
4
3
2
1
0
D = 0.08
D = 0.17
D = 0.25
D = 0.33
D = 0.50
RMS limit
DC
10
15
0
5
10
15
I
F(AV)
- Average Forward Current (A)

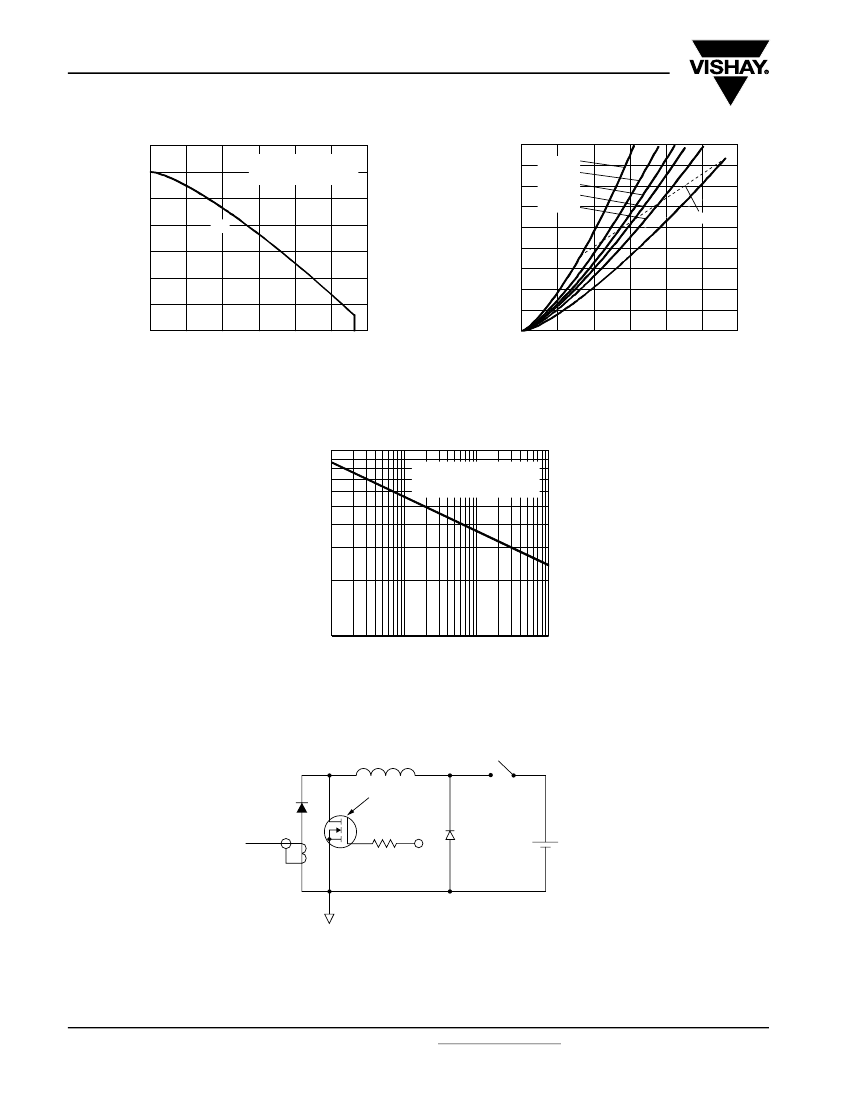

Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current (Per Leg)
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics (Per Leg)
I
FSM
- Non-Repetitive Surge Current (A)
1000
At any rated load condition
and with rated V
RRM
applied
following surge
100
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
L
High-speed
switch
Freewheel
diode
40HFL40S02
+ V
d
= 25 V
D.U.T.
IRFP460
R
g
= 25
Ω
Current
monitor
Fig. 8 - Unclamped Inductive Test Circuit
www.vishay.com
4
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94163
Revision: 13-Aug-08
20CTQ...SPbF/20CTQ...-1PbF
Schottky Rectifier, 2 x 10 A
Vishay High Power Products
ORDERING INFORMATION TABLE
Device code
20
1
1
2
3
4
5
6
7
-
-
-
-
-
-
C
2
T
3
Q
4
045
5
S
6
TRL PbF
7
8
Current rating (20 A)
Circuit configuration:
C = Common cathode
T = TO-220
Schottky “Q” series
Voltage ratings
S = D
2
PAK
-1 = TO-262
035 =
35
V
040 = 40 V
045 = 45 V
-
None = Tube (50 pieces)
TRL = Tape and reel (left oriented - for D
2
PAK only)
TRR = Tape and reel (right oriented - for D
2
PAK only)
8
-
None = Standard production
PbF = Lead (Pb)-free
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
Packaging information
http://www.vishay.com/doc?95014
http://www.vishay.com/doc?95008
http://www.vishay.com/doc?95032
Document Number: 94163
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
5
