RS2N-3302-J-2: DescriptionRESISTOR, NETWORK, FILM, ISOLATED, SURFACE MOUNT, 0404, CHIP, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components The resistor; File Size822KB，1 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RS2N-3302-J-2 Overview

RESISTOR, NETWORK, FILM, ISOLATED, SURFACE MOUNT, 0404, CHIP, HALOGEN FREE AND ROHS COMPLIANT

RS2N-3302-J-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUSUMU
package instruction	SMT, 0404
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Chi
Component power consumption	0.063 W
The first element resistor	33000 Ω
Manufacturer's serial number	RS
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	2
Number of terminals	4
Package height	0.4 mm
Package length	1 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1 mm
method of packing	TR
Rated power dissipation(P)	0.063 W
resistance	33000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	RS2N
size code	0404
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	250 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	25 V

Preview

Download Datasheet

View All

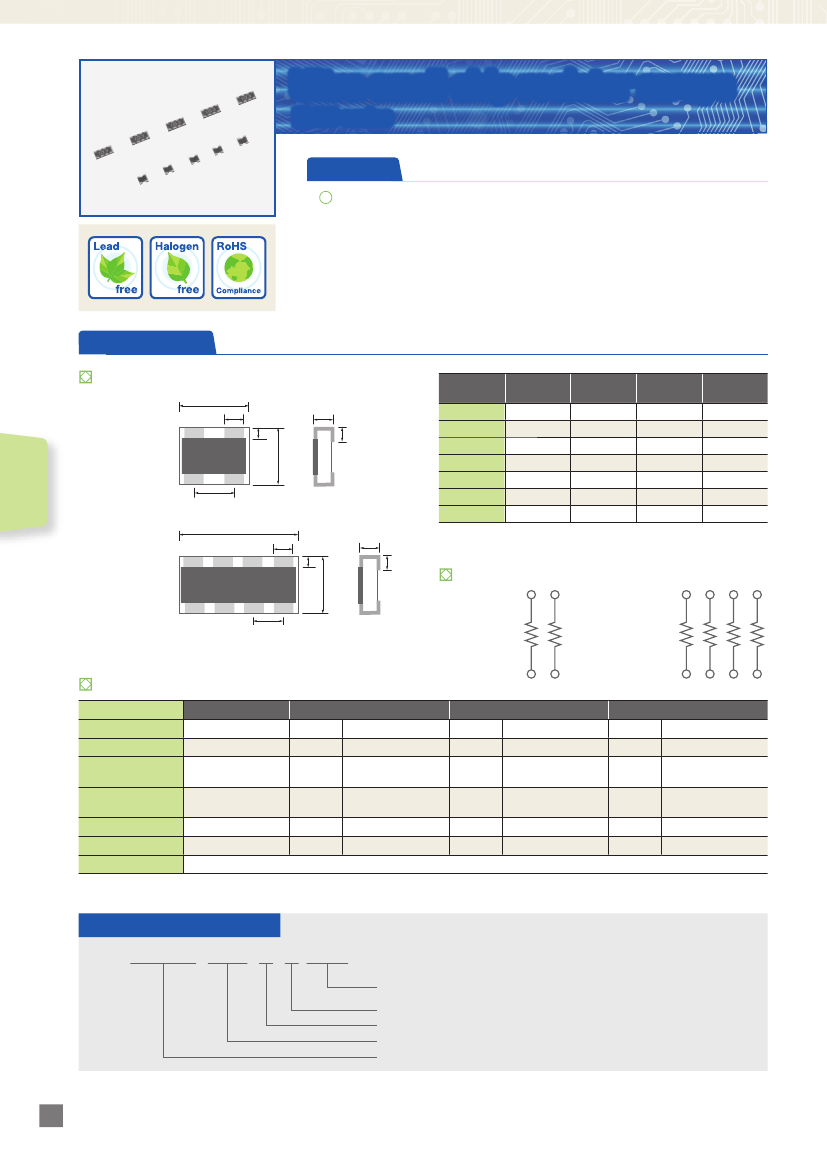

Ultra-small chip resistor arrays

■

RS series

Features

●

Integrating 2 or 4 chip resistors (1.0 x 0.5 or 0.3 x 0.6 sizes) into one chip

allowing significant space saving

Specifications

▪

Dimensions

L

＊All are stocked items.

unit：mm

Dimension

（inch）

A

C

RS062R

（0302）

0.8±0.1

0.6±0.1

0.35±0.1

0.30±0.1

0.5 Typ

0.15±0.1

RS2N

（0404）

1.0±0.05

0.4±0.1

0.33±0.1

0.65 Typ

0.15±0.1

0.25＋0.05/−0.1

RS064R

（0602）

1.46±0.1

0.6±0.1

0.35±0.1

0.2±0.1

0.4 Typ

0.15±0.07

0.2±0.05

RS4N

（0804）

2.0±0.1

1.0±0.1

0.4±0.1

0.35±0.1

0.5 Typ

0.22±0.1

0.35max.

T

D

W

L

W

T

A

P

C

D

Thick film surface

mount resistors

RS2N, RS062R

P

L

A

C

RS series

T

D

W

RS4N, RS064R

▪

Equivalent circuits

P

unit：mm

RS2N,

RS062R

RS4N,

RS064R

▪

Electrical characteristics

Series name

Power

Resistance range Ω ）

（

Resistance tolerance

（code）

Temperature coefficient

of resistance

Maximum Voltage

Resistance value series

Packaging

・Contact us for parts that do not contain Pb in the glass coating.

RS062R

31mW/element

10 〜 1M

±5.0 %

（J）

±200ppm/℃

12.5V

E-24

ー

Jumper

ー

1A

ー

RS2N

63mW/element

10 〜1M

±5.0 %

（J）

±250ppm/℃

25V

E-24

ー

Jumper

ー

1A

ー

RS064R

32mW/element

10 〜1M

±5.0 %

（J）

±200ppm/℃

12.5V

E-24

ー

Jumper

ー

1A

ー

RS4N

63mW/element

10 〜 1M

±5.0 %

（J）

±250ppm/℃

25V

E-24

10,000pcs/reel

Part numbering system

RS064R - 1001 - J - 2 N

(

H

)

N RoHS compliant parts (given only for RS062R and RS064)

：

H Given only to RS062R and RS064

：

Terminal structure

（2＝ﬂat）

Resistance tolerance

（J＝±5％，

X½Jumper）

Resistance value

（00R0½Jumper，

1001½1kΩ）

Part code

Complete Product Catalogue

Thin Film Product

Recommended Resources

Y-△ started air compressor control circuit

Receiver lighting circuit

4N25 to 4N28 type optocoupler circuit

A circuit that prevents push-pull circuits from being turned on at the same time

Monostable circuit using operational amplifier

Simple electronic password switch circuit
