AD2C542
1 Form B
60V / 2Ω
MOSFET Output Solid State Relay
Description
The AD2C542 is a bi-directional, single-pole, single-throw,
normally closed multipurpose relay. It is designed to
replace electro-mechanical relays in general purpose
switching applications. The relay consists of an integrated
circuit that drives two rugged drain-to-drain depletion type
DMOS transistors - optically coupled to a light emitting
diode. The output MOS transistors have low on resistance
(1 Ohm TYP) making the relays ideal where minimal signal
attenuation is desired.
The AD2C542 comes standard in a miniature 4 pin DIP
package making it ideal for high-density board applications.
Features
Compact 4 pin DIP/SMD Package
High Isolation Voltage (up to 5kV
RMS
)
Low Input Control Current (1.5mA TYP)
1Ω Typical On Resistance
500mA Maximum Continuous Load Current
Long Life / High Reliability
RoHS / Pb-Free / REACH Compliant
Agency Approvals
UL/C-UL:
VDE:
File # E201932
File # 40035191 (EN 60747-5-2)
Applications
Reed Relay Replacement
Meter Reading Systems
Data Acquisition
Medical Equipment
Battery Monitoring
Safety Systems
Absolute Maximum Ratings
The values indicated are absolute stress ratings. Functional
operation of the device is not implied at these or any
conditions in excess of those defined in electrical
characteristics section of this document. Exposure to
absolute Maximum Ratings may cause permanent damage
to the device and may adversely affect reliability.
Storage Temperature …………………………..-55 to +125°C
Operating Temperature …………………………-40 to +85°C
Continuous Input Current ………………………………..50mA
Transient Input Current ………………….……………..500mA
Reverse Input Control Voltage …………..…………………5V
Input Power Dissipation …………………………………40mW
Output Power Dissipation ……………………………..500mW
Solder Temperature – Wave (10sec)……………….….260°C
Solder Temperature – IR Reflow (10sec)….…………..260°C

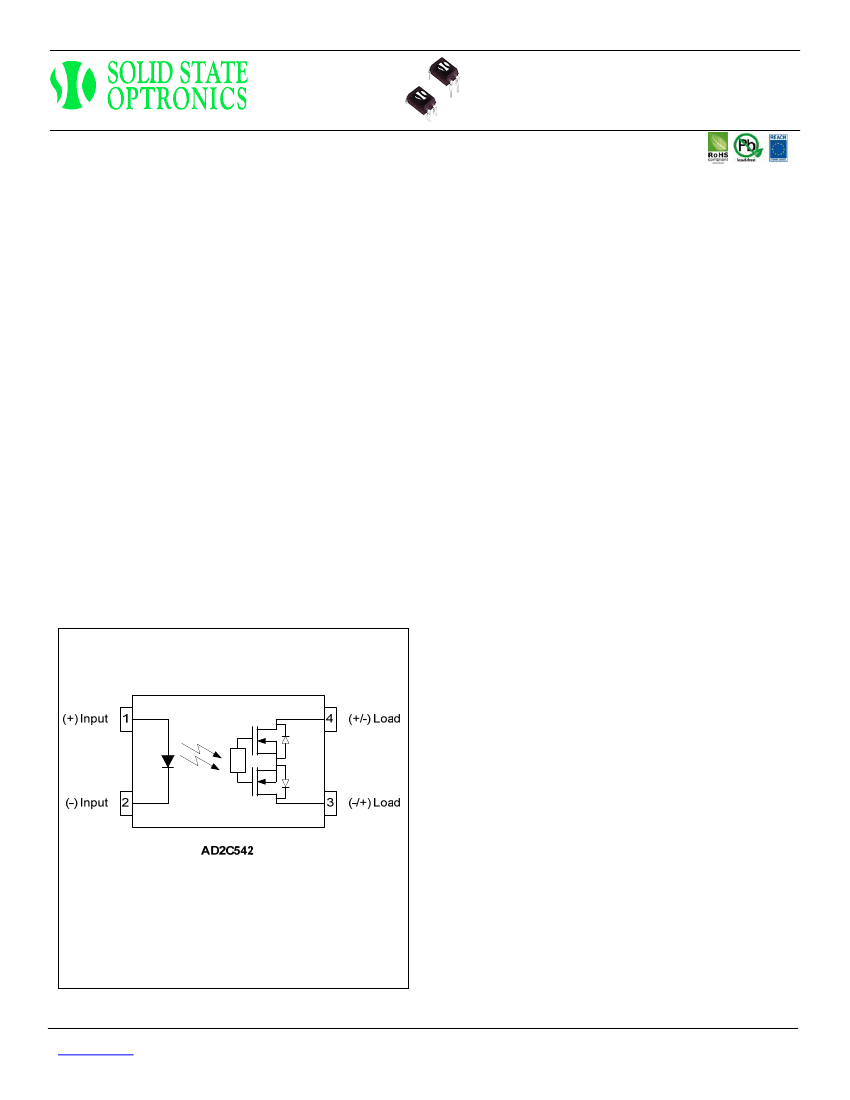

Schematic Diagram
Ordering Information
Part Number
AD2C542
AD2C542-H
AD2C542-S
AD2C542-HS
AD2C542-STR
AD2C542-HSTR
Description
4 pin DIP, (100/Tube)
5kV
RMS
Viso, 8 pin DIP, (100/Tube)
4 pin SMD, (100/Tube)
5kV
RMS
, 4 pin SMD, (100/Tube)
4 pin SMD, Tape & Reel (2000/Reel)
5kV
RMS
, 4 pin SMD, Tape & Reel (2000/Reel)
NOTE: Suffixes listed above are not included in marking on device
for part number identification
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 1 of 8
AD2C542 H/S/TR
Rev 2.00 (10/25/2013)
001661
AD2C542
1 Form B
60V / 2Ω
MOSFET Output Solid State Relay
AD2C542 Solder Temperature Profile Recommendations
(1)
Infrared Reflow:
Refer to the following figure as an example of an optimal temperature profile for single occurrence infrared reflow.
Soldering process should not exceed temperature or time limits expressed herein. Surface temperature of device
package should not exceed 250ºC:
G
F
D
E
H
B
A
C
Figure 1
Process
Step
A
B
C
D
E
F
G
H
Description
Preheat Start Temperature (ºC)
Preheat Finish Temperature (ºC)
Preheat Time (s)
Melting Temperature (ºC)
Time above Melting Temperature (s)
Peak Temperature, at Terminal (ºC)
Dwell Time at Peak Temperature (s)
Cool-down (ºC/s)
150ºC
180ºC
90 - 120s
230ºC
30s
260ºC
10s
<6ºC/s
Parameter
(2)
Wave Solder:
Maximum Temperature:
Maximum Time:
Pre-heating:
Single Occurrence
260ºC (at terminal)
10s
100 - 150ºC (30 - 90s)
(3)
Hand Solder:
Maximum Temperature:
Maximum Time:
Single Occurrence
350ºC
3s
(at tip of soldering iron)
© 2013 Solid State Optronics
•
San José, CA
www.ssousa.com
•
+1.408.293.4600
Page 4 of 8
AD2C542 H/S/TR
Rev 2.00 (10/25/2013)
001661
