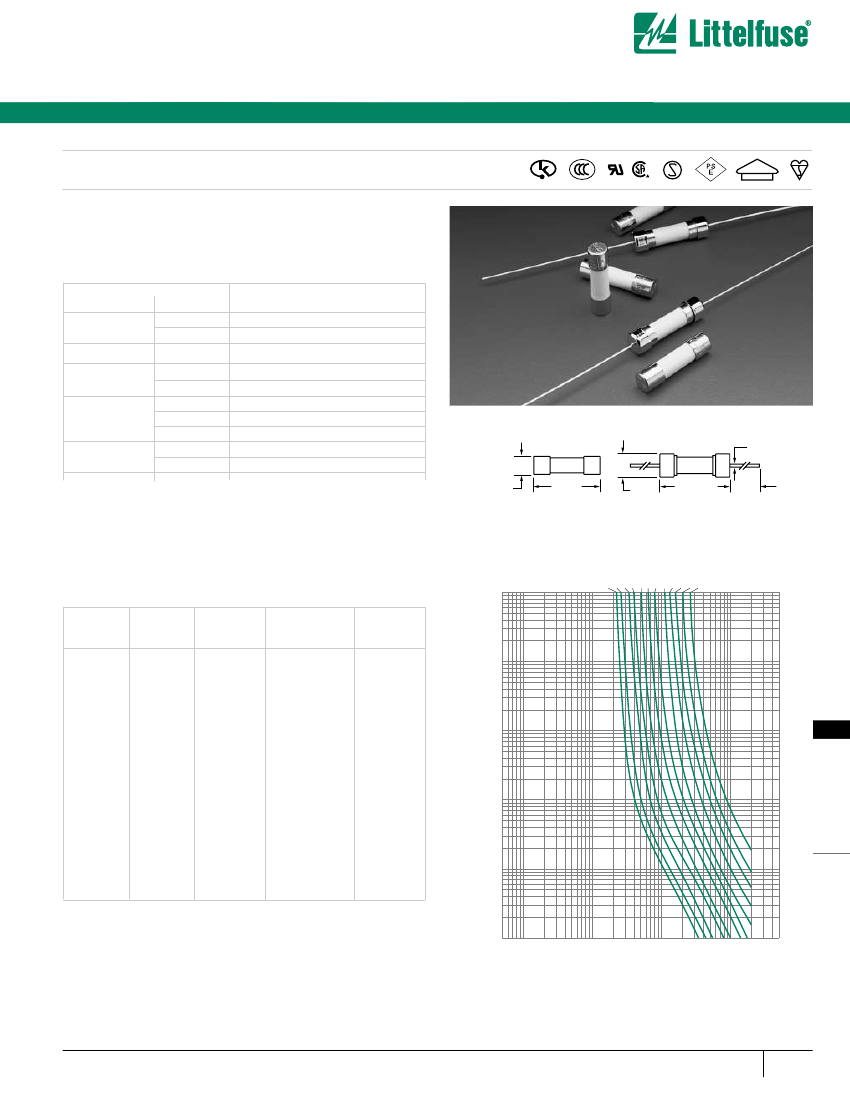

Axial Lead and Cartridge Fuses
Designed to IEC Standard
5 x 20 mm
Time Lag Fuse (Slo-Blo
®
Fuse) 215 Series
®
®
D
V
E
• Designed to International (IEC) Standards for use globally.
• Meets the IEC 60127-2, Sheet 5 specification for Time Lag Fuses.
• Available in Cartridge and Axial Lead Form.
• Available in ratings of .2 to 12 amperes.
• High breaking capacity.
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
150%
210%
275%
Ampere
Rating
.1-6.3
8-12
.1-12
.1-.8
1-12
.1-.8
1– 3.15
4– 6.3
.1-.8
1-12
Opening
Time
60 minutes,
Minimum
30 minutes,
Minimum
30 minutes,
Maximum
.25 sec.,
Min.;
80 sec.
Max.
.75 sec.,
Min.;
80 sec.
Max.
.05 sec.,
Min.;
5 sec.
Max.
.095 sec.,
Min.;
5 sec.
Max.
.150 sec.,
Min.;
5 sec.
Max.
.005 sec.,
Min.;
.15 sec.,
Max.
.010 sec.,
Min.;
.15 sec.,
Max.
5.2
(.205")
400%
215 000
215 000 XE
.65*
(.026")
1000%
AGENCY APPROVALS:
Sheet V IEC 60127-2:* SEMKO approved 1A-6.3A.
BSI approved 1-6.3A. VDE approved 1A-12A. METI approved 1-12A. Recognized
under the Components Program of Underwriters Laboratories and recognized by
CSA from 0.5A-12A. K Mark approved 1A-12A.
INTERRUPTING RATING:
1500 amperes @ 250VAC, 0.7-0.8 power factor.
ORDERING INFORMATION:
20
(.787)
6.0 MAX
(.236")
22.5 MAX
(.886)
40
(1.58)
*Ratings above 6.3A
have 0.8 dia lead
Average Time Current Curves
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
8A
10A
12A
100
Cartridge
Catalog
Number
215.200
215.250
215.315
215.400
215.500
215.630
215.800
215
001
215
1.25
215
01.6
215
002
215
02.5
215
3.15
215
004
215
005
215
06.3
215
008
215
010
215
012
Ampere
Rating
.200*
.250*
.315*
.400*
.500*
.630*
.800*
1
1.25
1.6
2
2.5
3.15
4
5
6.3
8*
10*
12*
Voltage
Rating
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Nominal
Resistance
Cold Ohms
1.750
1.170
0.873
0.560
1.080
0.660
0.436
0.110
0.085
0.0588
0.043
0.0312
0.0220
0.0163
0.0125
0.0099
0.0078
0.0060
0.0055
Nominal
Melting I
2
t
A
2
Sec.
0.37
0.56
1.08
1.45
0.34
0.56
0.954
1.05
2.05
3.90
6.95
10.65
21.2
38.7
82.85
132.5
209.5
360.5
515.0
10
TIME IN SECONDS
1
11
AXIAL LEAD AND
CARTRIDGE FUSES
1
10
CURRENT IN AMPERES
100
500
0.1
0.01
*IEC Standards for 5 x 20mm fuses do not include ratings above
6.3 amperes, but are under consideration.
IEC 60127-2, Sheet 5 does not include ratings below 1 ampere (under
consideration by IEC).
0.001
0.05 0.1
