Snap-in capacitors
Excellent performance
105
°C
B41505
Long-life grade capacitors
Applications
Professional power supplies
Features
Long useful life
High reliability
Outstanding ripple current capability
Low ESR
Capacitors with all insulation versions pass the needle flame
test according to IEC 60695-11-5 for all flame exposure times
up to 120 s
RoHS-compatible
Construction
Charge/discharge-proof, polar
Aluminum case, fully insulated with PVC
Snap-in solder pins to hold component in place on PC-board
Minus pole marking on case surface
Minus pole not insulated from case
Overload protection by safety vent on the base
Terminals
Standard version with 2 terminals,
2 lengths available: 6.3 and 4.5 mm
3 terminals to ensure correct insertion: length 4.5 mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 16
B41505
Excellent performance
105
°C
Specifications and characteristics in brief
Rated voltage V
R
Surge voltage V
S
Rated capacitance C
R
Capacitance tolerance
Dissipation factor tan
δ
(20
°C,
100 Hz)
10 ... 100 V DC
1.15 V
R
560 ... 33000 µF
±20%
M
V
R
= 10 V DC: tan
δ ≤
0.20
V
R
= 16 V DC: tan
δ ≤
0.15
V
R
= 25 V DC: tan
δ ≤
0.11
V
R
= 35 V DC: tan
δ ≤
0.10
V
R
= 50 V DC: tan
δ ≤
0.08
V
R
= 63 ... 100 V DC: tan
δ ≤
0.06
Leakage current I
leak
(5 min, 20
°C)
Self-inductance ESL
Useful life
1)
105
°C;
V
R
; I
AC,R
85
°C;
V
R
; I
AC,max
40
°C;
V
R
; 2.1 I
AC,R
Load life test
105
°C;
V
R
; I
AC,R
Approx. 20 nH
> 5000 h
> 12000 h
> 25000 h
4000 h
Requirements:
∆C/C
≤ ±45%
of initial value
tan
δ
≤
3 times initial specified limit
I
leak
≤
initial specified limit
Post test requirements:
∆C/C
≤ ±20%
of initial value
tan
δ
≤
2 times initial specified limit
I
leak
≤
initial specified limit
Post test requirements:
∆C/C
≤ ±15%
of initial value
tan
δ
≤
1.3 times initial specified limit
I
leak
≤
initial specified limit
Voltage endurance test
105
°C;
V
R
2000 h
Vibration resistance
test
To IEC 60068-2-6, test Fc:
Frequency range 10 Hz ... 55 Hz, displacement amplitude 0.35 mm,
acceleration max. 5
g,
duration 3
×
2 h.
Capacitor mounted by its body which is rigidly clamped to the work
surface.
Max. impedance ratio at 100 Hz
V
R
10 ... 100 V
Z
-25
°
C
/ Z
20
°
C
2
Z
-40
°
C
/ Z
20
°
C
3
To IEC 60068-1: 40/105/56 ( 40
°C/+105 °C/56
days damp heat test)
IEC 60384-4
Characteristics at low
temperature
IEC climatic category
Sectional specification
1) Refer to chapter "General technical information, 5 Useful life" on how to interpret useful life.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 16
B41505
Excellent performance
105
°C

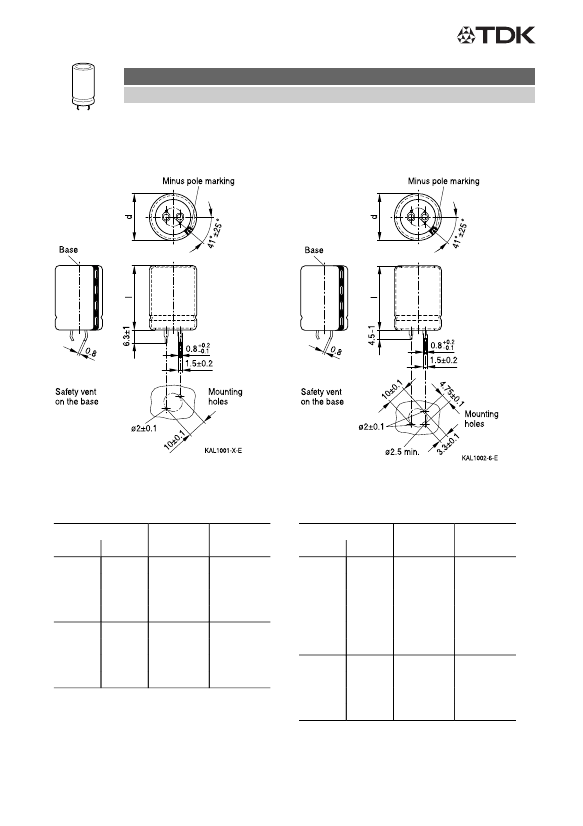

Dimensional drawings
Snap-in capacitors with standard insulation (PVC)
Snap-in terminals, length (6.3
±1)
mm.
Also available in a shorter version with a
length of (4.5 1) mm.
Dimensions (mm)
d +1
l
±2
22
25
22
30
22
35
22
40
25
25
25
30
25
35
25
40
Approx.
weight (g)
9
12
15
18
13
17
19
22
Packing
units (pcs.)
160
160
160
160
130
130
130
130
Snap-in capacitors are also available with
3 terminals (length (4.5 1) mm).
Dimensions (mm)
d +1
l
±2
30
25
30
30
30
35
30
40
30
45
30
50
35
35
35
40
35
45
35
50
Approx.
weight (g)
17
23
29
36
41
46
36
41
56
70
Packing
units (pcs.)
80
80
80
80
80
80
60
60
60
60
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 16
B41505
Excellent performance
105
°C
Ordering codes for terminal styles and insulation features
Identification in 3rd block of ordering code
Snap-in capacitors
Terminal version
Standard terminals 6.3 mm
Short terminals 4.5 mm
3 terminals 4.5 mm
Ordering examples:
B41505A5109M007
B41505A5109M002
}
}
snap-in capacitor with short terminals
snap-in capacitor with 3 terminals
Insulation version
PVC
M000
M007
M002
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 16
