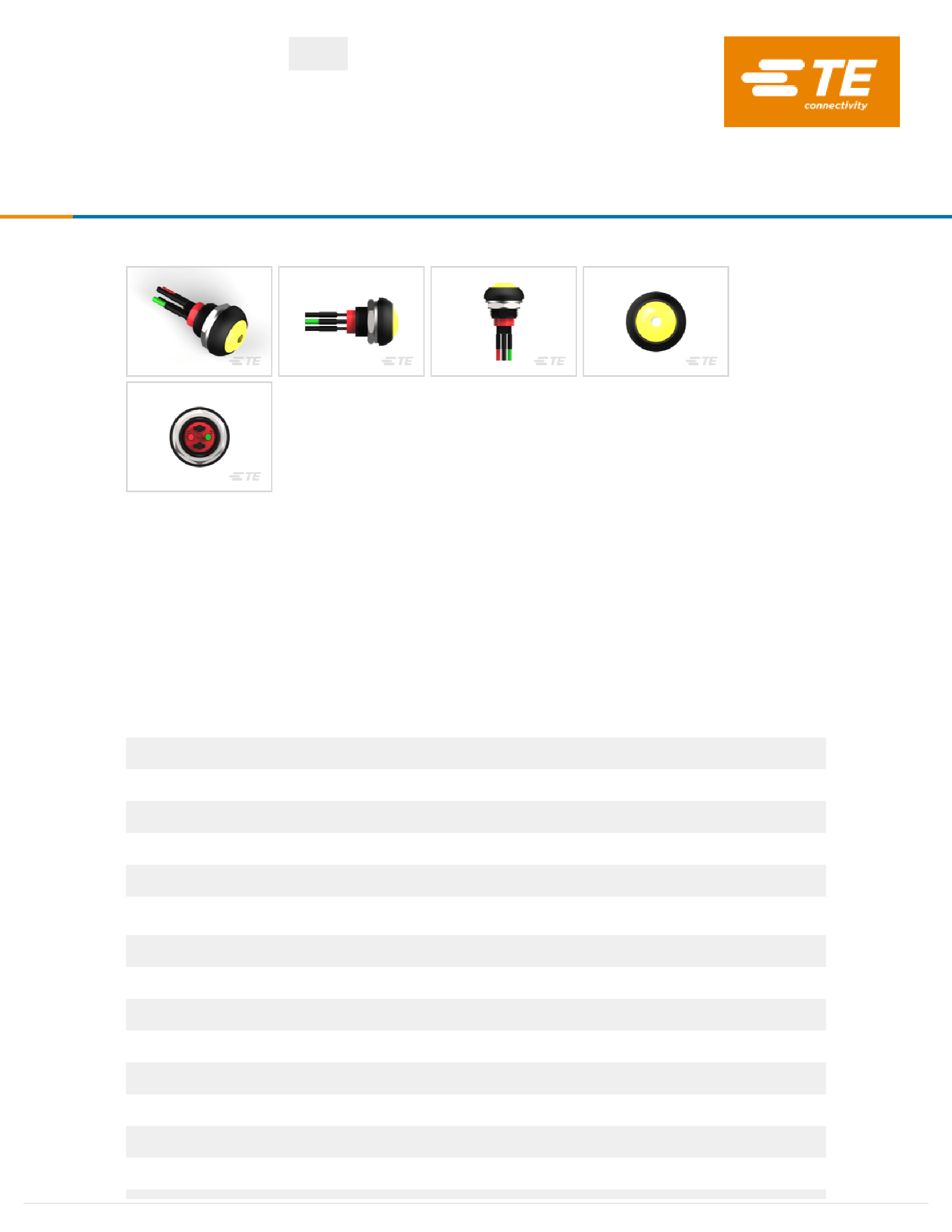

PB6B2FM5M1CAL01Y500
Alcoswitch PB6, Push Button Switches, Single Pole - Single Throw Configuration (Pole-
Throw), Switch, Single Actuator, Flush Actuator Profile, Threaded
PB6B2FM5M1CAL01Y500
Alcoswitch
|
Alcoswitch PB6
ACTIVE
TE Internal #: 1-2329389-1
Alcoswitch PB6, Push Button Switches, Single Pole - Single Throw
Configuration (Pole-Throw), Switch, Single Actuator, Flush Actuator
Profile, Threaded
View on TE.com >
Relays, Contactors & Switches
>
Switches
>
Push Button Switches
Configuration (Pole-Throw):
Single Pole - Single Throw
Push Button Switch Product Type:
Switch
Number of Actuators:
Single
Actuator Profile:
Flush
Bushing Style:
Threaded
Features
Product Type Features
Switch Type
Dust Proof
Push Button Switch Product Type
Illuminated
Actuator Style
Configuration Features
ESD Grounding Terminal
Detent Style
Ganged
Configuration (Pole-Throw)
Number of Actuators
Snap Action
Support Bracket
Tactile
For support call+1 800 522 6752
Pushbutton
Yes
Switch
Yes
Round
Without
Audible
No
Single Pole - Single Throw
Single
Without
Without
No
Momentary
04/16/2021 10:19AM | Page 1
Operating Function
PB6B2FM5M1CAL01Y500
Alcoswitch PB6, Push Button Switches, Single Pole - Single Throw Configuration (Pole-
Throw), Switch, Single Actuator, Flush Actuator Profile, Threaded
Operating Function
Electrical Characteristics
Push Button Switch Voltage Rating
Body Features
Case Material
Actuator Material
Actuator Profile
Bushing Style
Bushing Thread Size
Actuator Color
Contact Features
Push Button Switch Contact Current Rating
Switch Contact Plating Material
Termination Features
Termination Type
Mechanical Attachment
Mounting Angle
Push Button Switch Mounting Type
Housing Features
Process Sealed
Industry Standards
IP Rating
Packaging Features
Packaging Method
Other
Comment
Momentary
50 VDC
Diallyl Phthalate (DAP)
Polyamide
Flush
Threaded
M12 x .75
Yellow
.12 A
Gold over Silver
Long Leads
Vertical
Panel
Yes
IP68
Loose Piece
(On) indicates momentary position.
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
Compliant with Exemptions
Compliant with Exemptions
Restricted Materials Above Threshold
For support call+1 800 522 6752
04/16/2021 10:19AM | Page 2
PB6B2FM5M1CAL01Y500
Alcoswitch PB6, Push Button Switches, Single Pole - Single Throw Configuration (Pole-
Throw), Switch, Single Actuator, Flush Actuator Profile, Threaded
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2021
(211)
Candidate List Declared Against: JUN 2020
(209)
SVHC > Threshold:
Pb (3.7% in Component Part)
Article Safe Usage Statements:
Do not eat, drink or smoke when using this product. Wash thoroughly after
handling. Recycle if possible and dispose of the article by following all applicable
governmental regulations relevant to your geographic location.
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Solder Process Capability
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

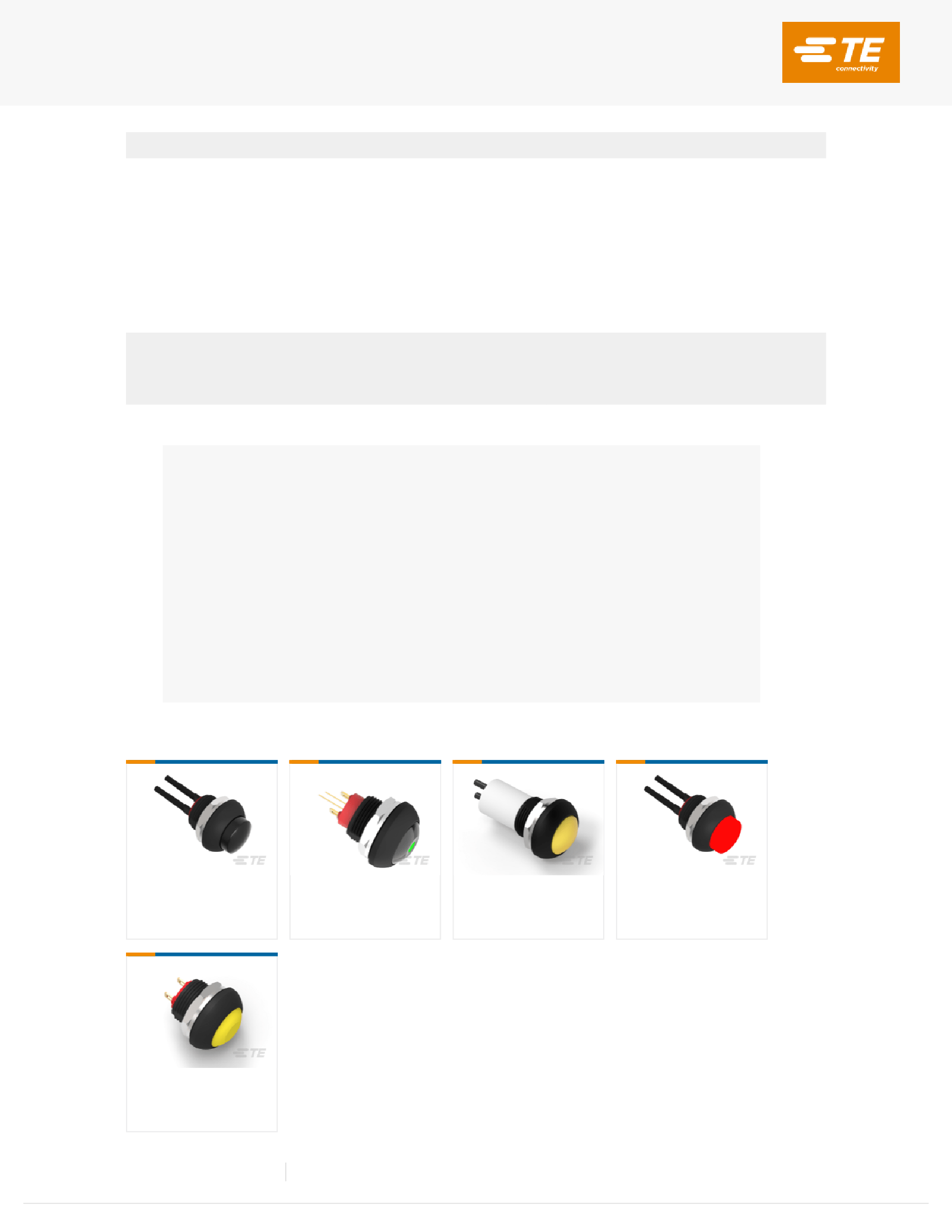

Compatible Parts
TE Part # 2329359-1
PN OFF/ON HC BLK M1 TERM IP68
500MM LHS
TE Part # 2329387-4
PB OFF/ON FC BLK M1 TERM GRE
LED IP68
TE Part # 2329361-3
PB OFF/ON RC YLW M1 TERM IP68
500MM L
TE Part # 2329359-2
PN OFF/ON HC RED M1 TERM IP68
500MM LHS
TE Part # 2329383-3
PB OFF/ON FC YLW M1 TERM. IP68
Also in the Series
