3-1423983-5

Description
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 2700mW (COIL), 20A (CONTACT), 28VDC (CONTACT), PANEL MOUNT, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size139KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-1423983-5 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1423983-5 - - View Buy Now

3-1423983-5 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 2700mW (COIL), 20A (CONTACT), 28VDC (CONTACT), PANEL MOUNT, ROHS COMPLIANT

3-1423983-5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time18 weeks
Other featuresCOIL OPERATE VOLTAGE(AC): 204 V
body width35.38 mm
body height59 mm
Body length or diameter38.05 mm
Coil current (AC) maximum value0.012 A
Coil power2700 mW
Coil resistance7200 Ω
Maximum coil voltage (AC)240 V
Coil/Input Power TypeAC
Contact (AC) maximum rated R load20A@240VAC
Maximum contact current (AC)20 A
Maximum contact current (DC)20 A
Contact (DC) maximum rated R load20A@28VDC
Maximum contact voltage (AC)240 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
Manufacturer's serial number1423983
Installation featuresPANEL MOUNT
operating hours20 ms
Maximum operating temperature45 °C
Minimum operating temperature-45 °C
physical size38.05mm x 35.38mm x 59mm
GuidelineCSA; UL; VDE
Relay actionMOMENTARY
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
release time20 ms
sealDUST PROOF
surface mountNO
Termination typeQUICK CONNECT
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Relays > Product Feature Selector > Product Details

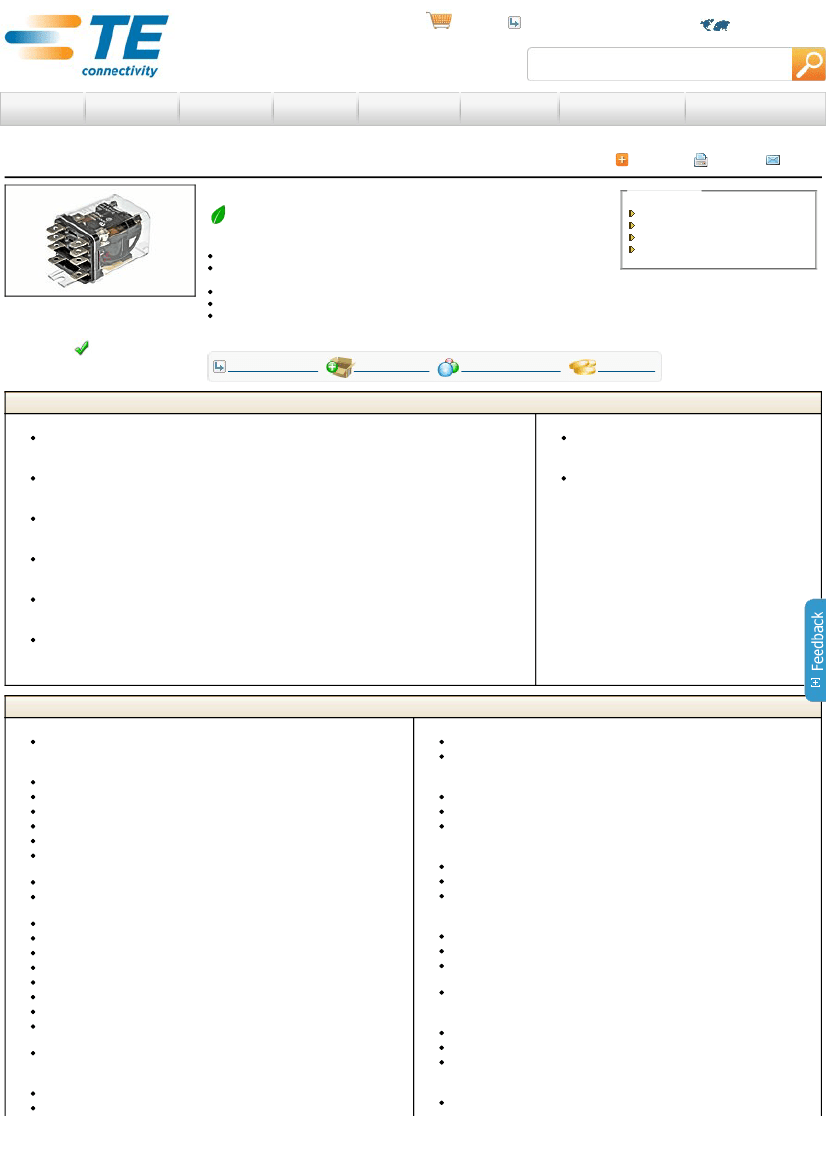

KUHP­11AT1­240 Product Details
Industrial Relays (General Purpose)

Converted to EU RoHS but not ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
KUHP Series
Contact ­ Current Class = 10A to 20A Class, Greater
Than 16A
Contact ­ Rated Current = 20 A
Terminal Type = Quick Connect, Solder
Contact ­ Arrangement = 2 Form C (CO)
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
KUHP­11AT1­240
(3­1423983­5)
TE Internal Number: 3­1423983­5
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
KUHP 30 Amp Power Relays (PDF, English)
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Mechanical Attachment:
Mounting Options = Flange Mount
Electrical Characteristics:
Contact ­ Current Class = 10A to 20A Class, Greater Than 16A
Contact ­ Rated Current (A) = 20
Contact ­ Limiting Continuous Current (A) = 20
Contact ­ Limiting Making Current (A) = 20
Contact ­ Limiting Breaking Current (A) = 20
Insulation ­ Initial Dielectric Between Coil/Contact Class = 3500V to
4000V Class
Insulation ­ Initial Dielectric Between Open Contacts (V rms) = 1200
Insulation ­ Initial Dielectric Between Contacts and Coil (V rms) =
3750
Contact ­ Rated Voltage (VAC) = 240
Contact ­ Limiting Short­Time Current (A) = 20
Contact ­ Switching Recommended Load, Min. = 300mA at 12V
Coil ­ Rated Voltage (VAC) = 240
Coil ­ Resistance (Ω) = 7200
Coil ­ Rated Power, AC (VA) = 3.00
Coil ­ Rated Power Class = 2.0VA to 3.0VA Class
Insulation ­ Initial Dielectric Between Adjacent Contacts (V rms) =
2000
Insulation ­ Initial Insulation Resistance (MΩ) = 100000
Dimensions:
Mechanical ­ Length Class = 35mm to 40mm Class
Length (mm [in]) = 38.10 [1.500]
Body Features:
Mount Type = Panel Mount
Weight (g [oz]) = 92.00 [3.245]
Contact Features:
Terminal Type = Quick Connect, Solder
Contact Material = AgCdO
Contact ­ Number of Poles = 2
Configuration Features:
Contact ­ Arrangement = 2 Form C (CO)
Coil ­ Magnetic System = Monostable, AC
Coil ­ Special Features = UL Coil Insulation Class B
Industry Standards:
RoHS/ELV Compliance = RoHS/Not ELV Compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Converted to comply with RoHS not
ELV directives
Approved/Registered Standards = CSA, UL
Environmental:
Environmental ­ Category of Protection = RTI
Environmental ­ Ambient Temperature, Max. (°C [°F]) = 45 [113]
Environmental ­ Ambient Temperature Class = 0 to 50°C Class
Packaging Features:
Packaging Method = Tray
