3-1624246-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3-1624246-3

3-1624246-3: DescriptionFixed Resistor, Metal Oxide Film, 3W, 3900ohm, 5% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size49KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1624246-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1624246-3	-	-	View	Buy Now

3-1624246-3 Overview

Fixed Resistor, Metal Oxide Film, 3W, 3900ohm, 5% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

3-1624246-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1645452788
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.4
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK
physical size	15mm x 5mm
Rated power dissipation(P)	3 W
resistance	3900 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	300 ppm/°C
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	350 V

Preview

Download Datasheet

View All

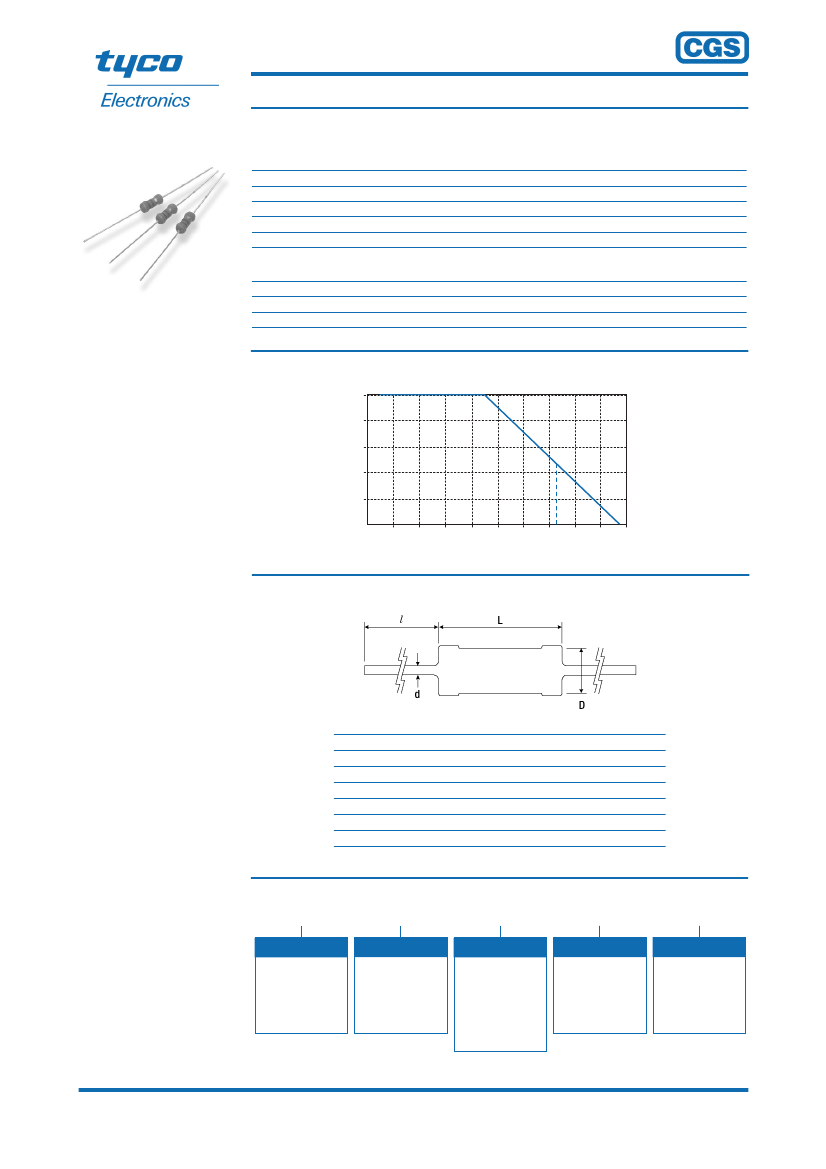

High Voltage Resistors

Type RSS Series

Characteristics -

Electrical

Power Rating at 70°C:

Maximum Working Voltage:

Maximum Overload Voltage:

Resistance Range*:

* Wider Values to Order

RSS-1/2W

1/2W

250V

600V

10R-33K

RSS-1W

350V

600V

10R-50K

RSS-2W

350V

600V

10R-50K

RSS-3W

350V

800V

10R-56K

RSS-5W

500V

1000V

10R-100K

RSS-7W

750V

400V

10R-200K

Miniature Power Oxide Resistors offer

excellent performance in applications

where stability and uniformity of

characteristics are required. They

provide smaller size for PC board

application with high performance and

precision to replace some wire-wound

resistors

resistors.

and

other

high

metal

power

Miniature

with

oxide

Short Time Overload:

Temperature Range:

Temperature Coefficient:

2.5 times rated voltage for 5 seconds

-55°C to +155°C

±300 ppm

Power Derating Curve

100

Rated Load (%)

-60 -55 -30

60 70 90

120

Ambient Temperature (°C)

150

180

155

210 235

resistors withstand solvents test in

accordance

MIL-STD-202E

without producing mechanical or

electrical damage.

Key Features

High Power with Small Size

for Space Saving

Excellent Long Term Stability

Complete Flameproof

Construction

High Surge/Overload

Capability

Controlled Temperature

Capability

Solvent Resistant Coat

and Code

Special Lead Formations

Possible

Style

RSS-1/2W

RSS-1W

RSS-2W

RSS-3W

RSS-5W

RSS-7W

D-mm

2.6±0.5

3.5±0.5

4.5±0.5

5.0±0.5

8.5±0.5

Dimensions

L-mm

6.8±1.0

9.0±1.0

11.0±1.0

15.0±1.0

24.0±1.0

41.0±1.0

l-mm

30±3

38±3

D-mm

0.60±0.05

0.65±0.05

0.80±0.05

How to Order

RSS

Common Part

Wattage at 70°C

100R

Resistance Value

100 ohm

(100 ohms) 100R

RSS - Standard Part

See Above Table

1K0 ohm

(1000 ohms) 1K0

100K ohm

(100,000 ohms) 100K

J - 5%

Tolerance

Packaging

TB - Ammo packed

box

TR - Tape and Reel

Literature No. 1773273

Issued: 04-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
