MKT 469
Vishay BCcomponents
Metallized Polyester Film Capacitors
MKT Radial Epoxy Lacquered Type
APPLICATIONS
Blocking and coupling. Bypass and energy reservoir
168x12(halfpage)
l
w
MARKING
C-value; tolerance; rated voltage; manufacturer’s symbol;
code for dielectric material and construction
seating
plane (1)
≤1.5
h
DIELECTRIC
Polyester film
lt
ELECTRODES
Vacuum deposited aluminium
Ø1.3
Dimensions in mm.
(1) Hole
∅1.0
for d
t
=
0.6 mm.
P±0.4
Ødt
COATING
Flame retardant epoxy material (UL-class 94 V-0)
RATED TEMPERATURE
85
°
C
CONSTRUCTION
Wound mono construction
MAXIMUM APPLICATION TEMPERATURE
105
°
C
LEADS
Tinned wire
REFERENCE SPECIFICATIONS
IEC 60384-2
CAPACITANCE RANGE (E12 SERIES)
0.001 to 1.0
µ
F
PERFORMANCE GRADE
Grade 1 (long life)
CAPACITANCE TOLERANCE
±
10%;
±
5%
MATERIALS
Qualified in accordance with UL94 V-0
RATED (DC) VOLTAGE
100 V; 250 V; 400 V; 630 V
FEATURES
Available taped and loose in box
RATED (AC) VOLTAGE
63 V; 160 V; 220 V; 250 V
DETAIL SPECIFICATION
For more detailed data and test requirements see
“Type
detail specification HQN-384-02/102”
CLIMATIC CATEGORY
55/105/56
Document Number: 28107
Revision: 29-Aug-03
For technical questions contact: filmcaps.roeselare@vishay.com
www.vishay.com
1
MKT 469
Vishay BCcomponents
Metallized Polyester Film Capacitors
MKT Radial Epoxy Lacquered Type
COMPOSITION OF CATALOG NUMBER
TYPE AND PITCHES
469
10.0 mm
CAPACITANCE
(numerically)
MULTIPLIER
(nF)
0.1
1
10
100
2
3
4
5
Example:
104 = 10 x 10 = 100 nF
2222
469 XX XX X
TYPE
PACKAGING
LEAD CONFIGURATION
lead length 4.0+1.0/−0.5 mm
ON REQUEST
C-TOL
±10%
±5%
±10%
±5%
±10%
±5%
100 V
25
26
21
22
28
29
250 V
45
46
41
42
48
49
400 V
55
56
51
52
58
59
630 V
65
66
61
62
68
69
loose in box
MKT 469
taped on reel
lead length 22.0
±4.0
mm
H
=
18.5 mm; P
0
=
12.7 mm;
reel diameter = 500 mm
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C
≤
0.1
µ
F
0.1
µ
F
<
C
≤
0.47
µ
F
0.47
µ
F
<
C
≤
1.0
µ
F
Rated voltage pulse slope (dU/dt)
R
at 100 V (DC)
R between leads, for C
≤
0.33
µ
F:
at 100 V; 1 minute
at 500 V; 1 minute
RC between leads, for C
>
0.33
µ
F at 100 V; 1 minute
R between interconnecting leads and casing; 100 V;
1 minute
Withstanding (DC) voltage (cut off current 10 mA);
rise time 100 V/s
Withstanding (DC) voltage between leads and case
>
5000 s
>
30000 M
Ω
160 V; 1 minute
200 V; 1 minute
>
30000 M
Ω
400 V; 1 minute
500 V; 1 minute
>
30000 M
Ω
640 V; 1 minute
800 V; 1 minute
>
30000 M
Ω
1008 V; 1 minute
1260 V; 1 minute
>
30000 M
Ω
>
30000 M
Ω
>
30000 M
Ω
at 1 kHz
≤
75
×
10
−
4
≤
75
×
10
−
4
≤
75
×
10
−
4
at 100 V (DC)
30 V/
µ
s
120 V/
µ
s
VALUE
at 10 kHz
≤
120
×
10
−
4
≤
120
×
10
−
4
≤
120
×
10
−
4
at 250 V (DC)
at 400 V (DC)
170 V/
µ
s
at 100 kHz
≤
200
×
10
−
4
≤
225
×
10
−
4
−
at 630 V (DC)
120 V/
µ
s
www.vishay.com
2
For technical questions contact: filmcaps.roeselare@vishay.com
Document Number: 28107
Revision: 29-Aug-03
MKT 469
Metallized Polyester Film Capacitors
MKT Radial Epoxy Lacquered Type
U
Rdc
=
100 V; U
Rac
=
63 V
CATALOG NUMBER 2222 469 ..... AND PACKAGING
LOOSE IN BOX
C
(
µ
F)
DIMENSIONS
w
max
×
h
max
×
l
max
(mm)
MASS
(g)
l
t
=
4.0
+
1.0/
−
0.5 mm
C-tol
= ±
10%
last 5 digits of
catalog number
Pitch
=
10.0
±0.4
mm; d
t
=
0.60
±0.06
mm
0.056
0.068
0.082
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
4.3
×
9.7
×
12.5
3.9
×
9.2
×
12.5
4.2
×
9.5
×
12.5
4.5
×
9.9
×
12.5
4.2
×
9.5
×
12.5
4.6
×
9.9
×
12.5
4.0
×
9.3
×
12.5
4.2
×
9.5
×
12.5
4.6
×
9.9
×
12.5
5.0
×
10.3
×
12.5
5.5
×
10.8
×
12.5
6.0
×
11.3
×
12.5
0.5
0.4
0.4
0.5
0.4
0.5
0.4
0.4
0.5
0.5
0.6
0.6
4.0
×
9.3
×
12.5
0.4
25563
25683
25823
25104
25124
25154
25184
25224
25274
25334
25394
25474
25564
25684
25824
25105
2000
2000
2000
2000
2000
2000
2000
2000
2000
1500
1500
1250
1500
1500
1500
1500
1500
1500
1500
1500
1500
1250
1000
1000
1500
1500
1500
1300
1500
1300
1500
1500
1300
1200
1100
1000
2000
1500
1500
SPQ
SPQ
SPQ
l
t
=
22.0
±
4.0 mm
REEL
Vishay BCcomponents
U
Rdc
=
250 V; U
Rac
=
160 V
CATALOG NUMBER 2222 469 ..... AND PACKAGING
LOOSE IN BOX
C
(µF)
DIMENSIONS
w
max
×
h
max
×
l
max
(mm)
MASS
(g)
l
t
=
4.0
+1.0/−0.5
mm
C-tol
= ±10%
last 5 digits of
catalog number
Pitch
=
10.0
±0.4
mm; d
t
=
0.60
±0.06
mm
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
0.12
0.15
0.18
0.22
4.2
×
9.5
×
12.5
4.6
×
9.9
×
12.5
4.0
×
9.3
×
12.5
4.1
×
9.4
×
12.5
4.0
×
9.3
×
12.5
4.1
×
9.4
×
12.5
4.4
×
9.7
×
12.5
4.0
×
9.3
×
12.5
4.3
×
9.7
×
12.5
4.8
×
10.1
×
12.5
5.2
×
10.5
×
12.5
5.8
×
11.1
×
12.5
0.4
0.5
0.4
0.4
0.4
0.4
0.5
0.4
0.5
0.5
0.5
0.6
45273
45333
45393
45473
45563
45683
45823
45104
45124
45154
45184
45224
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1250
1000
1000
1500
1300
1500
1500
1500
1500
1500
1500
1500
1300
1200
1100
SPQ
SPQ
SPQ
l
t
=
22.0
±4.0
mm
REEL
Document Number: 28107
Revision: 29-Aug-03
For technical questions contact: filmcaps.roeselare@vishay.com
www.vishay.com
3
MKT 469
Vishay BCcomponents
U
Rdc
=
400 V; U
Rac
=
220 V
CATALOG NUMBER 2222 469 ..... AND PACKAGING
LOOSE IN BOX
C
(µF)
DIMENSIONS
w
max
×
h
max
×
l
max
(mm)
MASS
(g)
l
t
=
4.0
+1.0/−0.5
mm
C-tol
= ±10%
last 5 digits of
catalog number
Pitch
=
10.0
±0.4
mm; d
t
=
0.60
±0.06
mm
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
55102
55122
55152
55182
55222
55272
55332
55392
55472
55562
55682
55822
55103
55123
55153
55183
55223
55273
55333
55393
55473
55563
55683
55823
55104
SPQ
SPQ
SPQ
l
t
=
22.0
±4.0
mm
REEL
Metallized Polyester Film Capacitors
MKT Radial Epoxy Lacquered Type
4.5
×
9.9
×
12.5
0.5
2000
1500
1300
4.0
×
9.3
×
12.5
4.3
×
9.7
×
12.5
4.6
×
9.9
×
12.5
4.0
×
9.3
×
12.5
4.1
×
9.5
×
12.5
4.6
×
9.9
×
12.5
4.2
×
9.5
×
12.5
4.6
×
9.9
×
12.5
4.1
×
9.4
×
12.5
4.5
×
9.9
×
12.5
4.1
×
9.4
×
12.5
4.5
×
9.9
×
12.5
4.0
×
9.3
×
12.5
4.2
×
9.5
×
12.5
4.6
×
9.9
×
12.5
5.0
×
10.3
×
12.5
4.1
×
9.4
×
12.5
4.4
×
9.7
×
12.5
4.8
×
10.1
×
12.5
5.4
×
10.8
×
12.5
5.7
×
11.0
×
12.5
0.4
0.5
0.5
0.4
0.4
0.5
0.4
0.5
0.4
0.5
0.4
0.5
0.4
0.4
0.5
0.5
0.4
0.5
0.5
0.6
0.6
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
1500
2000
2000
2000
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1250
1500
1500
1250
1000
1000
1500
1500
1300
1500
1500
1300
1500
1300
1500
1300
1500
1300
1500
1500
1300
1200
1500
1500
1300
1200
1100
U
Rdc
=
630 V; U
Rac
=
250 V
CATALOG NUMBER 2222 469 ..... AND PACKAGING
LOOSE IN BOX
C
(µF)
DIMENSIONS
w
max
×
h
max
×
l
max
(mm)
MASS
(g)
l
t
=
4.0
+1.0/−0.5
mm
C-tol
= ±10%
last 5 digits of
catalog number
Pitch
=
10.0
±0.4
mm; d
t
=
0.60
±0.06
mm
0.01
0.012
0.015
0.018
0.022
0.027
0.033
4.1
×
9.4
×
12.5
4.5
×
9.9
×
12.5
4.9
×
10.2
×
12.5
5.4
×
10.8
×
12.5
4.8
×
10.1
×
12.5
5.3
×
10.7
×
12.5
5.9
×
11.2
×
12.5
0.4
0.5
0.5
0.6
0.5
0.6
0.6
65103
65123
65153
65183
65223
65273
65333
2000
2000
2000
1500
2000
2000
1500
1500
1500
1250
1000
1250
1000
1000
1500
1300
1200
1100
1300
1200
1100
SPQ
SPQ
SPQ
l
t
=
22.0
±4.0
mm
REEL
www.vishay.com
4
For technical questions contact: filmcaps.roeselare@vishay.com
Document Number: 28107
Revision: 29-Aug-03
MKT 469
Metallized Polyester Film Capacitors
MKT Radial Epoxy Lacquered Type

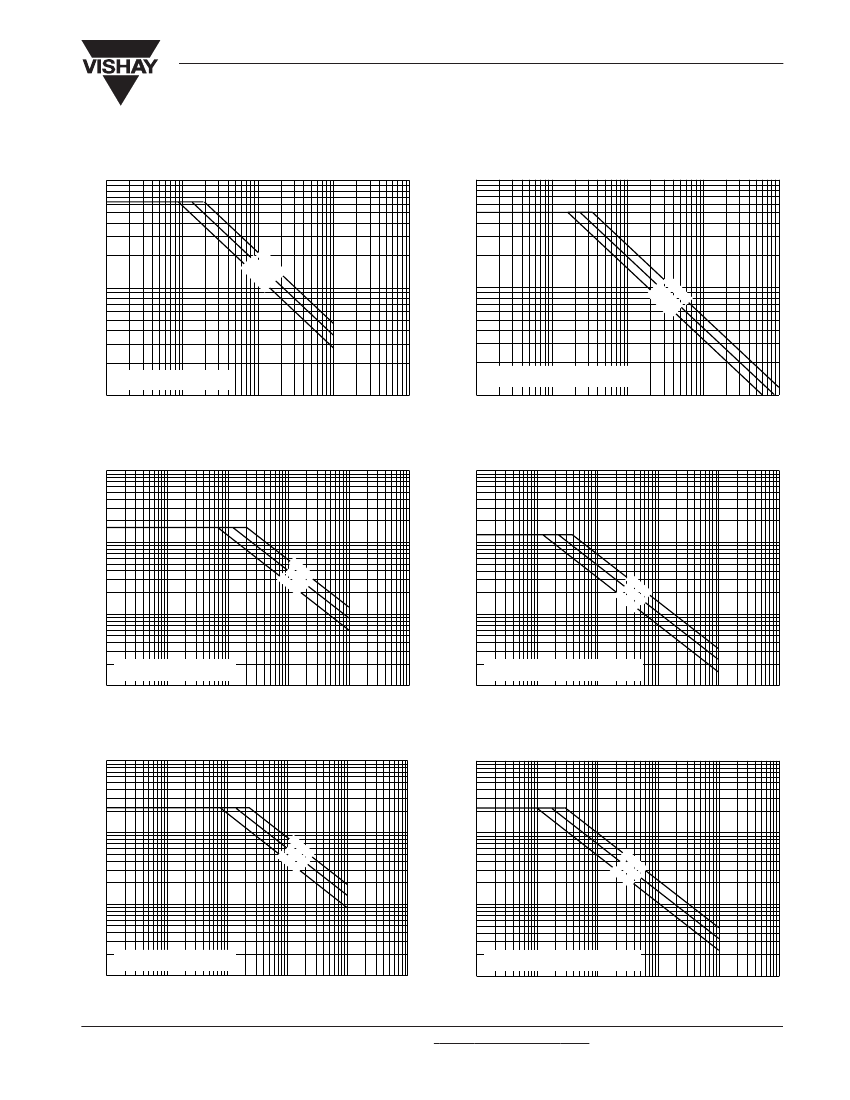

MAXIMUM RMS VOLTAGE (SINEWAVE) AS A FUNCTION OF FREQUENCY
2
2
Vishay BCcomponents
10
10
AC voltage
(V)
10
1
10
AC voltage
(V)
nF F
56 n
0
µ
F
22 .0
1
1
nF F
56 0 n F
µ
22 .0
1
Tamb
≤
85
°C,
100 VDC
10 0 2
10
10
3
10
4
10
5
f (Hz) 10
6
10
0
10
1
85
°C
< Tamb
≤
105
°C,
100 VDC
10
2
10
3
10
4
f (Hz) 10 5
AC voltage
(V)
10
2
27
8
n
22 2 nF
F
0
nF
10 2
AC voltage
(V)
10
3
10
3
10 1
10
1
27
8
n
22 2 nF
F
0
nF
Tamb
≤
85
°C,
250 VDC
10
0
10
1
10
2
10
3
10
4
10
6
5 f (Hz)
10
10 0
1
10
85
°C
< Tamb
≤
105
°C,
250 VDC
10
2
10
3
10
4
10
5 f (Hz)
6
10
AC voltage
(V)
10 2
10
56
nF
10 nF
0
nF
10
AC voltage
(V)
2
10
5
n
10 6 nF
F
0
nF
10
3
10
3
10
1
10
1
Tamb
≤
85
°C,
400 VDC
10
0
10
1
10
2
10
3
10
4
10
6
5 f (Hz)
10
10
0
10
1
85
°C
< Tamb
≤
105
°C,
400 VDC
10
2
10
3
10
4
10
6
5 f (Hz)
10
Document Number: 28107
Revision: 29-Aug-03
For technical questions contact: filmcaps.roeselare@vishay.com
www.vishay.com
5
京公网安备 11010802033920号
EEWORLD
