ACT20JF32SA-6149 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ACT20JF32SA-6149

ACT20JF32SA-6149: DescriptionMIL Series Connector, 32 Contact(s), Composite, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size276KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

ACT20JF32SA-6149 Overview

MIL Series Connector, 32 Contact(s), Composite, Female, Crimp Terminal, Receptacle

ACT20JF32SA-6149 Parametric

Parameter Name	Attribute value
Objectid	7192093152
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	9.67
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
Coupling type	THREADED
DIN compliance	NO
Electromagnetic interference shielding	YES
empty shell	YES
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	7.5A
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Number of connectors	ONE
Number of ports	1
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization	N
polarization key	POLARIZED
Rated current (signal)	7.5 A
Shell surface	NICKEL
Shell material	COMPOSITE
Housing size	F
Terminal pitch	0.06 mm
Termination type	CRIMP
Total number of contacts	32
Maximum wire diameter	18 AWG
Minimum wire diameter	24 AWG

Preview

Download Datasheet

View All

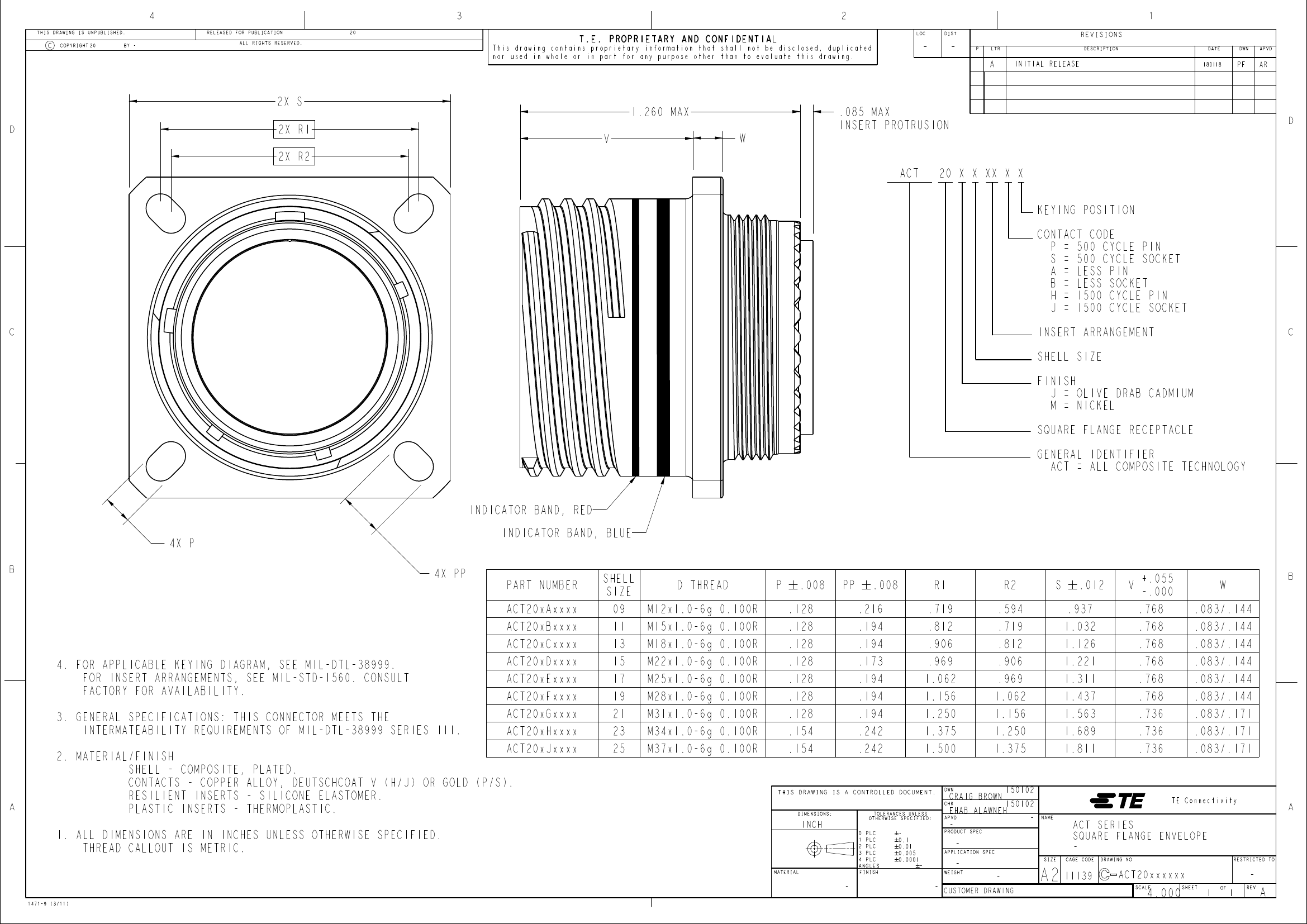

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

T.E. PROPRIETARY AND CONFIDENTIAL

LOC

DIST

COPYRIGHT20

BY -

This drawing contains proprietary information that shall not be disclosed,

duplicated

nor used in whole or in part for any purpose other than to evaluate this

drawing.

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

INITIAL RELEASE

180118

2X S

2X R1

2X R2

1.260 MAX

.085 MAX

INSERT PROTRUSION

ACT

20 X X XX X X

KEYING POSITION

CONTACT CODE

P = 500 CYCLE PIN

S = 500 CYCLE SOCKET

A = LESS PIN

B = LESS SOCKET

H = 1500 CYCLE PIN

J = 1500 CYCLE SOCKET

INSERT ARRANGEMENT

SHELL SIZE

FINISH

J = OLIVE DRAB CADMIUM

M = NICKEL

SQUARE FLANGE RECEPTACLE

GENERAL IDENTIFIER

ACT = ALL COMPOSITE TECHNOLOGY

INDICATOR BAND, RED

4X P

INDICATOR BAND, BLUE

4X PP

SHELL

SIZE

+.055

-.000

.768

.736

.768

PART NUMBER

ACT20xAxxxx

ACT20xBxxxx

ACT20xCxxxx

D THREAD

M12x1.0-6g 0.100R

M15x1.0-6g 0.100R

M18x1.0-6g 0.100R

M22x1.0-6g 0.100R

M25x1.0-6g 0.100R

M31x1.0-6g 0.100R

M37x1.0-6g 0.100R

M34x1.0-6g 0.100R

M28x1.0-6g 0.100R

# .008 PP

.128

# .008

.216

.194

.173

.194

.242

.719

.812

.906

1.062

1.250

1.156

.969

.594

.719

.812

.906

1.062

1.250

1.156

.969

# .012

1.032

1.126

1.221

1.311

1.437

1.689

1.563

.937

.083/.144

.083/.171

.083/.144

4. FOR APPLICABLE KEYING DIAGRAM, SEE MIL-DTL-38999.

FOR INSERT ARRANGEMENTS, SEE MIL-STD-1560. CONSULT

FACTORY FOR AVAILABILITY.

3. GENERAL SPECIFICATIONS: THIS CONNECTOR MEETS THE

INTERMATEABILITY REQUIREMENTS OF MIL-DTL-38999 SERIES III.

ACT20xDxxxx

ACT20xExxxx

ACT20xGxxxx

ACT20xFxxxx

2. MATERIAL/FINISH

SHELL - COMPOSITE, PLATED.

CONTACTS - COPPER ALLOY, DEUTSCHCOAT V (H/J) OR GOLD (P/S).

RESILIENT INSERTS - SILICONE ELASTOMER.

PLASTIC INSERTS - THERMOPLASTIC.

1. ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE SPECIFIED.

THREAD CALLOUT IS METRIC.

ACT20xJxxxx

ACT20xHxxxx

.154

1.375

1.500

DWN

CHK

1.375

1.811

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

INCH

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.1

0.01

0.005

0.0001

150102

EHAB ALAWNEH

APVD

PRODUCT SPEC

APPLICATION SPEC

CRAIG BROWN

150102

NAME

TE Connectivity

WEIGHT

1471-9 (3/11)

CUSTOMER DRAWING

11139

SIZE

CAGE CODE

ACT SERIES

SQUARE FLANGE ENVELOPE

DRAWING NO

RESTRICTED TO

ACT20xxxxxx

SCALE

4.000

SHEET

REV
