23-09-1061 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 23-09-1061

23-09-1061: Description6 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE; CategoryThe connector The connector; File Size182KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

23-09-1061 Overview

6 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE

23-09-1061 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1261
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYPROPYLENE
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

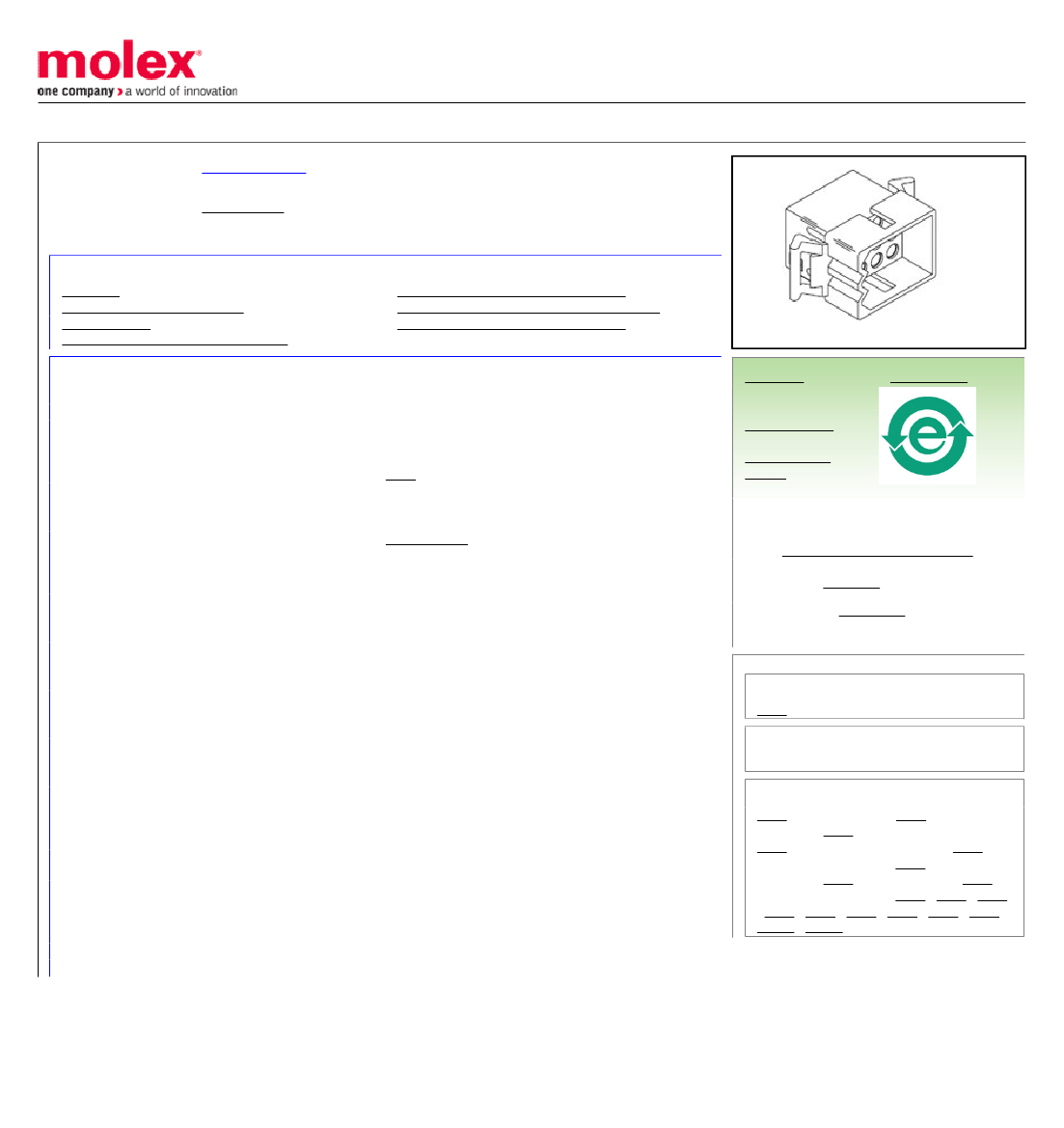

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0003092061

Active

standard_093

2.36mm (.093") Diameter Standard .093 Pin and Socket Plug Housing, 6 Circuits, Dual

Row

Documents:

3D Model

Packaging Specification (PDF)

Drawing (PDF)

Product Specification PS-02-09 (PDF)

Product Specification PS-42477 (PDF)

Product Specification PS-43660-9999 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Comments

MolexKits

Overview

Product Name

Crimp Housings

1261

14.0A max. can be achieved when housing is used with

42477 or 42478 terminals

Yes

standard_093

Standard .093"

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Natural

94V-2

Dual

Nylon

Bag

Yes

0.198 In

5.03 mm

-40°C to +105°C

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

1261Series

Mates With

1261r

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1376 Male PC Tail Terminals,

1377 Female PC Tail Terminals, 1380

Male Crimp Terminals, 1381 Female Crimp

Terminals, 1433 Crimp Terminals, 1434

Male Crimp Terminals, 1973 , 2151 , 2273

, 2870 , 2871 , 4272 , 4550 , 6271 , 6310 ,

42477 , 42478

Electrical

Current - Maximum per Contact

11A

Material Info

Old Part Number

1261-P

Reference - Drawing Numbers

Packaging Specification

Product Specification

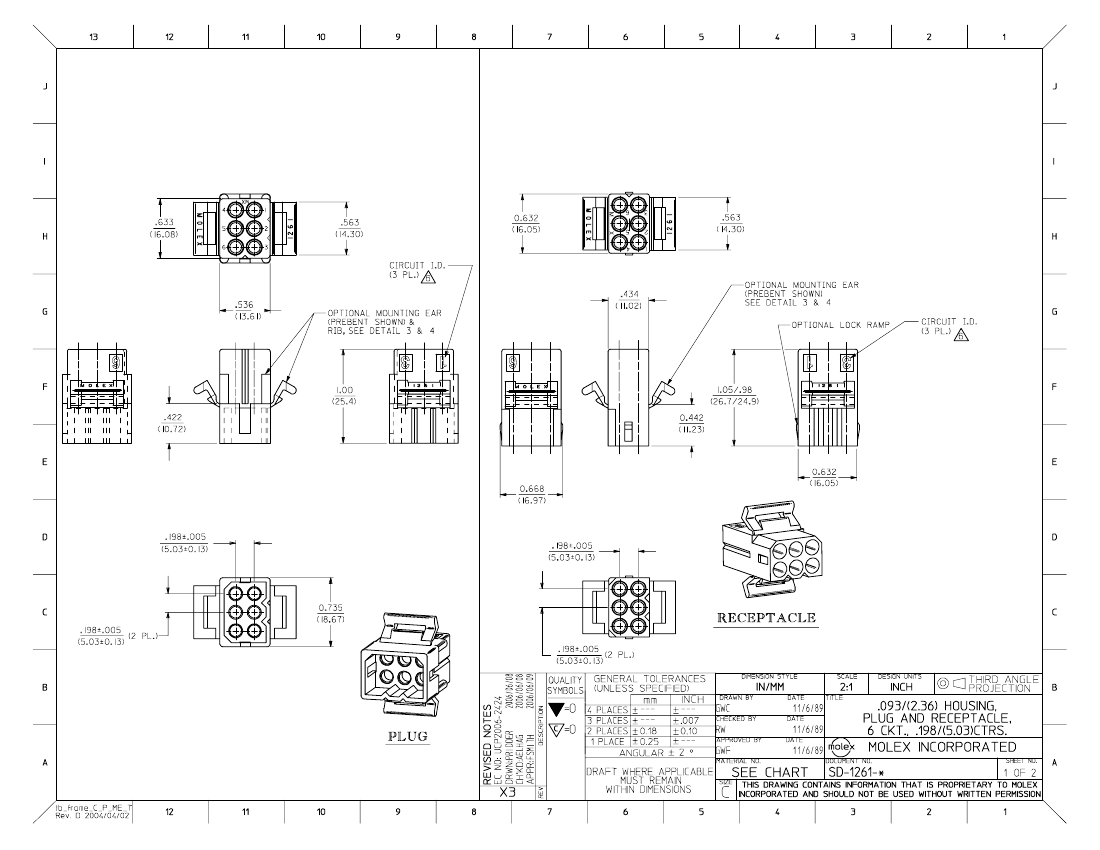

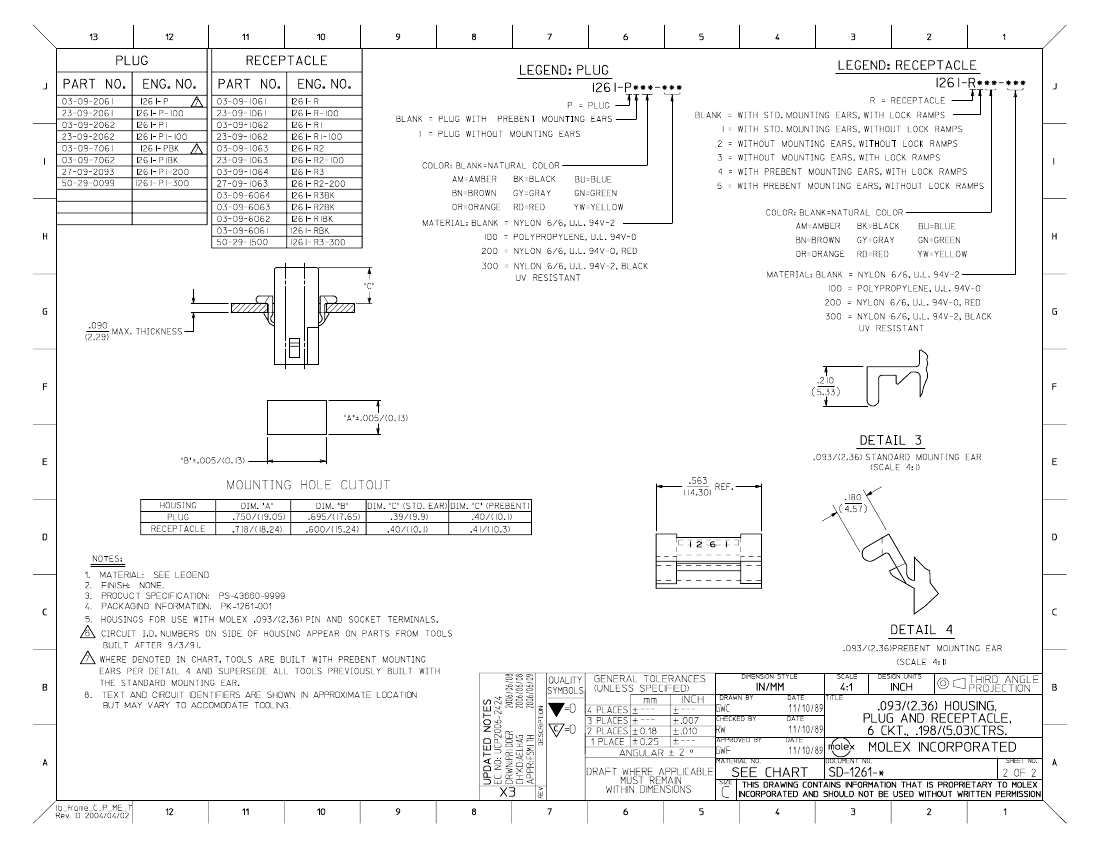

Sales Drawing

PK-1261-001

PS-02-09, PS-42477, PS-43660-9999

SD-1261-*

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
